Southbend (Middleby) PE24C-BB Platinum Electric Ranges
Description

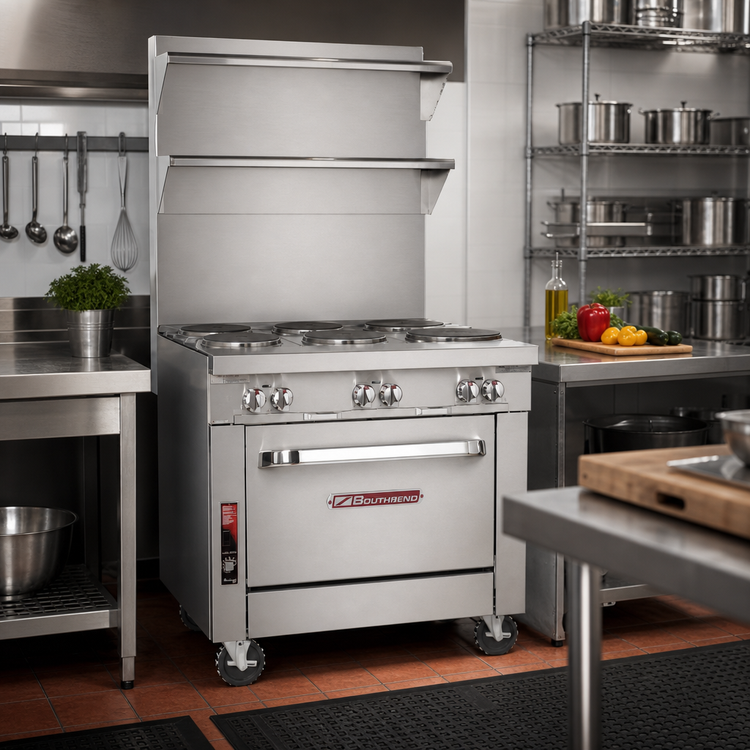

Southbend Platinum Series 24" Electric Heavy-Duty Range
Model PE24C-BB • 4 × 9" Round Hot Plates • Cabinet BaseBuilt for the most demanding commercial kitchens, the Southbend Platinum PE24C-BB delivers rugged performance, precise temperature control and the durability operators expect from a true heavy-duty range—all in a compact 24 inch footprint. Four high-output, solid 9" hot plates sit above a full stainless cabinet base to keep cookware, utensils or sheet pans within easy reach.

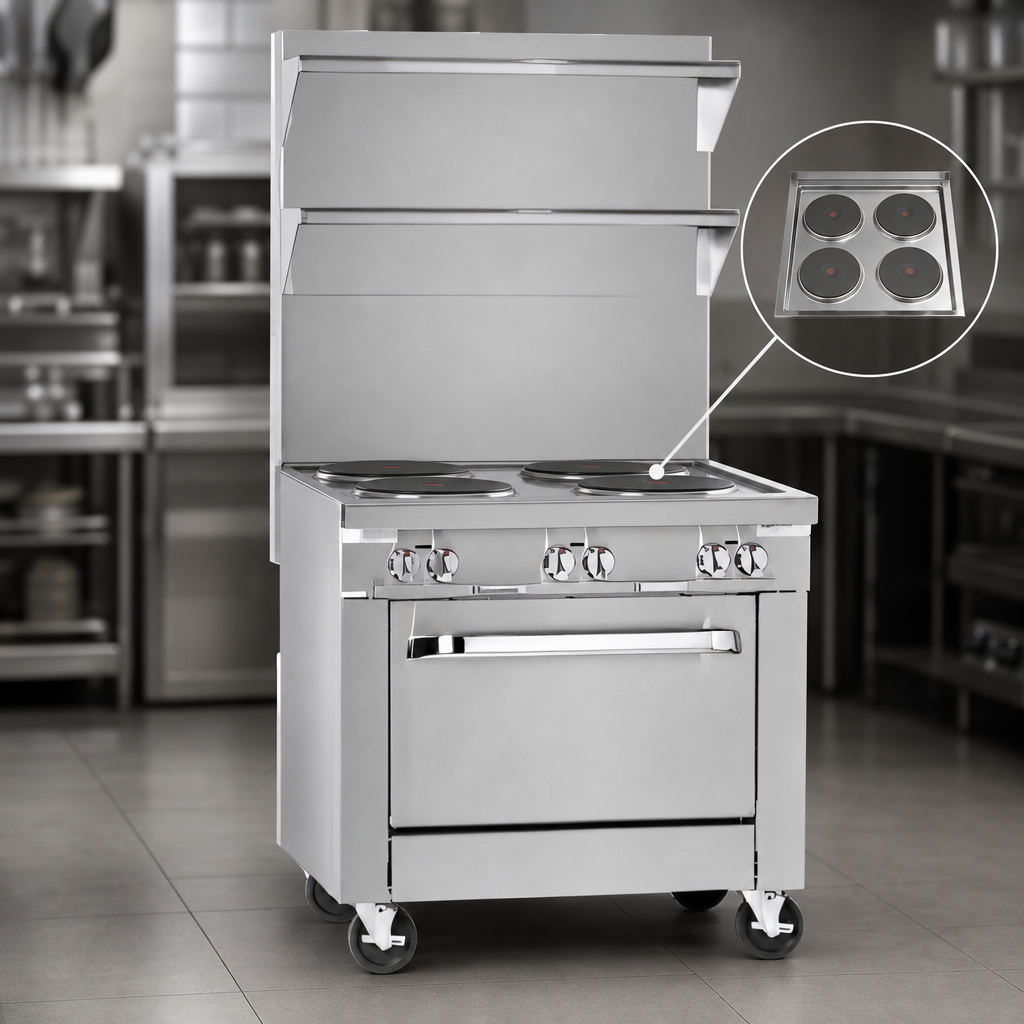

- (4) 9" solid round hot plates, 2.6 kW each (10.4 kW total) for fast heat-up and recovery.
- Individual 4-position switch for every plate — High • Medium • Low • Off.
- Stainless steel front, sides, rear & exterior bottom resist corrosion and simplify cleaning.
- Fully-insulated burner box maximises energy efficiency and keeps work areas cooler.
- 9-1/4" deep front rail provides a convenient landing zone for pans.
- 5" stainless flue riser directs heat and vapour to the ventilation hood.
- Cabinet base with centre-opening, removable doors for dry storage.
- 6" adjustable stainless legs assure a level, NSF-compliant installation.
- Heavy-duty construction approved to cCSAus & NSF standards.
| Hot Plates | 4 × 9" solid round |
|---|---|
| Output | 2.6 kW per plate | 10.4 kW total |
| Controls | 4-position switch – High / Medium / Low / Off |
| Cooking Surface Width | 24" (610 mm) |
| Depth | 34" (864 mm) |
| Working Height | 36" (914 mm) to cooking surface | 41" (1041 mm) with 5" flue riser |
| Electrical | 208, 240 or 480 VAC 3-phase • 10.4 kW 208 V ≈ 33 A/line | 240 V ≈ 29 A/line | 480 V ≈ 14 A/line |
| Shipping Weight | 330 lb (149.7 kg) |
| Certifications | cCSAus, NSF |
| Warranty | 1 year parts & labor (commercial use) |
- Locking front casters for easy mobility.
- 24" or 36" flue riser with single or double shelves.
- Open-frame base with casters for battery line-ups.
- Rear gas connection (for mixed-fuel line-ups).
- Tray or tubular shelves, cable restraint kits & more.
Avoid using cookware larger than 12" in diameter on the front hot plates to prevent excessive heat build-up in the front rail. Install under a properly sized ventilation hood and maintain all clearances per local code.
Need help designing a battery line-up or selecting the right options? Our team is ready to assist—just reach out!
