Southbend (Middleby) PCHG30S/T Platinum Convection Ovens
Description

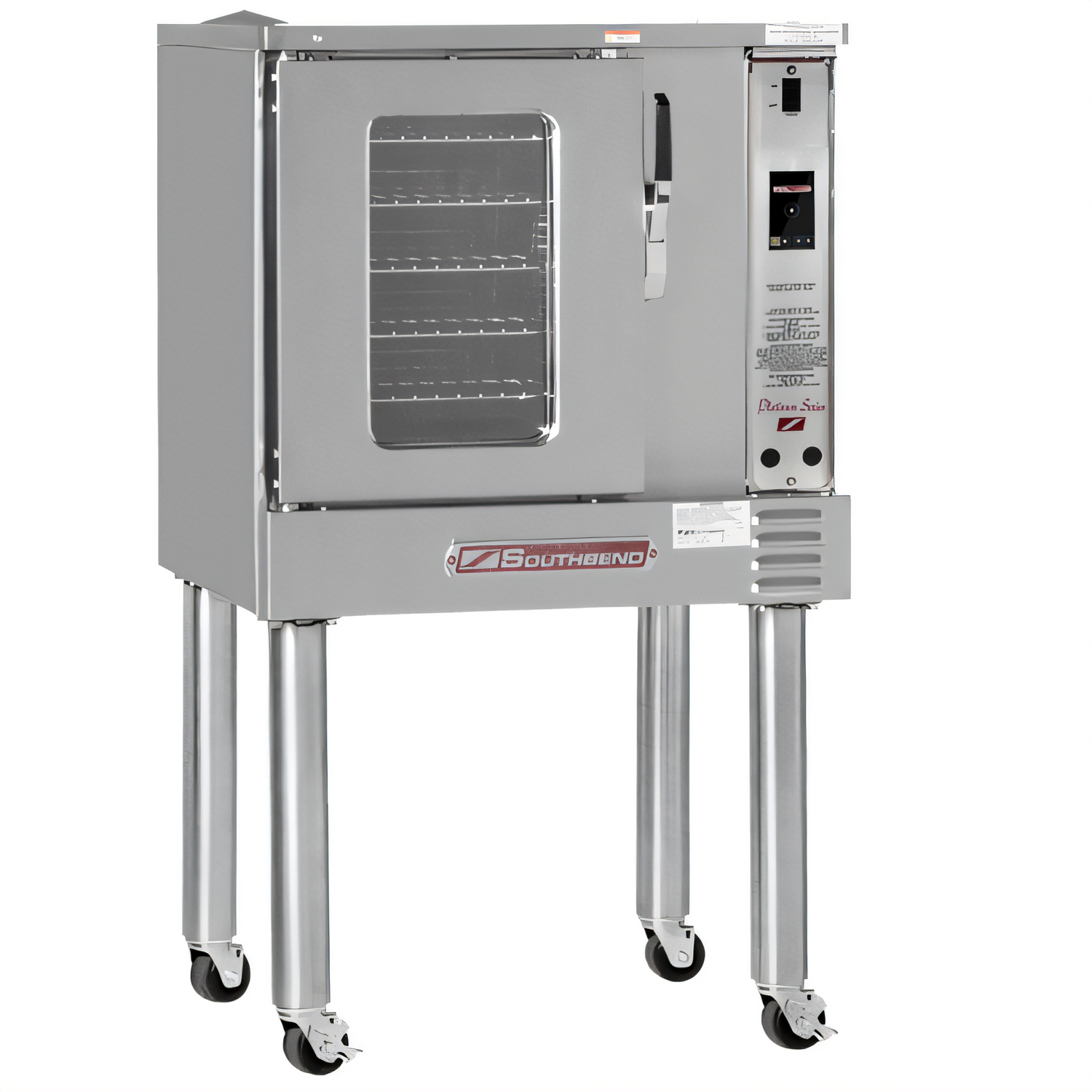

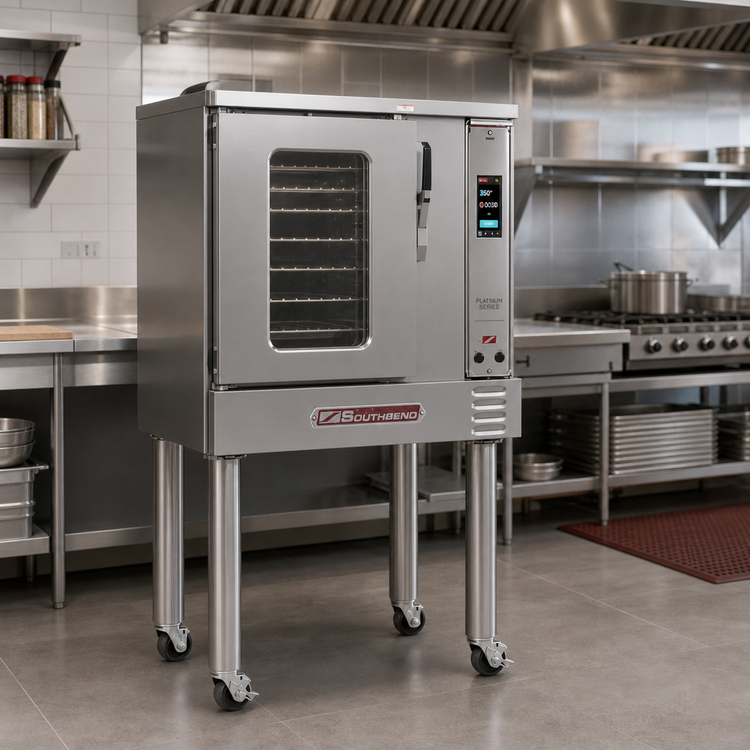

Southbend Platinum Series PCHG30S/T Half-Size Gas Convection Oven

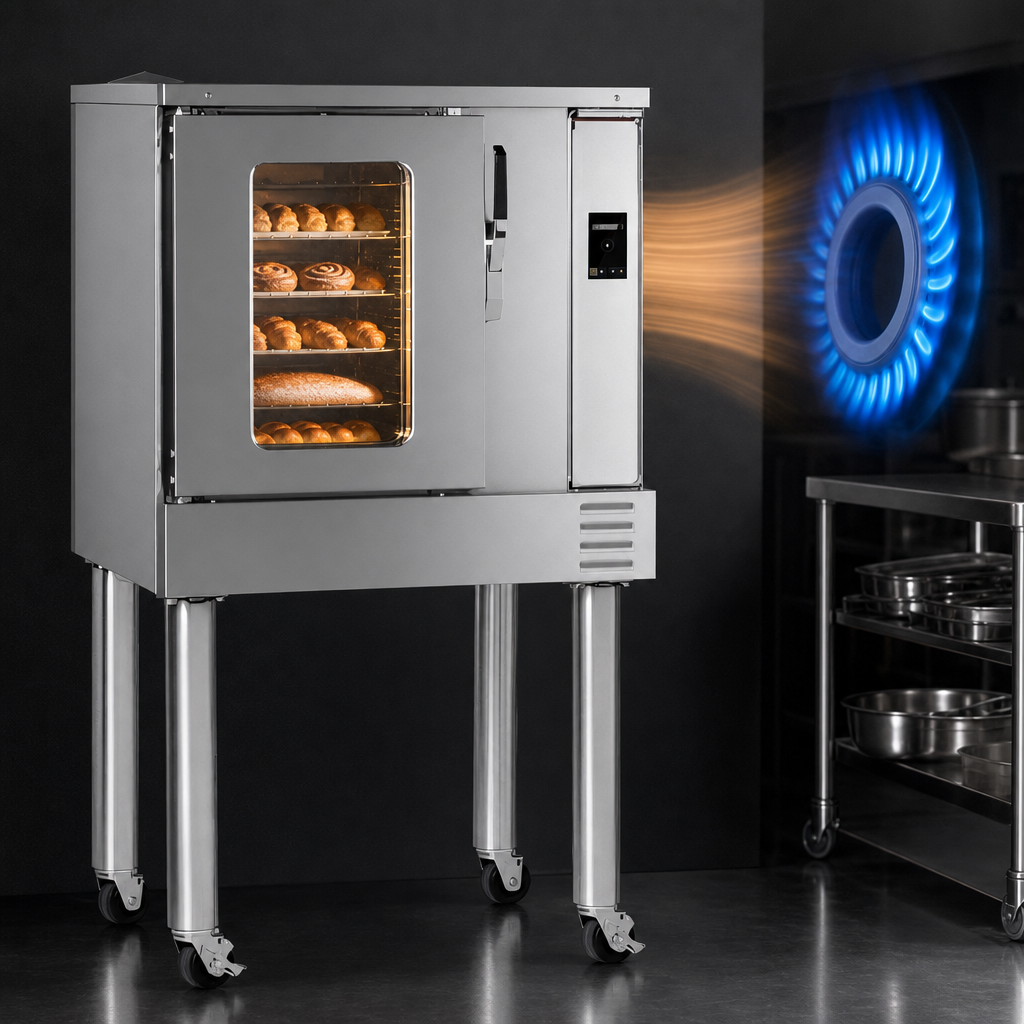

30,000 BTU • Single Deck • Touchscreen ControlsBring full-size performance to tight spaces. Southbend’s Platinum Series half-size oven couples a powerful 30,000 BTU jet-stream burner with an intuitive touchscreen, letting you bake, roast and hold with pinpoint accuracy on up to five half-size sheet pans.
Why You’ll Love It

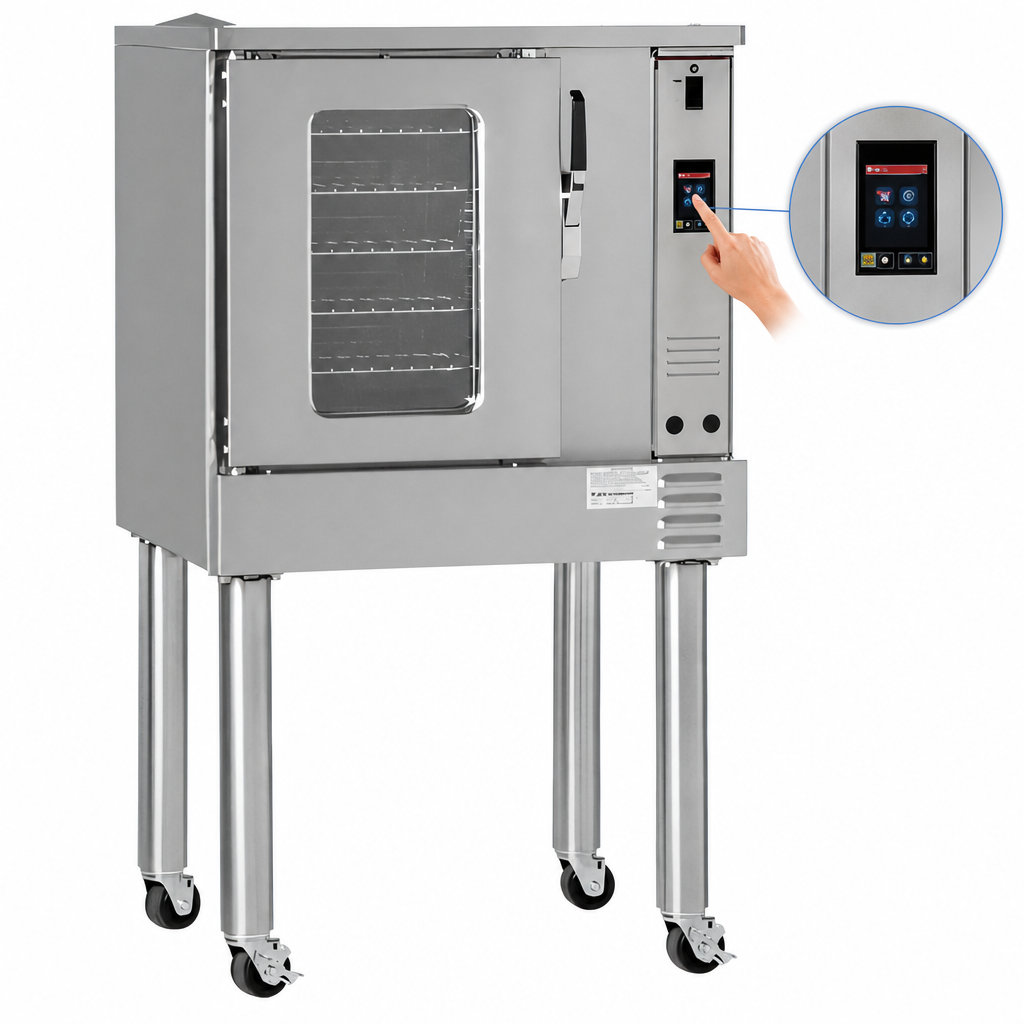

- Touchscreen thermostat — 150 °F–550 °F with 140 °F–200 °F “Hold” mode
- Recipe storage & multi-timer “Rack” mode for up to 11 shelf positions
- Patented plug-in / plug-out control panel speeds service & maintenance
- Stainless steel front, sides & top; porcelain-enameled, coved interior
- Single door with window swings a full 180° for unobstructed loading
- ½ HP, 2-speed fan motor with fan-pulse option for delicate items
- Electronic hot-surface ignition with flame safety device
- Forced cool-down fan keeps your kitchen moving between batches
- Includes (5) nickel-plated racks with 11-position guides on 1 ⅝" centers
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Technical Specifications
| Model | PCHG30S/T |
|---|---|
| Capacity | (5) half-size sheet pans |
| Exterior (W × D × H) | 30" × 29" × 33" (with 4" legs) |
| Interior (W × D × H) | 15.8" × 21.3" × 20" |
| Heat Input | 30,000 BTU/hr (NAT or LP) |
| Gas Connection | ¾" NPT; 7" W.C. NAT / 11" W.C. LP (minimum) |
| Electrical | 120 V, 60 Hz, 1 Φ, 7.9 A, NEMA 5-15P cord & plug 208 V / 240 V field-wired options available |
| Fan Motor | ½ HP, 2-speed (1710/1120 RPM) |
| Shipping Weight | ≈ 420 lb (190.5 kg) |
| Warranty | 1 year parts & labor |
Popular Accessories (sold separately)
- Stainless steel oven interior
- Solid stainless door
- 4", 6" or 26" stainless legs / caster kits (rack guide option available)
- Marine-edge top
- ¾" quick-disconnect gas hose (3', 4' or 5')
- Stainless steel dirt tray
