Southbend (Middleby) PCHE75S/T-V Platinum Convection Ovens
Description

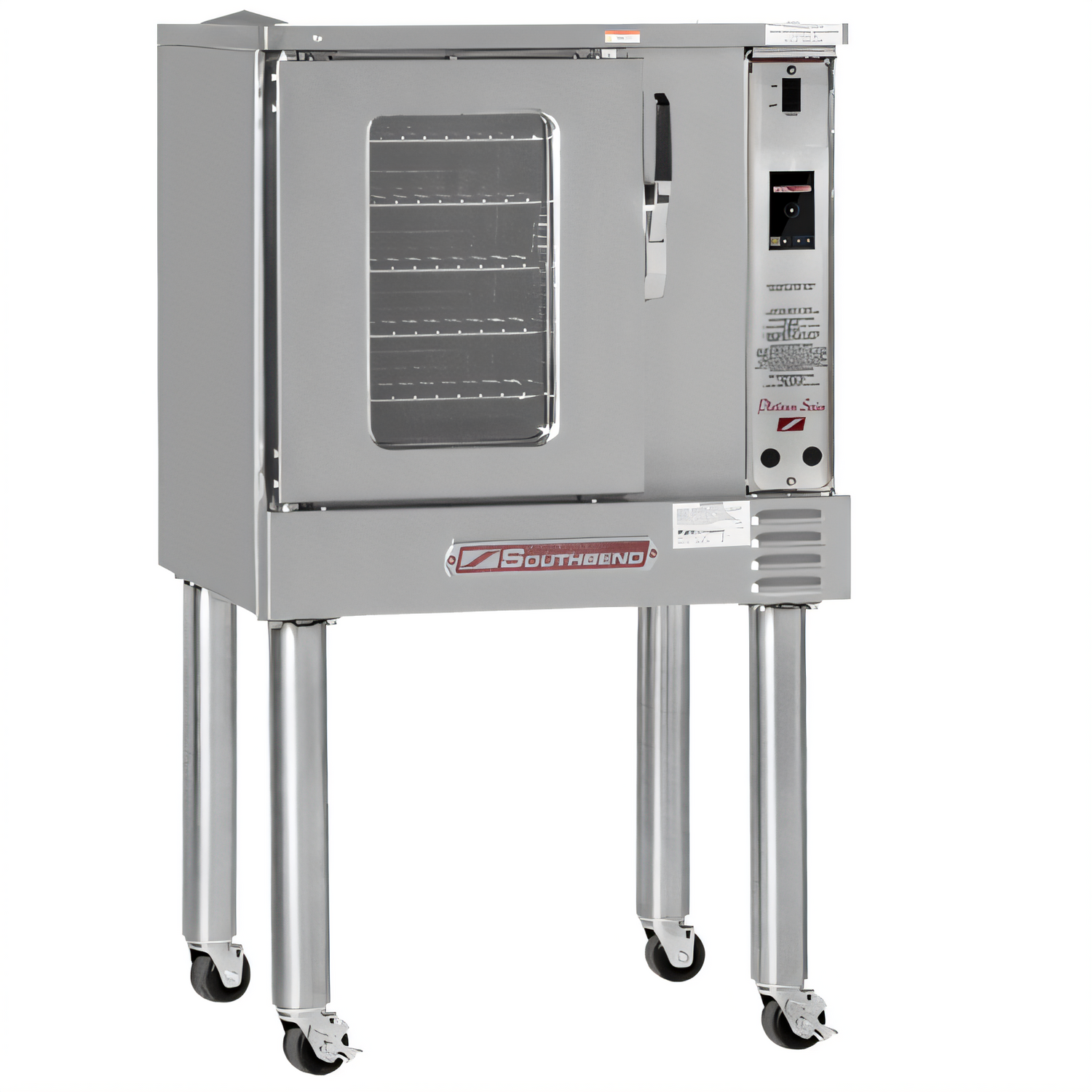

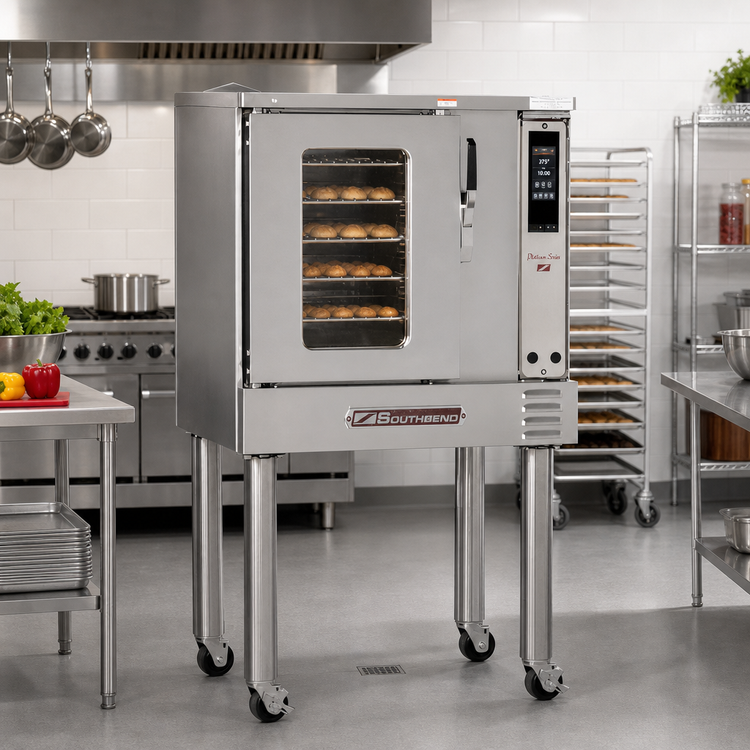

Southbend Platinum Ventless Half-Size Electric Convection Oven — Touchscreen, 7.5 kW
Model PCHE75 | Single-Deck, Standard DepthTake your bake anywhere. Southbend’s Platinum Series PCHE75 combines a compact half-size footprint with a powerful 7.5 kW heating system, an intuitive touchscreen, and a UL-listed ventless catalyst that eliminates the need for a traditional hood. From biscuits at breakfast to bacon at brunch, this oven delivers consistent, energy-efficient results wherever you need them.
Key Performance Features

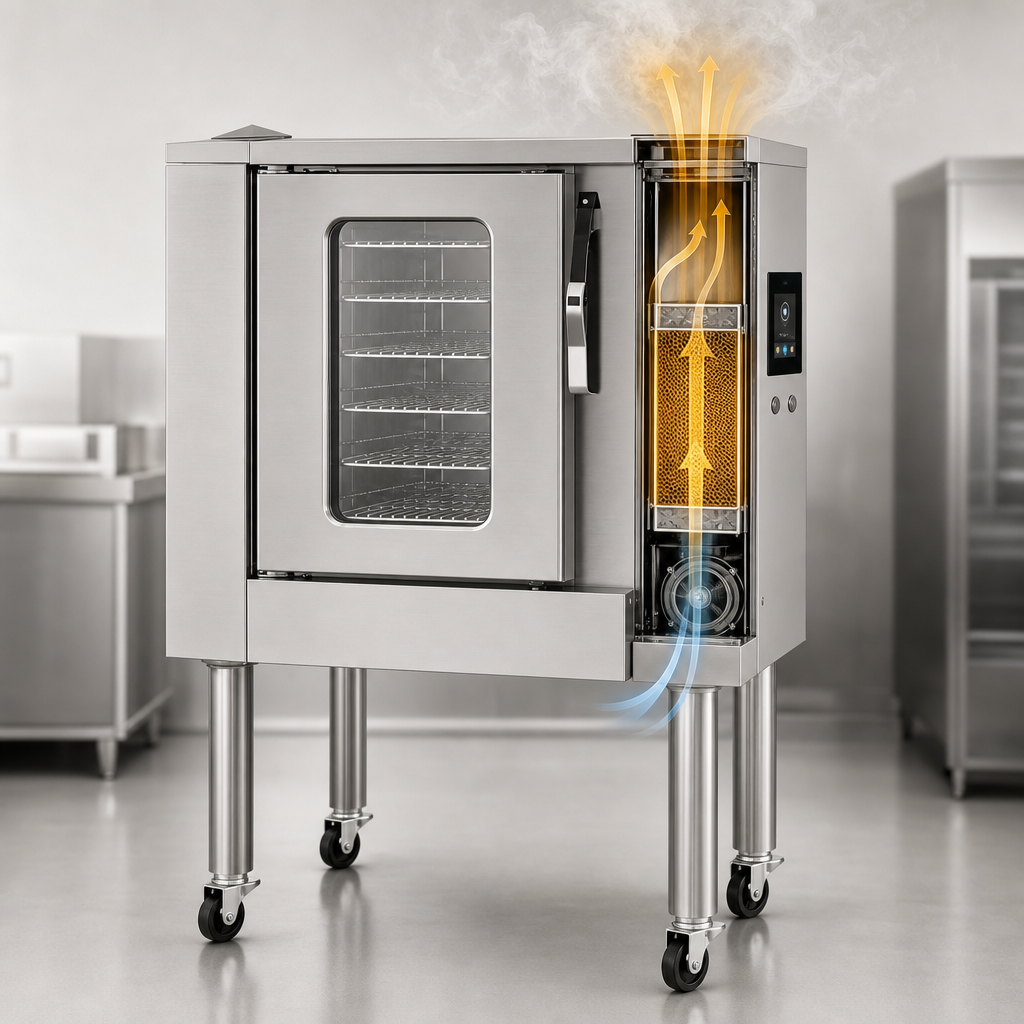

- Ventless internal catalyst breaks down grease-laden vapors & VOCs—no hood or additional utilities required.
- High-efficiency 7.5 kW rear-mounted heating elements for quick recovery and even bake.
- Two-speed ½ hp fan motor with forced cool-down mode.
- 11 rack positions on 1 5⁄8" centers; includes 5 heavy-duty plated racks.
- Single stainless-steel door opens a full 180° and features a large viewing window.
- Durable stainless front, sides & top with coved, fastener-free porcelain interior.
- Patented plug-in / plug-out control panel for fast, front-access service.
- 0–550 °F operating range plus 140–200 °F holding mode.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.

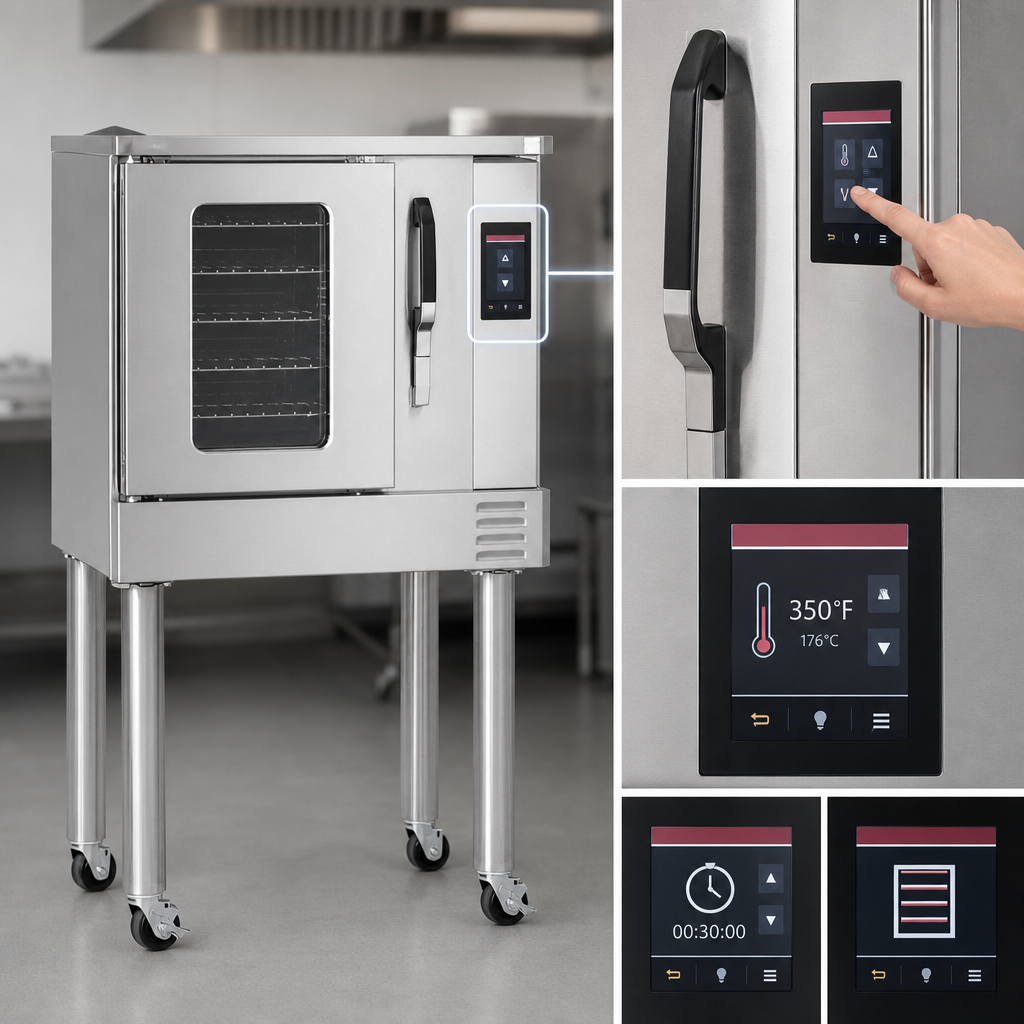

Smart Touchscreen Controls
- Large, easy-read digital display shows time & temperature simultaneously.
- Program & store multi-step recipes; use Rack Mode to assign individual timers to each cavity position.
- Pulsed-fan capability for delicate bakes.
Technical Specifications
| Capacity | Half-size sheet pans (18" × 13") |
|---|---|
| Heating Elements | 7.5 kW total, electric |
| Fan Motor | ½ hp, two-speed (1710 / 1120 RPM) |
| Temperature Range | 150 °F – 550 °F bake | 140 °F – 200 °F hold |
| Interior (W × D × H) | 15.8" × 21.3" × 20" (401 × 541 × 508 mm) |
| Exterior Footprint | 30.0" W × 26.0" D × 33.0" H * (762 × 660 × 838 mm) *Height shown with 4" legs. |
| Electrical Options |
208 V, 220–240 V, 380 V, 415 V, or 480 V | 1- or 3-phase Max amps @ 208 V/1-ph: 36.1 A |
| Clearances | Back & left – 2" | Front & right – 0" |
| Shipping Weight | Approx. 420 lb (190 kg) |
Popular Accessories (Sold Separately)
- Stainless-steel interior liner
- Stainless solid door
- 4", 6" or 26" legs; flanged or with casters
- Marine-edge top (UL certified)
- Rack pan guide kit & stainless drip tray
- Field-retrofit ventless catalyst kit (for non-ventless units)
Financing available through Middleby Equipment Financing — ask your sales representative for details.
