Southbend (Middleby) PCHE75S/T Platinum Convection Ovens
Description

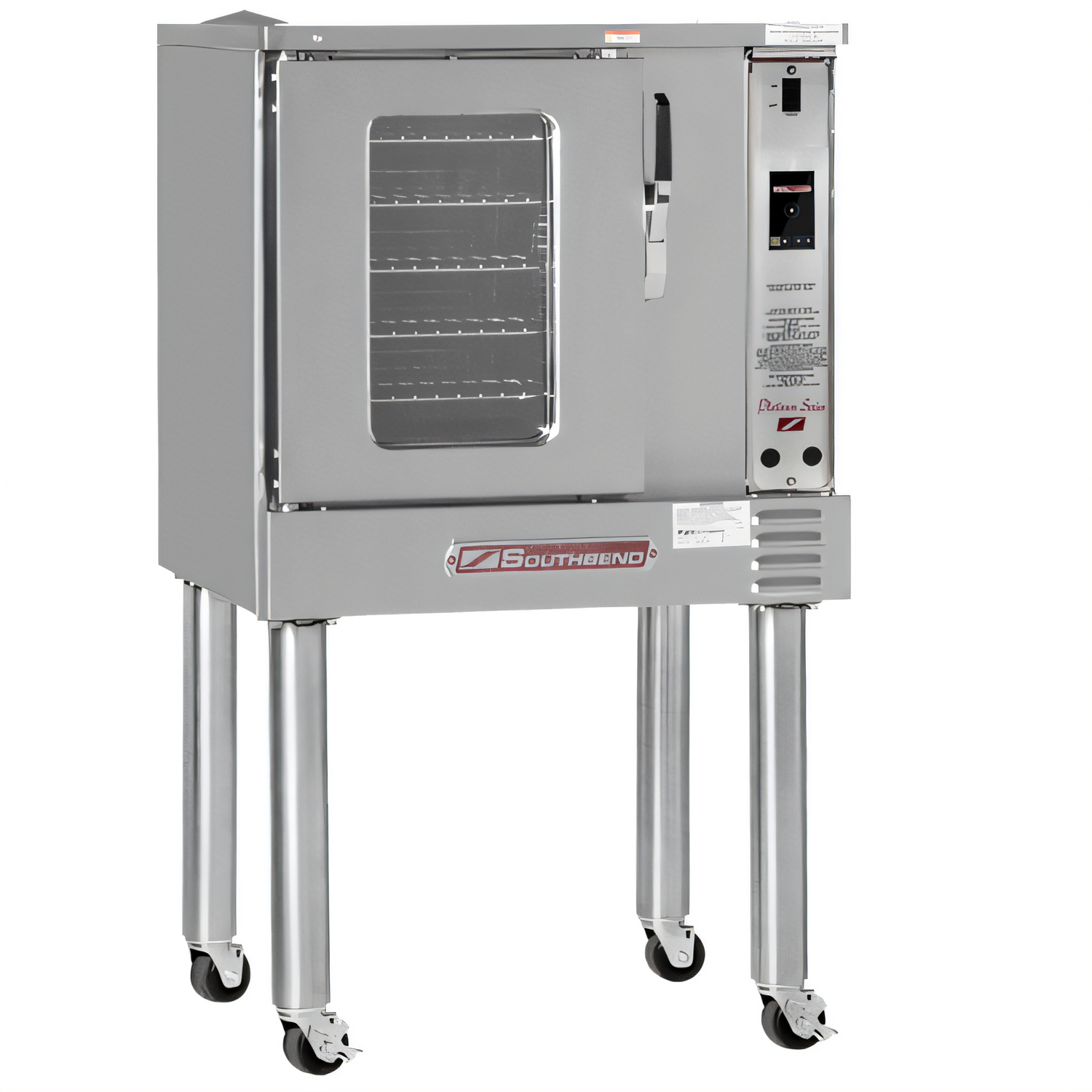

Southbend Platinum PCHE75S/T Half-Size Electric Convection Oven
7.5 kW • Touchscreen Controls • Single-Deck, Standard DepthBake, roast and hold with chef-level precision—anywhere you have power. The Platinum PCHE75S/T packs Southbend’s legendary performance into a compact, service-friendly design that can even be fitted with a ventless catalyst kit for hood-free installation.
Performance & Convenience

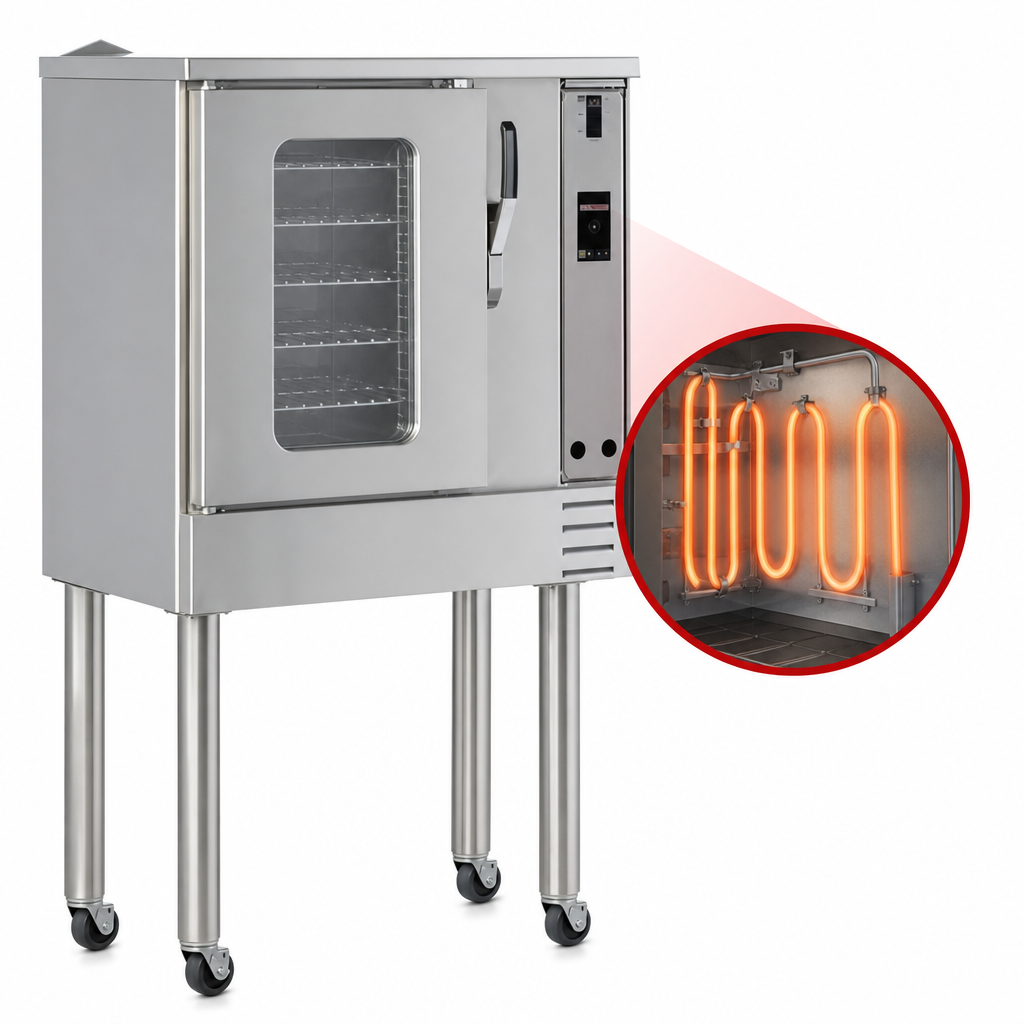

- High-efficiency 7.5 kW rear-mounted elements deliver rapid, even heat.

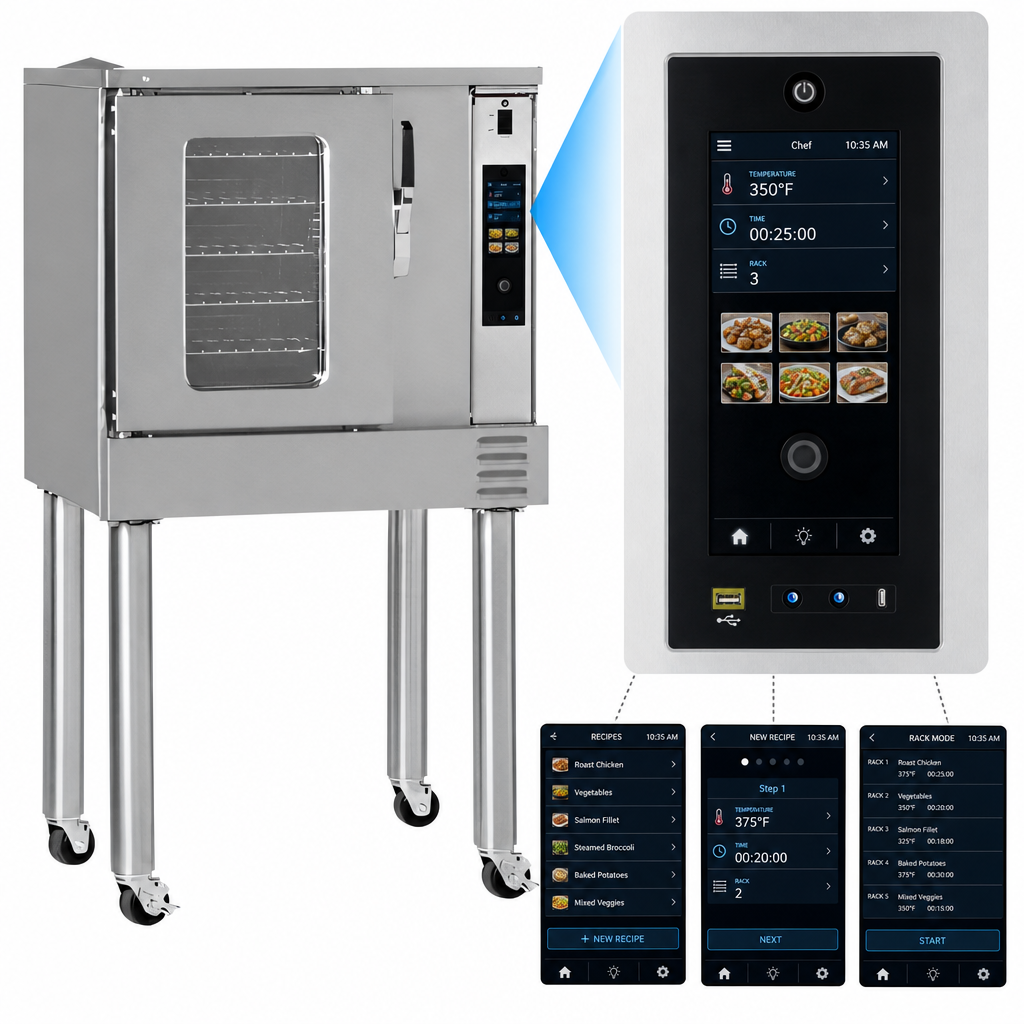

- TC Touchscreen controller: 150-550 °F bake + 140-200 °F hold, multi-rack timers & recipe storage.
- Two-speed ½ hp fan “scrubs” heat across 11 rack positions for perfectly consistent results.
- Patented plug-in, plug-out control module slides out in seconds for fast service.
- Single 180° door with viewing window keeps an eye on product without dropping temp.
- Coved, fastener-free porcelain interior cleans up in minutes; 5 wire racks included.
- Forced cool-down fan mode speeds turn-around between loads.
- Need a hoodless solution? Add the optional field-retrofit Ventless Internal Catalyst (UL certified) to break down grease vapors and VOCs.
Specifications
| Model | PCHE75S/T (Platinum Series) |
|---|---|
| Pan Capacity | Half-size; 11 positions, 5 racks furnished |
| Heating Elements | 7.5 kW total |
| Controls | Touchscreen, digital time/temperature, individual rack timers, hold mode |
| Motor | ½ hp, 2-speed (1710/1120 RPM) |
| Interior (W×D×H) | 15.8 × 21.3 × 20 in (401 × 541 × 508 mm) |
| Exterior (W×D×H) | 30 × 26 × 33 in (762 × 660 × 838 mm) with 4″ legs |
| Electrical | 208–480 VAC, 1 or 3 ph (add 4.3 A for controls) |
| Ship Weight | Approx. 420 lb (190.5 kg) |
| Certifications | UL, NSF; Ventless kit UL certified |
| Warranty | 1-year parts & labor |
Built for Busy Kitchens
- Half-size footprint slips beneath counters or stacks under a second deck.
- Stainless steel front, sides & top stand up to daily abuse in commercial environments.
- Service in place—front access components and slide-out controls minimize downtime.
- Lower installation costs: optional ventless catalyst eliminates the need for a dedicated hood (check local codes).
Popular Factory Options (extra cost)
- Ventless Internal Catalyst retrofit kit
- Stainless steel cavity upgrade
- Solid stainless door
- 12″, 26″ or flanged legs • 4″ or 6″ casters
- Rack‐pan guide kit & stainless dirt tray
