Southbend (Middleby) PCHE15S/T-V Platinum Convection Ovens
Description

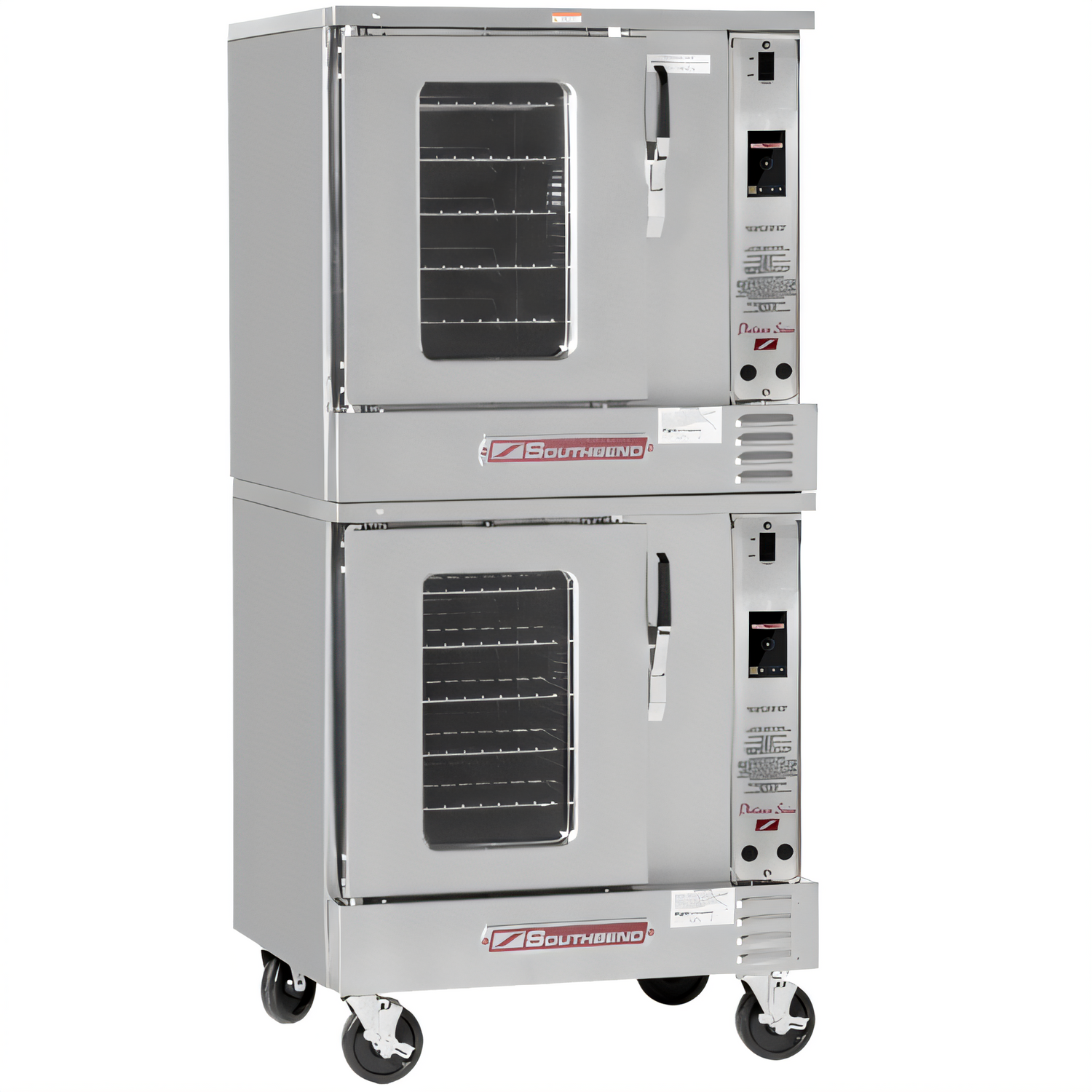

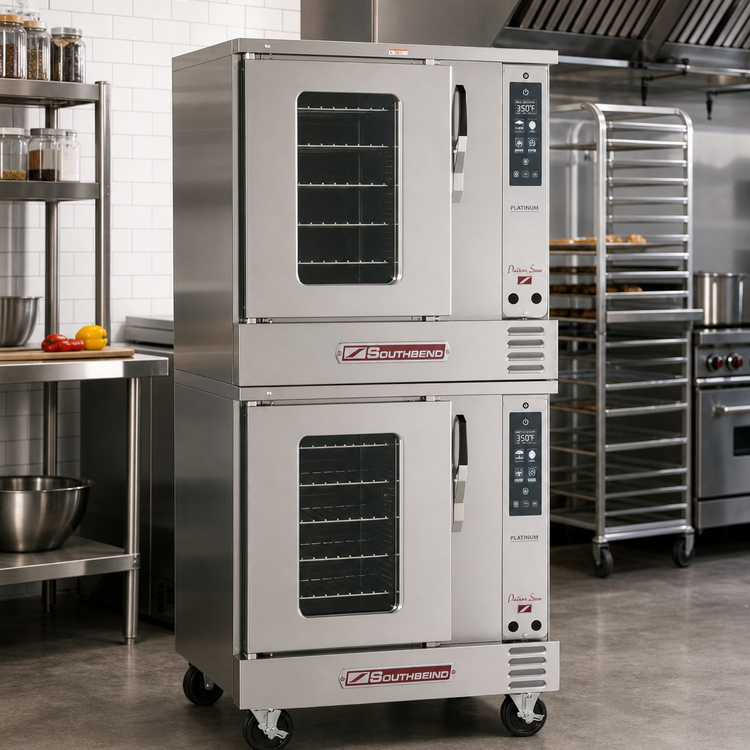

Southbend Platinum Ventless Double Convection Oven – PCHE15S/T

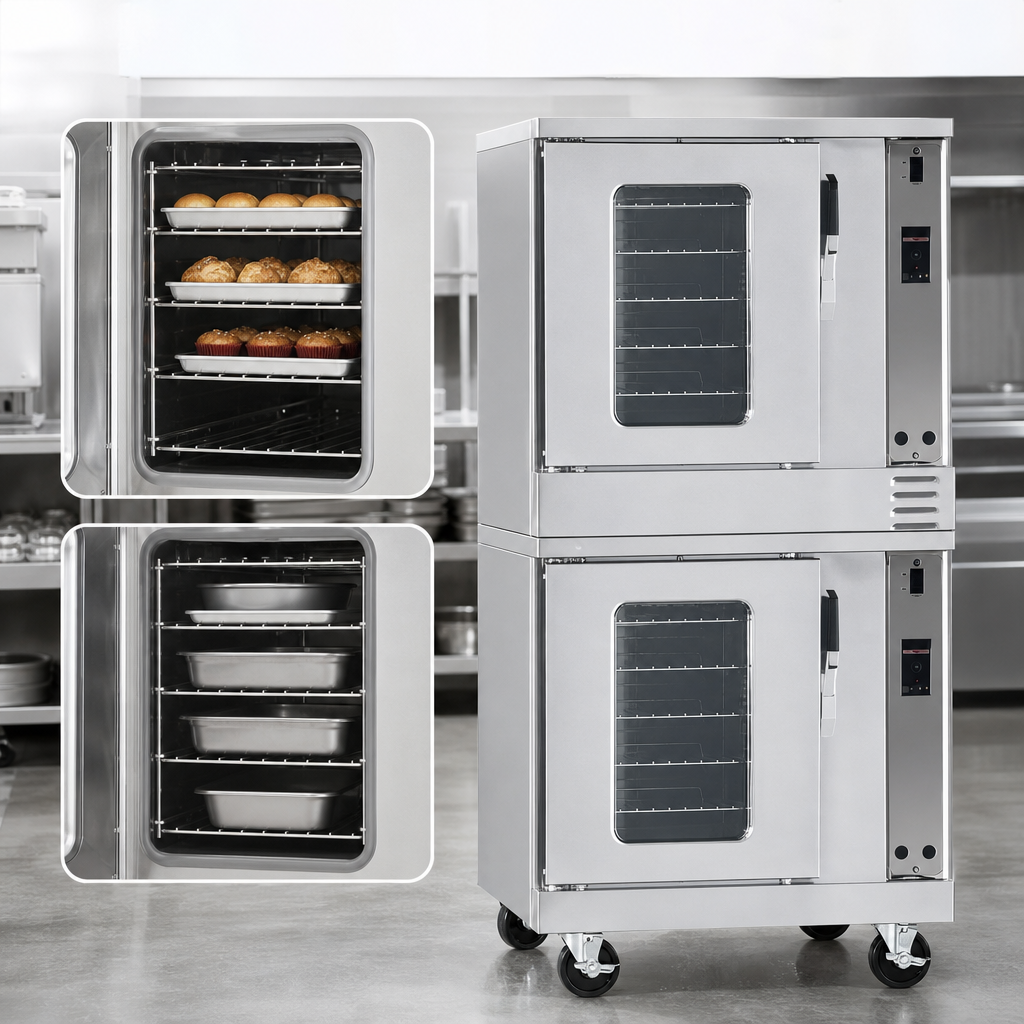

Half-Size • Electric • Touchscreen Controls • 7.5 kW per deckTake your bake anywhere—no hood required. The Platinum PCHE15S/T packs two powerful 7.5 kW ovens, a UL-certified ventless catalyst system, and an intuitive touchscreen into a space-saving 64-inch footprint, giving you full-size performance wherever you need it.
Why You’ll Love It
- Ventless internal catalyst design eliminates the need for a traditional hood*

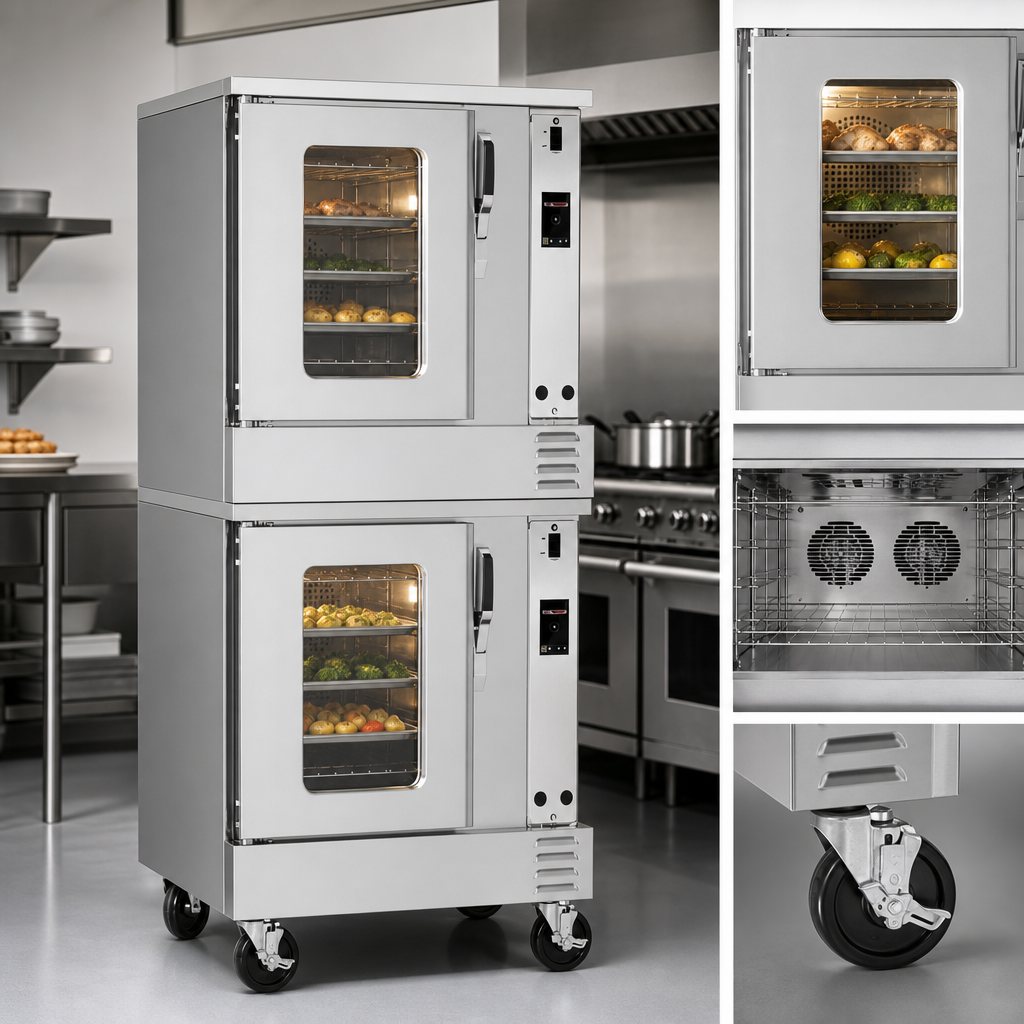

- Double-deck configuration delivers 15 kW of total electric baking power
- Touchscreen stores recipes, controls individual rack timers & includes 140–200 °F “Hold” mode
- Patented “plug-in / plug-out” control panel for rapid, front-side servicing
- Stainless steel exterior with coved, fastener-free porcelain interiors for easy clean-up
- Two-speed ½ hp fan and forced cool-down mode ensure even, efficient baking
- 11 rack positions with 5 heavy-duty wire racks per deck (10 total)
- Single doors swing a full 180° and feature large view windows
- Backed by a 1-year parts & labor warranty and nationwide service network
Touchscreen Highlights
- Temperature range: 150–550 °F (65–288 °C)
- Dedicated “Hold” thermostat: 140–200 °F (60–93 °C)
- Create, edit & store multi-step recipes
- “Rack” mode lets you assign independent timers to each shelf
- Pulsed fan cycles protect delicate products
- Bright, easy-to-read digital display
Specifications
| Model | PCHE15S/T |
|---|---|
| Configuration | Half-size, electric, double deck |
| Heating Elements | 7.5 kW per deck (15 kW total) |
| Controls | Touchscreen with recipe storage & hold mode |
| Ventilation | Built-in ventless catalyst (UL certified) |
| Exterior Dimensions | 29.65" W × 30.0" D × 64.0" H (753 × 762 × 1626 mm) |
| Oven Cavity (each) | 15.8" W × 21.3" D × 20" H (401 × 541 × 508 mm) |
| Fan Motor | ½ hp, two-speed (1710 / 1120 RPM) |
| Rack Positions / Racks Supplied | 11 / 5 per deck |
| Electrical | 208, 240, 380, 415 or 480 VAC – single or 3-phase 36.1 A @ 208 V single-phase (per deck) |
| Clearances (Combustible) | Back & Left: 2" • Front & Right: 0" |
| Shipping Weight | ≈ 850 lb (386 kg) |
What’s Included
- (2) Oven cavities with ventless catalyst system installed
- (10) Wire racks – 5 per deck
- 6" stainless steel legs
- User & installation manuals
- 1-year parts & labor warranty
*Ventless certification applies to electric models only and requires routine maintenance of the catalyst filter.
