Southbend (Middleby) PCHE15S/T Platinum Convection Ovens
Description
Platinum Series PCHE15S/T Double-Deck Half-Size Convection Oven
Electric • Touchscreen Controls • 7.5 kW per deck (15 kW total) • Standard DepthGive your kitchen bakery-level performance without sacrificing floor-space. Southbend’s Platinum PCHE15S/T packs two powerful half-size convection ovens into a single 64-inch footprint, each driven by a 7.5 kW heating system and an intuitive touchscreen that lets every cook deliver consistent, repeatable results at the tap of a finger.
Why You’ll Love It

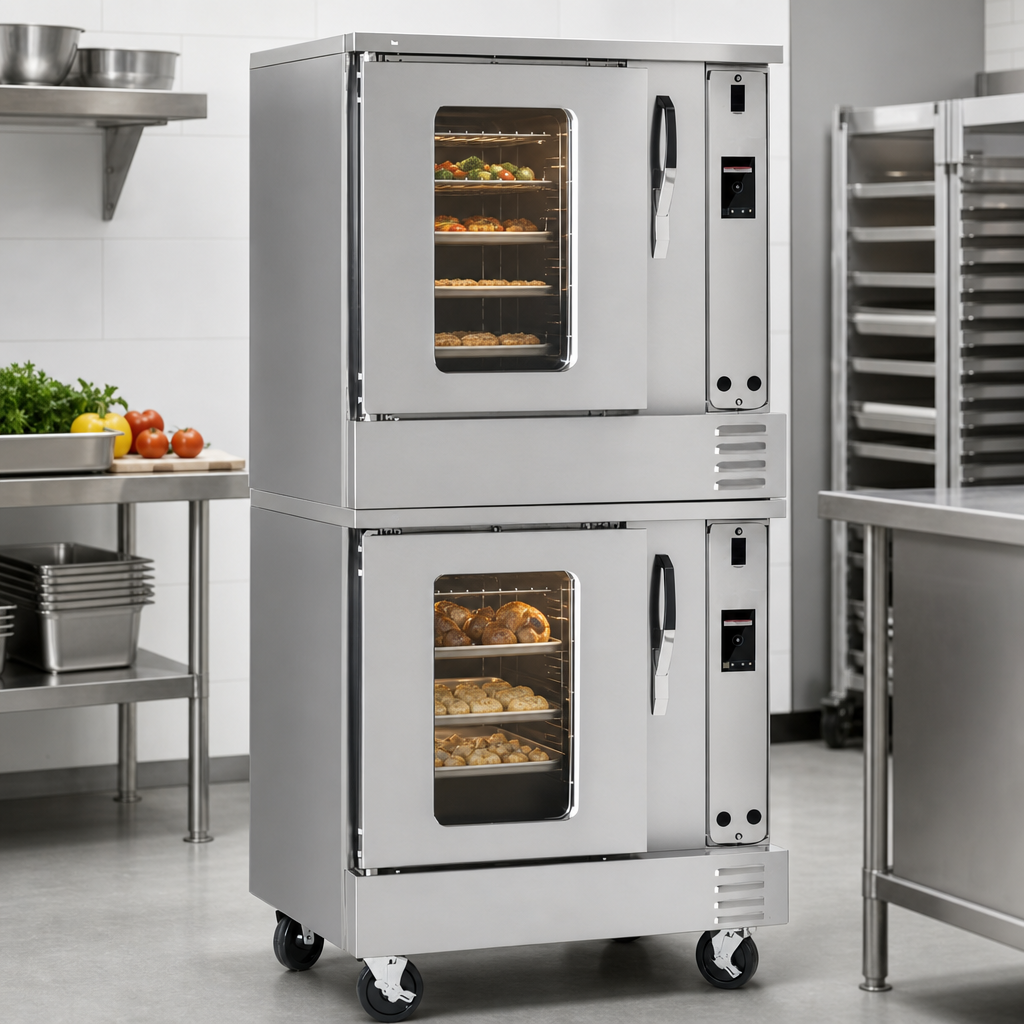

- Double-deck design doubles production while keeping a compact 30 × 29 in. footprint.

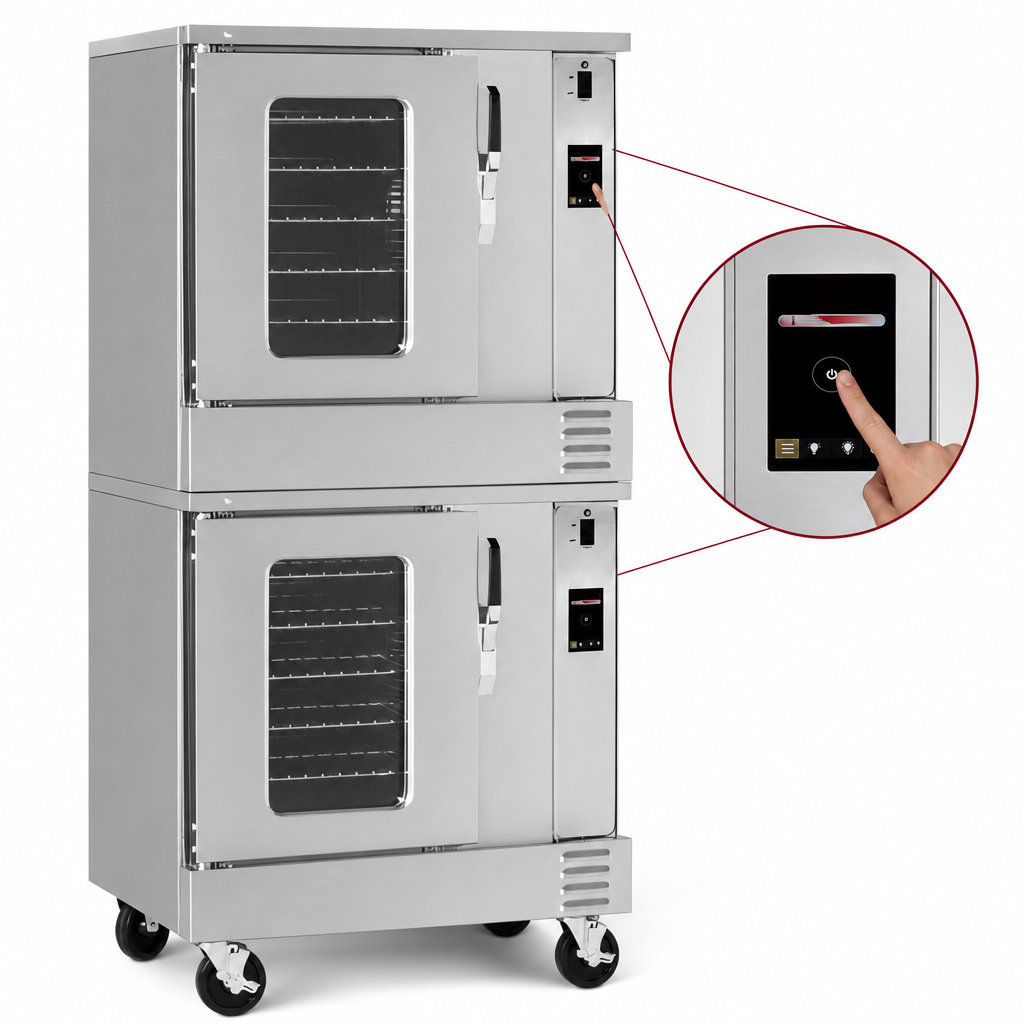

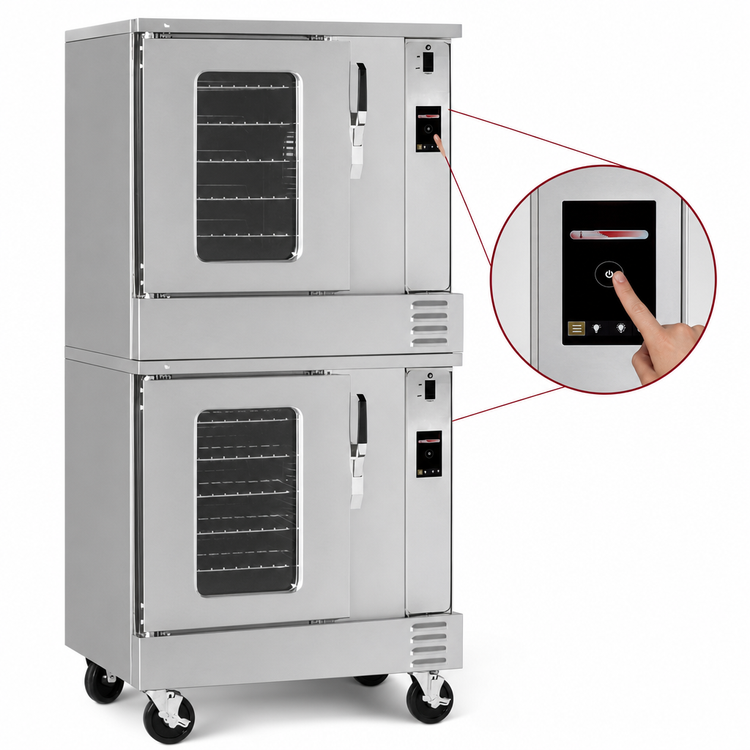

- Touchscreen control ranges 150 – 550 °F with a 140 – 200 °F hold mode, fan-pulse, and recipe “Rack Mode” that runs independent timers on each rack position.
- High-efficiency 7.5 kW sheath elements per cavity heat fast and recover instantly.
- Two-speed ½ hp blower circulates air for even browning; forced cool-down mode speeds turn-around between loads.
- Patented
plug-in, plug-out
control panel drops down for tool-free service. - Single stainless-steel doors with windows swing a full 180° for unobstructed loading.
- Coved, fastener-free porcelain interiors wipe clean in seconds.
- 11-position guides & five heavy-duty plated racks included per cavity.
- All-stainless front, sides & top with 6 in. legs built to thrive in high-volume kitchens.
- UL-listed ventless catalytic package, casters, marine-edge top & other upgrades available.
At-a-Glance Specs
| Model | PCHE15S/T (Touchscreen) |
|---|---|
| Decks / Size | 2 × Half-Size cavities, standard depth |
| Interior (W × D × H) | 15.8 × 21.3 × 20 in (401 × 541 × 508 mm) |
| Exterior (W × D × H) | 30.0 × 29.0 × 64.0 in (762 × 737 × 1626 mm) |
| Rack Capacity | 11 positions / 5 racks per cavity |
| Heating Elements | 7.5 kW per deck | Total 15 kW |
| Electrical (select at order) |
208 V 1 ph 36.1 A | 208 V 3 ph 20.9 A/leg 240 V 1 ph 31.3 A | 240 V 3 ph 18.1 A/leg 480 V 1 ph 15.7 A | 480 V 3 ph 9.1 A/leg (Add 4.3 A for control panel) |
| Motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Shipping Weight | ≈ 850 lb (386 kg) |
| Warranty | 1-Year parts & labor (see Service & Parts site for details) |
Popular Options (sold separately)
- Ventless internal catalyst—operate without a traditional hood (check local codes).
- Stainless-steel interior or solid doors for heavy duty applications.
- 4 in. or 6 in. locking casters for effortless mobility.
- Marine-edge top, stainless legs with rack guides, stainless dirt tray and more.
Need easy financing? Middleby Equipment Financing can turn this investment into low, fixed monthly payments while preserving your credit lines.
