Southbend (Middleby) PCHE15S/S-V Platinum Convection Ovens
Description

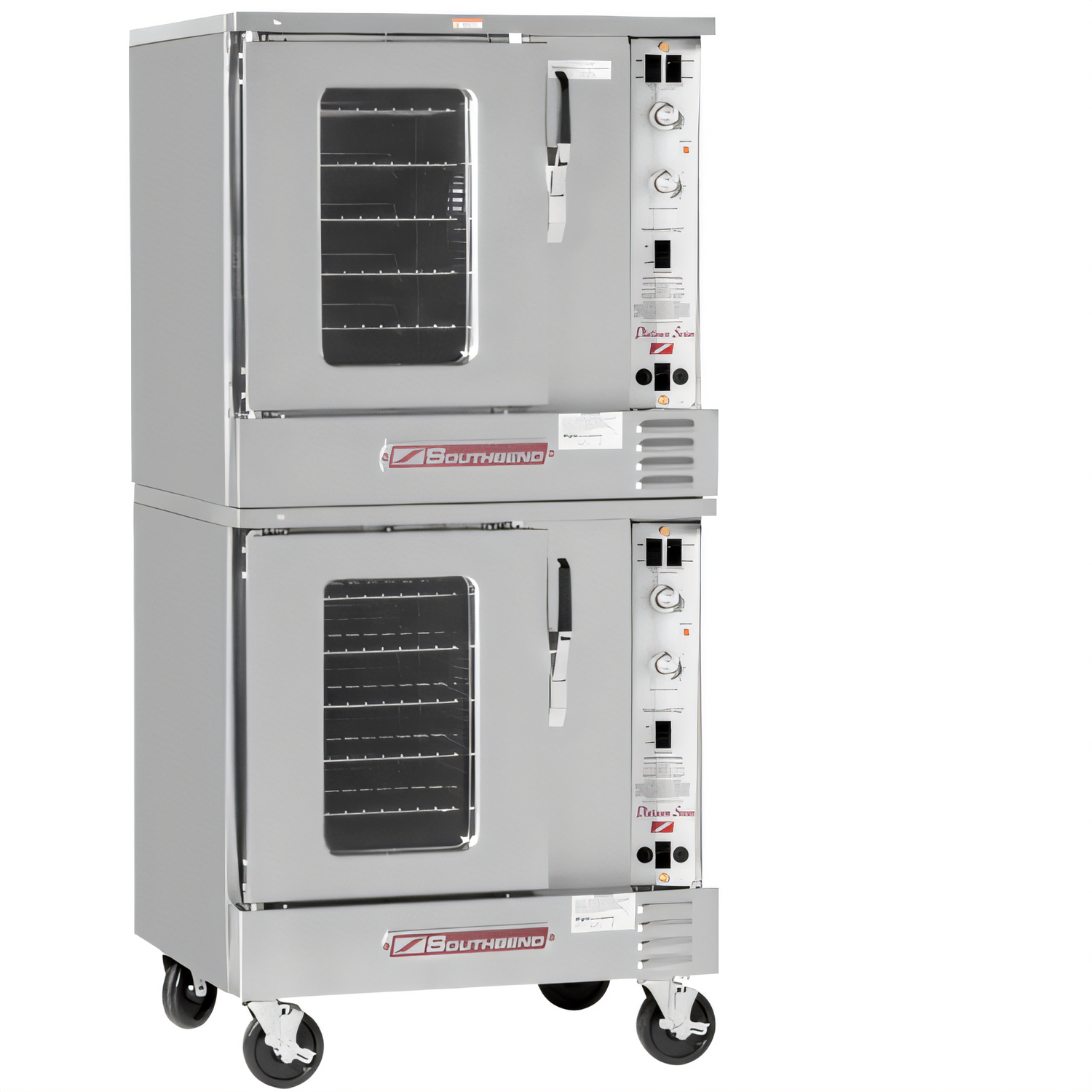

Platinum Series Ventless Double Convection Oven – Half-Size, Electric
Model PCHE15S/S-V • Standard Controls • Standard Depth • 7.5 kW per deckBake, roast, and retherm anywhere—no hood required. Southbend’s Platinum Series ventless double-deck oven delivers the heavy-duty performance professionals expect, now with an internal catalytic converter that cleans the air before it leaves the cabinet. All the power of a full-size convection oven packed into a compact, half-size footprint that slips easily onto the cookline.
Key Benefits

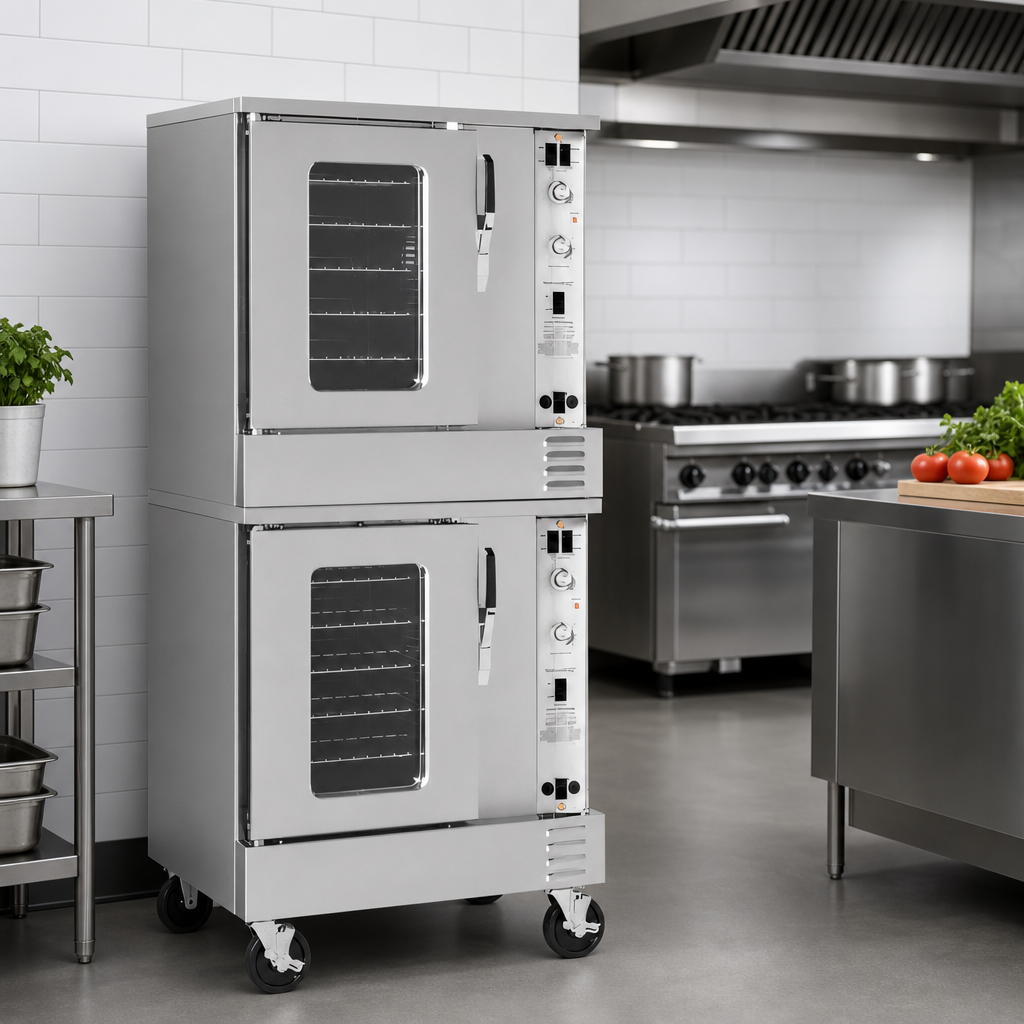

- Ventless operation* – integrated catalyst meets UL ventless standards, saving thousands on hood installation.
- Dual 7.5 kW high-efficiency heating elements (one per deck) reach 140 °F-500 °F fast and recover instantly.
- Patented plug-in / plug-out control panel for easy front-access servicing.
- Two-speed ½ hp fan with pulse timer for even browning on every rack.
- 11-position rack guides & 5 wire racks per cavity handle anything from sheet pans to hotel pans.
- Single door with wide viewing window swings a full 180° for unobstructed loading.
- Durable stainless-steel exterior and coved, fastener-free porcelain interior for quick cleanup.
- Forced cool-down mode protects product and staff between batches.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Built for Production

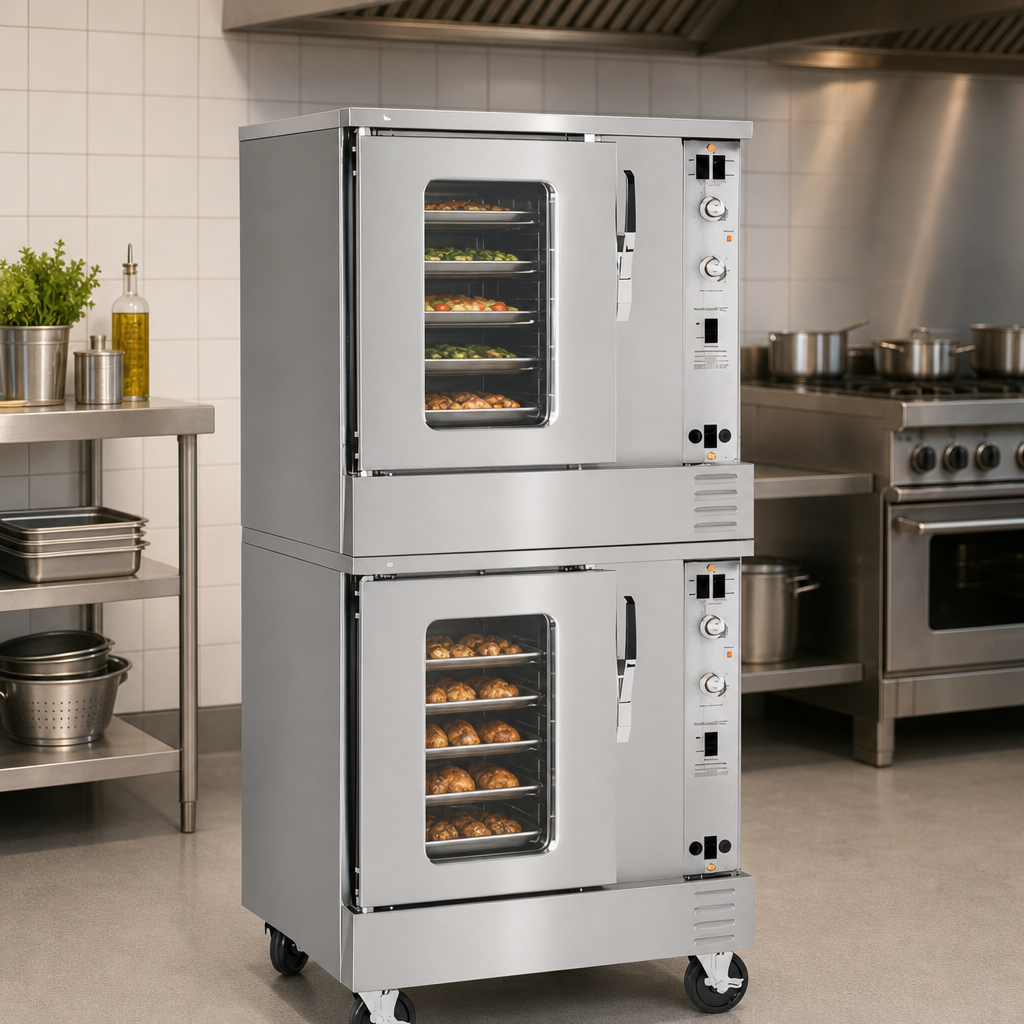

- Half-size double deck stands just 64 in (1626 mm) tall—fits under standard hoods when ventilation is preferred.
- Standard depth accommodates 13 in x 21 in pans; perfect for bakeries, cafés, and QSR kitchens.
- Solid-state thermostat and 60-minute mechanical timer keep operation simple and reliable.
Technical Specifications
| Capacity | 5 racks per deck • 11 positions on 1⅝ in centers |
|---|---|
| Overall (W × D × H) | 30 in × 30 in × 64 in (762 × 762 × 1626 mm) |
| Interior (each deck) | 15.8 in W × 21.3 in D × 20 in H (401 × 541 × 508 mm) |
| Heat Load | 7.5 kW per deck • 15 kW total |
| Electrical † | 208 V 1 ph 36 A • 240 V 1 ph 31 A • 480 V 1 ph 16 A 208/240/480 V 3 ph wiring available |
| Motor | ½ hp, 2-speed (1710 / 1120 RPM) |
| Shipping Weight | ≈ 850 lb (386 kg) |
Popular Options & Accessories
- 4 in or 6 in swivel casters (front locking)
- All-stainless interior finish
- Solid stainless door (no window)
- Marine edge top or dirt tray
*Always verify local code compliance for ventless cooking equipment. †Add 4.3 A for control circuit. Oven is shipped for single-point connection; specify voltage & phase at time of order.
1-year limited parts & labor warranty. Commercial use only.
