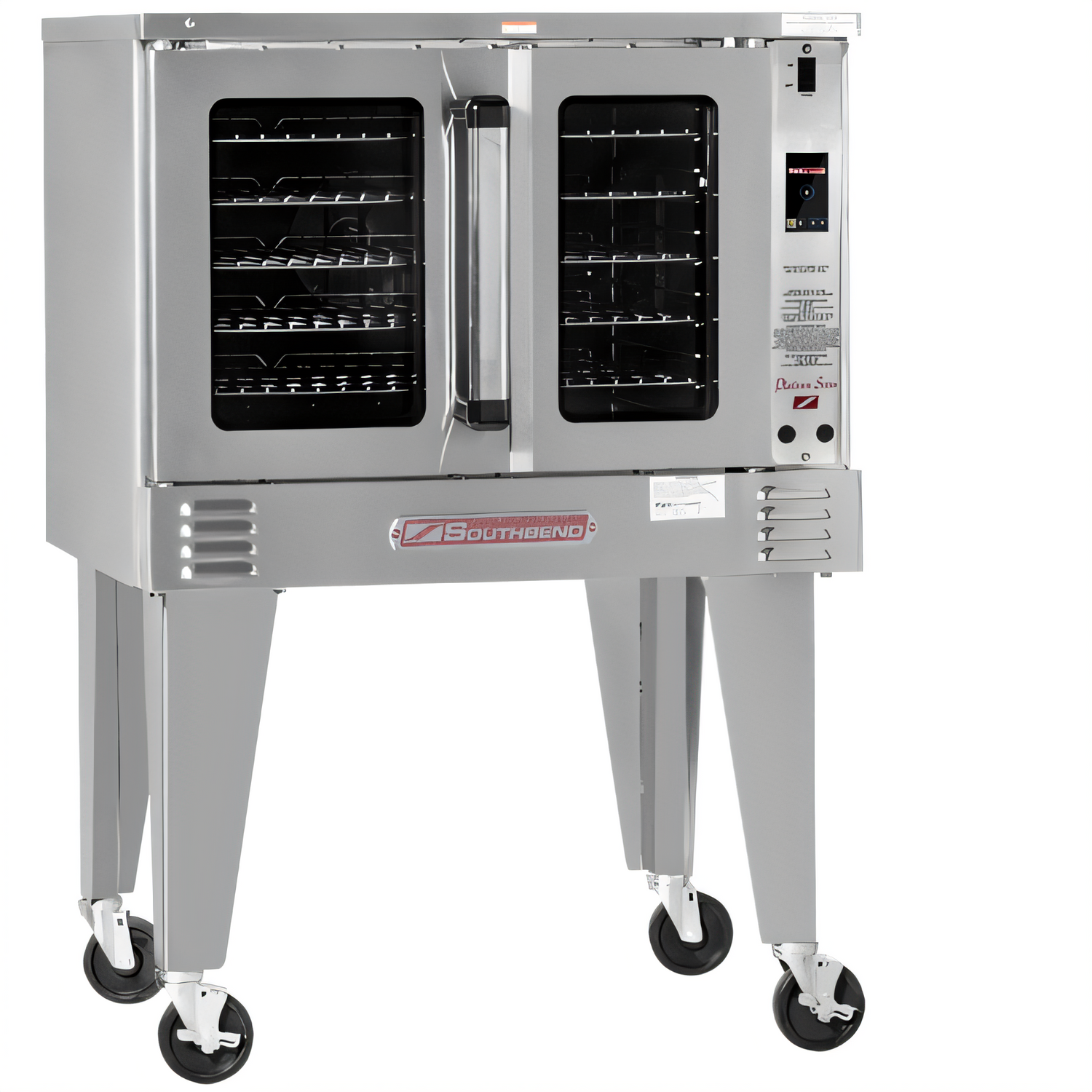

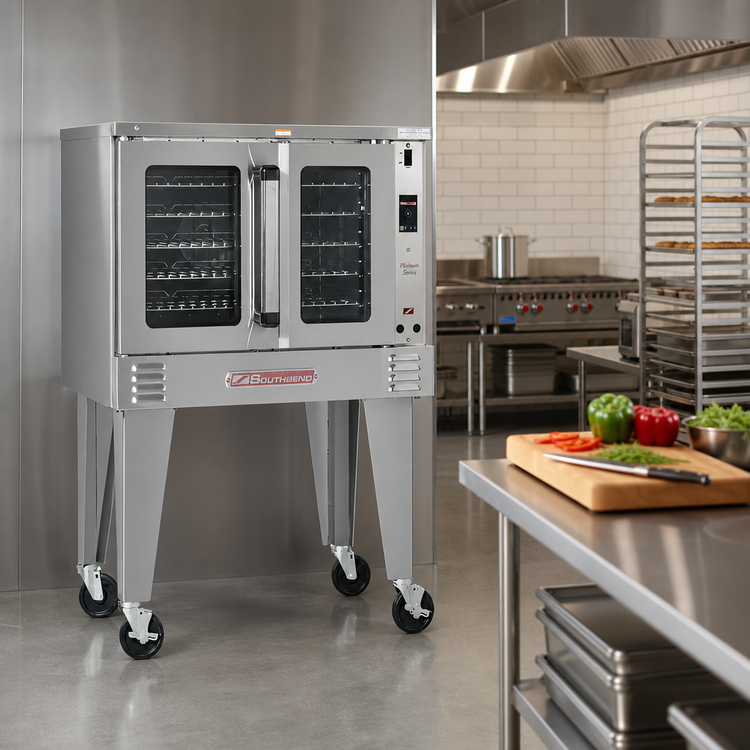

Southbend (Middleby) PCG90S/TI Platinum Convection Ovens
Description
Southbend Platinum Series Single Gas Convection Oven – 90,000 BTU, Touchscreen, Independent Doors
Model PCG90B/THarness 90,000 BTU of even, high-efficiency heat and the precision of a full-color touchscreen to push more product through the line without sacrificing consistency. The Platinum PCG90B/T is built for the busiest bakeries, restaurants, and institutions that demand rock-solid reliability shift after shift.
Why operators love it

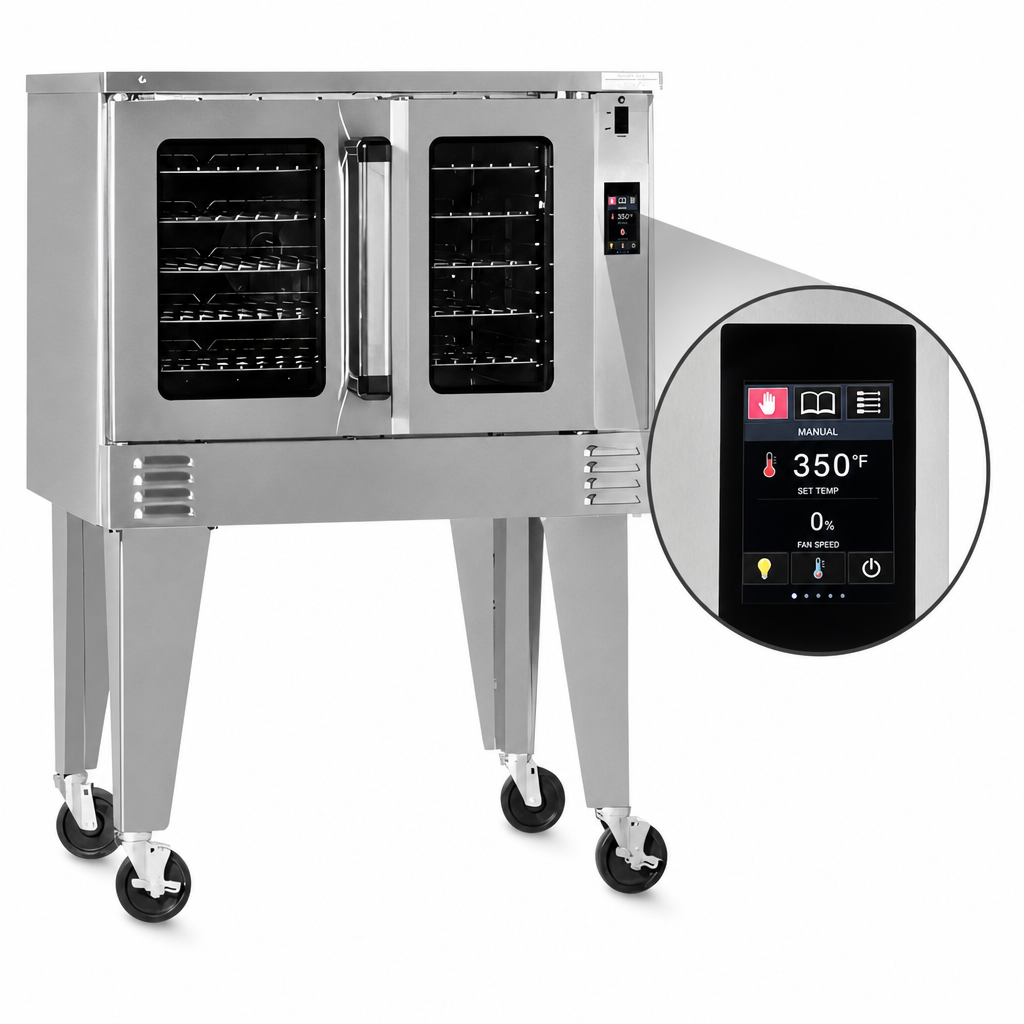

- Touchscreen controller stores recipes, runs manual or multi-rack modes, and adds a 140 – 200 °F “hold” function for perfect staging.

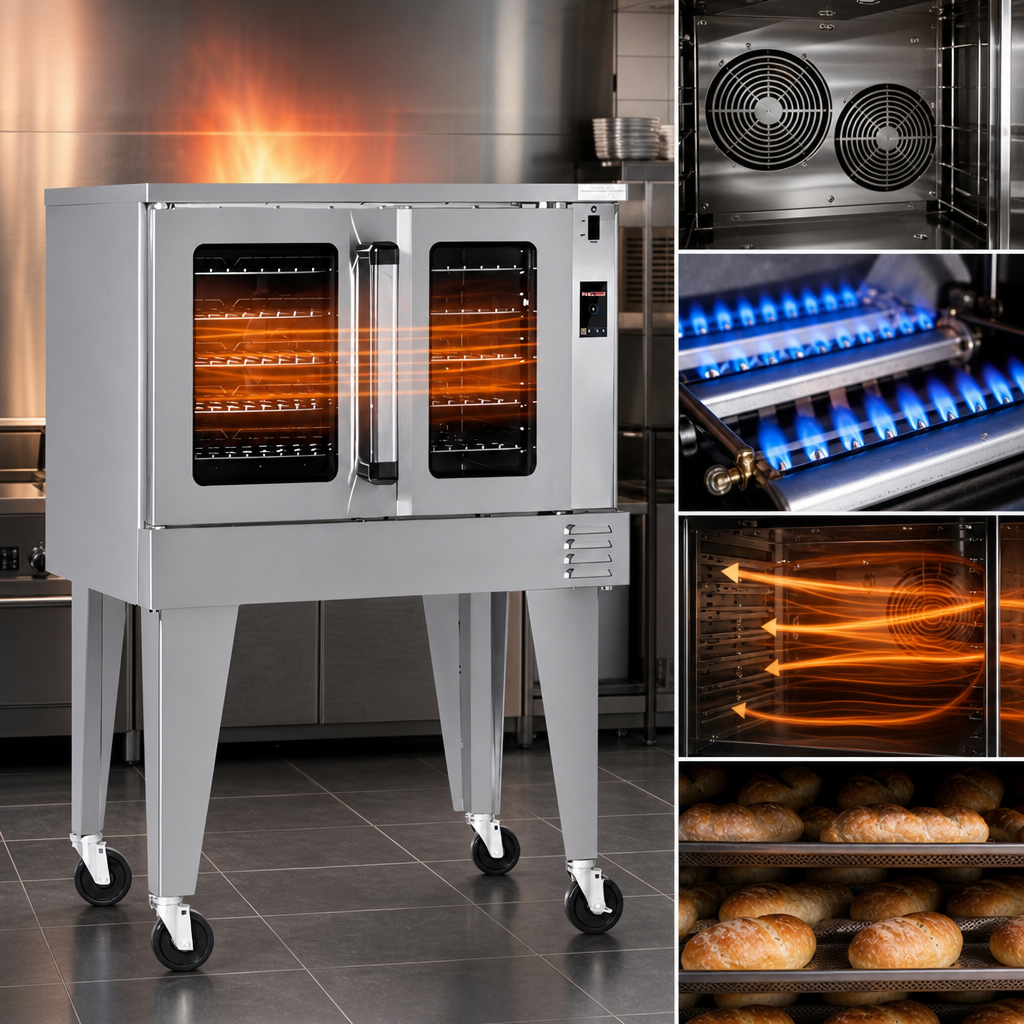

- Patented in-shot burners deliver a powerful 90,000 BTU blast for rapid recovery and uniform bake color.
- Soft-Air ½ HP two-speed fan gently circulates heat, reducing product shrinkage and hot spots.
- Independent, full-view glass doors swing a full 180° and feature dual seals to lock in heat while saving energy.
- Plug-in / plug-out slide-out control panel gives technicians full access without removing the oven from the line.
- Coved, fastener-free porcelain interior wipes clean quickly and won’t trap food soil.
- Five chrome racks on 11 guides (1 ⅝″ spacing) handle sheet pans, hotel pans, and everything in between.
- Stainless steel front, sides & top stand up to years of commercial abuse.
Performance & capacities
| Heat input | 90,000 BTU/hr (Natural or LP) |
|---|---|
| Temp. range | 150 – 550 °F bake • 140 – 200 °F hold |
| Cooking modes | Manual / programmable recipe / rack-timed multi-task |
| Fan motor | ½ HP, two-speed (1710 / 1120 RPM) |
| Interior (W × D × H) | 29″ × 29″ × 20″ (20 ft³) |
| Overall (W × D × H) | 43.5″ × 36.5″ × 45.75″ on 26″ legs (57.5″ with optional casters) |
| Rack capacity | 5 included racks / 11 positions |
| Gas connection | ¾″ NPT male • Min. 7″ W.C. Nat. / 11″ W.C. LP |
| Electrical | 120 V, 60 Hz, 1-phase, 7.9 A (NEMA 5-15P) • 208 / 240 V options available |
| Shipping weight | Approx. 680 lb (308 kg) |
What’s in the box
- (5) chrome-plated racks
- 26″ stainless steel triangular legs
- Interior halogen lighting
- Electronic ignition & forced cool-down fan mode
- One-year limited parts & labor warranty
Factory options & accessories
- 4″ or 6″ heavy-duty casters
- Stainless steel oven interior
- 3 – 5 ft ¾″ quick-disconnect gas hose
- Marine-edge top or downdraft diverter
- Stainless rear jacket or solid doors
Have questions about utility requirements or configuring a double-stack? Our equipment specialists are ready to help.
