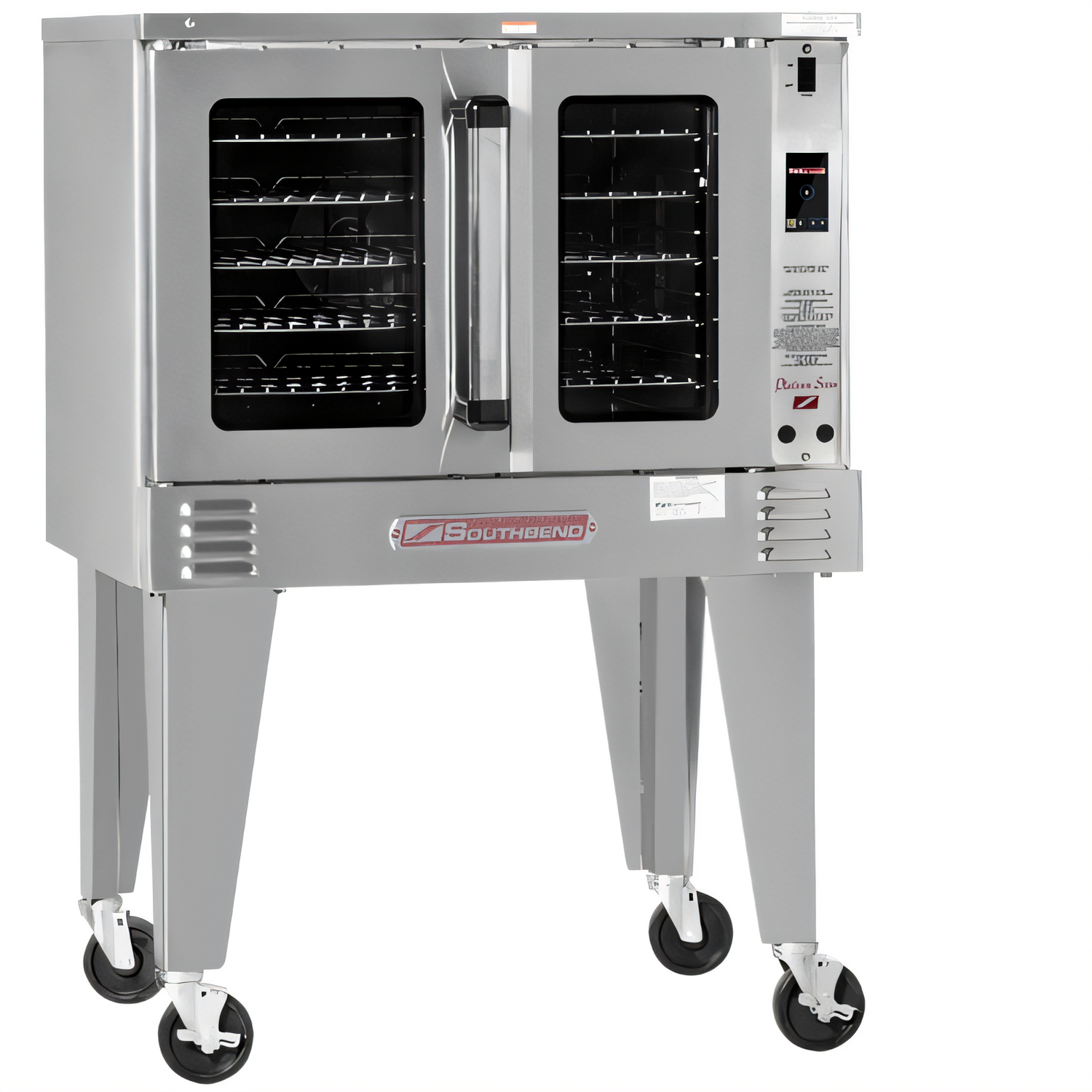

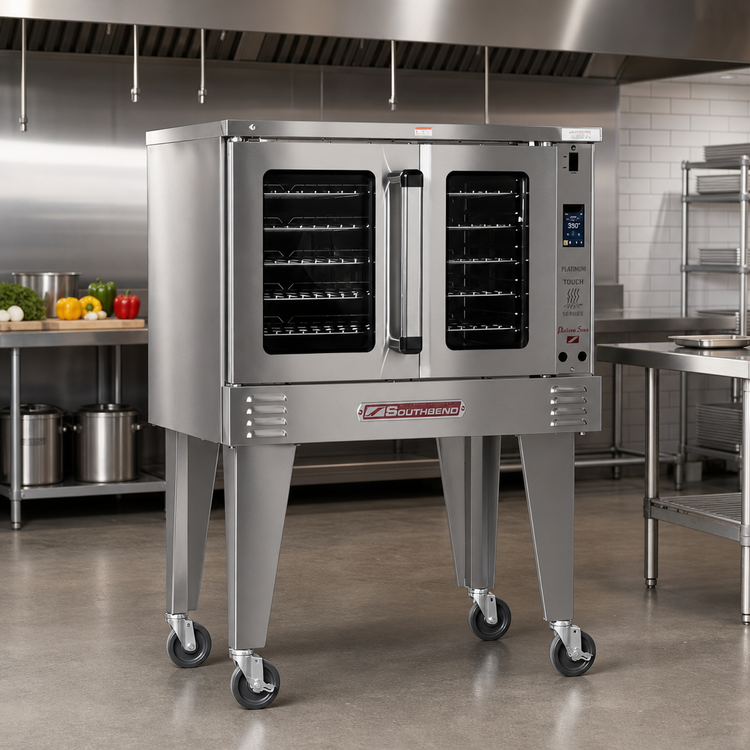

Southbend Platinum Full-Size Single Deck Gas Convection Oven with Touchscreen Controls and Dependent Doors, 90,000 BTU

Standard Depth, 5-Pan Capacity, Floor Model

Built for high-volume kitchens, this standard-depth gas convection oven combines 90,000 BTU output with touchscreen control and dependent doors for consistent, efficient baking.

  • 90,000 BTU gas heat supports fast recovery and steady oven performance.
  • Touchscreen controls offer manual, recipe, and rack cooking modes.
  • Dependent doors with windows open a full 180° for easy loading and unloading.
  • Porcelain enamel interior and removable rack guides help simplify cleanup.
  • Stainless steel construction and standard legs are built for durable floor installation.

Overall Dimensions:

38.0"W x 37.0"D x 55.0"H

Product Weight:

620.0 lb

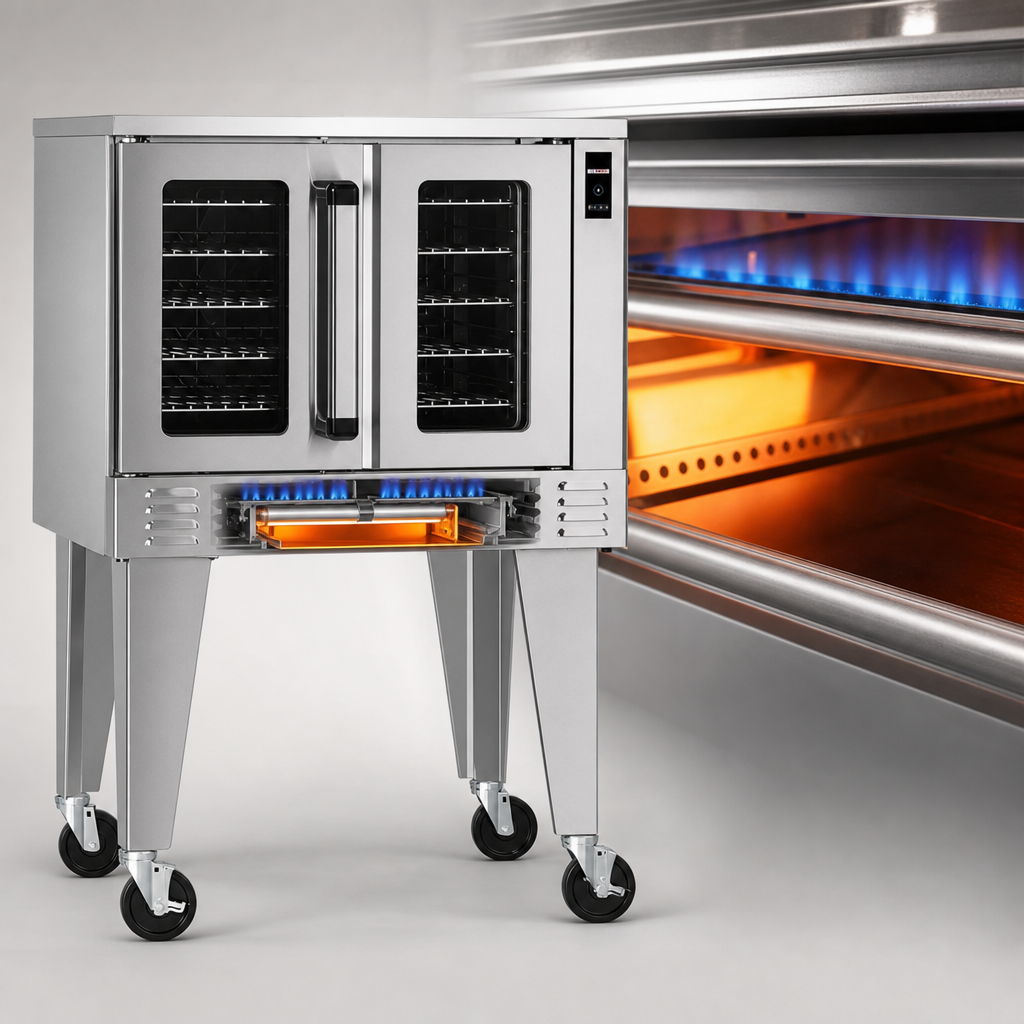

90,000 BTU Inshot Burners

High-efficiency burners deliver strong heat output for demanding production baking and roasting.

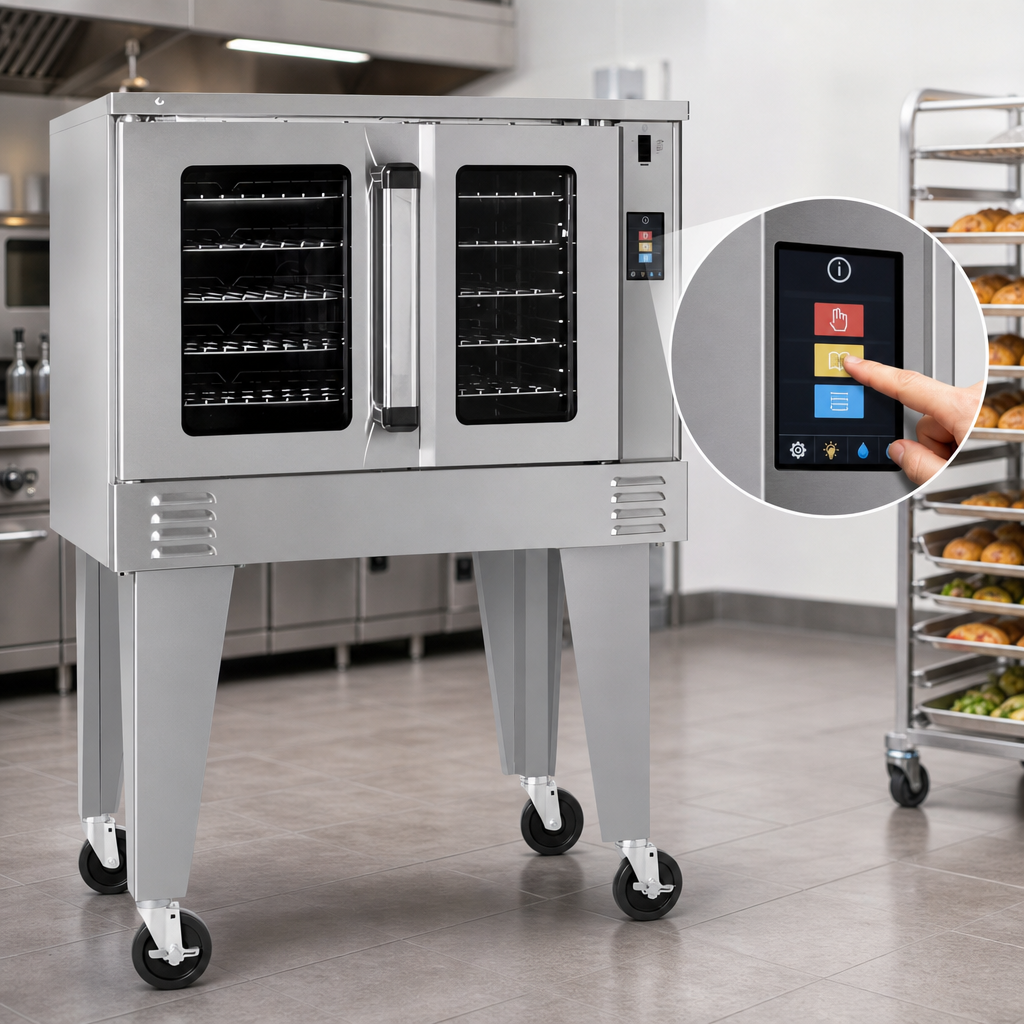

Touchscreen Cooking Controls

Digital touchscreen controls support manual, recipe, and rack modes for repeatable results.

Dependent Doors With Windows

Full 180° opening doors with glass windows improve visibility and access while helping retain heat.

Porcelain Enamel Oven Interior

Coved, fastener-free interior finish is designed to simplify cleanup and reduce buildup.

11 Rack Positions

Heavy-duty rack guides provide flexible placement, and 5 oven racks are included.

Two-Speed Fan Motor

The 1/2 HP blower helps circulate heat evenly and includes a forced cool-down mode.

Stainless Steel Construction

Stainless steel front, sides, and top provide a durable finish for busy commercial kitchens.

Electronic Ignition and Interior Lighting

Hot-surface ignition supports reliable startup, while interior lights help monitor food during cooking.

Type Convection Oven
Style Single Deck
Installation Type Floor Model
Controls Touchscreen
Pan Capacity 5 Full-Size Pans
Compartments 1
Temperature Range 150°F to 550°F
BTU 90,000 BTU
Voltage 120 Volts
Amps 7.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Stainless Steel
Interior Finish Porcelain Enamel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 37 Inches
Shipping Height 55 Inches
Shipping Weight 620 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Energy savings system flyer PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a gas convection oven rated at 90,000 BTU.
This model uses touchscreen controls with manual, recipe, and rack modes.
Standard electrical requirements are 120/60/1 with a 6-foot cord and NEMA 5-15P plug. Optional 208/60/1, 240/60/1, and 240/50/1 connections are also listed.
The document lists 7 inches W.C. for natural gas and 11 inches W.C. for propane.
It includes 11 rack positions, 5 plated oven racks, and interior oven lights.
The limited warranty is 1 year parts and 1 year labor from the date of original purchase, and service must be performed by a Southbend Authorized Service Agency.
