Southbend (Middleby)  |  Platinum  |  SKU: PCG90S/SI

Southbend (Middleby) PCG90S/SI Platinum Convection Ovens

$6,891.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series PCG90B/S

Single-Deck Gas Convection Oven • 90,000 BTU • Independent Doors

Built for demanding, high-volume kitchens, the Southbend Platinum PCG90B/S delivers 90,000 BTU of even, energy-efficient baking power in a rugged single-deck footprint. From artisan breads to roasted entrées, this full-size convection oven combines rock-solid construction with service-friendly design to keep you cooking shift after shift.

Why you’ll love it

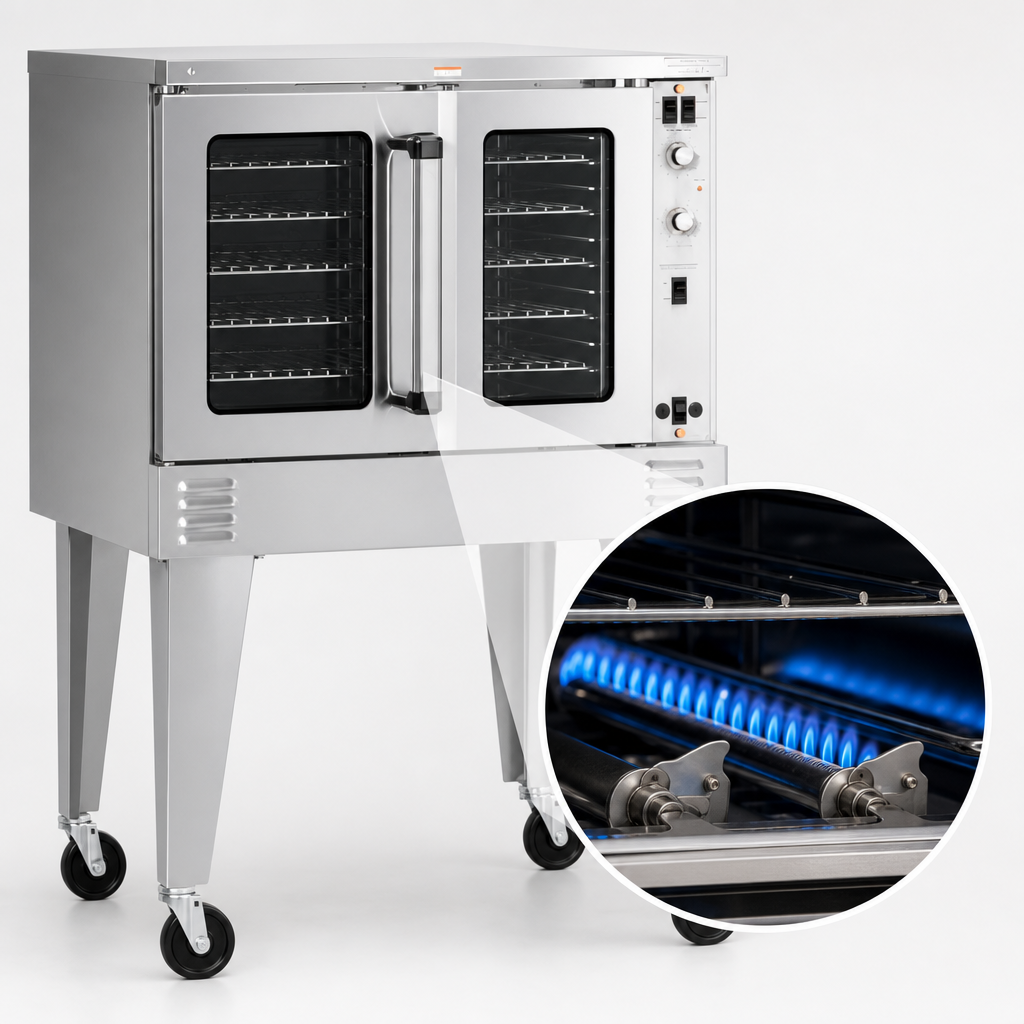

  • Patented high-efficiency in-shot burners slash fuel costs while delivering rapid heat recovery.
  • Independent, windowed doors open a full 180°—access one cavity without dumping heat from the other.

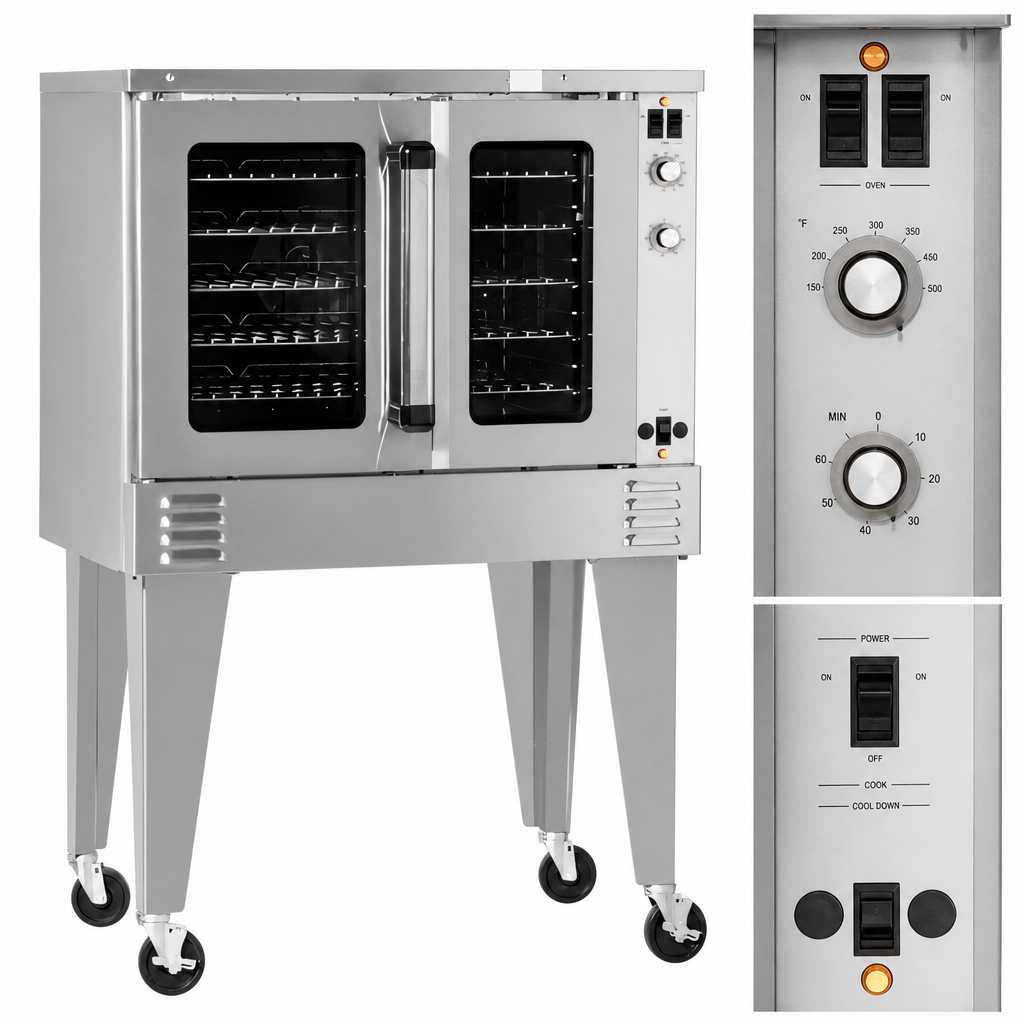

  • Solid-state Standard Controls (140 – 500 °F) with 60-minute mechanical timer for simple, reliable operation.
  • Soft-Air two-speed ½ HP fan circulates heat uniformly; switch to low speed for delicate items.
  • 11-position rack system with five nickel-plated racks included—load up to 10 full-size sheet pans.
  • Slide-out control panel and “plug-in, plug-out” module make field service lightning fast.
  • Seamless, coved porcelain-enameled interior wipes clean in seconds—no exposed fasteners.
  • Durable stainless-steel front, sides, top and 26" triangular legs stand up to daily abuse.
  • Electronic ignition with flame safety, interior halogen lights and forced cool-down fan mode.

Technical Specifications

Model PCG90B/S (Natural or LP)
Heat Output 90,000 BTU/hr
Temperature Range 140 – 500 °F (60 – 260 °C)
Oven Interior (WxDxH) 29" × 29" × 20"  (737 × 737 × 508 mm)
Overall Dimensions (WxDxH) 43.5" × 36.5" × 57.5"  (1105 × 927 × 1461 mm) on legs
Racks / Positions 5 racks / 11 positions on 1.625" centers
Fan Motor ½ HP, 2-speed (1710 / 1120 RPM)
Gas Connection ¾" NPT male; min. 7" W.C. (Nat) / 11" W.C. (LP)
Electrical 120 V, 60 Hz, 1-ph, 7.9 A, NEMA 5-15P cord & plug
Shipping Weight Approx. 680 lb (309 kg)
Warranty 1-year parts & labor (see Warranty tab)

What’s in the box

  • Southbend Platinum PCG90B/S convection oven on 26" stainless legs
  • Five full-size wire racks
  • User & installation manual
  • NEMA 5-15P cord set (pre-installed)

Popular factory options (sold separately)

  • 4" or 6" locking casters
  • 3-, 4- or 5-ft ¾" gas quick-disconnect hose & restraining device
  • Stainless-steel oven interior upgrade
  • Stainless bottom, rear jacket or marine-edge top
  • Down-draft diverter for direct flue installations
Important: This equipment is intended for commercial use only. Install under an appropriate ventilating hood and maintain all local code clearances (top 0", bottom 0", right 0", left 2"). Oven will not operate without the convection fan running.

Continuous product improvement may cause specifications to change without notice. Please verify vital dimensions and utilities before ordering.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

57.5in

Width

38.0in

Depth

37.25in

Shipping Weight

620.0lbs

Specifications

Platinum Single Convection Oven, Gas 90,000 BTU's, Standard Depth, Standard Controls, Independent Doors
