Southbend (Middleby) PCG90S/SD Platinum Convection Ovens
Description

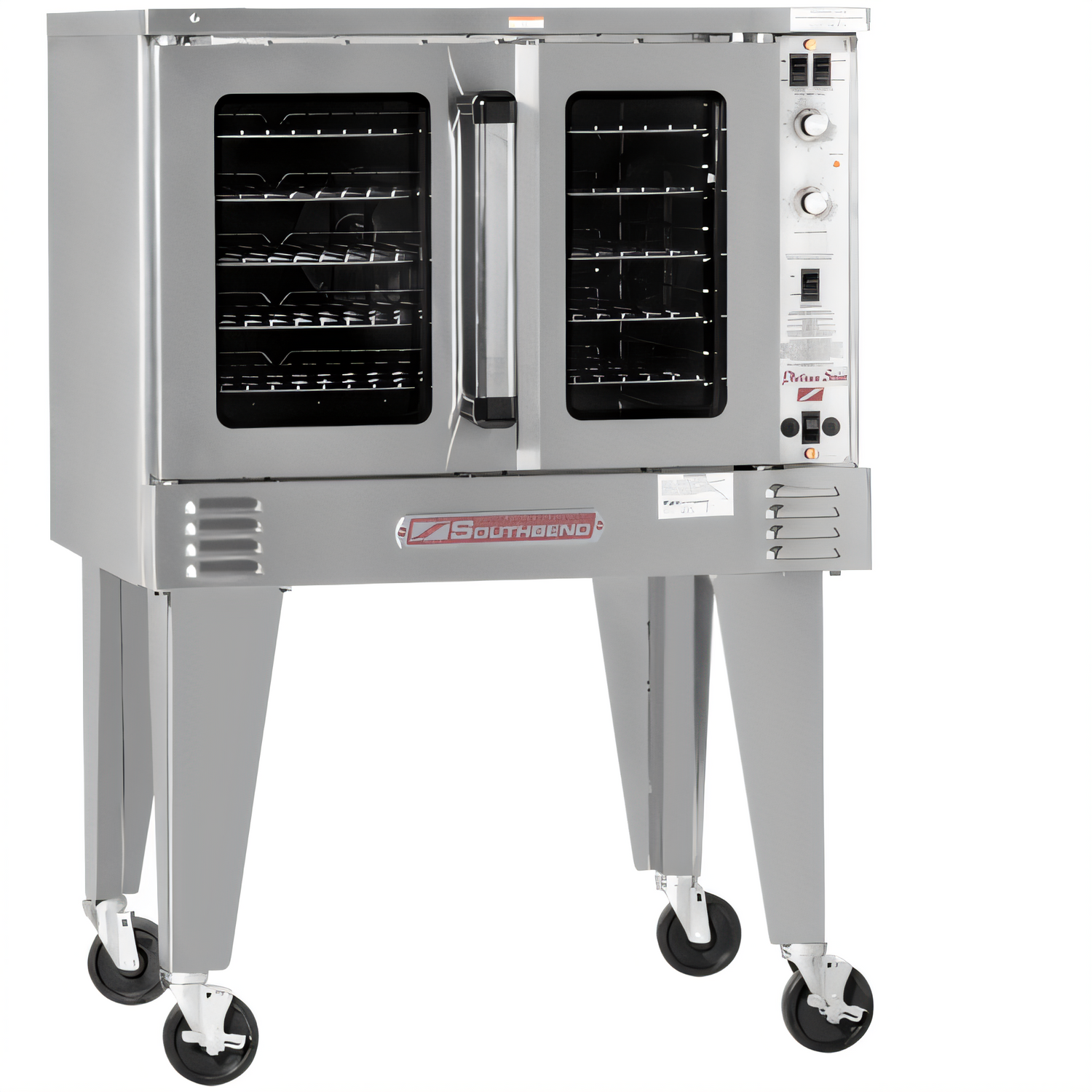

Platinum Series Single-Deck Gas Convection Oven
Model PCG90B/S – 90,000 BTU, Standard ControlsHarness the power of Southbend’s patented in-shot burner technology in a compact footprint that delivers consistent, bakery-quality results shift after shift. The Platinum PCG90B/S is built for busy kitchens that demand speed, precision and rock-solid durability.
Key Performance Features

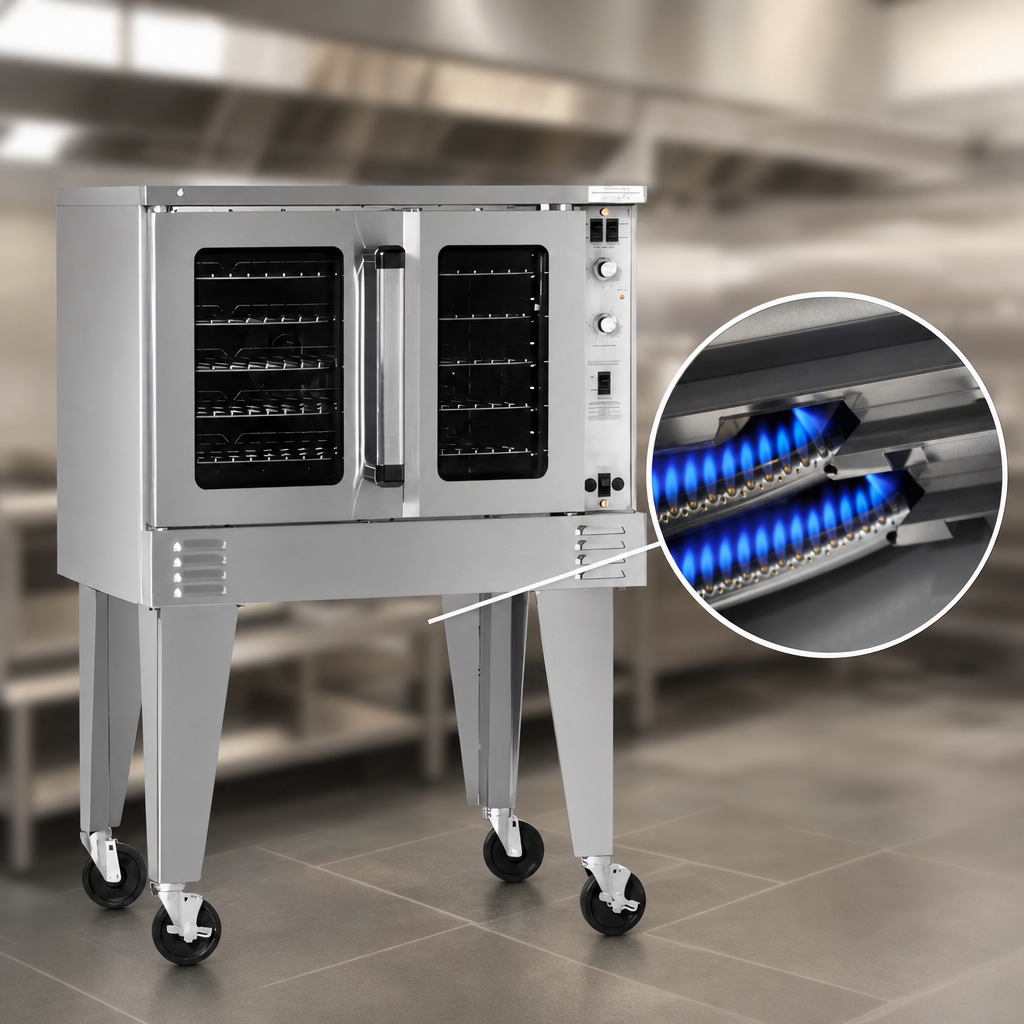

- 90,000 BTU jet-stream burners (natural or LP) with electronic ignition & flame safety.

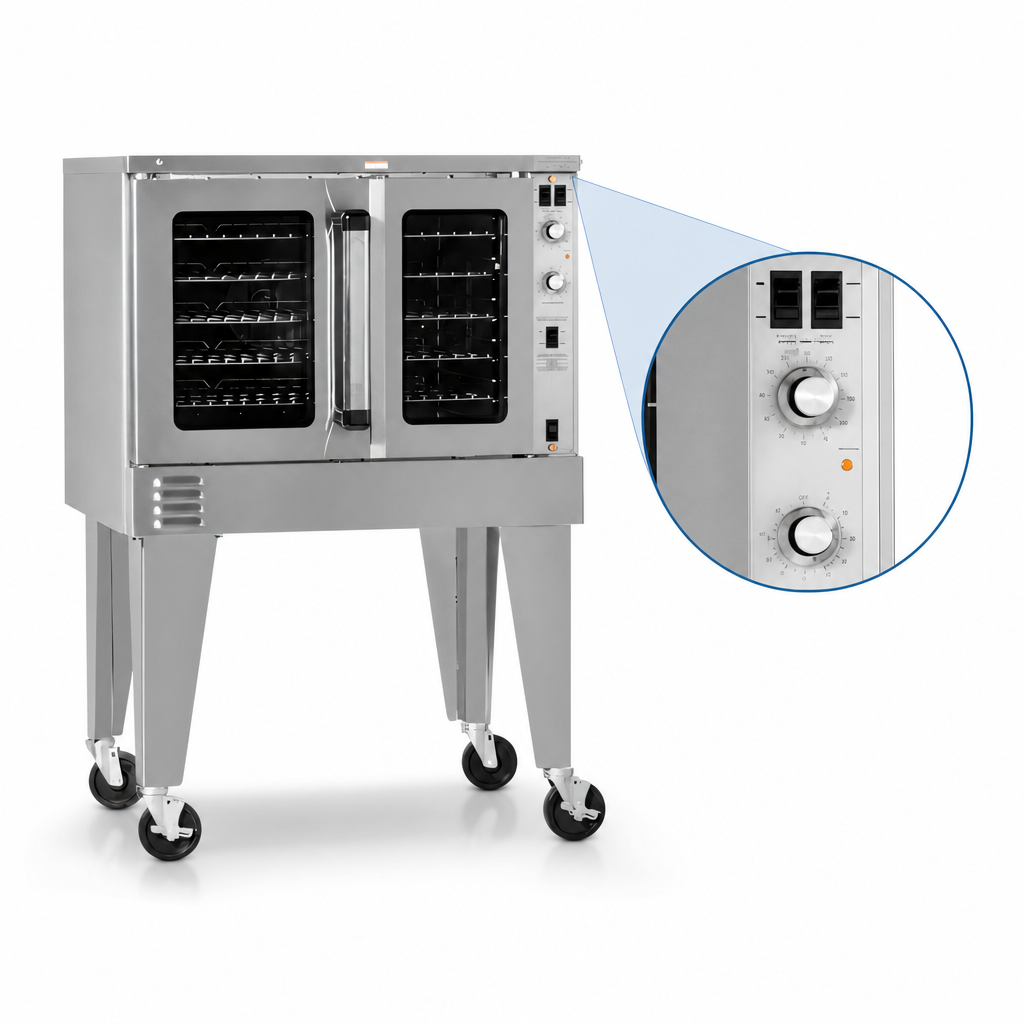

- 140 °F – 500 °F solid-state thermostat and 60-minute mechanical timer.
- ½ HP, 2-speed Soft-Air fan motor for gentle, even convection.
- Dual-pane glass dependent doors open 180° and seal tight with a dual-gasket system.
- “Plug-in, plug-out” slide-out control panel extends 17" for quick front-of-unit servicing.
- Coved, fastener-free porcelain interior with 11 rack positions & 5 wire racks included.
- Stainless steel front, sides & top plus a stay-cool door handle built to take abuse.
- Interior lights and forced cool-down fan mode speed up change-overs.
- 26" stainless steel triangular legs standard (4" / 6" casters optional).
At-a-Glance Specifications
| Model | PCG90B/S |
|---|---|
| Energy Source | Gas – Natural or Propane |
| Total Input | 90,000 BTU/hr |
| Controls | Standard (solid-state thermostat & 60-min timer) |
| Capacity | 5 full-size sheet pans on 11 positions |
| Exterior Dimensions | 43.5" W × 36.5" D × 57.5" H (on legs) |
| Interior Dimensions | 29" W × 29" D × 20" H |
| Blower Motor | ½ HP, 2-speed, 1710/1120 RPM |
| Gas Connection | ¾" NPT male; 7" W.C. NAT / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A, NEMA 5-15P cord & plug |
| Shipping Weight | ≈ 680 lb |
| Warranty | 1-year parts & labor |
Popular Factory Options
- Touchscreen control package with recipe & rack-timing modes
- 4" or 6" heavy-duty locking casters
- Stainless steel oven interior or bottom panel
- Independent or solid stainless doors
- ¾" quick-disconnect gas hose (3 ft, 4 ft or 5 ft)
- Marine-edge top, stainless rear jacket, export crating & more
Designed and listed for commercial use only. Installation must comply with all local codes and a properly sized vent hood is strongly recommended.
