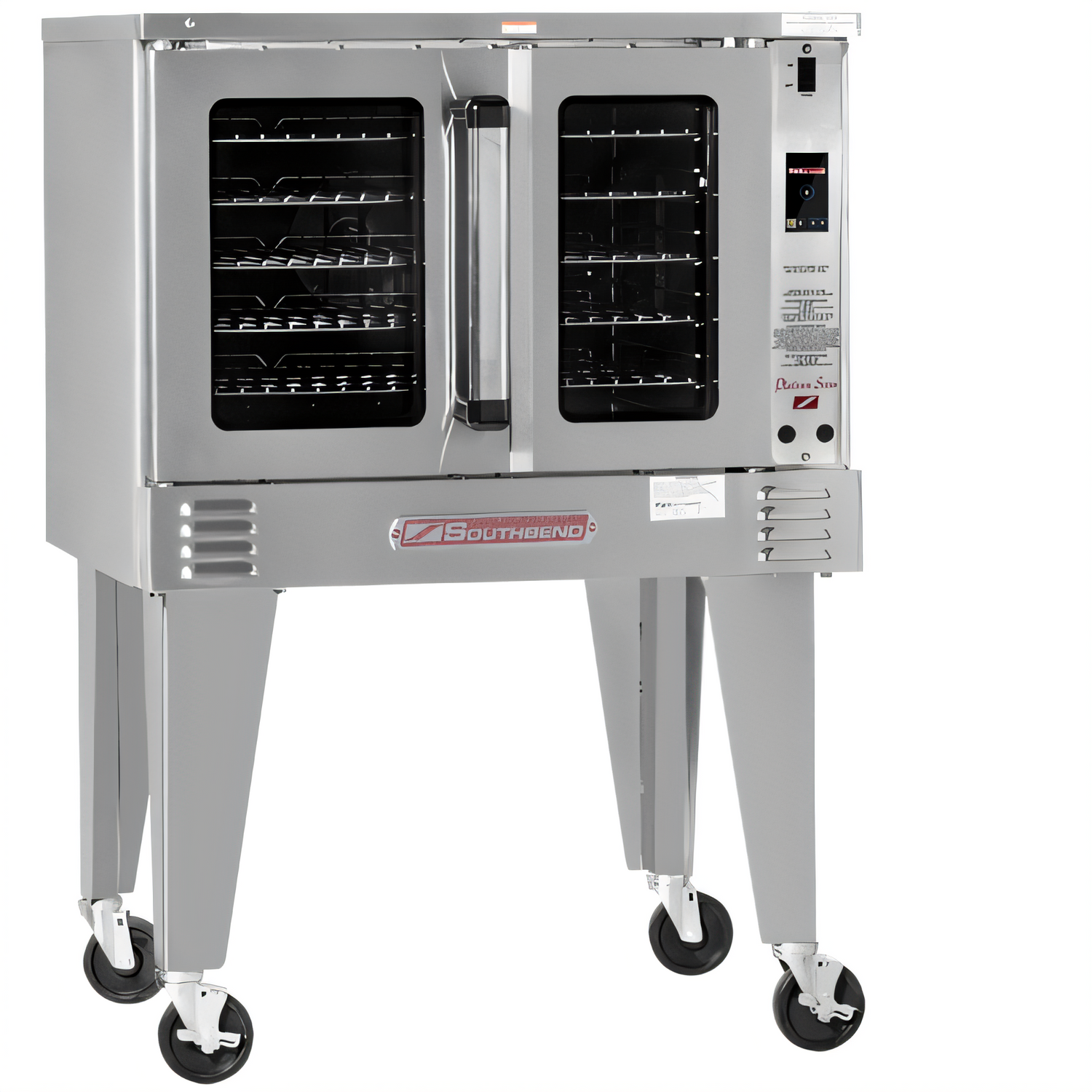

Southbend (Middleby) PCG90B/TI Platinum Convection Ovens
Southbend (Middleby) PCG90B/TI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCG90B/TI Platinum Convection Ovens
Description
Platinum Series PCG90B/T Gas Convection Oven
90,000 BTU • Bakery-Depth • Touchscreen Controls • Independent DoorsEngineered for high-volume bakeries, hotels, and institutional kitchens, the Southbend Platinum PCG90B/T delivers unbeatable performance in a single-deck footprint. A powerful 90,000 BTU inshot burner system, bakery-depth cavity, and intuitive touchscreen controls let you load full-size pans, program custom recipes, and turn out perfectly even bakes—batch after batch.
Why You’ll Love It

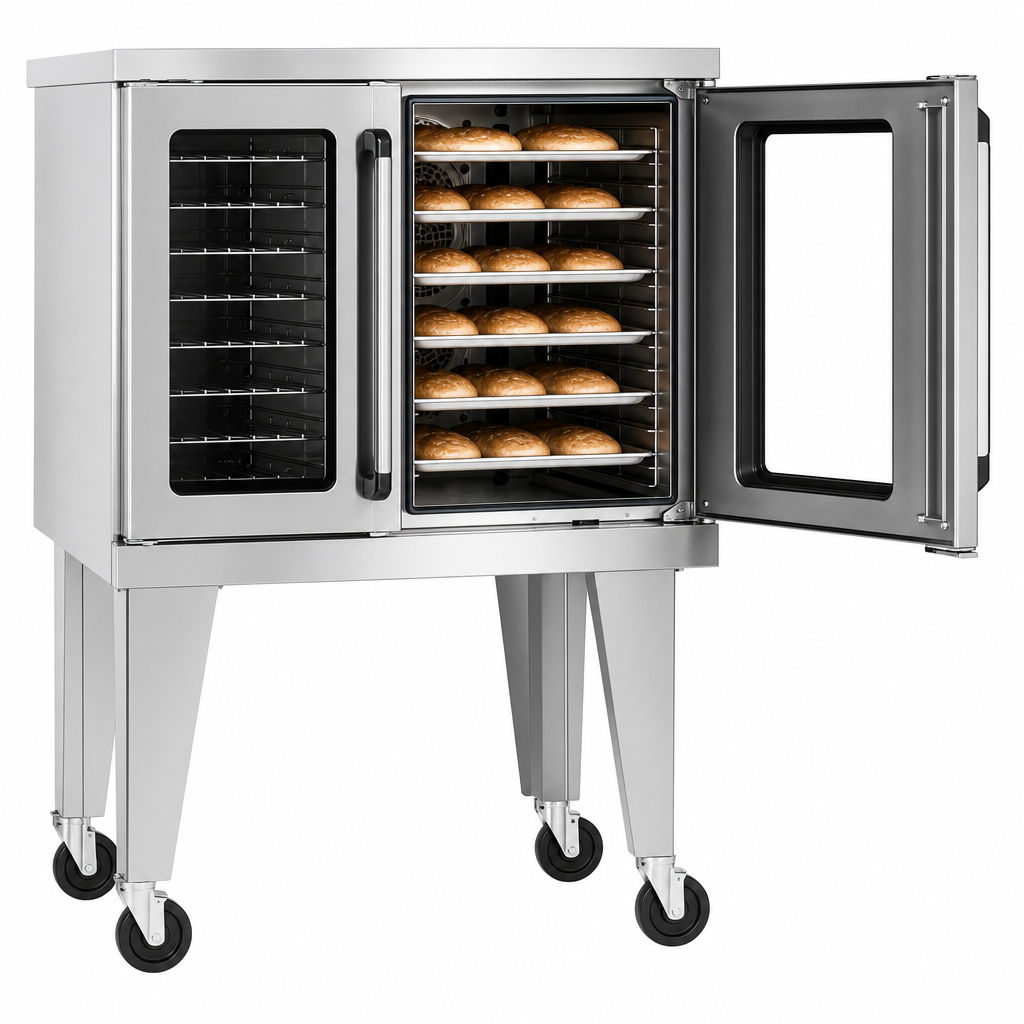

- Bakery-depth cavity (29 in.) fits full-size sheet pans front-to-back or left-to-right.
- 90,000 BTU stainless inshot burners with hot-surface electronic ignition for fast recovery and reliable starts.

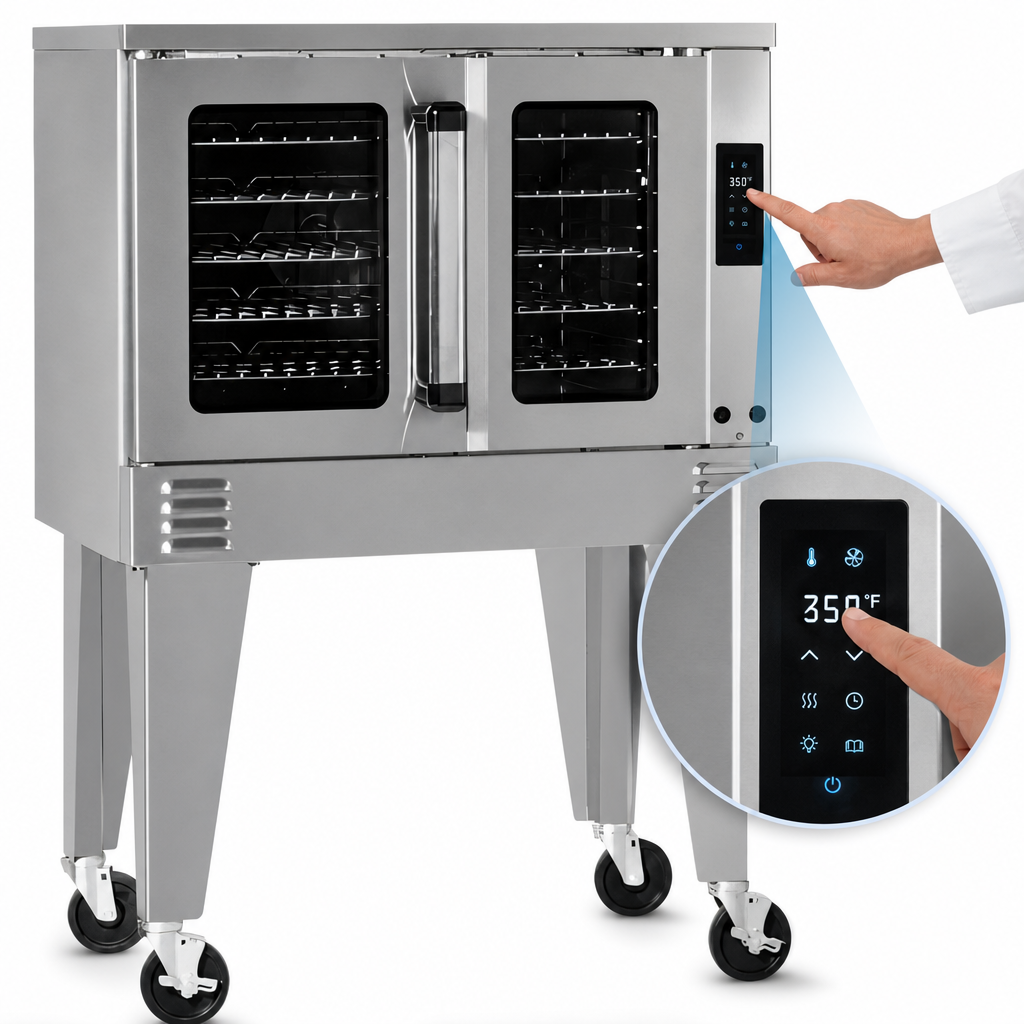

- TC Touchscreen control (150 °F–550 °F + 140 °F–200 °F hold) with manual, recipe, and rack-tracking modes.
- Independent, double-pane doors swing a full 180° for unobstructed loading and include energy-saving low-E glass windows.
- Soft-Air 2-speed fan (½ HP, 1710/1120 RPM) ensures gentle, consistent airflow for even browning and delicate bakery items.
- “Plug-in, plug-out” slide-out control panel—services easily from the front without removing the oven from the line.
- Durable stainless exterior and coved porcelain interior wipe clean with no exposed fasteners.
- Five chrome-plated racks with 11 rack positions on 1 ⅝″ centers.
- Forced cool-down mode, dual interior lights, and stay-cool door handles add safety and convenience.
Technical Specifications
| Model | PCG90B/T (Single Deck) |
|---|---|
| Gas Input | 90,000 BTU/hr – Natural 7″ W.C. | LP 11″ W.C. |
| Controls | TC Touchscreen, 150 °F–550 °F cook / 140 °F–200 °F hold, fan pulse timer, recipe & rack modes |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A, 6 ft cord & NEMA 5-15P (208 V, 240 V options hard-wired) |
| Overall Dimensions (W×D×H) | 43.5″ × 36.5″ × 57.5″ (1105 × 927 × 1461 mm) – on 26″ legs |
| Oven Interior (W×D×H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Rack Capacity | 11 positions / 5 included racks (full-size sheet pans) |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Shipping Weight | Approx. 680 lb (309 kg) |
| Gas Connection | ¾″ NPT (male) |
| Warranty | 1-year parts & labor (see Southbend Limited Warranty) |
In the Box
- Five chrome-plated bakery racks
- 11-position removable rack guides
- 26″ stainless leg set
- User & service manuals
Popular Options (Factory-Installed)
- 4″ or 6″ heavy-duty casters (front locking)
- Stainless steel oven interior
- 3 ft, 4 ft, or 5 ft ¾″ quick-disconnect gas hose with restraining device
- Down-draft flue diverter
- Marine-edge top or rear flue jacket
NSF listed • CSA Gas & Sanitation certified • Manufactured in the USA
