Southbend (Middleby) PCG90B/TD Platinum Convection Ovens
Description

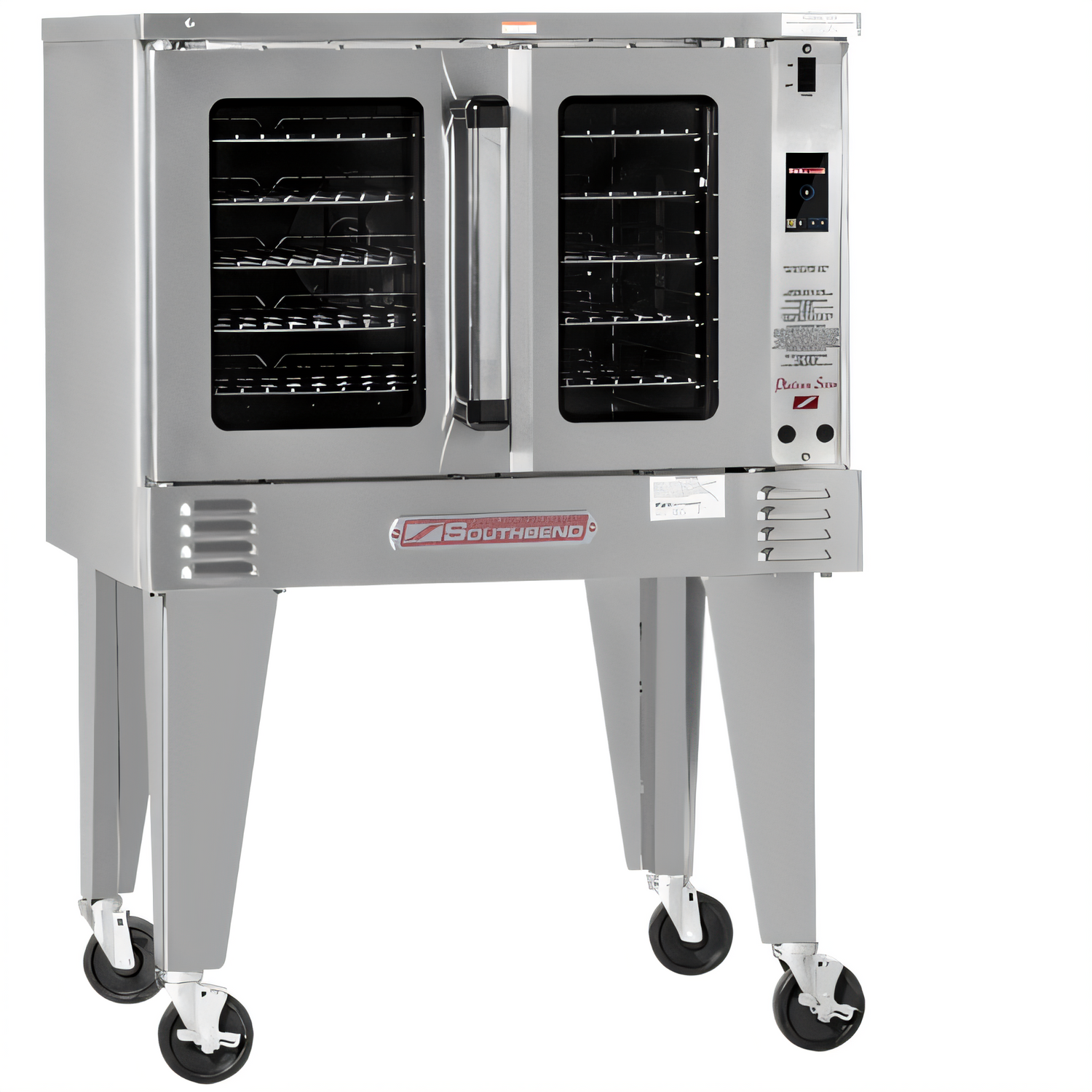

Southbend Platinum Series PCG90B/T Convection Oven
Bakery-Depth • Gas • 90,000 BTU • Touchscreen ControlsFrom artisan breads to high-volume banquets, the Platinum PCG90B/T delivers the horsepower, depth, and digital precision today’s kitchens demand—all in a rugged, service-friendly package built to Southbend’s legendary standard.
Performance you can taste

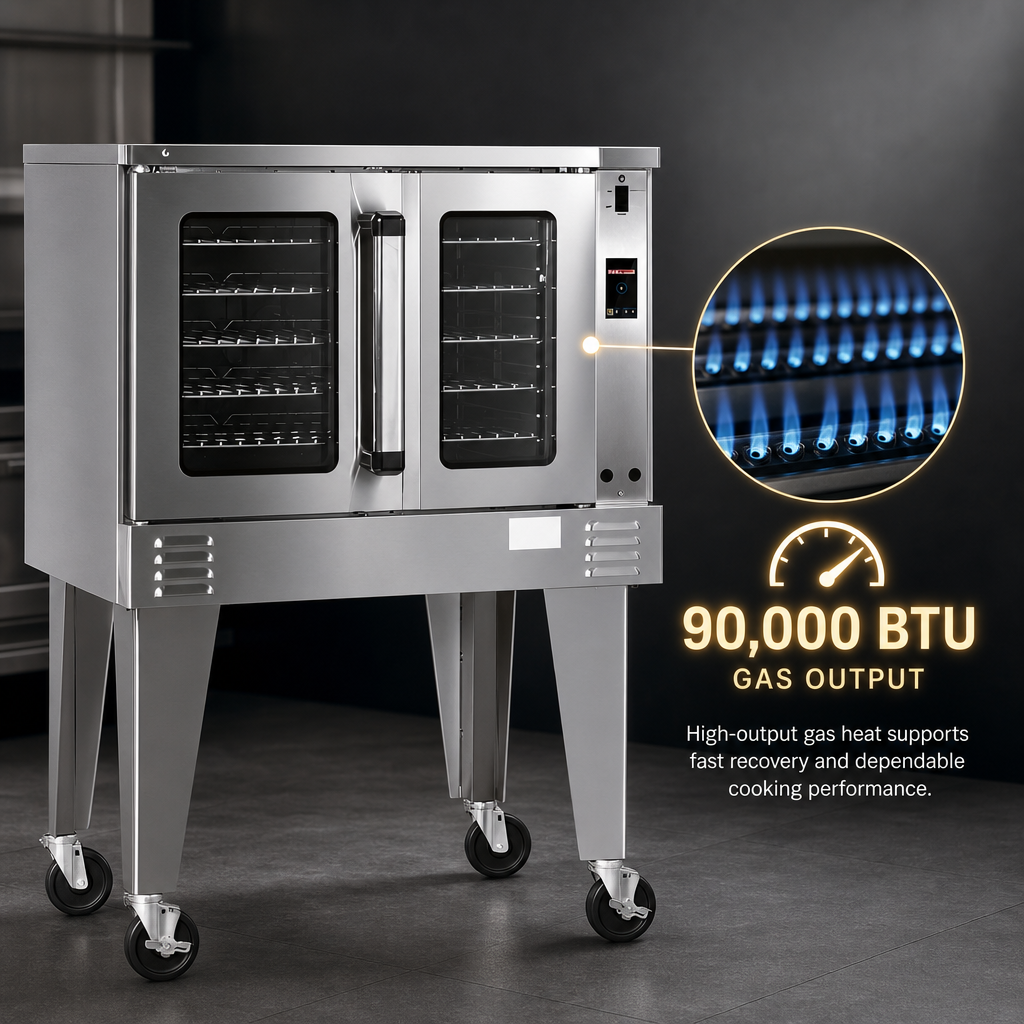

- Patented high-efficiency inshot burners generate 90,000 BTU of even heat while lowering fuel costs.

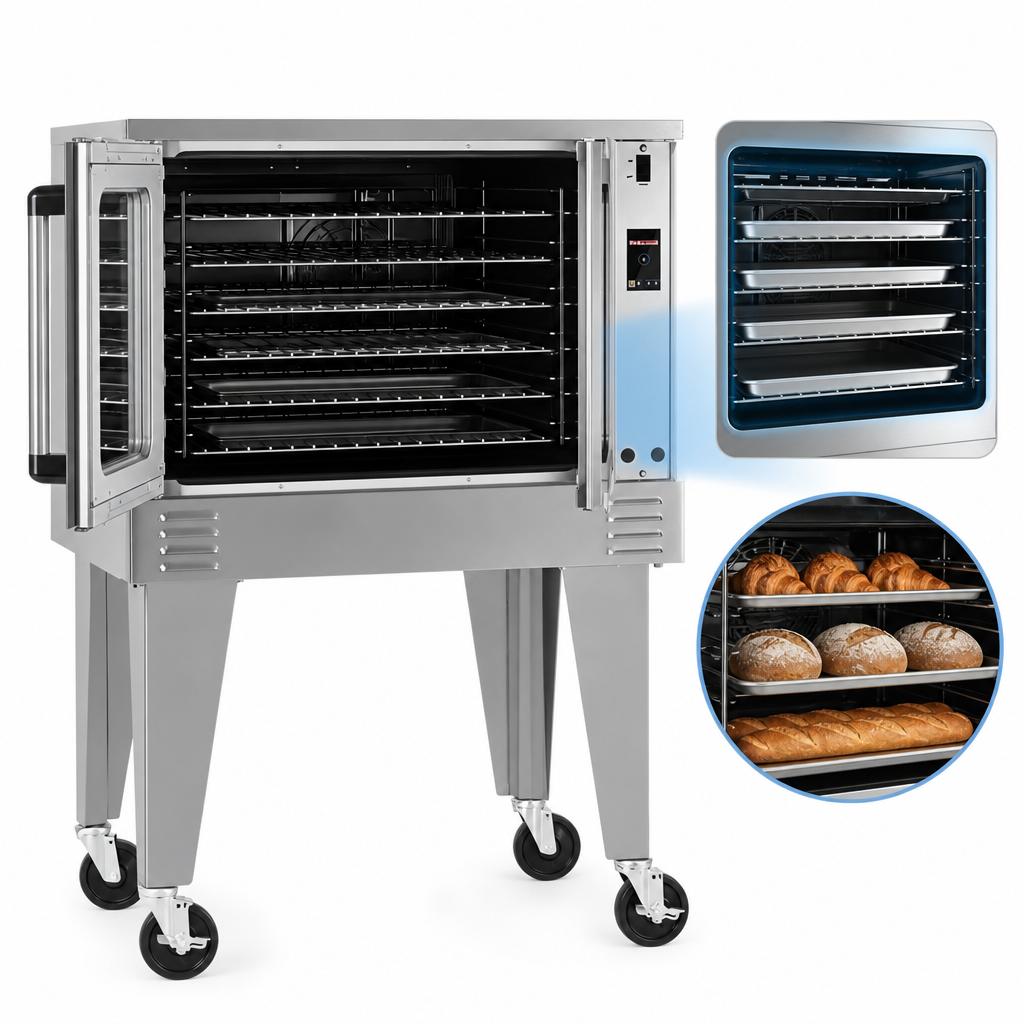

- Bakery-depth 29" cavity fits full-size sheet pans side-by-side for maximum throughput.
- Touchscreen controller (150 °F–550 °F) with “Hold” (140 °F–200 °F), programmable recipes, rack timers, and fan pulsing.
- Soft-Air 2-speed ½ HP fan circulates heat gently for perfectly browned, moist results.
- Dependent, windowed doors swing a full 180° and feature dual seals to lock in heat.
- Slide-out, “plug-in/plug-out” control module makes service fast and affordable.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Forced cool-down mode speeds turn-around between batches.
Technical specifications
| Model | PCG90B/T (Single Deck, Bakery Depth) |
|---|---|
| Heat Source | Natural or Propane Gas, 90,000 BTU/hr |
| Interior Capacity | 29" W × 29" D × 20" H • 11 rack positions • 5 racks included |
| Fan Motor | ½ HP, 2-speed (1,710 / 1,120 RPM) |
| Exterior Dimensions | 43.5" W × 36.5" D × 57.5" H (on standard 26" legs) |
| Gas Connection | ¾" NPT male • Min. inlet 7" W.C. (Natural) / 11" W.C. (LP) |
| Electrical | 120 V / 60 Hz / 1 Ph • 7.9 A • 6' cord & NEMA 5-15P |
| Shipping Weight | ≈ 680 lb |
| Warranty | 1-year parts & labor (commercial use) |
Popular add-ons (sold separately)
- 4" or 6" locking casters
- Stainless steel solid or independent doors
- Stainless steel oven interior & exterior bottom
- Marine-edge top
- ¾" quick-disconnect gas hose (3', 4', or 5')
- Down-draft diverter for direct flue connection
