Southbend (Middleby) PCG90B/SI Platinum Convection Ovens
Description

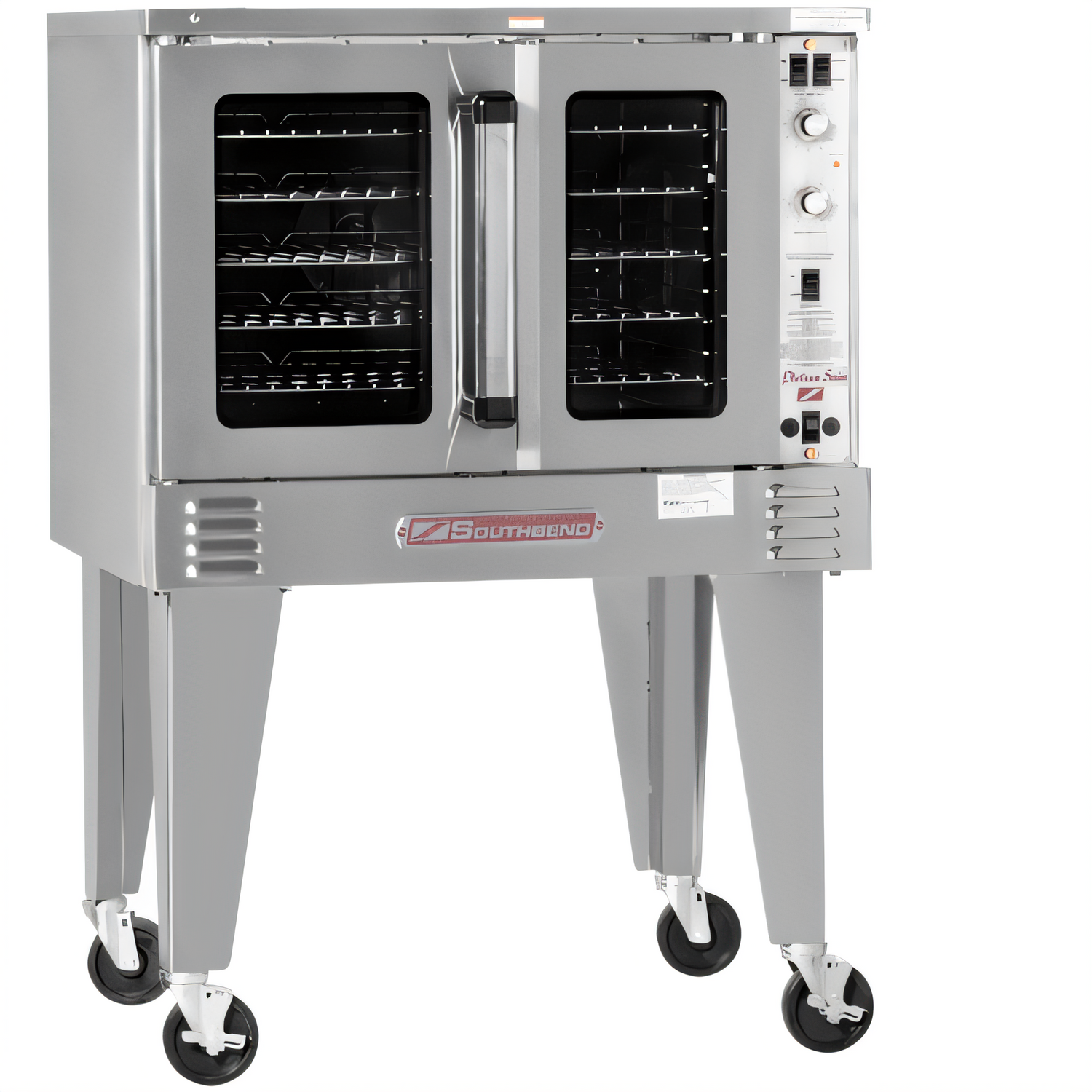

Platinum Series Single-Deck Gas Convection Oven – Bakery Depth
Model PCG90B/S | 90,000 BTU | Standard Controls | Independent DoorsEngineered for high-volume, scratch-bake operations, the Southbend Platinum PCG90B/S delivers powerful 90,000 BTU performance, uniform bake results and the rock-solid durability required in demanding commercial kitchens.
Key Performance & Construction Features
- High-efficiency in-shot burners – full 90,000 BTU (natural or LP)
- Bakery-depth cavity fits full-size sheet pans front-to-back or left-to-right
- Standard solid-state thermostat (140 °F – 500 °F) with 60-minute mechanical timer

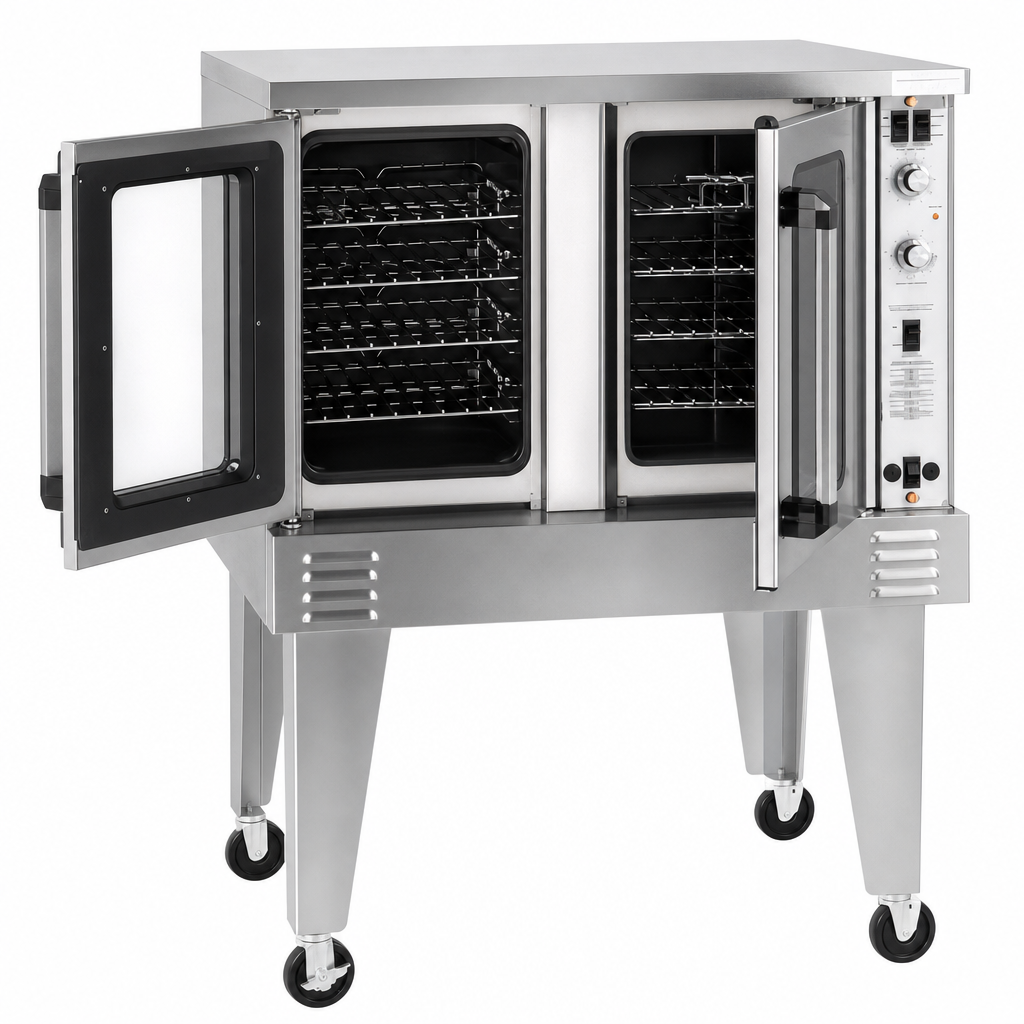

- Optional independent doors open 180° for unrestricted loading
- Energy-saving, low-emission glass windows with dual seals
- Coved, fastener-free porcelain enamel interior for easy wipe-down
- Two-speed “Soft-Air” ½ HP blower motor for even heat distribution
- 11-position rack guides with five plated racks included
- Patented “plug-in / plug-out” slide-out control panel simplifies service access
- Stainless-steel front, sides, top and 26" triangular legs for long-term durability
- Electronic hot-surface ignition with flame safety
- Forced cool-down fan mode protects components between bakes
- Two 40 W interior lights keep product visible without opening doors

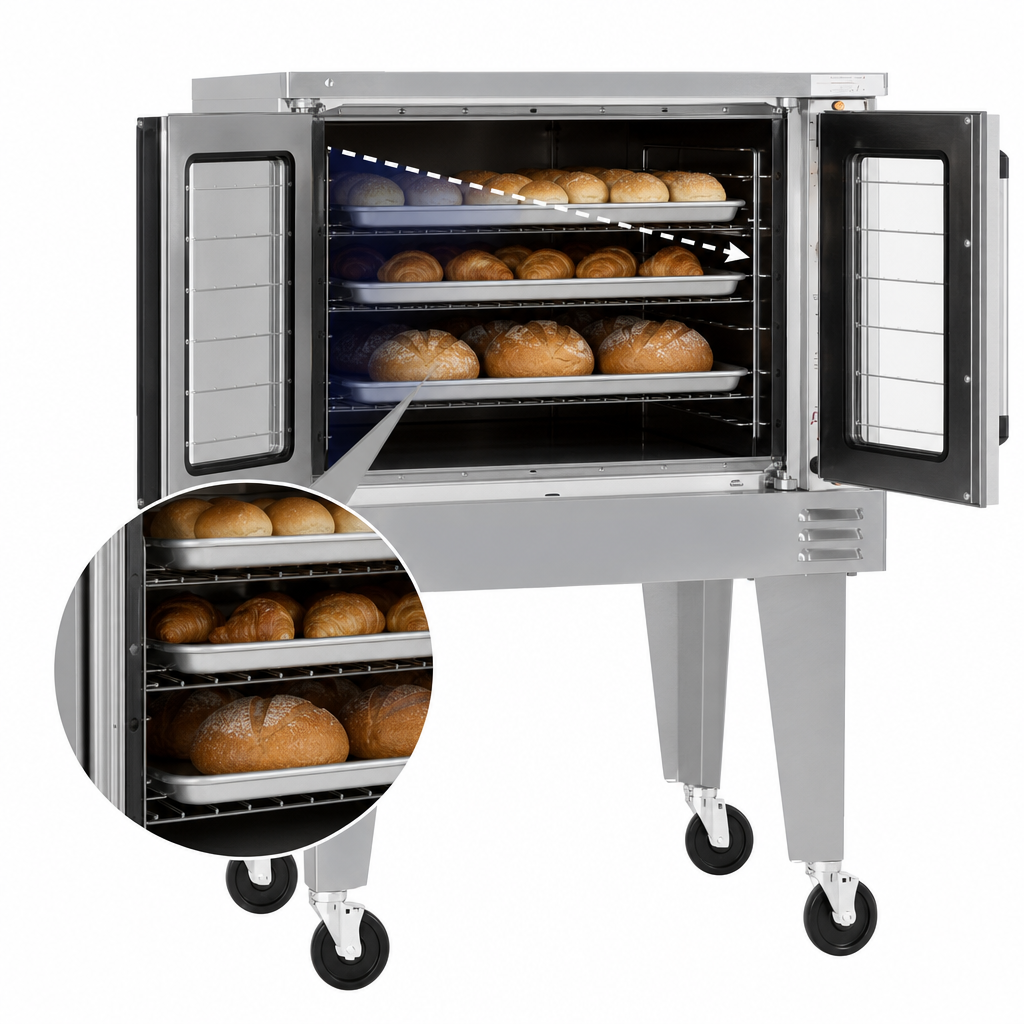

Why Choose Bakery Depth?
- Holds five full-size sheet pans in either direction—ideal for pastries, breads & desserts
- Extra air volume reduces recovery time when fully loaded
- Improves workflow by matching rack dimensions in proofers and speed racks
Technical Specifications
| Heat Source / Rating | Natural or LP gas, 90,000 BTU/hr |
|---|---|
| Thermostat Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Oven Interior (W×D×H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Rack Positions / Supplied Racks | 11 / 5 |
| Fan Motor | ½ HP, two-speed (1710 / 1120 RPM) |
| Gas Connection | ¾" NPT male; 7" W.C. natural, 11" W.C. LP |
| Electrical | 120 V, 60 Hz, 1 ph, 7.9 A (cord & NEMA 5-15P plug included) |
| Exterior Dimensions (W×D×H) | 43.5" × 36.5" × 57.5" on legs (1105 × 927 × 1461 mm) |
| Shipping Weight | ≈ 680 lb (313 kg) |
| Clearances | 0" top, bottom & right; 2" left (from combustibles) |
What’s in the Crate
- PCG90B/S convection oven on 26" stainless legs
- (5) nickel-plated oven racks
- User & installation manual
- Factory-installed independent door kit
- One-year parts & labor warranty card
Warranty & Service
Backed by Southbend’s 1-year limited parts & labor warranty. Register your oven and access authorized service agencies at southbendnc.com/service-and-parts.
