Southbend (Middleby) PCG90B/SD Platinum Convection Ovens
Description

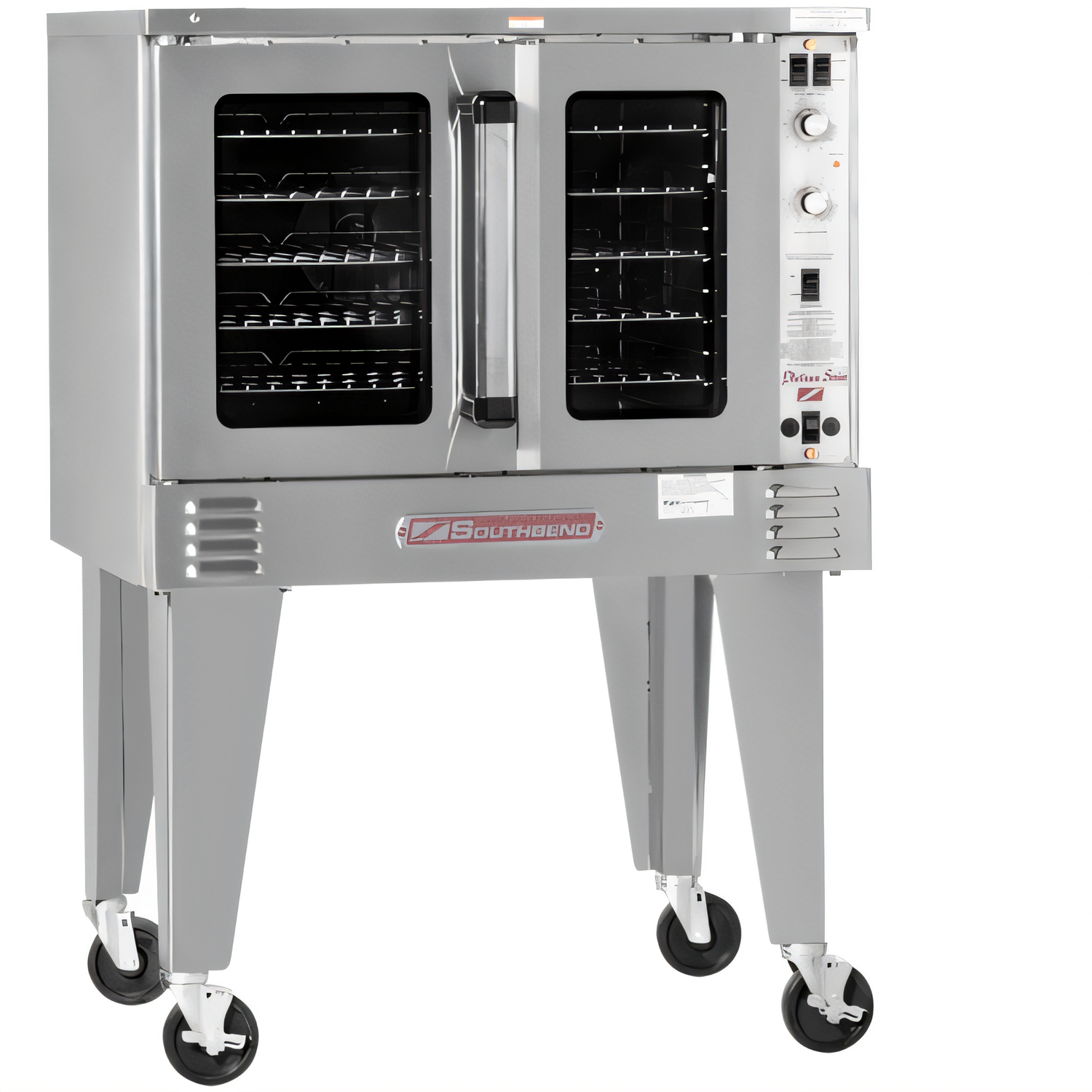

Southbend Platinum Series Single Gas Convection Oven
Bakery-Depth | 90,000 BTU | Model PCG90B/S (Standard Controls)When your bakery, café, or production kitchen needs fast, repeatable results, the Southbend Platinum PCG90B/S delivers. A high-efficiency burner package, full bakery-depth cavity, and rock-solid construction give you the power to turn out perfectly even bakes shift after shift.
Why you’ll love it

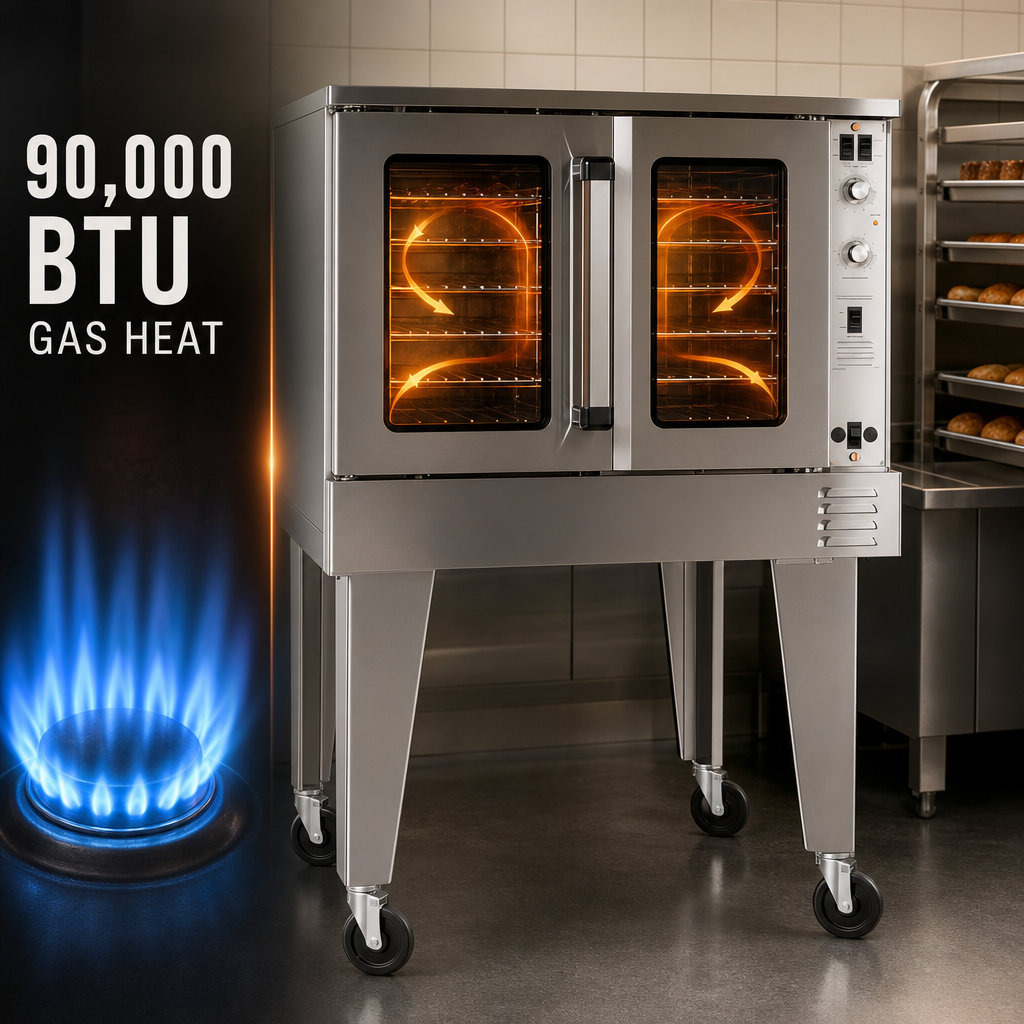

- 90,000 BTU patented in-shot burners reach temp fast and recover instantly.

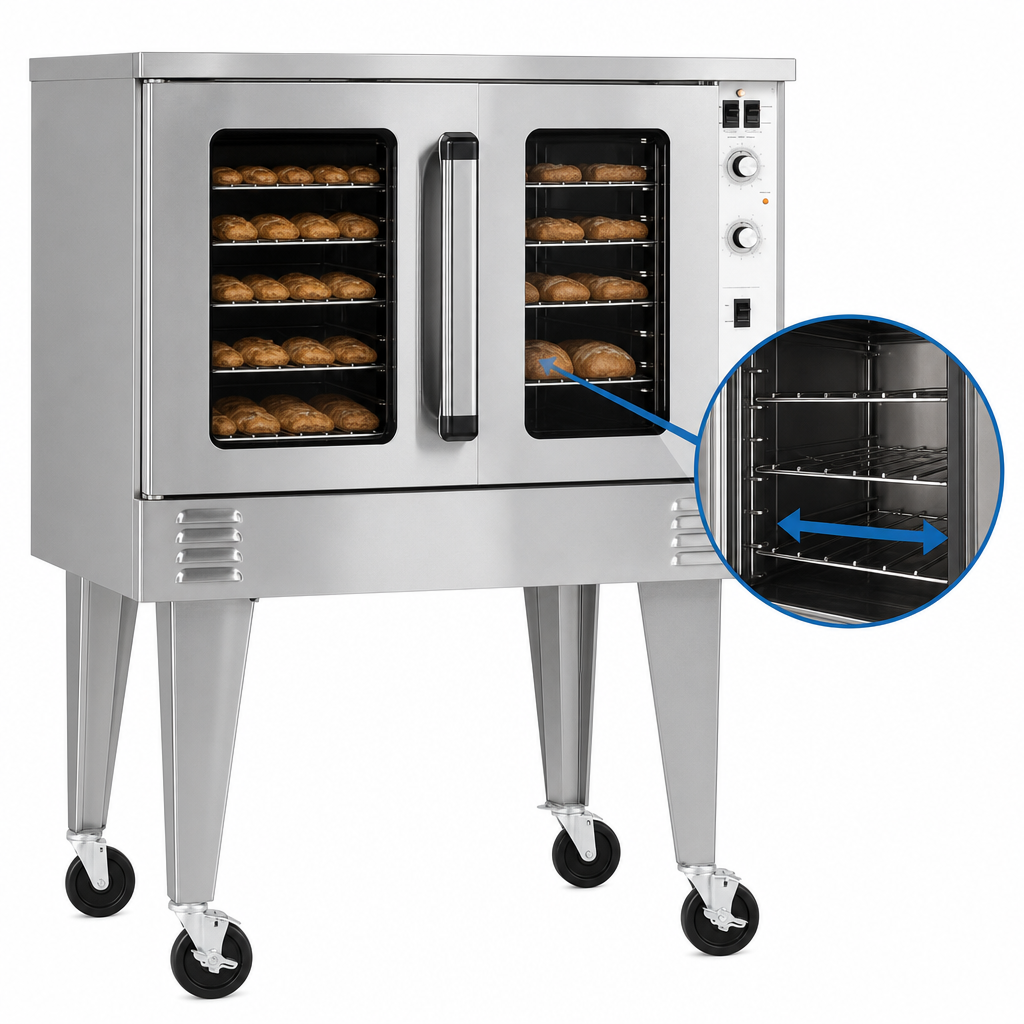

- Full bakery-depth cavity fits sheet pans front-to-back for maximum capacity.
- Standard controls: 140 °F – 500 °F solid-state thermostat & 60-minute mechanical timer.
- “Soft Air” two-speed ½ HP fan blankets product with gentle, even heat.
- 11-position rack guides & 5 chrome-plated racks included.
- Dependent, 180° swing doors with low-E glass and dual seals keep heat in—energy costs out.
- Rugged stainless-steel front, sides & top; coved, fastener-free porcelain interior for easy wipe-down.
- Slide-out, “plug-in, plug-out” control panel for quick front-of-unit servicing.
- Electronic ignition with flame-safety plus forced cool-down fan mode for safety and longer component life.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-glance specifications
| Model | PCG90B/S (Single deck, bakery depth) |
|---|---|
| Fuel / Input | Natural or LP Gas, 90,000 BTU/hr |
| Oven cavity (W × D × H) | 29 in × 29 in × 20 in (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 43.5 in × 36.5 in × 57.5 in (1105 × 927 × 1461 mm) on 26 in legs |
| Temperature range | 140 °F – 500 °F |
| Controls | Solid-state thermostat & 60-minute mechanical timer |
| Fan motor | ½ HP, two-speed (1710/1120 RPM) |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A, 6 ft cord, NEMA 5-15P |
| Gas connection | ¾ in NPT, min. 7 in W.C. (Nat) / 11 in W.C. (LP) |
| Rack positions / supplied racks | 11 / 5 |
| Shipping weight | ≈ 680 lb (309 kg) |
Installation & utility requirements
- Provide 0 in clearance top, bottom & right; 2 in left from combustibles.
- Unit must be installed under a vented hood and connected to ¾ in gas supply.
- Oven will not operate unless the fan is running—verify 120 V power is present.
- If casters and flex-hose are used, install the supplied restraint to protect the gas line.
Covered by Southbend’s limited 1-year parts & labor warranty. Full terms available at southbendnc.com/service-and-parts.
