Southbend (Middleby) PCG70S/TI Platinum Convection Ovens
Description

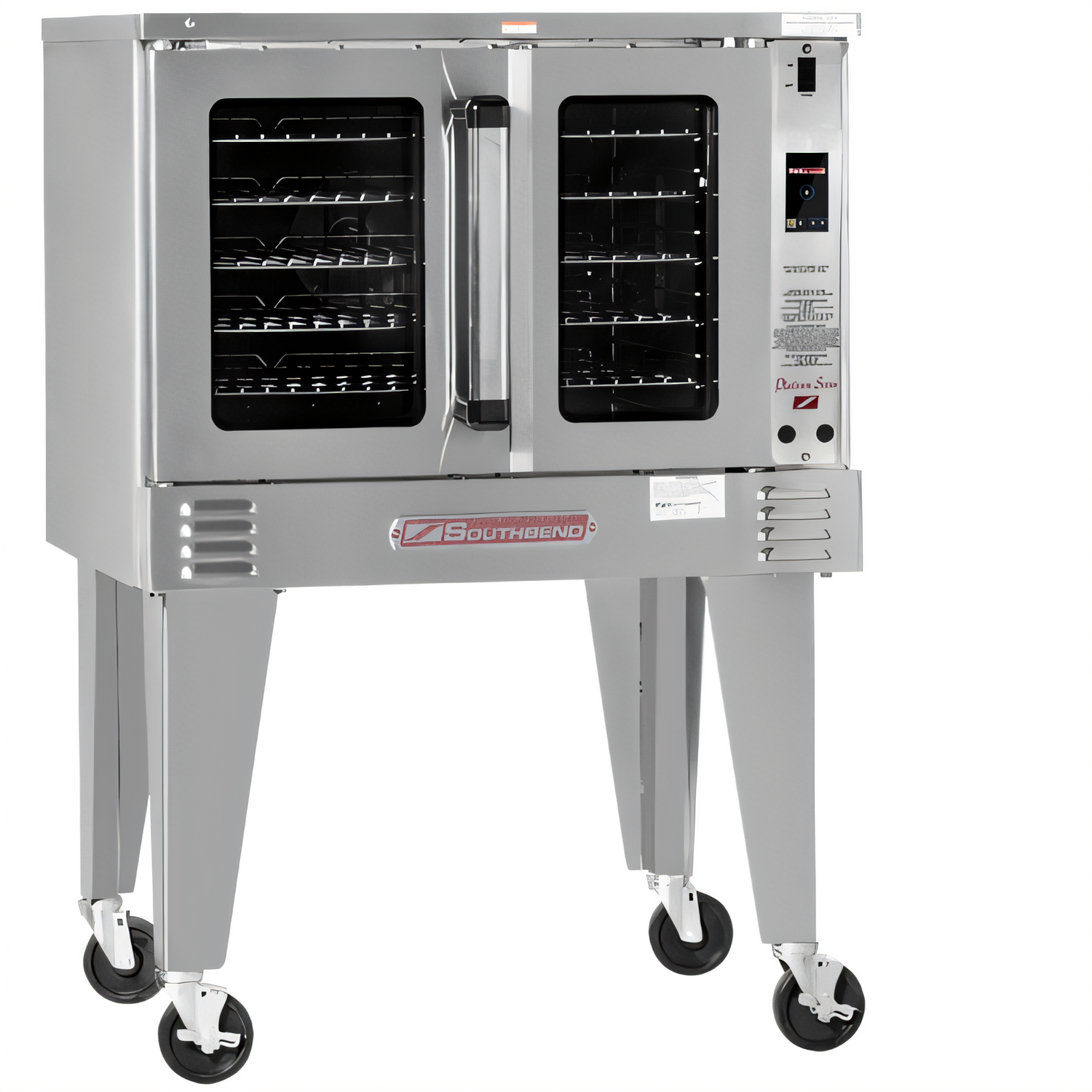

Platinum Series PCG70B/T Single-Deck Gas Convection Oven
70,000 BTU • Standard Depth • Touchscreen Controls • Independent DoorsSouthbend’s Platinum Series PCG70B/T is engineered for high-volume bakeries, cafés and commercial kitchens that demand precise, repeatable results service after service. A powerful 70 kBTU in-shot burner system, full-featured touchscreen control and rugged stainless-steel construction give you the performance edge—while independent, low-emission glass doors lock in heat and boost energy efficiency.
Why You’ll Love It

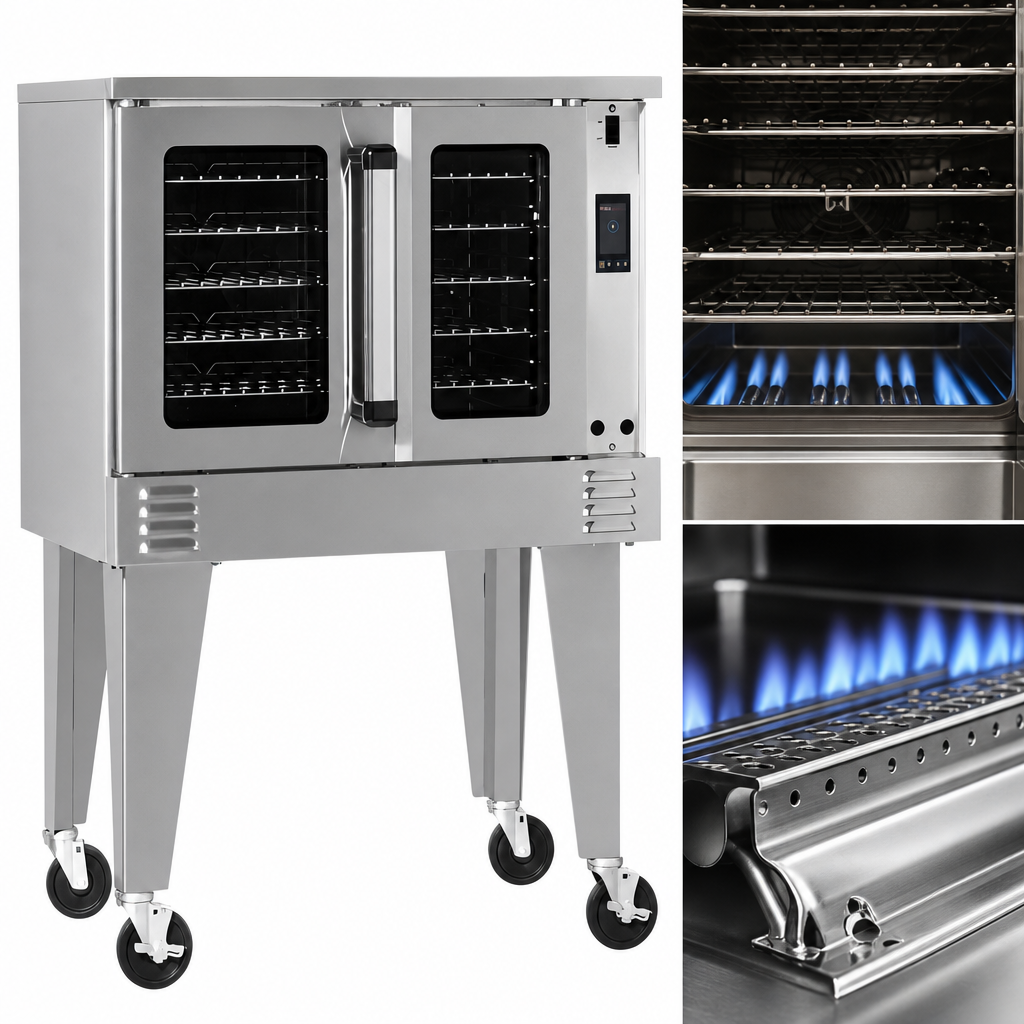

- 70,000 BTU patented in-shot burner delivers fast, even heat.

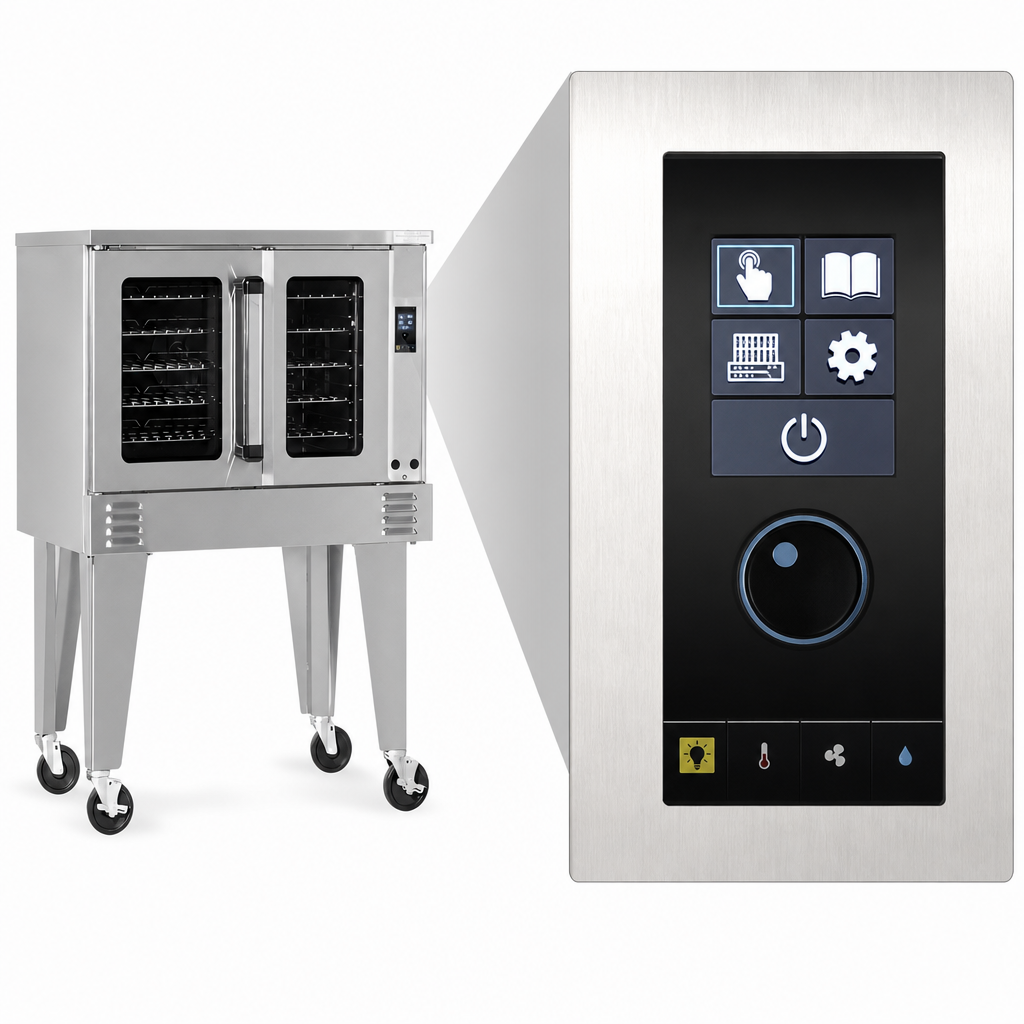

- TC Touchscreen lets you run manual, recipe or rack-timed modes from 150 °F to 550 °F with a 140–200 °F hold range.
- Independent, full-180° opening doors with dual seals minimize heat loss and save energy.
- Slide-out, “plug-in/plug-out” control panel simplifies servicing—no need to pull the oven from the line.
- Soft-Air 2-speed ½-hp fan circulates heat gently for perfect color and volume on baked goods.
- 11-position rack guides and five heavy-duty wire racks included (full-size sheet pan capacity).
- Coved, fastener-free porcelain enamel interior wipes clean in seconds.
- Electronic hot-surface ignition with flame safety for quick, reliable starts.
- Forced cool-down fan mode speeds turn-around between batches.
- Stainless-steel front, sides, top and 26" triangular legs built to thrive in demanding kitchens.
At-a-Glance Specs
| Model | PCG70B/T (Platinum Series) |
|---|---|
| Heat & Fuel | Natural or LP gas, 70,000 BTU/hr (7" W.C. Natural / 11" W.C. Propane) |
| Control Range | 150 °F – 550 °F cooking + 140 °F – 200 °F hold |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A, 6 ft cord & NEMA 5-15P (208 V, 240 V & export voltages available) |
| Exterior Dimensions (W × D × H) | 43.5" × 36.5" × 45.75" (57.5" H on standard legs) |
| Interior Cavity | 29" W × 29" D × 20" H 11 rack positions on 1⅝" centers |
| Construction | Stainless-steel exterior, porcelain enamel interior, independent glass doors |
| Fan Motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Included Racks | 5 heavy-duty plated wire racks |
| Shipping Weight | Approx. 680 lb |
| Warranty | 1-year limited parts & labor Full details |
Popular Options (sold separately)
- 4" or 6" locking casters
- Marine-edge top
- Stainless-steel oven interior
- ¾" gas quick-disconnect hose (3 ft, 4 ft or 5 ft)
- Stainless-steel rear jacket or solid doors
Model data compiled from Southbend specification sheet Rev 2 (07/2024). Specifications are subject to change without notice.
