Southbend (Middleby) PCG70S/SI Platinum Convection Ovens
Description

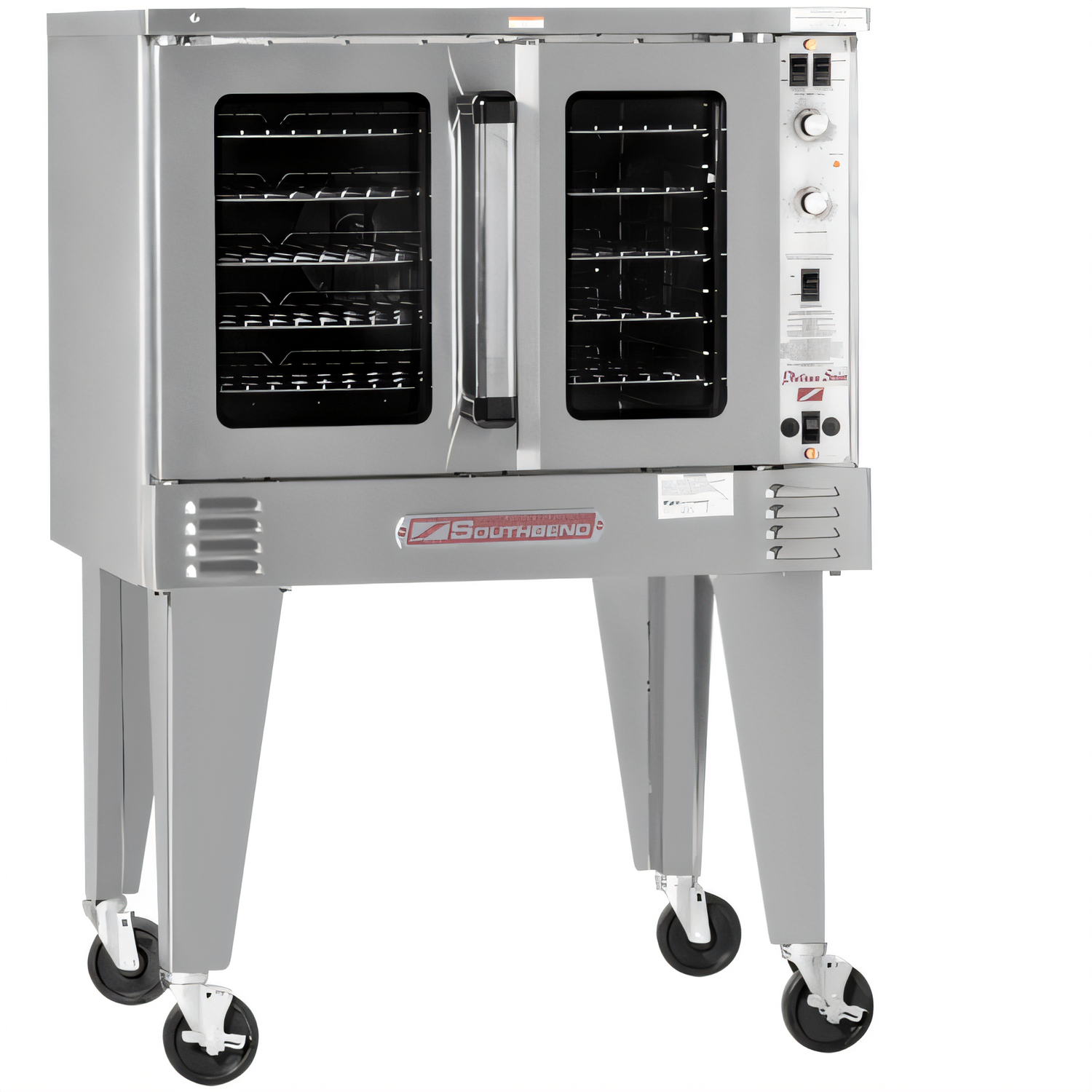

Southbend Platinum Series – Single Gas Convection Oven
Model PCG70B/S • 70,000 BTU • Independent Doors • Standard ControlsBuilt for bakeries, restaurants and institutional kitchens that demand consistent results and rock-solid reliability, the Southbend Platinum single-deck convection oven combines a powerful 70,000 BTU burner package with a service-friendly design and the rugged construction you expect from a Middleby brand.
Performance & Convenience

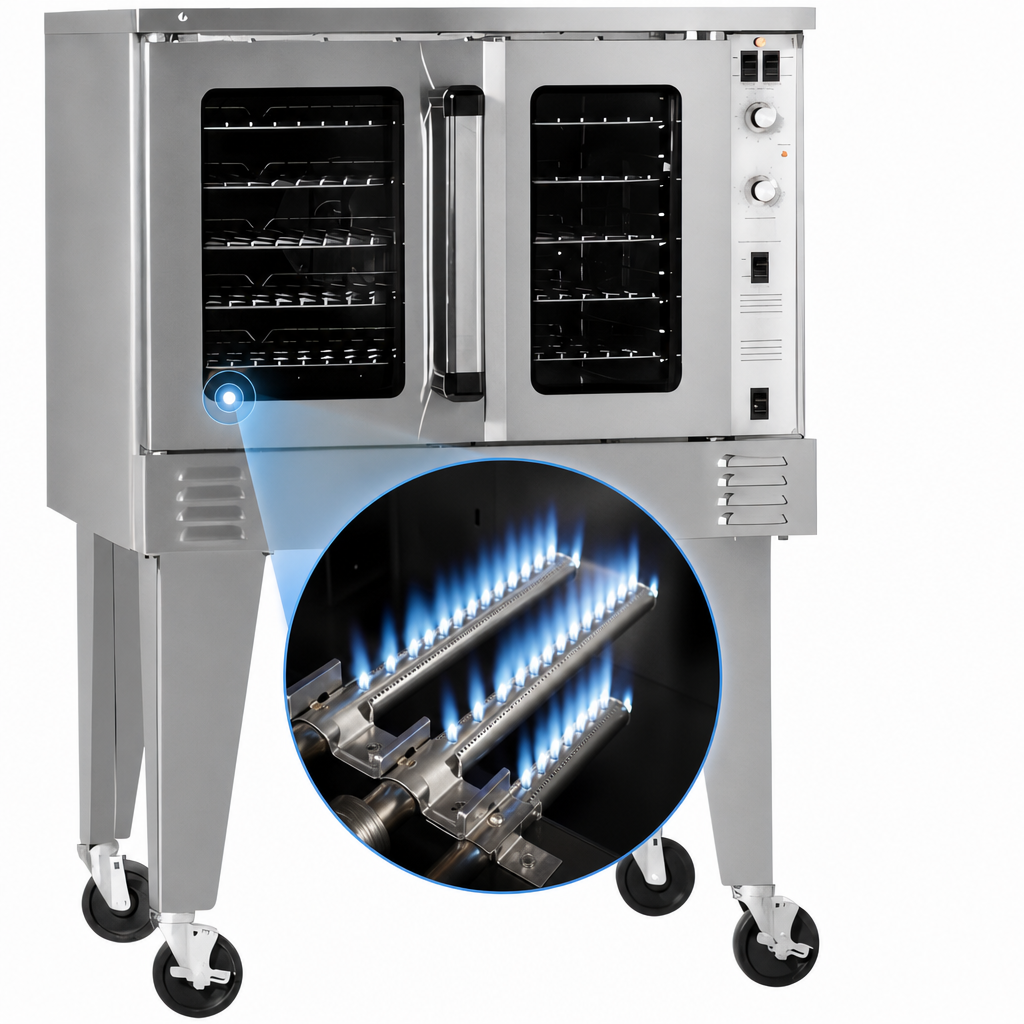

- Patented in-shot burners deliver a total input of 70,000 BTU (Natural or LP).

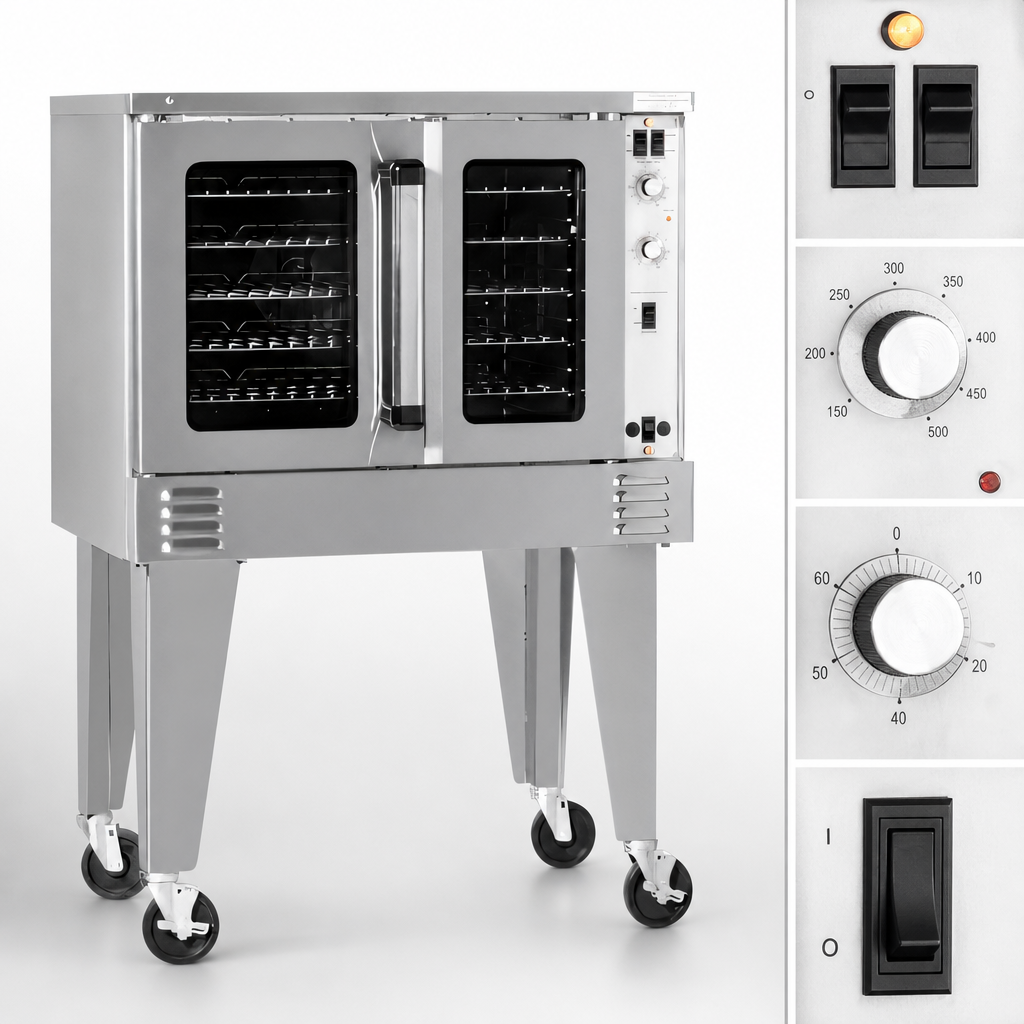

- Solid-state thermostat (140 °F – 500 °F) with 60-minute mechanical timer.
- Soft-Air ½ HP, 2-speed fan (1,710 / 1,120 RPM) blankets every rack with even heat.
- Forced cool-down mode speeds turnaround between batches.
- Electronic hot-surface ignition with flame safety.
Durability & Easy Maintenance
- Stainless steel front, sides and top with 26" stainless triangular legs.
- Coved, fastener-free porcelain enamel interior for quick wipe-downs.
- “Plug-in, plug-out” slide-away control panel simplifies service access.
- Stay-cool, heavy-duty handles and dual door seals hold heat in and keep operators safe.
- Energy-saving glass windows in independent doors – open one side without dropping cavity temperature.
Capacity
- 11 rack positions on 1 ⅝" centers.
- Includes (5) nickel-plated racks.
- Fits full-size sheet pans front-to-back or left-to-right.
Specifications
| Fuel / Input | Natural or Propane Gas – 70,000 BTU hr |
|---|---|
| Gas Connection | 3/4" NPT male; minimum 7" W.C. NAT / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A, 6' cord & NEMA 5-15P plug |
| Exterior (W × D × H) | 43.5" × 36.5" × 57.5" (1105 × 927 × 1461 mm) |
| Oven Interior | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Rack Guides / Racks | 11 positions / 5 supplied |
| Fan Motor | ½ HP, two-speed |
| Clearances (Combustible) | Top 0", Bottom 0", Right 0", Left 2" |
| Shipping Weight | ≈ 680 lb (308 kg) |
| Warranty | 1-year parts & labor (see Southbend terms) |
What’s Included
- (5) oven racks
- 26" stainless legs
- Operator manual & warranty registration
Popular Options (sold separately)
- 4" or 6" locking casters
- Touchscreen control upgrade (model PCG70B/T)
- Stainless steel oven interior or exterior bottom
- Marine-edge top or 2" insulated side panels
- 3/4" quick-disconnect gas hose kit (3', 4' or 5')
Need a double-deck, 50,000 BTU or 90,000 BTU model? Explore the full Southbend Platinum line or chat with our equipment experts for a custom quote.
