Southbend (Middleby)  |  Platinum  |  SKU: PCG70S/SD

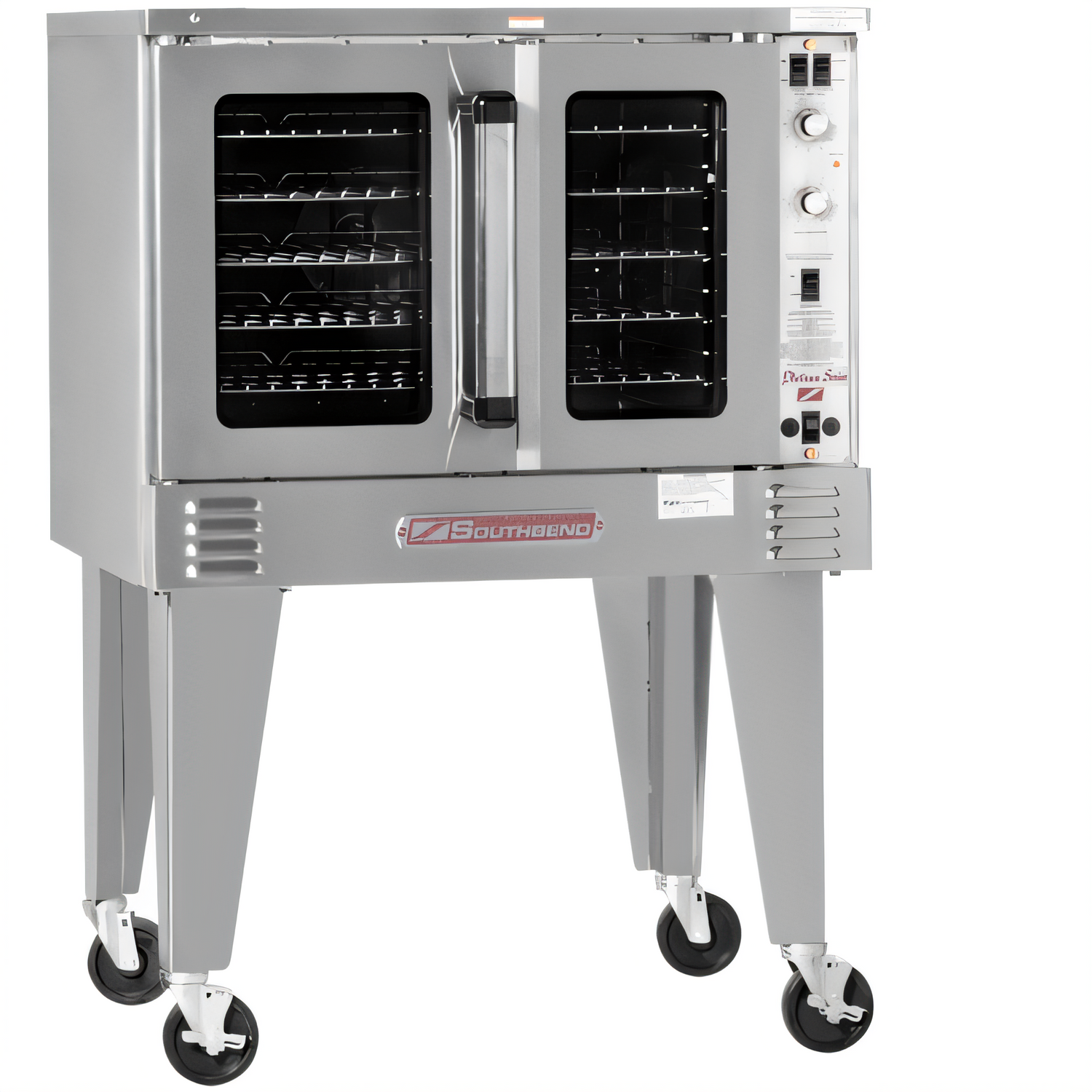

Southbend (Middleby) PCG70S/SD Platinum Convection Ovens

$6,152.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Co with nrg manual Middleby financial flyer Energy savings system flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series Gas Convection Oven – 70,000 BTU

Model PCG70B/S • Single Deck • Quick-Ship

Engineered for high-volume production and all-day reliability, the Southbend Platinum PCG70B/S pairs rugged construction with the even, efficient bake only true convection can deliver.

Performance & Convenience

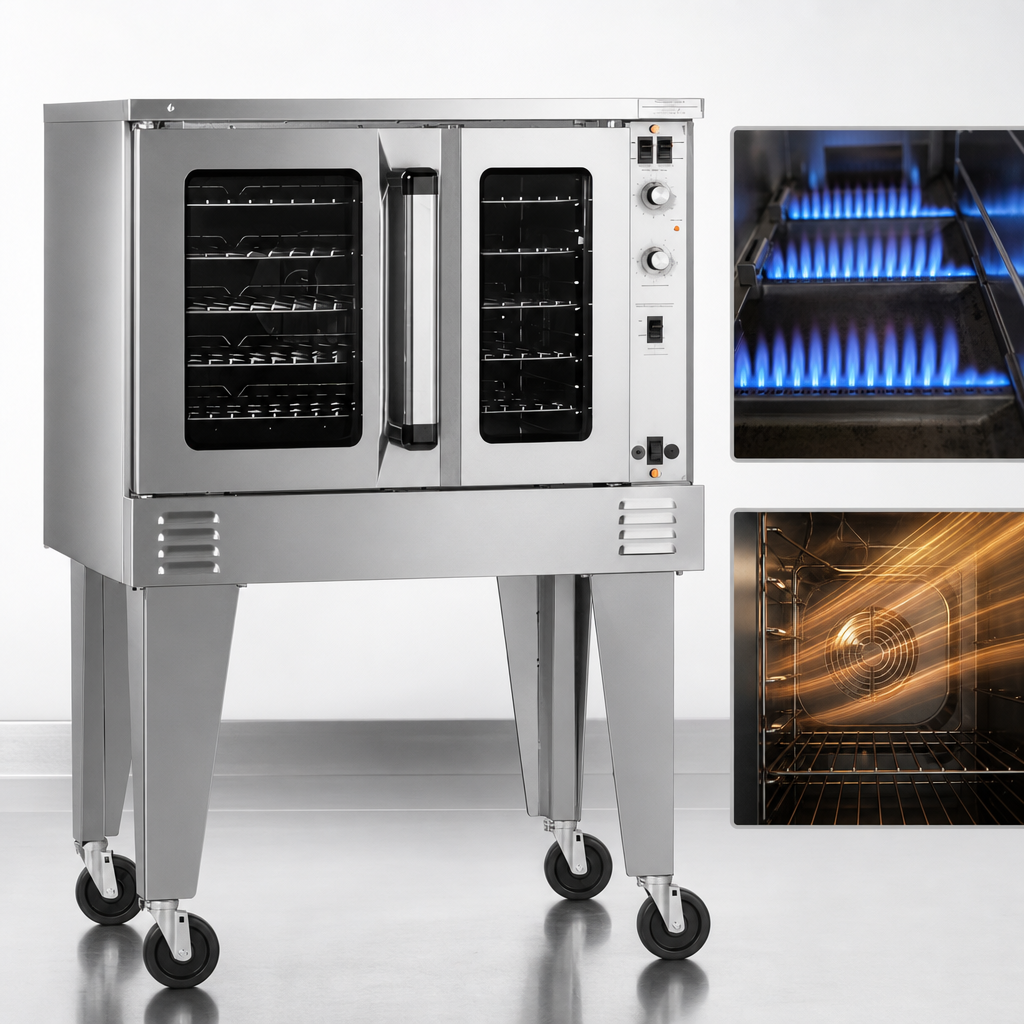

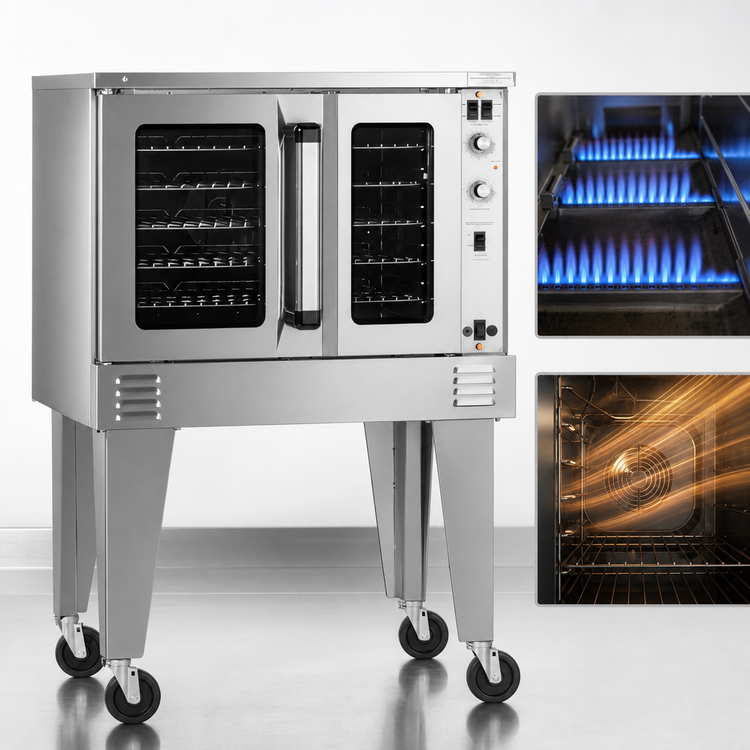

  • Patented in-shot burners deliver a powerful 70,000 BTU/hr (natural or LP gas).

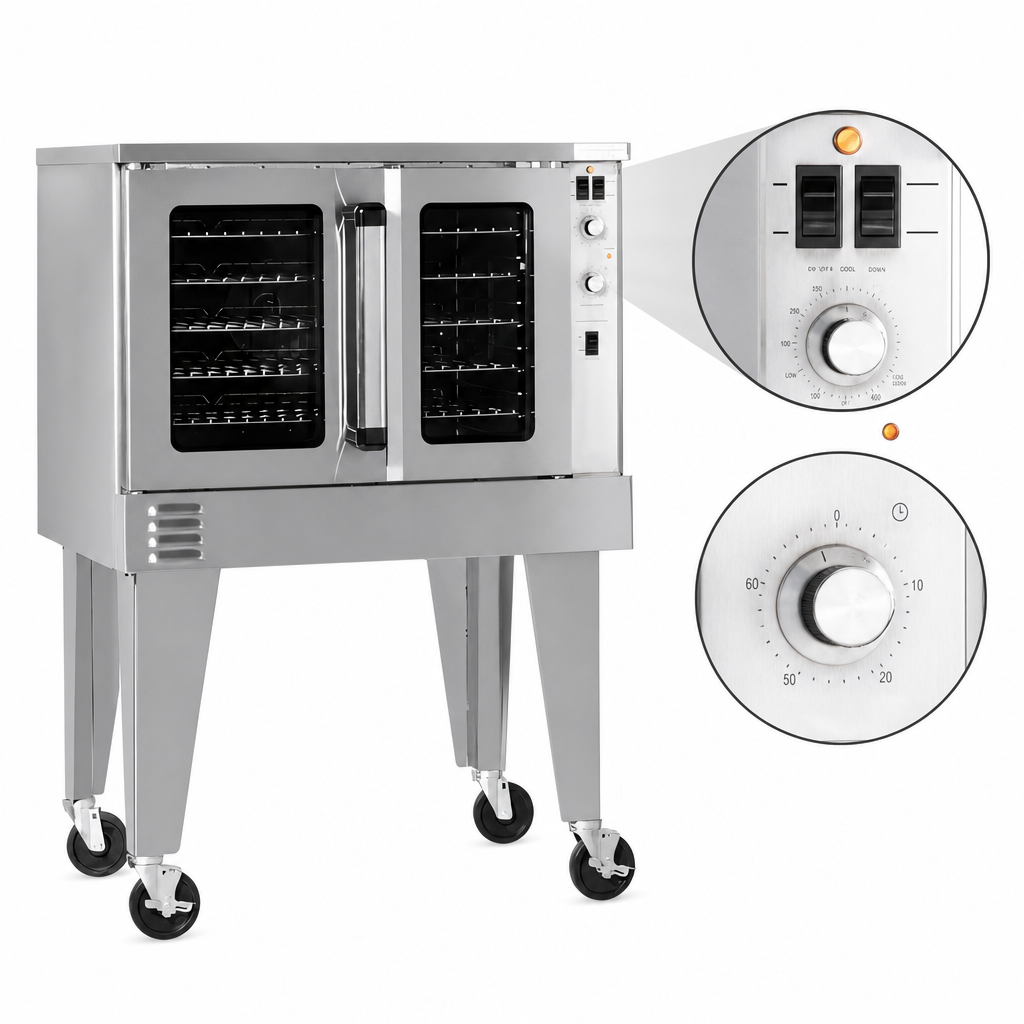

  • Standard solid-state controls: 140 °F–500 °F thermostat & 60-minute mechanical timer.
  • Soft-Air ½ HP two-speed fan motor ensures uniform results on every rack.
  • Electronic ignition with flame-safety plus a forced cool-down mode for rapid turnarounds.
  • “Plug-in / plug-out” slide-out control panel simplifies front-of-unit servicing.
Built to Last
  • Stainless steel front, sides & top resist dents, dings and daily cleaning chemicals.
  • Porcelain-enamel, coved interior—no fasteners to trap food soil.
  • Dependent, windowed doors open a full 180° and feature dual heat-keeping gaskets.
  • Stay-cool, heavy-duty door handle stands up to the busiest kitchens.
  • Five plated racks on 11 positions accommodate full-size sheet pans front-to-back.
Specifications
Model PCG70B/S
Decks Single
Heat Input 70,000 BTU/hr
Pan Capacity 5 full-size sheet pans (11 rack positions)
Fan Motor ½ HP, 2-speed (1710/1120 RPM)
Gas Connection 3/4" NPT male; 7" W.C. Natural / 11" W.C. LP
Electrical 120 V / 60 Hz / 1-ph, 7.9 A, 6′ cord & NEMA 5-15P
Exterior (w/ legs) 43.5" W × 36.5" D × 45.75" H
Interior 29" W × 29" D × 20" H
Shipping Weight ≈ 680 lb • 68.1 cu ft
Warranty 1-year parts & labor (commercial use)
What’s Included
  • (5) plated oven racks
  • 26" stainless steel triangular legs
  • Owner’s/installation manual
  • Nationwide service support for the entire warranty period

Optional upgrades (casters, stainless interior, marine-edge top, quick-disconnect hose, and more) are available—contact us for a custom quote.

Important: For commercial use only. Unit must be installed under a properly sized vent hood and operated with the fan running at all times. Follow all local codes for gas and ventilation.

Give your kitchen the power it deserves—order the Southbend Platinum Series PCG70B/S today and keep your production lines moving, batch after batch.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

55.0in

Width

38.0in

Depth

38.5in

Shipping Weight

600.0lbs

Interior Finish

porcelain interior

Deck Qty

1 deck

Exterior Finish

stainless steel front & sides

Control Type

solid state controls

Capacity per Compartment

5 pan capacity, per compartment

Type

standard

Size

full/standard size

Specifications

(QUICK-SHIP) Platinum Single Convection Oven, Gas 70,000 BTU's, Standard Depth, Standard Controls, Dependent Doors
