Southbend (Middleby) PCG70B/SI Platinum Convection Ovens
Description

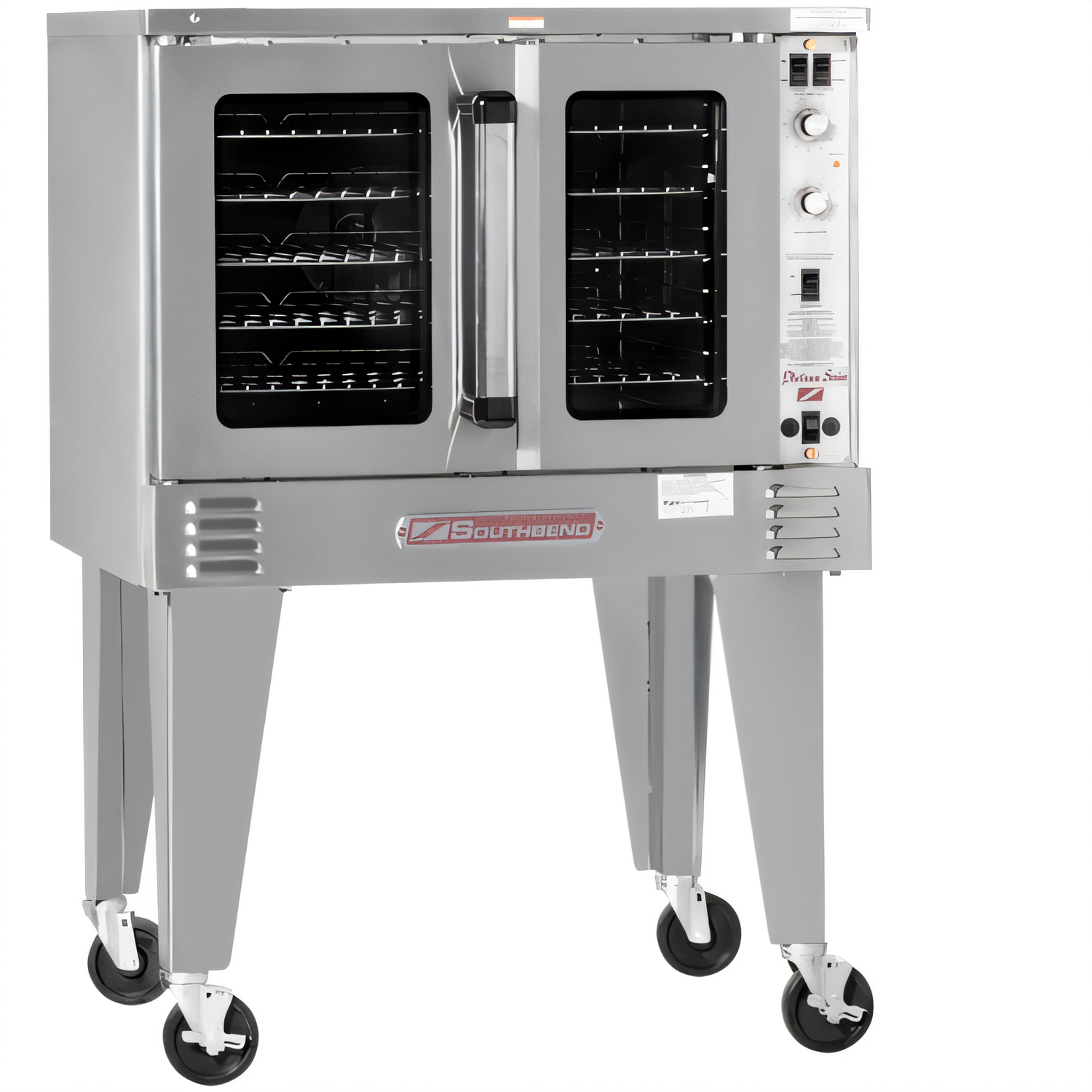

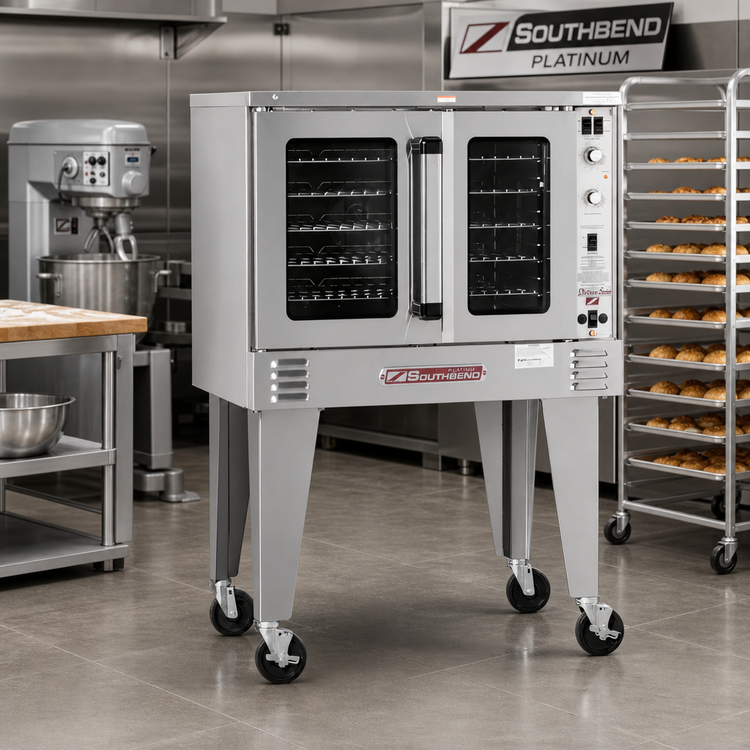

Platinum Series Single Bakery-Depth Convection Oven – Gas, 70,000 BTU
Southbend Model PCG70B/S • Standard Controls • Independent DoorsBuilt for busy bakeries, restaurants and institutional kitchens, the Southbend Platinum PCG70B/S delivers high-volume output with rock-solid thermal consistency. A powerful 70,000 BTU inshot burner system, bakery-depth cavity and service-friendly design make this oven a long-term performer you can depend on shift after shift.
Performance & Convenience

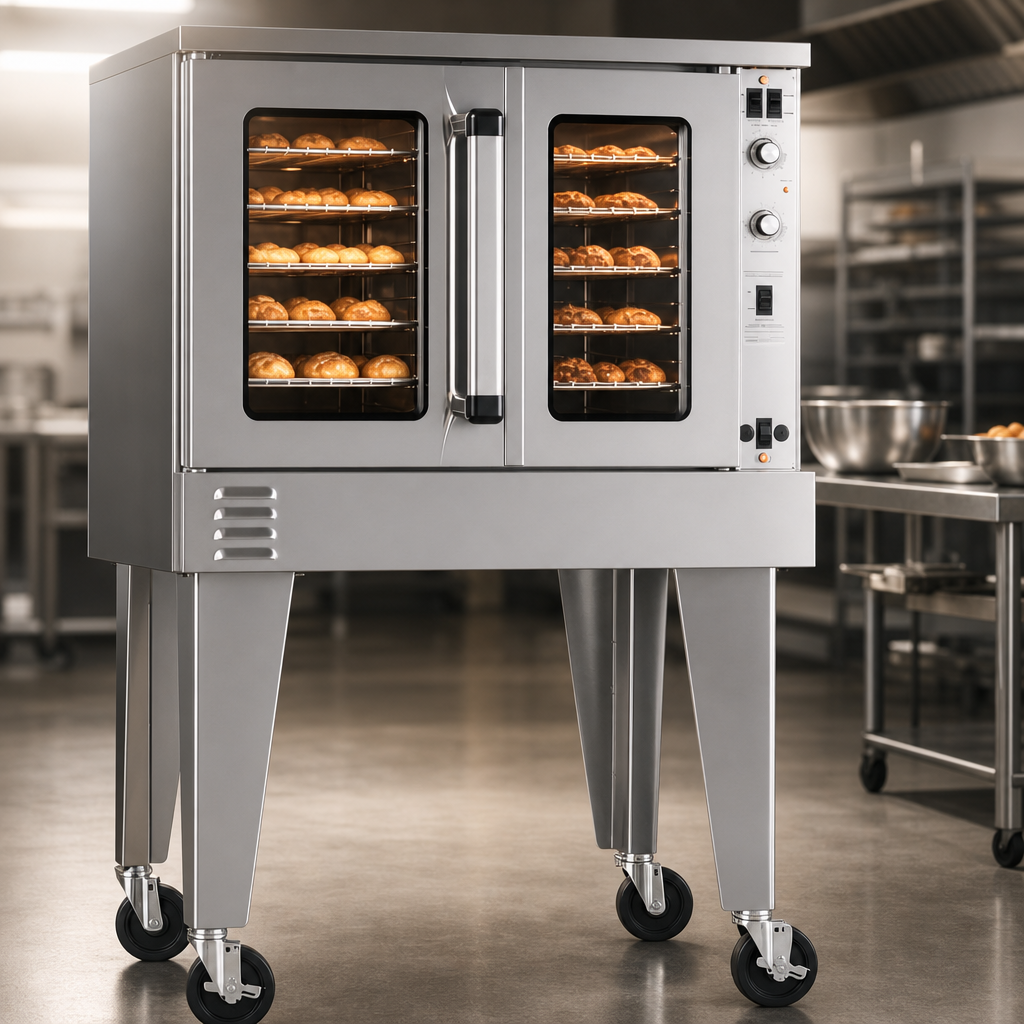

- 70,000 BTU NAT / LP patented high-efficiency inshot burner

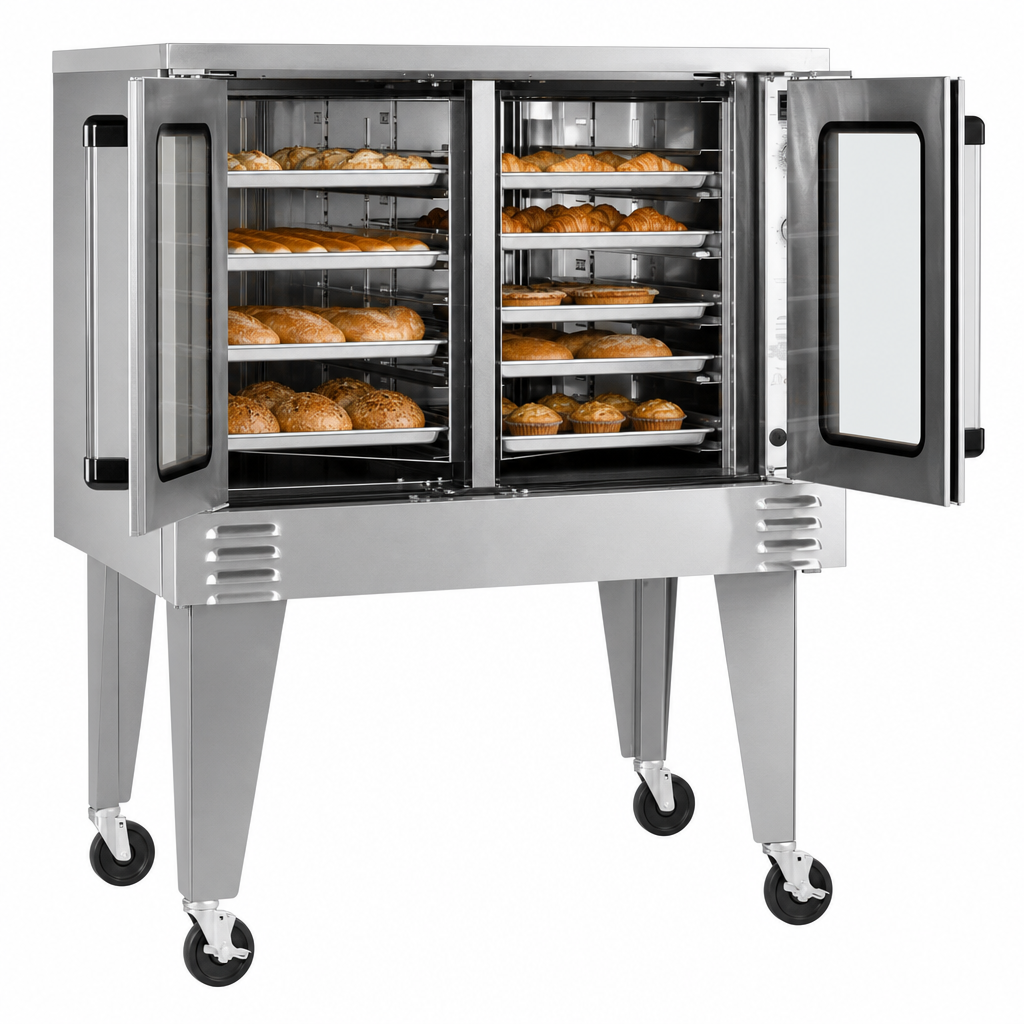

- Bakery-depth 29″ interior fits full-size sheet pans side-to-side
- Soft-Air ½ HP two-speed fan (1,710 / 1,120 RPM) for even, gentle heat circulation
- Standard solid-state thermostat 140 °F – 500 °F + 60-minute mechanical timer
- Forced cool-down mode speeds cabinet recovery between loads
- Electronic hot-surface ignition with flame safety
Durability & Construction
- Stainless-steel front, sides and top
- Independent, 180° opening doors with stay-cool handles & low-E glass windows
- Dual door-seal system minimizes heat loss and saves energy
- Coved, fastener-free porcelain enamel cavity for easy wipe-clean maintenance
- 11 rack positions with 5 heavyweight wire racks included
- Slide-out, plug-in / plug-out control panel – full front access for service in seconds
- (2) 40 W high-temp halogen interior lights
At-a-Glance Specifications
| Fuel / Output | Natural or Propane • 70,000 BTU/h (20.5 kW) |
|---|---|
| Electrical | 120 V / 60 Hz / 1-Ph • 7.9 A (cord & NEMA 5-15P furnished) Optional: 208 V / 4.8 A • 240 V / 4.3 A • 240 V 50 Hz / 6.0 A (hard-wire) |
| Gas Connection | ¾″ NPT male (rear, single connection) – 7″ W.C. NAT • 11″ W.C. LP |
| Exterior (W × D × H) | 43.5″ × 36.5″ × 45.75″ (1105 × 927 × 1162 mm) – on 26″ legs |
| Oven Interior (W × D × H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Rack Guides / Racks | 11 positions @ 1⅝″ centers • 5 racks included |
| Shipping | Crated: 680 lb • 68.1 ft³ (57.5″ × 45.5″ × 45″) |
| Warranty | 1-year limited parts & labor |
Popular Options (Sold Separately)
- Touchscreen control upgrade with multi-timer & recipe storage
- 4″ or 6″ locking casters
- Stainless steel interior or exterior bottom
- ¾″ quick-disconnect hose (3, 4 or 5 ft)
- Marine-edge top, down-draft diverter, export crating & more
Southbend reserves the right to change specifications without notice. Visit the Southbend service & parts page for full warranty details.
