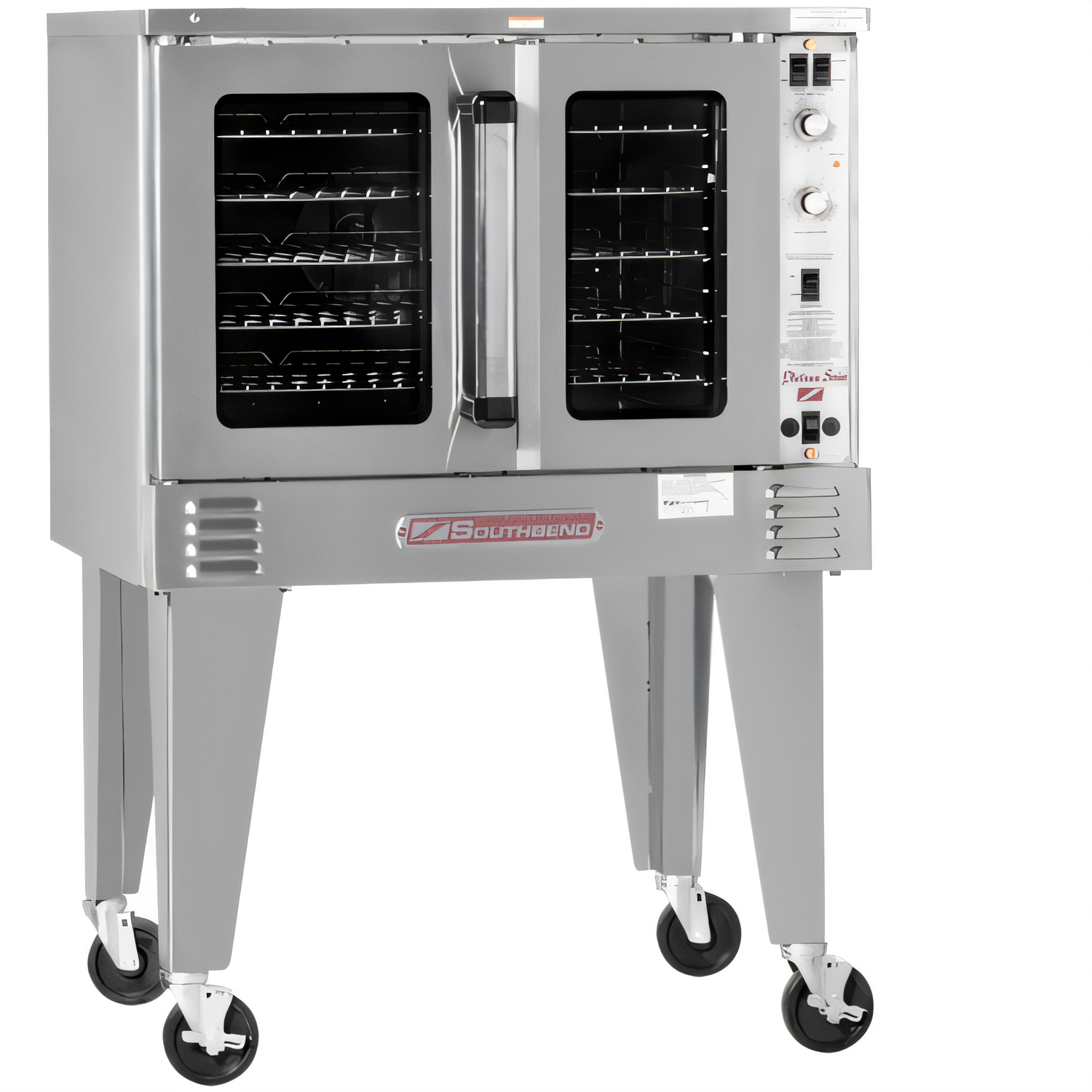

Southbend (Middleby) PCG70B/SD Platinum Convection Ovens
Southbend (Middleby) PCG70B/SD Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCG70B/SD Platinum Convection Ovens
Description

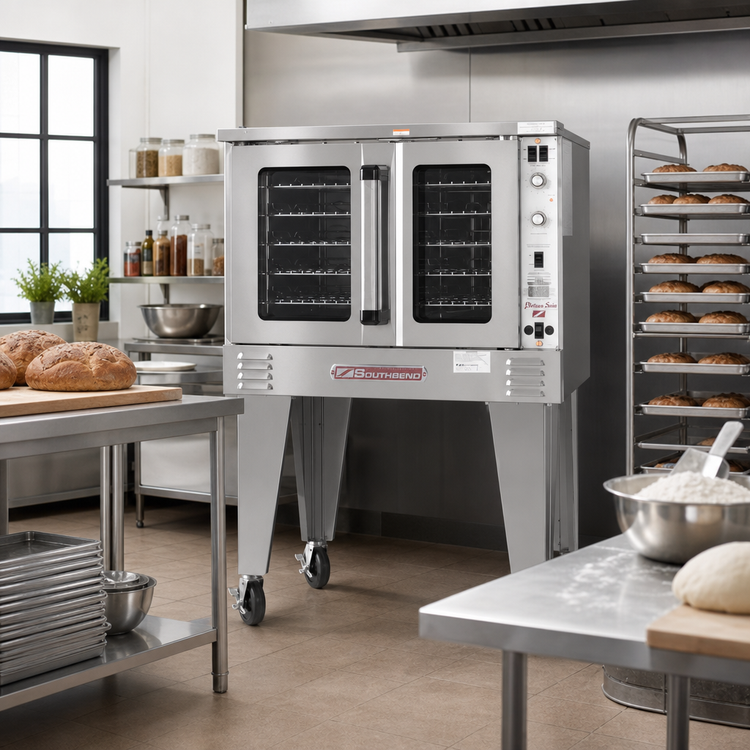

Southbend Platinum Series Convection Oven – 70,000 BTU Bakery Depth (PCG70B/S)
Gas • Standard Controls • Single Deck • Dependent DoorsGive your kitchen full-size baking capacity and rock-solid reliability with the Southbend Platinum PCG70B/S. This bakery-depth, single-deck convection oven marries 70,000 BTU of even, energy-efficient heat with a service-friendly design that keeps you cooking—and cash flowing—day after day.
Key Performance Benefits

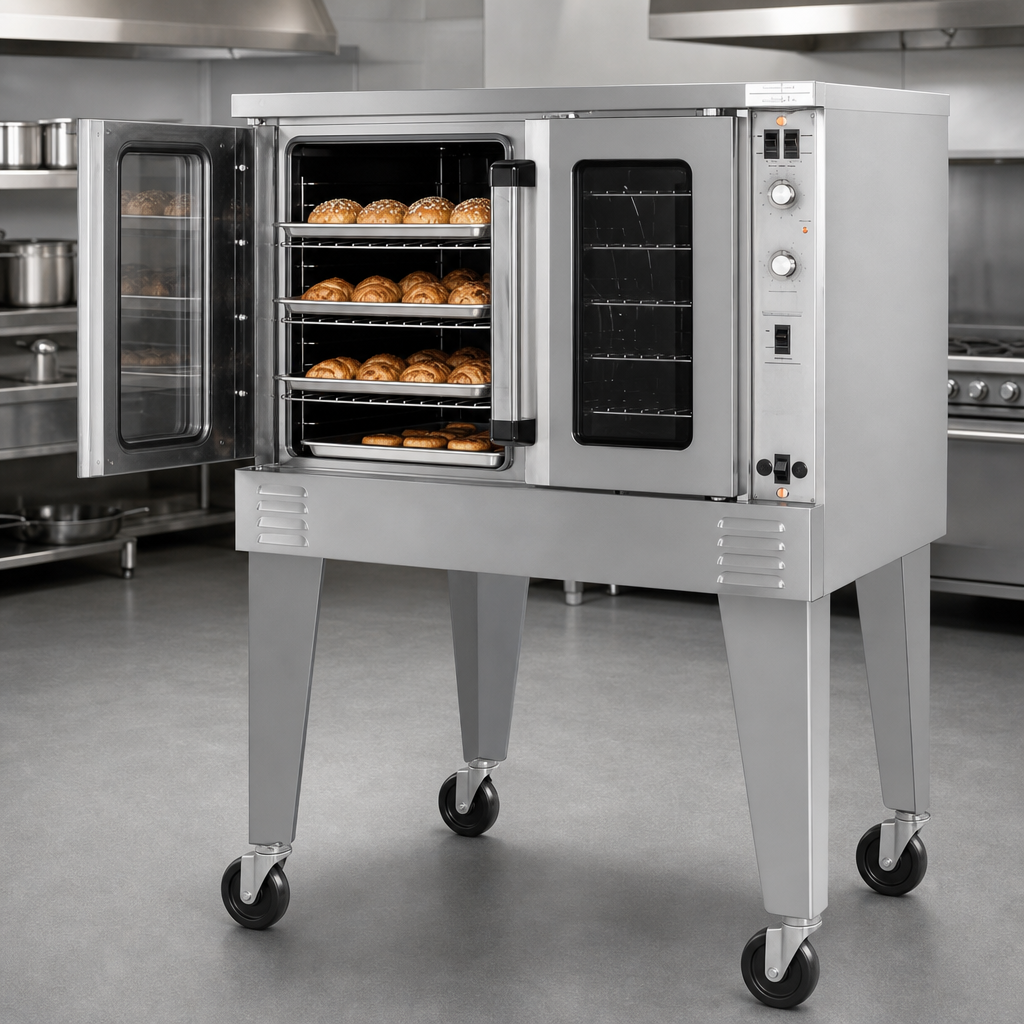

- Bakery-depth 29 in. cavity fits full-size sheet pans front-to-back or side-to-side.

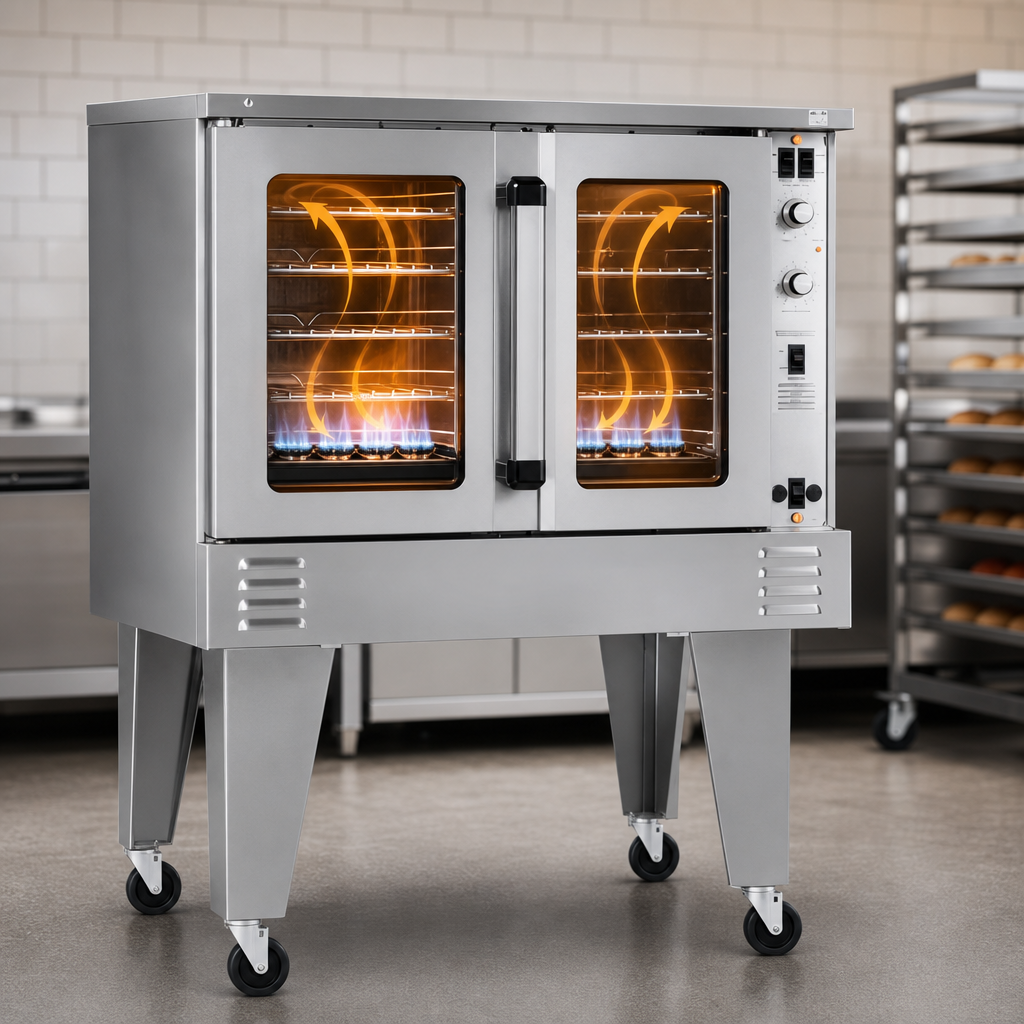

- Patented high-efficiency in-shot burners deliver 70,000 BTU/hr (natural or LP).
- “Soft-Air” two-speed ½ HP fan guarantees uniform heat distribution for consistent bakes.
- Solid-state thermostat (140 °F – 500 °F) and 60-minute mechanical timer—simple and foolproof.
- Dual-pane low-E windows and coved porcelain interior maximize heat retention and ease cleanup.
- Forced cool-down mode speeds change-overs between cooking cycles.
Built to Work as Hard as You Do
- All-stainless front, sides and top resist daily wear, dents and corrosion.
- Slide-out, “plug-in / plug-out” control panel gives technicians full access in seconds.
- Stay-cool door handle and dual door-seal system keep heat in the cavity—not in your kitchen.
- (5) heavy-duty wire racks on 11 positions ship standard; add more as your menu grows.
- Electronic hot-surface ignition with flame safety—no standing pilot to waste fuel.
Technical Specifications
| Model | PCG70B/S (Standard Controls) |
|---|---|
| Cavity Type | Bakery depth – full size |
| Heat Output | 70,000 BTU/hr (Natural or Propane) |
| Temperature Range | 140 °F – 500 °F |
| Interior Dimensions | 29 W × 29 D × 20 H in. (737 × 737 × 508 mm) |
| Overall Dimensions | 43.5 W × 36.5 D × 57.5 H in. (1105 × 927 × 1461 mm) on legs |
| Racks / Guides | (5) racks, 11 positions on 1-5⁄8 in. centers |
| Fan Motor | ½ HP, two-speed (1,710 / 1,120 RPM) |
| Gas Connection | ¾ in. NPT; min. inlet 7 in. W.C. (Nat) / 11 in. W.C. (LP) |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A, 6 ft cord & NEMA 5-15P |
| Shipping Weight | ≈ 680 lb (309 kg) |
| Warranty | 1-year limited parts & labor |
Popular Options & Accessories (Extra Cost)
- Digital Touchscreen controls with Cook & Hold and multi-rack recipe modes
- 4-in. or 6-in. heavy-duty casters
- Stainless steel oven interior or exterior bottom
- Independent or solid stainless doors
- ¾-in. quick-disconnect gas hose kits (3 ft, 4 ft, 5 ft)
- Marine edge top, rear flue down-draft diverter, export crating
Need flexible payment options? Ask about Middleby equipment financing—affordable monthly payments that keep your credit lines open.
