Southbend (Middleby) PCG50S/TI Platinum Convection Ovens
Description

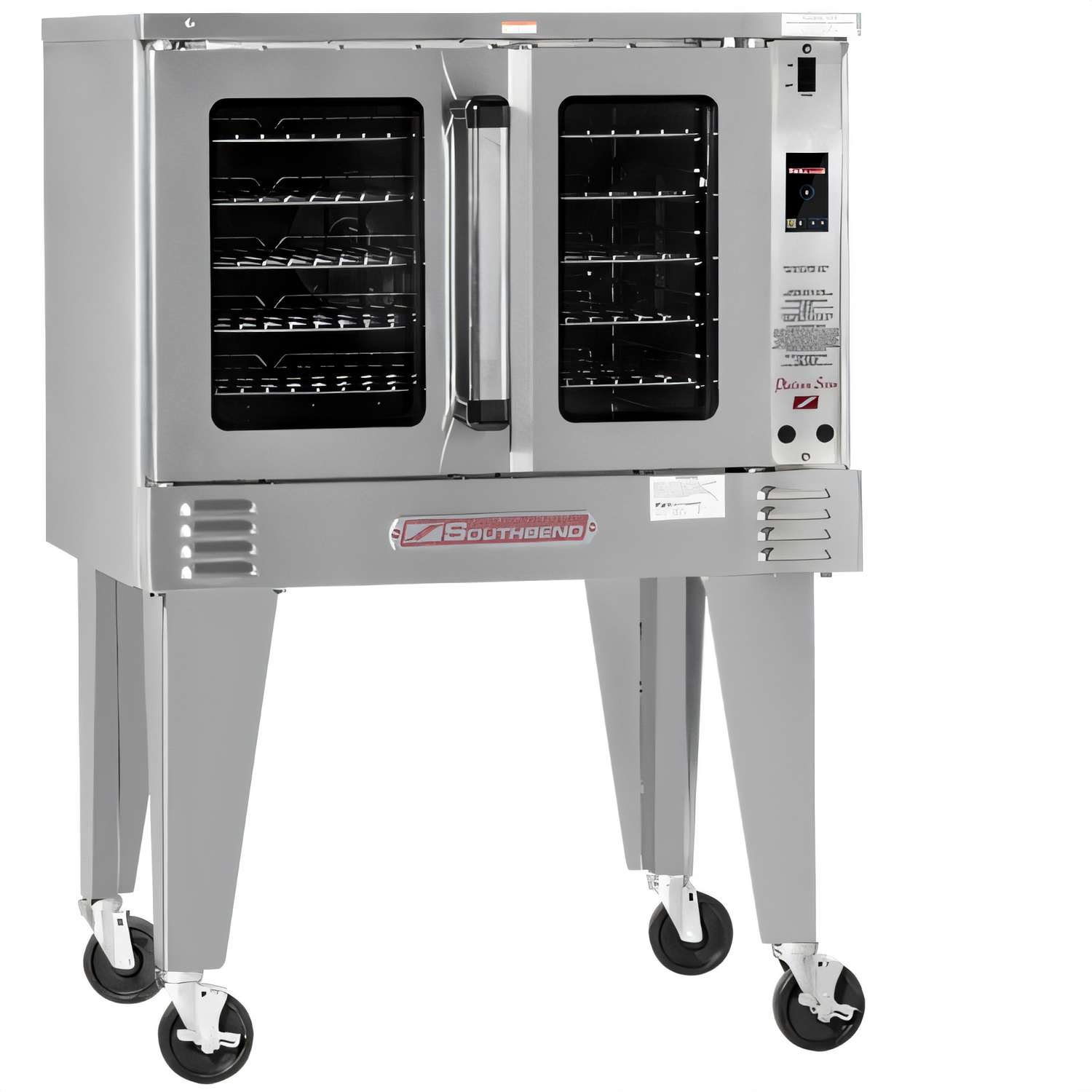

Southbend Platinum Series PCG50S/T Single Gas Convection Oven
50,000 BTU • Touchscreen Controls • Independent Doors • ENERGY STAR® QualifiedGive your kitchen the power, consistency, and control it deserves. The Southbend Platinum PCG50S/T couples a high-efficiency 50,000 BTU burner system with an intuitive full-color touchscreen, delivering flawless results batch after batch while trimming energy costs.
Key Performance Benefits

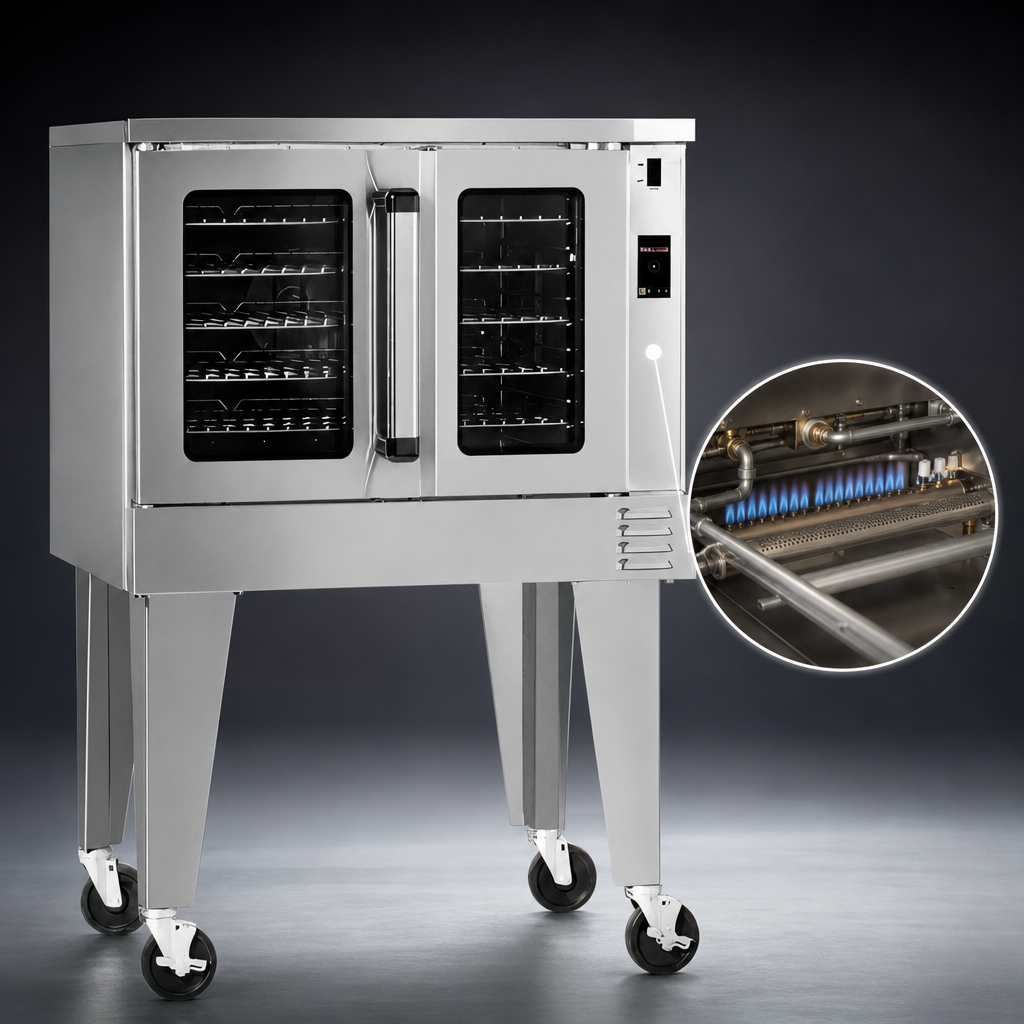

- High-efficiency in-shot burners (50,000 BTU/hr) provide rapid preheat and swift recovery.
- ENERGY STAR® qualified design helps reduce gas consumption and operating costs.
- Independent, low-emission glass doors open a full 180° for easy pan loading without heat loss.
- Soft-Air two-speed ½ hp fan bathes product in even convection for uniform browning.
- “Plug-in / plug-out” slide-out control module simplifies service and minimizes downtime.
- Durable stainless steel exterior and coved, fastener-free porcelain interior clean up fast.
- Forced cool-down fan mode turns the cavity around quickly for back-to-back bakes.

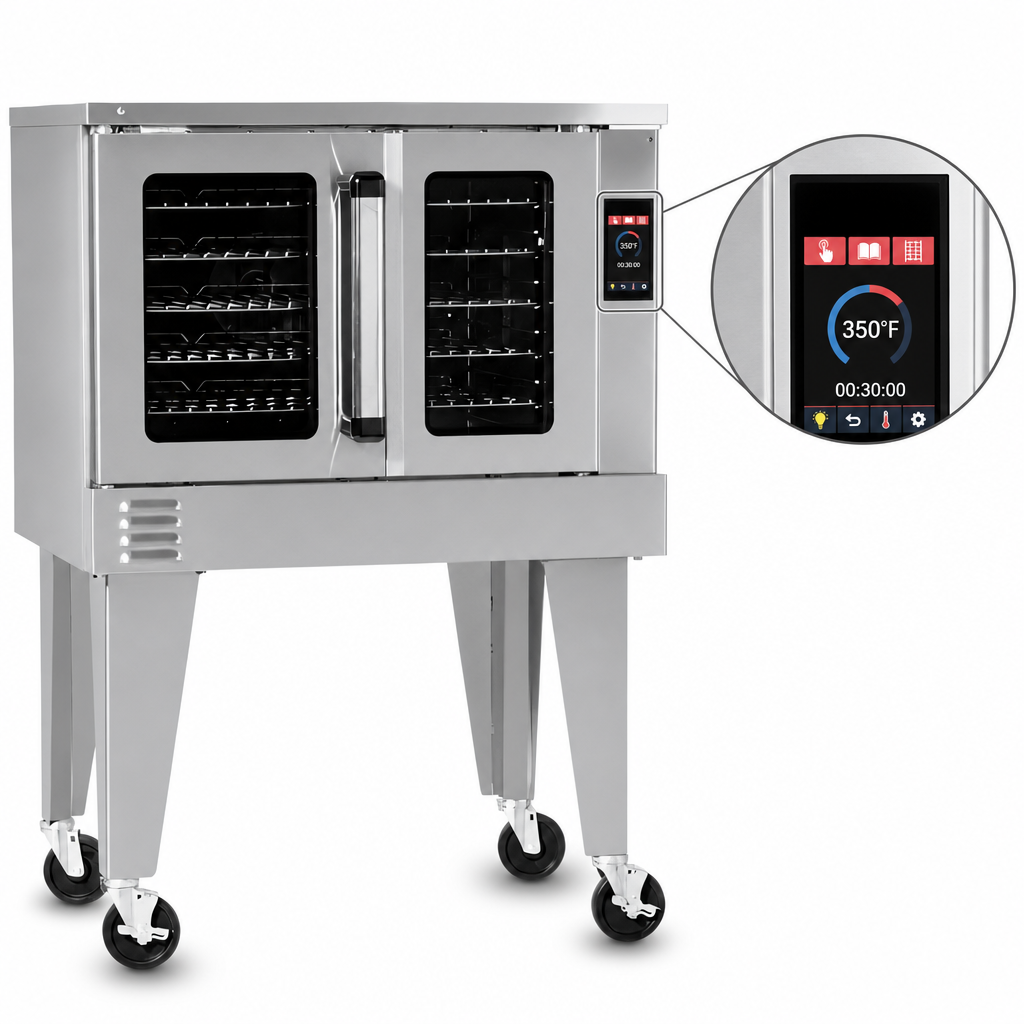

Touchscreen Intelligence
- 150 – 550 °F bake range with a 140 – 200 °F hold setting.
- Manual, Recipe, and Rack modes—store multi-stage programs and fire multiple timers at once.
- Bright, easy-read display shows set point, actual temp, and remaining time at a glance.
- Fan-cycle timer automatically pulses air for delicate products.
Technical Specifications
| Model | PCG50S/T (Single deck, touchscreen) |
|---|---|
| Energy source | Natural or LP Gas, 50,000 BTU/hr |
| Exterior dimensions | 37 ¼" W × 39 ¼" D × 57 ½" H† |
| Oven cavity (W × D × H) | 29" × 21 ½" × 20" |
| Rack positions / supplied | 11 / 5 plated wire racks |
| Fan motor | ½ hp, two-speed (1,710 / 1,120 rpm) |
| Gas connection | ¾" NPT male; Minimum inlet 7" W.C. (Natural) or 11" W.C. (LP) |
| Electrical | 120 V, 60 Hz, 1-phase, 7.9 A (6' cord, NEMA 5-15P) |
| Shipping weight | Approx. 620 lb (281 kg) |
| Certifications | ENERGY STAR®, CSA, NSF |
† Height shown with standard 26" stainless legs; optional 4"/6" casters available.
What’s in the Box
- (5) heavy-duty plated oven racks
- (2) interior halogen lights
- 26" stainless steel triangular legs
- 1-year limited parts & labor warranty
Factory Options & Accessories (Extra Cost)
- 4" or 6" locking casters
- Stainless steel oven interior
- Stainless solid doors
- ¾" quick-disconnect gas hose & restraining device
- Marine-edge top, rear flue diverter, export crating & more
Installation Note: For commercial use under a properly vented hood only. Oven will not operate without the convection fan running. Observe all local codes for gas, electrical, and fire safety.
Need CAD files or additional documentation? Visit southbendnc.com or contact your Southbend representative.
