Southbend (Middleby) PCG50S/TD Platinum Convection Ovens
Description
Platinum Series Single Convection Oven – Gas, 50,000 BTU
Model PCG50S/T • Touchscreen Controls • ENERGY STAR® QualifiedBuilt for high-volume, high-precision cooking, the Southbend Platinum PCG50S/T combines rugged stainless-steel construction, a patented high-efficiency burner system and an intuitive digital touchscreen. From delicate pastries to roasted proteins, enjoy even, consistent results while lowering energy costs and simplifying daily operation.
Why you’ll love it

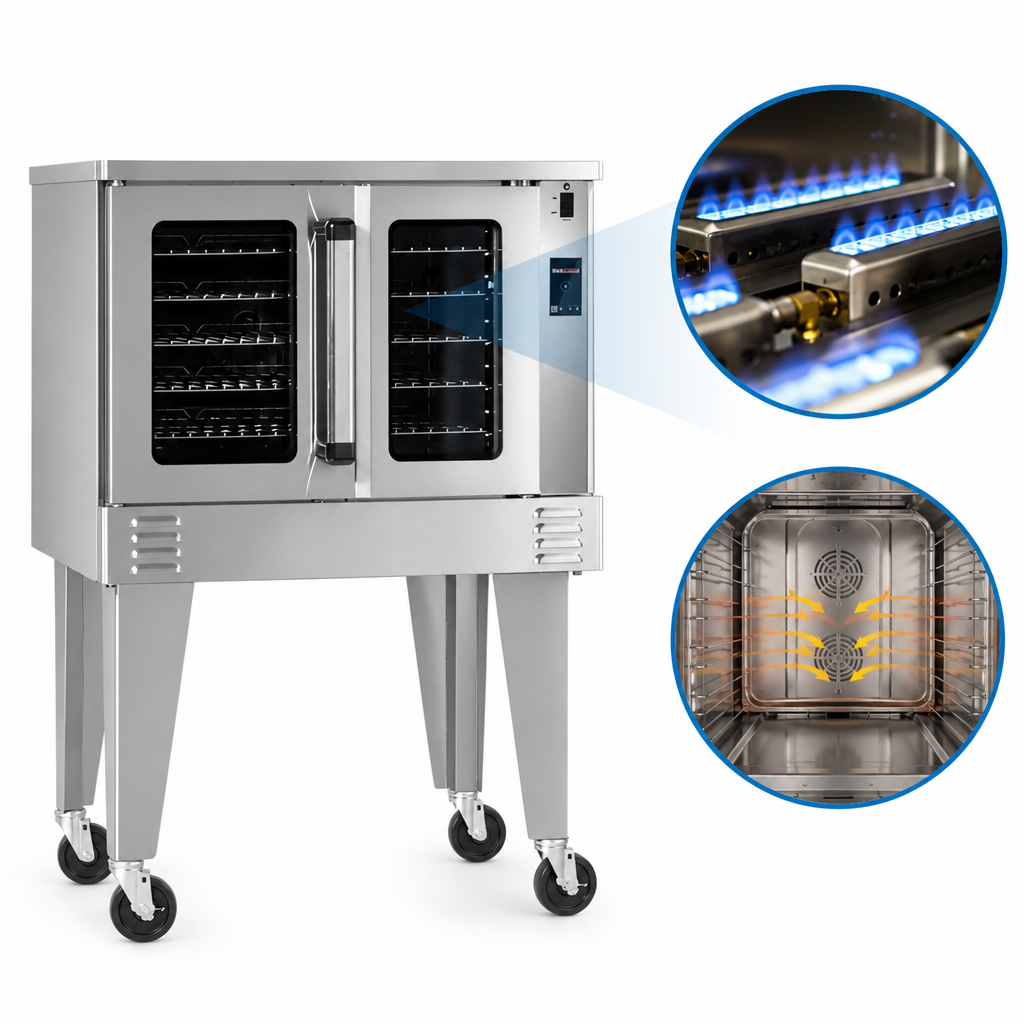

- 50,000 BTU patented in-shot burners deliver fast heat-up with superior fuel efficiency.
- ENERGY STAR® certification helps cut utility bills and may qualify for local rebates.
- Digital touchscreen offers Manual, Recipe & Rack modes plus fan-pulse control for delicate baking.
- Temperature range 150–550 °F with a dedicated 140–200 °F “Hold” mode.
- Dependent, windowed doors swing a full 180°; dual seals lock in heat, glass lowers energy loss.
- Coved, fastener-free porcelain interior cleans in minutes; 5 racks fit 11 positions on 1 ⅝ in centers.
- Soft-Air two-speed ½ HP blower (1,710/1,120 RPM) ensures even baking on every shelf.
- “Plug-in / plug-out” slide-out control panel simplifies service and reduces downtime.
- Forced cool-down fan, interior lights and stay-cool handle streamline end-of-day operation.

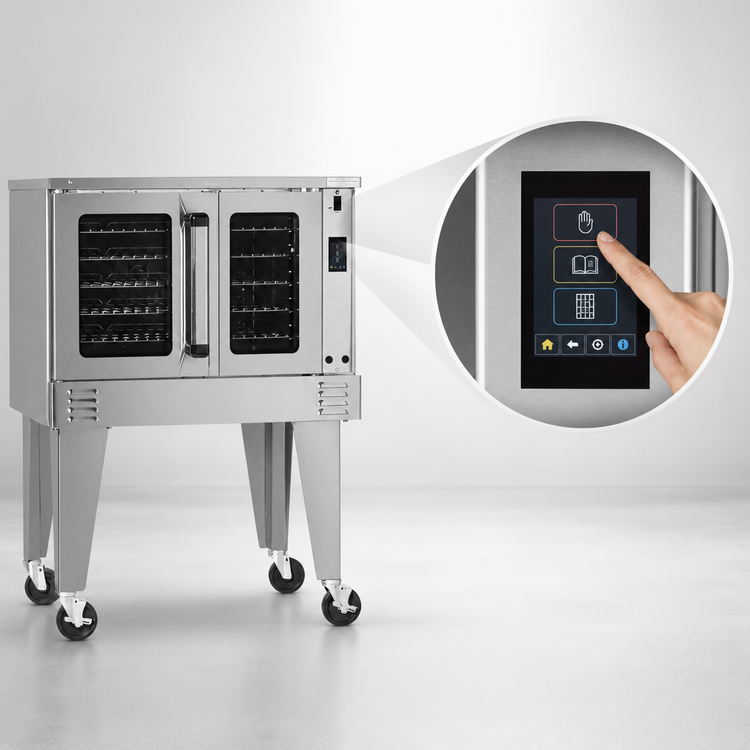

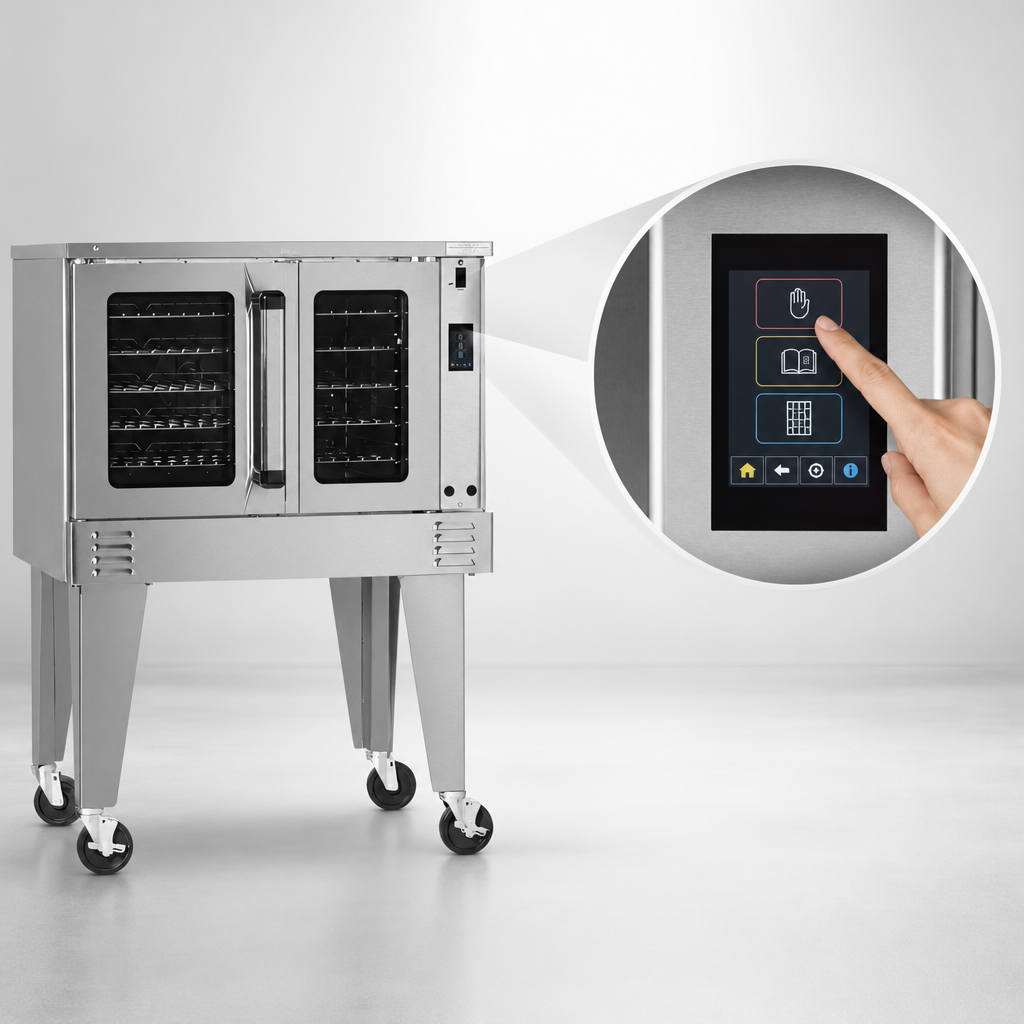

Touchscreen control highlights
- Create, store and recall multi-step recipes with auto fan cycling.
- Rack mode lets you assign individual timers to each rack position for true batch flexibility.
- Large, bright display shows remaining cook time & cavity temperature at a glance.
- USB-style “upload” saves programming time across multiple ovens (optional accessory).
Technical specifications
| Gas input | 50,000 BTU/hr (Natural or LP) |
|---|---|
| Gas pressure | 7" W.C. Natural • 11" W.C. Propane |
| Electric supply | 120 V / 60 Hz / 1-ph, 7.9 A (6 ft cord & NEMA 5-15P) |
| Interior (WxDxH) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Racks / Guides | 5 nickel-plated racks, 11 positions @ 1 ⅝" spacing |
| Blower motor | ½ HP, 2-speed (1,710 / 1,120 RPM) |
| Gas connection | ¾" NPT male (rear) |
| Overall dimensions* | 37.25" W × 39.25" D × 57.5" H on 26" legs |
| Shipping weight | Approx. 620 lb (281 kg) |
| Certifications | ENERGY STAR®, CSA, NSF |
| Warranty | 1-year parts & labor (see warranty terms) |
*Height shown on standard 26" legs. Add 3–6" for optional casters.
Factory options & accessories
- 4" or 6" locking casters
- Stainless-steel oven interior
- ¾" quick-disconnect gas hose & restraining device
- Stainless dirt tray (3 ft / 4 ft / 5 ft)
- Marine-edge top or 2" insulating side panels
- Stainless solid doors or rear jacket
Peace-of-mind warranty
Southbend backs every Platinum Series oven with a 1-year parts & labor warranty serviced nationwide by an authorized agency network.
