Southbend (Middleby) PCG50S/SI Platinum Convection Ovens
Description

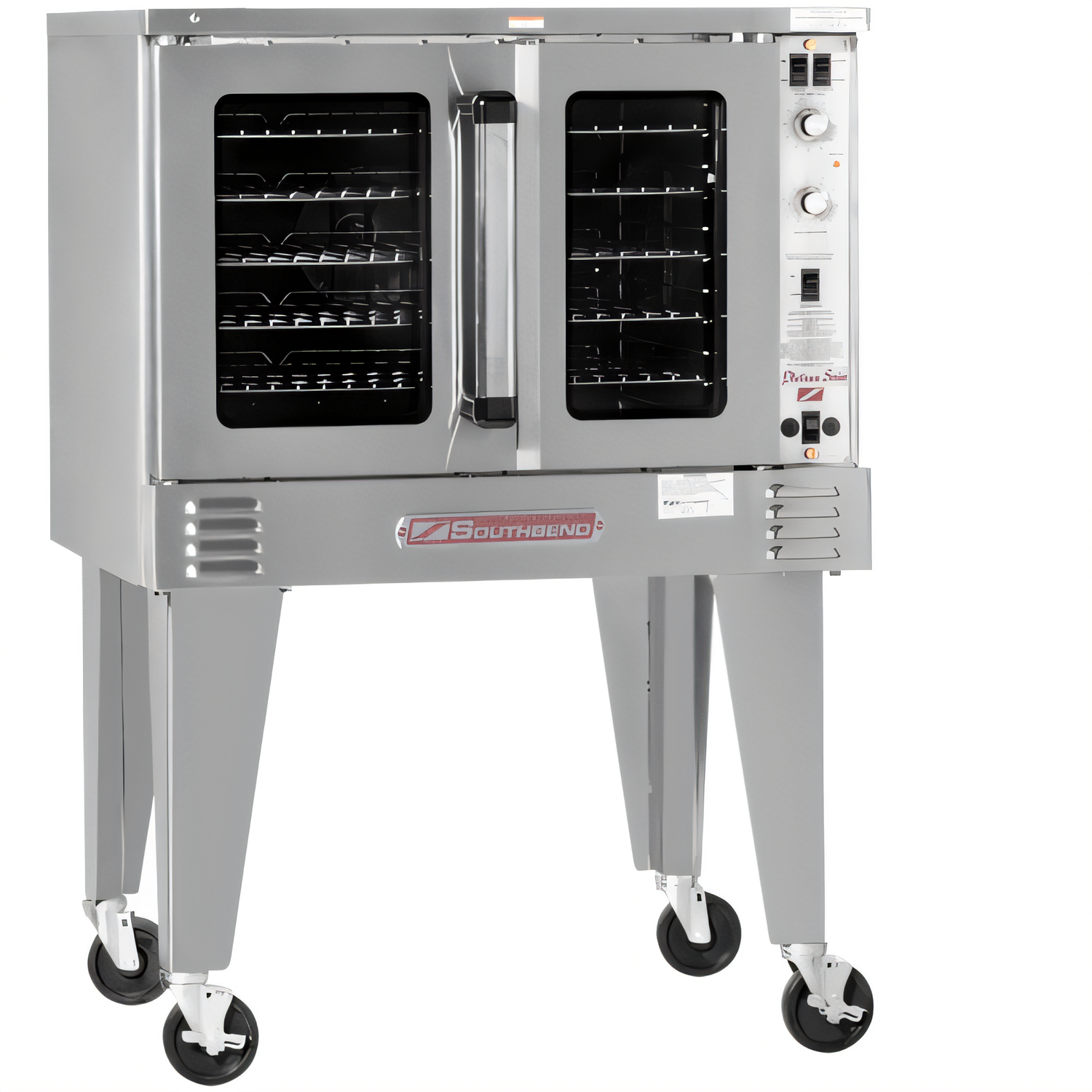

Southbend Platinum Series Single-Deck Convection Oven
50,000 BTU Gas • Standard Depth • Standard Controls • Independent Doors • ENERGY STAR®Built for kitchens that refuse to compromise, the Platinum PCG50S/S delivers heavy-duty performance in a space-saving single-deck design. Patented high-efficiency burners, whisper-quiet dual-speed airflow and rugged stainless-steel construction combine to give you faster cook times, lower utility costs and rock-solid reliability shift after shift.
Why You’ll Love It

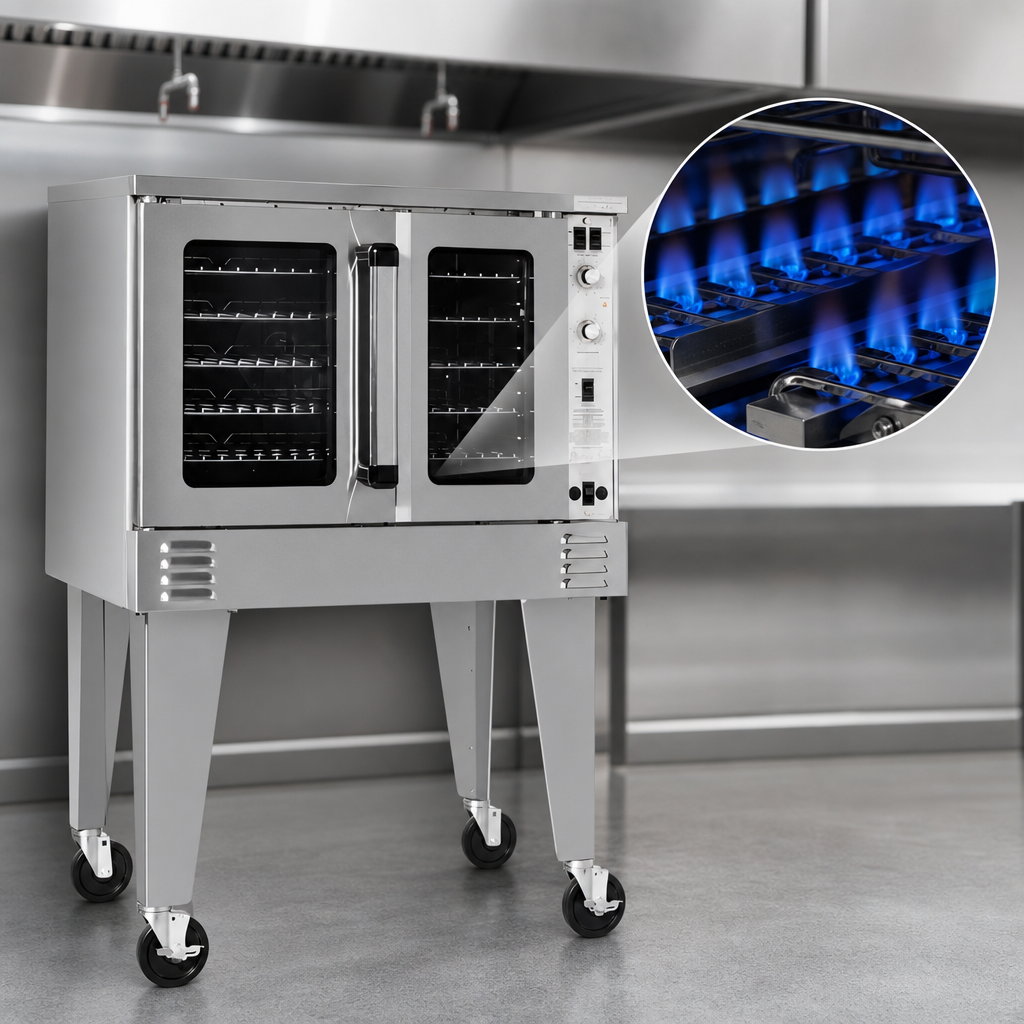

- Patented 50,000 BTU in-shot burners (NAT / LP) achieve set temp fast while using less gas – ENERGY STAR® qualified.
- Soft-Air ½ hp two-speed fan guarantees even bake-color and consistent results from corner to corner.

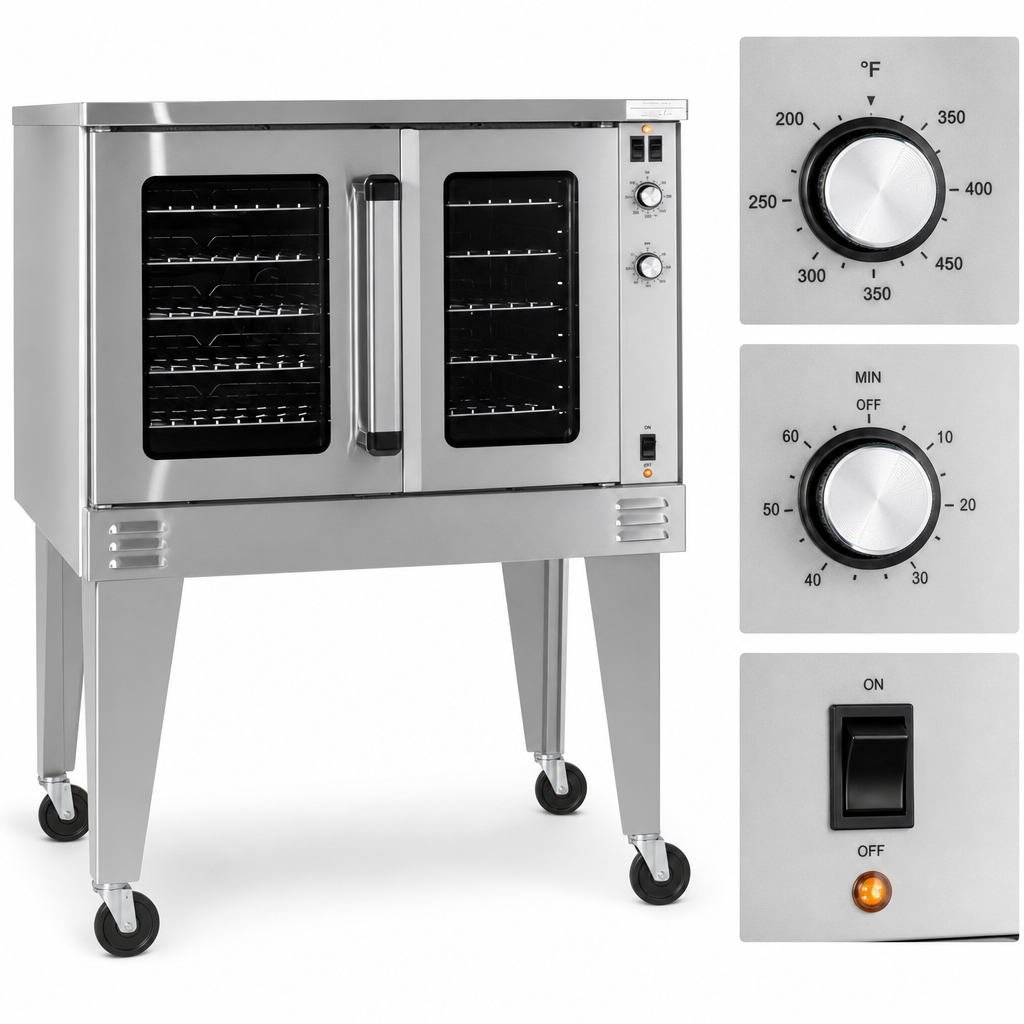

- Standard manual controls: 140 °F–500 °F solid-state thermostat with 60-minute timer.
- Independent, full-view glass doors open a full 180° for safe, unobstructed loading; dual door seals lock heat in.
- Coved porcelain-enamel interior cleans up in seconds and is completely fastener-free.
- 11 rack positions | 5 plated racks included right out of the box.
- Slide-out “plug-in / plug-out” control panel makes service a breeze—no need to remove the oven from the line.
- Electronic hot-surface ignition with flame safety plus forced cool-down mode for quicker turnarounds.
- Bright dual-halogen cavity lights for at-a-glance checks.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
| Model | PCG50S/S (Standard Controls) |
|---|---|
| Fuel / Input | Natural or Propane Gas – 50,000 BTU /hr |
| External Dimensions (w/o legs) |
37.25 in W × 30.50 in D × 39.25 in H |
| Overall Height (with 26 in legs) |
57.5 in |
| Oven Interior | 29 in W × 21.5 in D × 20 in H (≈ 7.2 ft³) |
| Rack Guides / Racks | 11 positions | 5 racks included |
| Fan | ½ hp motor, two speeds (1,710 / 1,120 RPM) |
| Temperature Range | 140 °F – 500 °F |
| Gas Connection | ¾ in NPT; Min. inlet 7″ W.C. NAT / 11″ W.C. LP |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A, NEMA 5-15P (ignition & controls) |
| Construction | Stainless steel front, sides, top & rear jacket; porcelain interior |
| Certifications | ENERGY STAR®, CSA, NSF |
| Warranty | 1 year parts & labor |
Popular Factory Options
- Digital touchscreen controls with recipe, rack & hold modes
- 4” or 6” locking casters
- Stainless-steel oven interior or solid doors
- Marine-edge top or rear flue diverter
- ¾” gas quick-disconnect & flexible hose kit
Options are ordered separately and must be added at time of purchase.
For full installation details, service manuals and the latest specification updates, visit southbendnc.com.
