Southbend (Middleby) PCG50S/SD Platinum Convection Ovens
Description

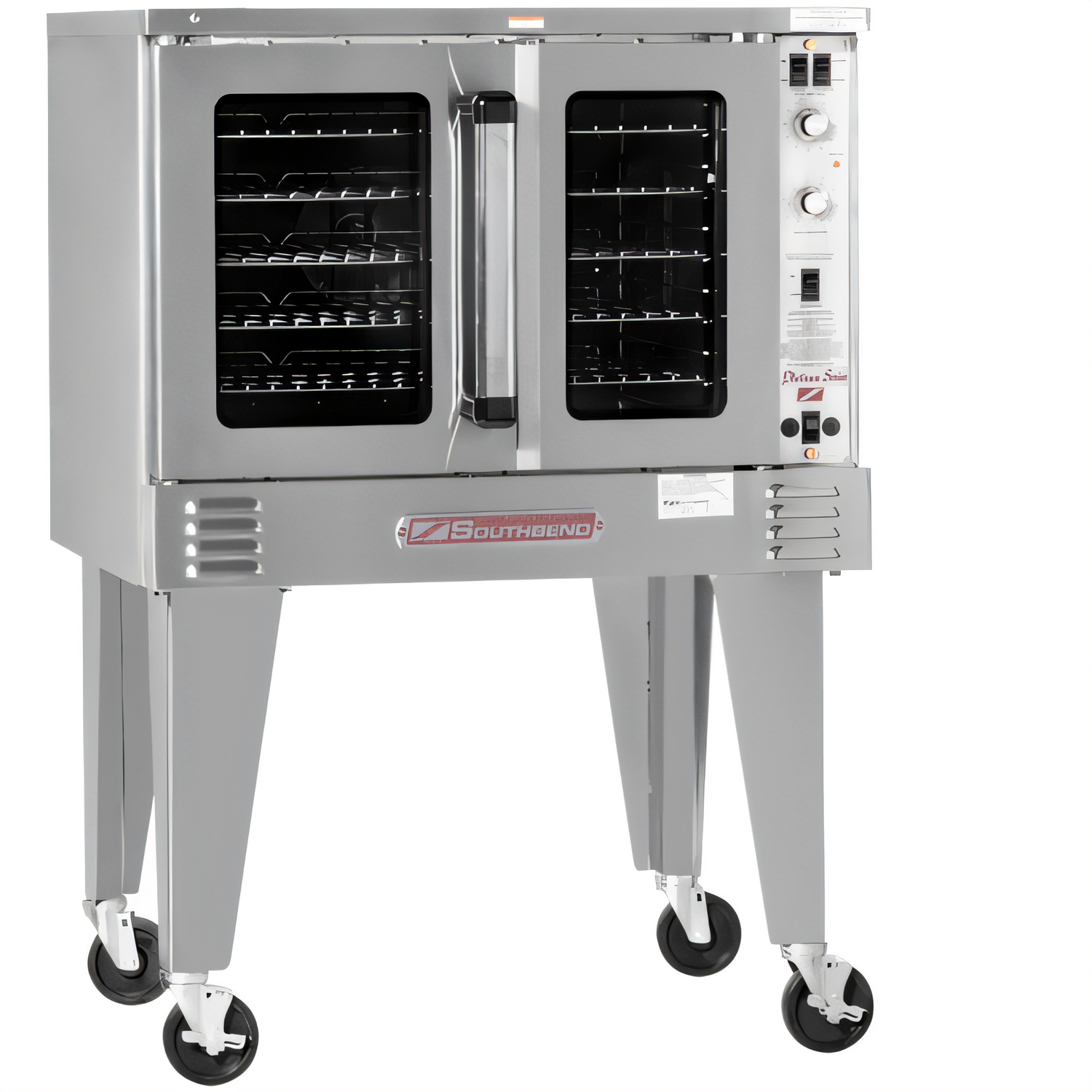

Platinum Series 50,000 BTU Gas Convection Oven – Single Deck

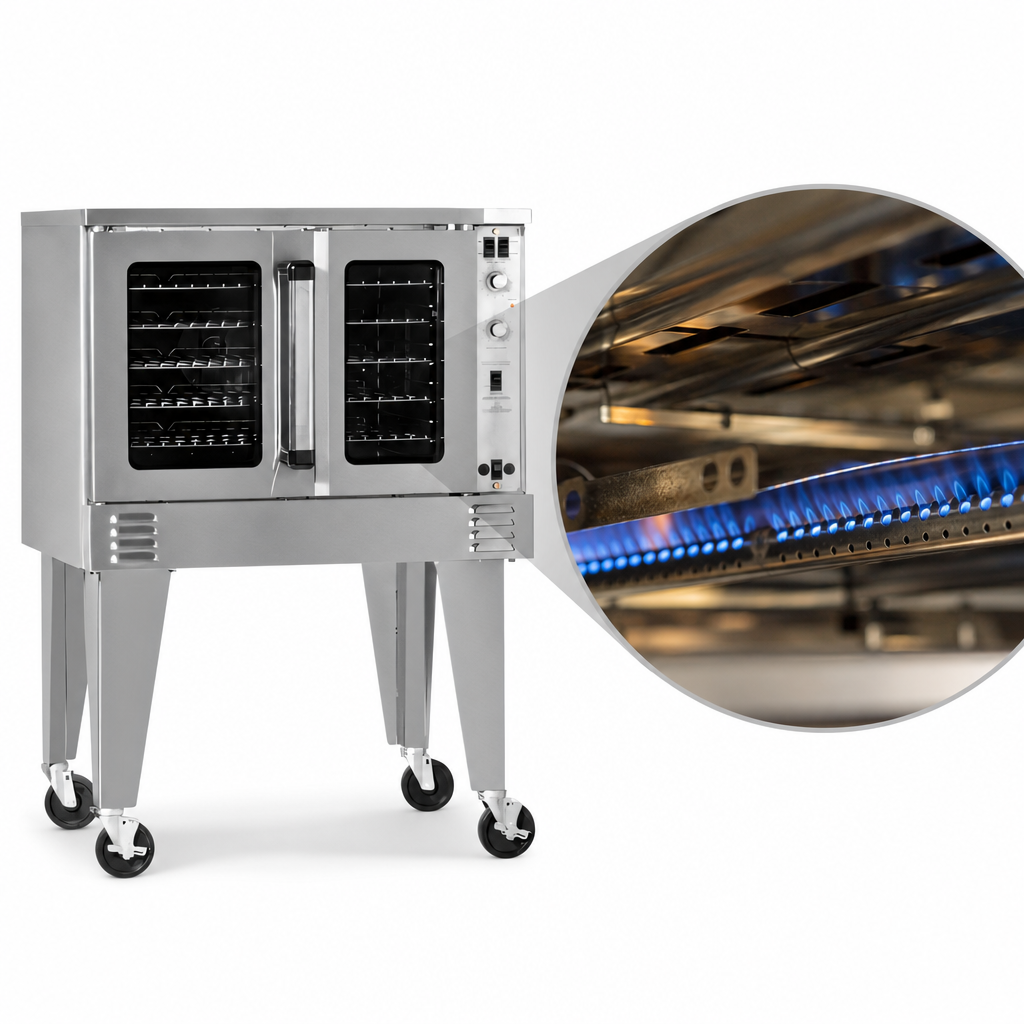

Model PCG50S/S • ENERGY STAR® • Quick-Ship Middleby Essentials ItemBuilt for high-volume kitchens that refuse to compromise on efficiency, the Southbend Platinum PCG50S/S delivers powerful, even baking in a compact footprint. Its 50,000 BTU patented inshot burner system and two-speed “Soft Air” fan blanket every rack position with consistent heat—helping you turn out perfect batches fast while trimming utility costs.
Key Features
- ENERGY STAR® certified 50,000 BTU NAT/LP burner saves gas without sacrificing performance.

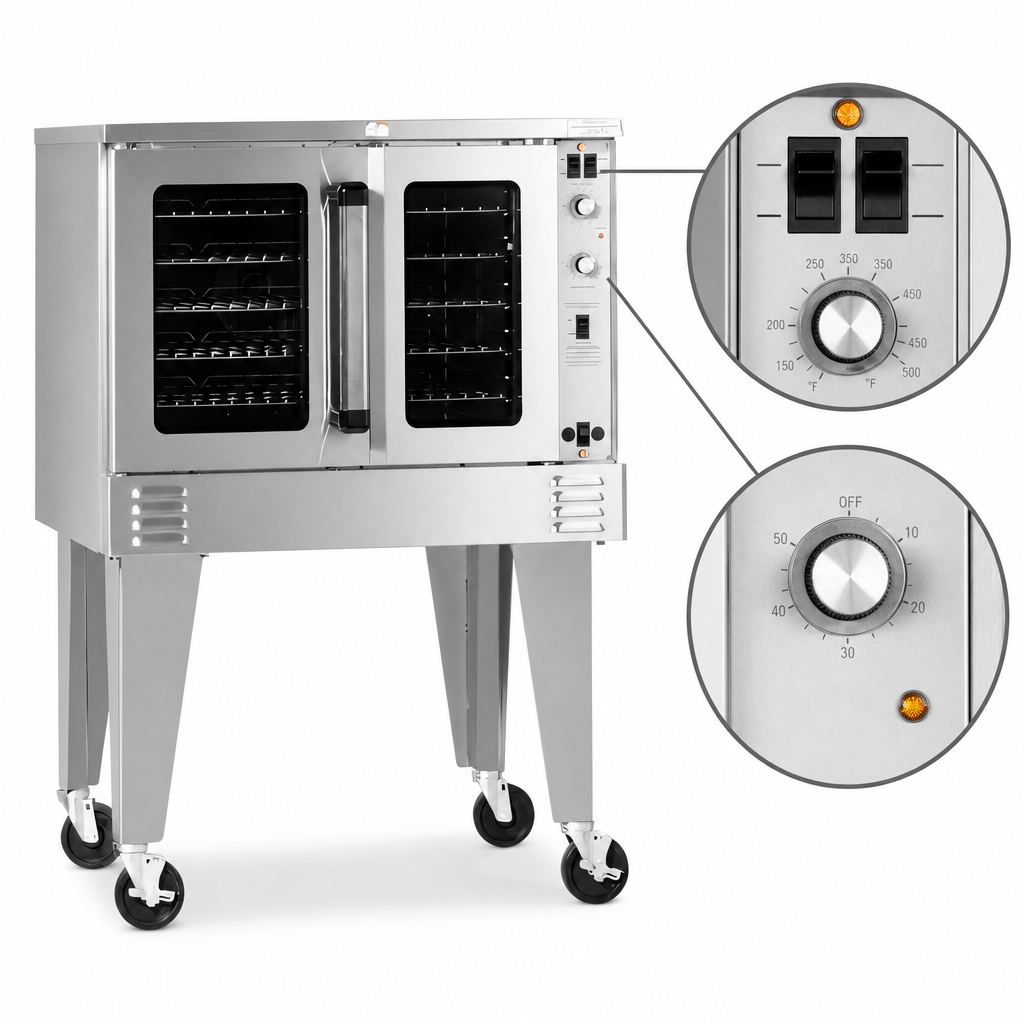

- Solid-state thermostat (140 °F – 500 °F) & 60-minute mechanical timer for fool-proof, repeatable results.
- Patented slide-out “plug-in/plug-out” control panel simplifies service and minimizes downtime.
- Dependent, low-emission glass doors open a full 180° and feature a dual-seal system to lock in heat.
- 11-position rack guides and 5 plated wire racks included; fits full-size sheet pans front-to-back.
- 1/2 hp, two-speed fan motor with forced cool-down mode.
- Stainless steel front, sides & top with coved, fastener-free porcelain enamel interior—wipes clean in seconds.
- Stay-cool heavy-duty door handle and interior halogen lighting.
- Electronic hot-surface ignition with flame safety device.
- 1-year limited parts & labor warranty, backed by Southbend’s nationwide service network.
Specifications
| Gas Input | 50,000 BTU/h (natural or propane) |
|---|---|
| Controls | Standard solid-state thermostat & 60-min timer |
| Oven Interior (WxDxH) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Overall Width (A) | 37.25" (946 mm) |
| Overall Depth – door closed (B) | 30.50" (775 mm) |
| Overall Depth – door open (C) | 39.25" (997 mm) |
| Overall Height (with 26" legs) | 57.5" (1461 mm) |
| Rack Positions / Racks Supplied | 11 / 5 |
| Electrical | 120 V, 60 Hz, 1-phase, 7.9 A, 6′ cord & NEMA 5-15P plug |
| Gas Connection | ¾" NPT; min. inlet 7" W.C. NAT / 11" W.C. LP |
| Shipping Weight | Approx. 620 lb (281 kg) |
Popular Options (factory installed)
- Digital touchscreen controls with recipe & rack modes
- 4" or 6" locking casters
- Stainless steel oven interior or exterior bottom
- Independent doors or solid stainless doors
- ¾" quick-disconnect gas hose kit
