Southbend (Middleby) PCG50S/SD-AT Platinum Convection Ovens
Southbend (Middleby) PCG50S/SD-AT Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

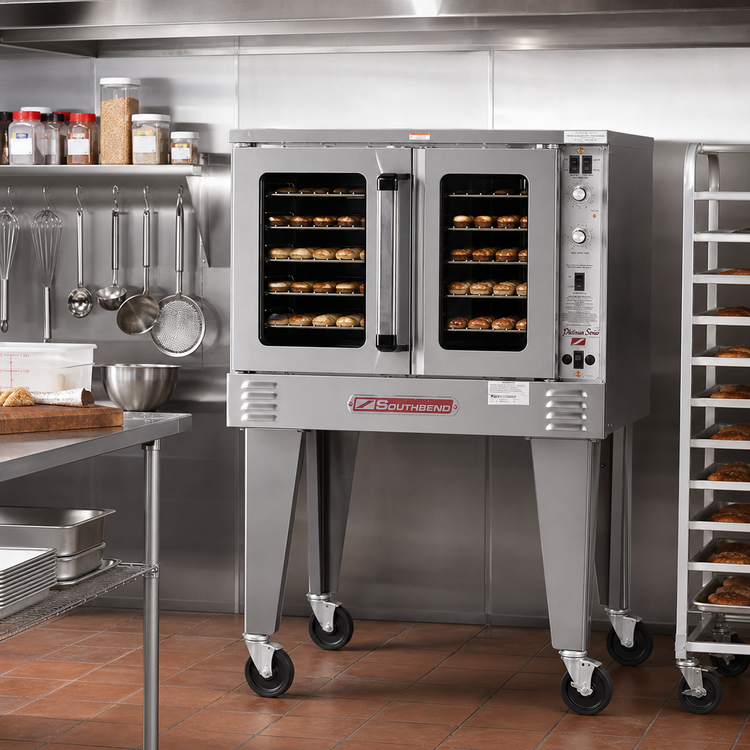

Southbend Platinum Series Single-Deck Gas Convection Oven
Model PCG50B/S · 50,000 BTU · Standard Controls · All-Terrain WheelsEngineered for demanding commercial kitchens, the Platinum single-deck convection oven delivers fast, even bakes with Southbend’s patented in-shot burner system and a gentle two-speed “Soft Air” fan. Heavy-duty stainless construction, a service-friendly control panel, and mobility-ready casters make this oven a reliable workhorse shift after shift.
Key Features

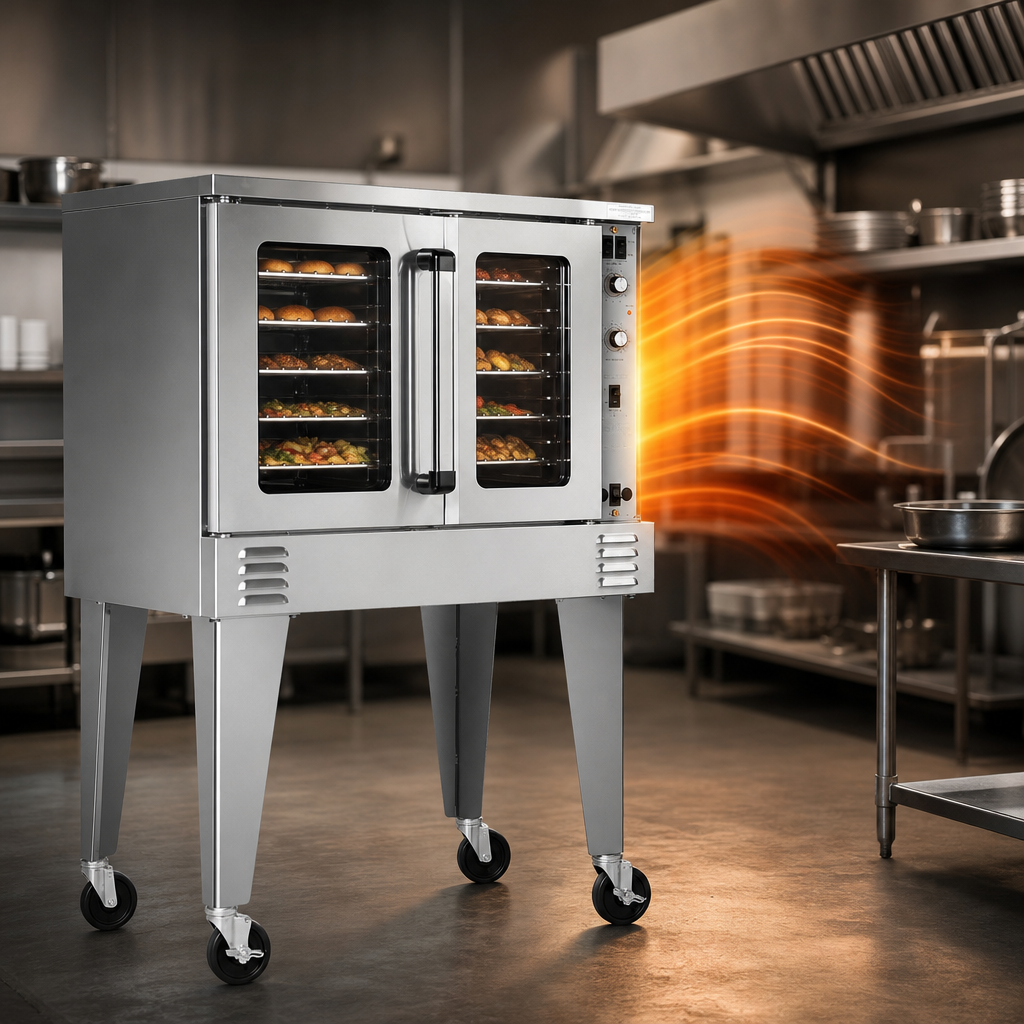

- High-efficiency 50,000 BTU patented in-shot burner for rapid heat-up and recovery.

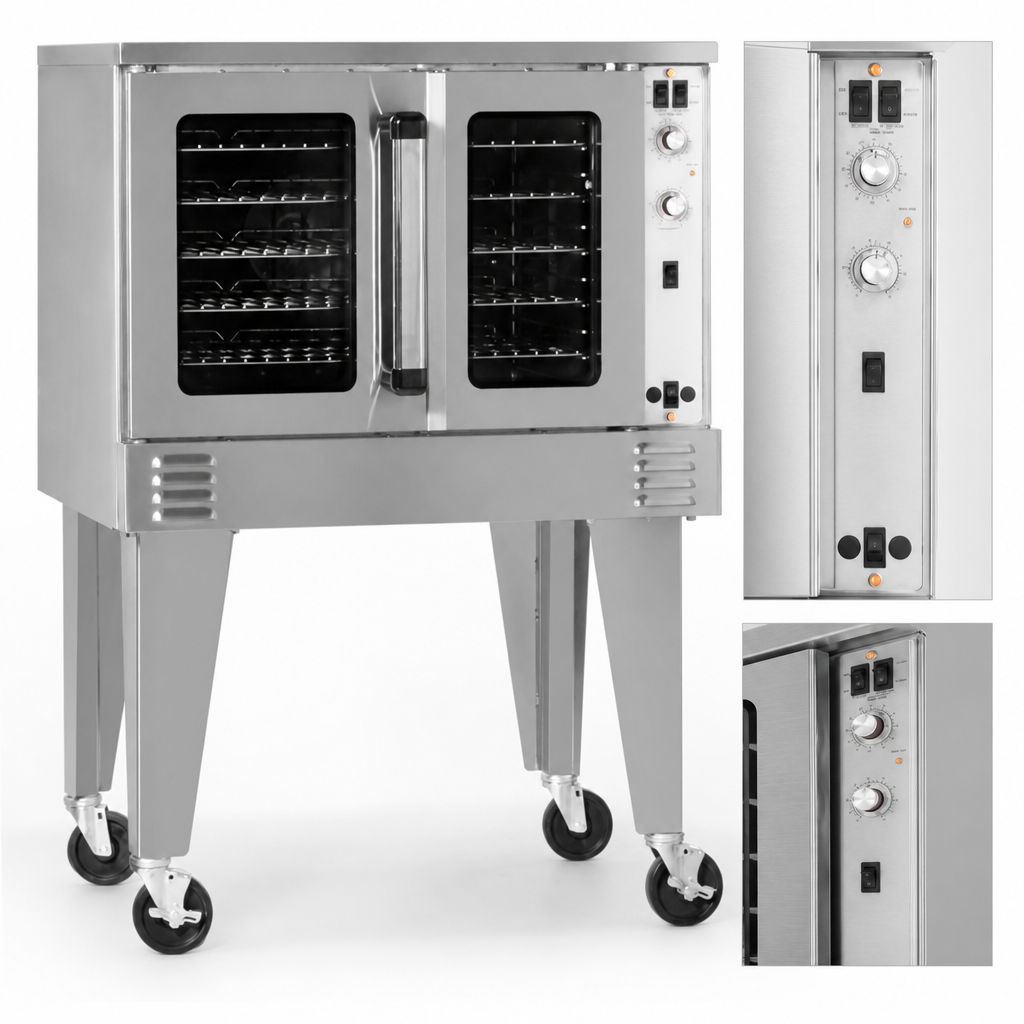

- Standard solid-state thermostat (140 °F – 500 °F) with 60-minute mechanical timer.
- ½ HP two-speed fan circulates heated air evenly across every rack position.
- Dependent, double-pane glass doors open a full 180° and seal tight to save energy.
- “Plug-in/plug-out” slide-out control panel simplifies service and maintenance.
- Stainless steel front, sides & top; coved, fastener-free porcelain interior cleans easily.
- 11 rack positions with 5 heavy-duty wire racks—holds five full-size (18" × 26") sheet pans.
- Electronic hot-surface ignition with flame safeguard for worry-free starts.
- Forced cool-down fan mode protects components between bakes.
- Mounted on 6" all-terrain casters (front locking) for effortless mobility.
Specifications
| Manufacturer / Series | Southbend Platinum |
|---|---|
| Model | PCG50B/S |
| Fuel Type | Natural or LP Gas (field convertible) |
| Input | 50,000 BTU/hr |
| Temperature Range | 140 °F – 500 °F |
| Controls | Solid-state thermostat & 60-min timer |
| Fan Motor | ½ HP, two-speed (1,710 / 1,120 RPM) |
| Interior Dimensions | 29" W × 29" D × 20" H |
| Exterior Dimensions (with casters) |
43.5" W × 36.5" D × 57.5" H |
| Gas Connection | ¾" NPT; min. inlet 7" W.C. NAT / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A, NEMA 5-15P cord & plug |
| Rack Capacity | 5 full-size sheet pans (11 positions) |
| Shipping Weight | ≈ 680 lb (308 kg) |
| Warranty | 1 year parts & labor (commercial use) |
Perfect For
- Bakeries and pastry shops needing consistent, gentle convection.
- High-volume restaurants roasting meats, vegetables, and more.
- Catering operations that require a mobile, full-size sheet-pan oven.
For complete warranty details visit southbendnc.com. Intended for commercial use only; not for household installation.
