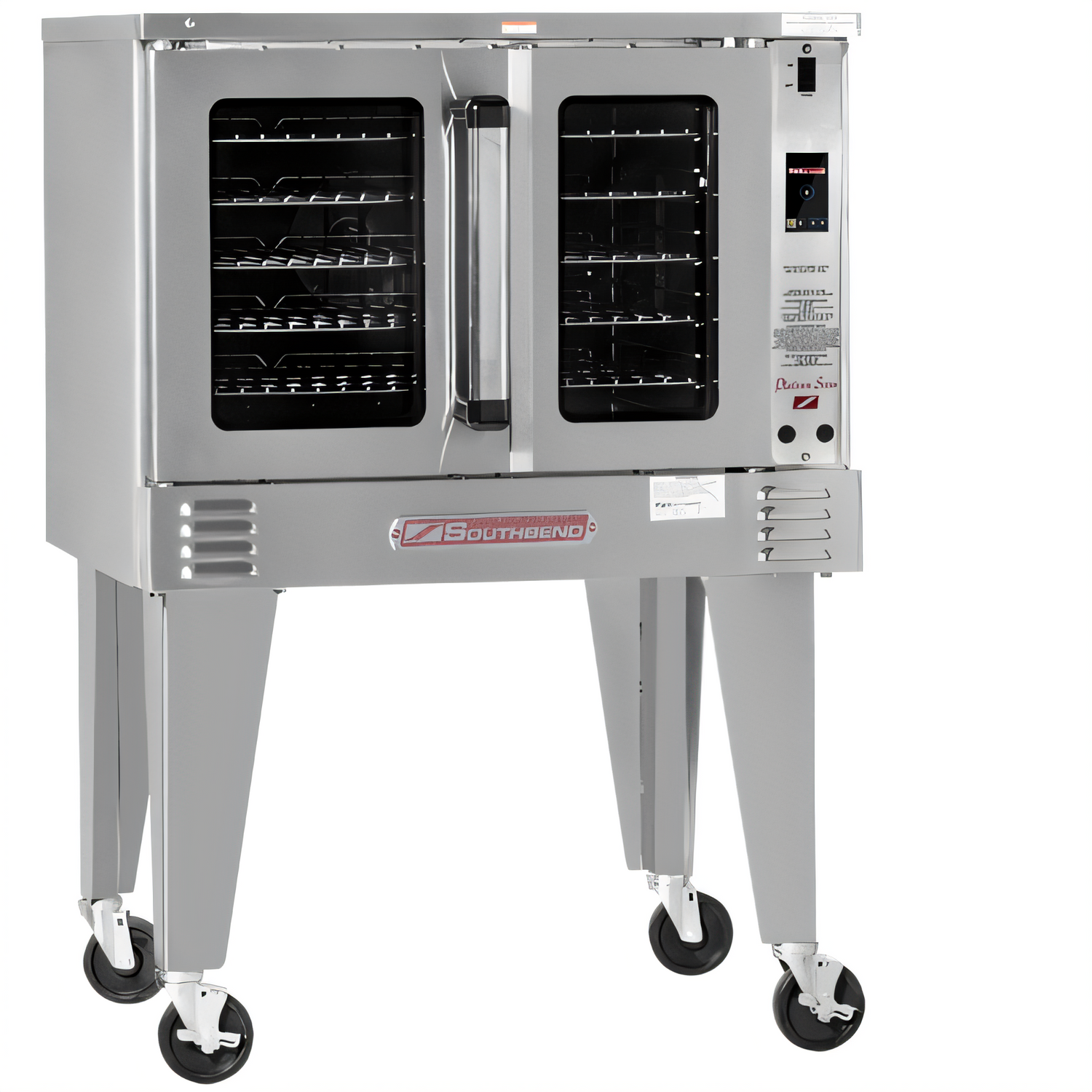

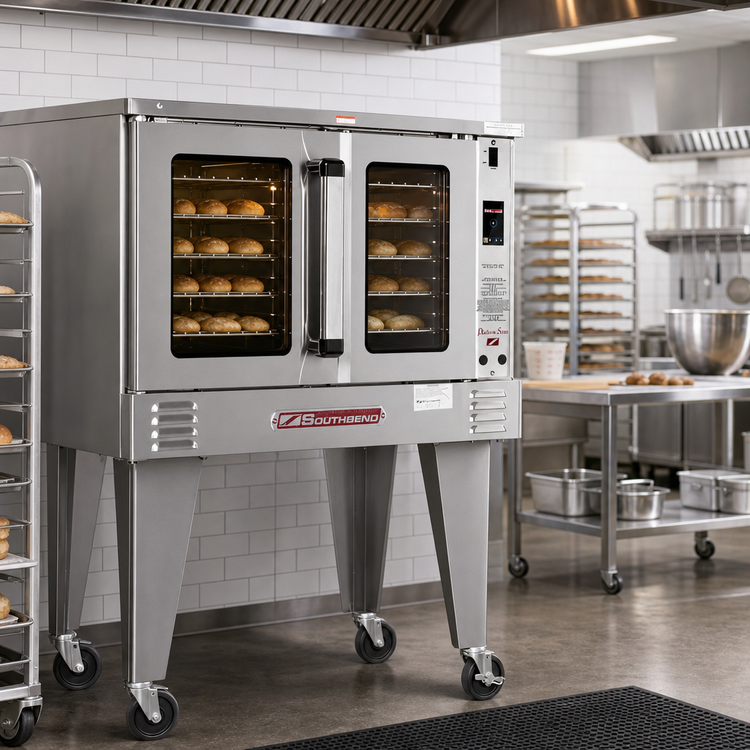

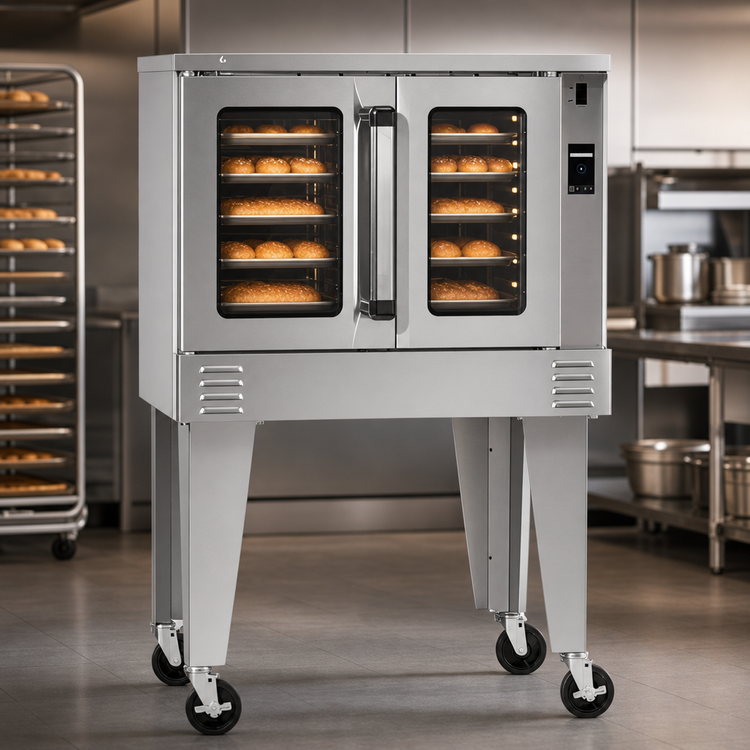

Southbend (Middleby) PCG50B/TI Platinum Convection Ovens
Description

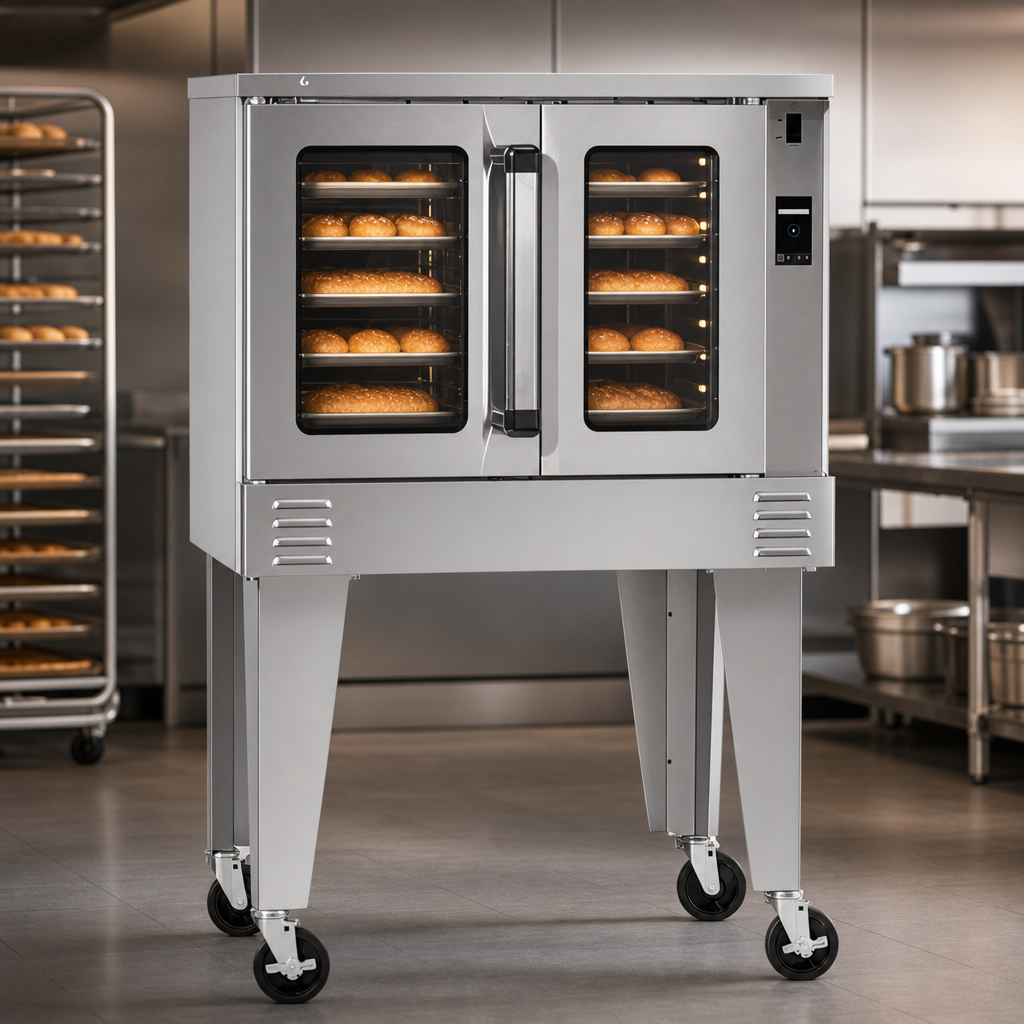

Platinum Series Single Bakery-Depth Gas Convection Oven – 50,000 BTU
Model PCG50B/T • Touchscreen Controls • Independent DoorsDesigned for high-volume bakeries, restaurants, and institutions, Southbend’s Platinum Series PCG50B/T delivers powerful, energy-efficient performance in a compact single-deck footprint. The 50,000 BTU inshot burner system teams up with a precision touchscreen, independent glass doors, and Soft-Air two-speed circulation to guarantee perfectly even bakes—batch after batch.
Performance & Construction Highlights- 50,000 BTU patented inshot burner (natural or LP gas).
- Full bakery depth (29 in) accepts 18" × 26" sheet pans front-to-back.

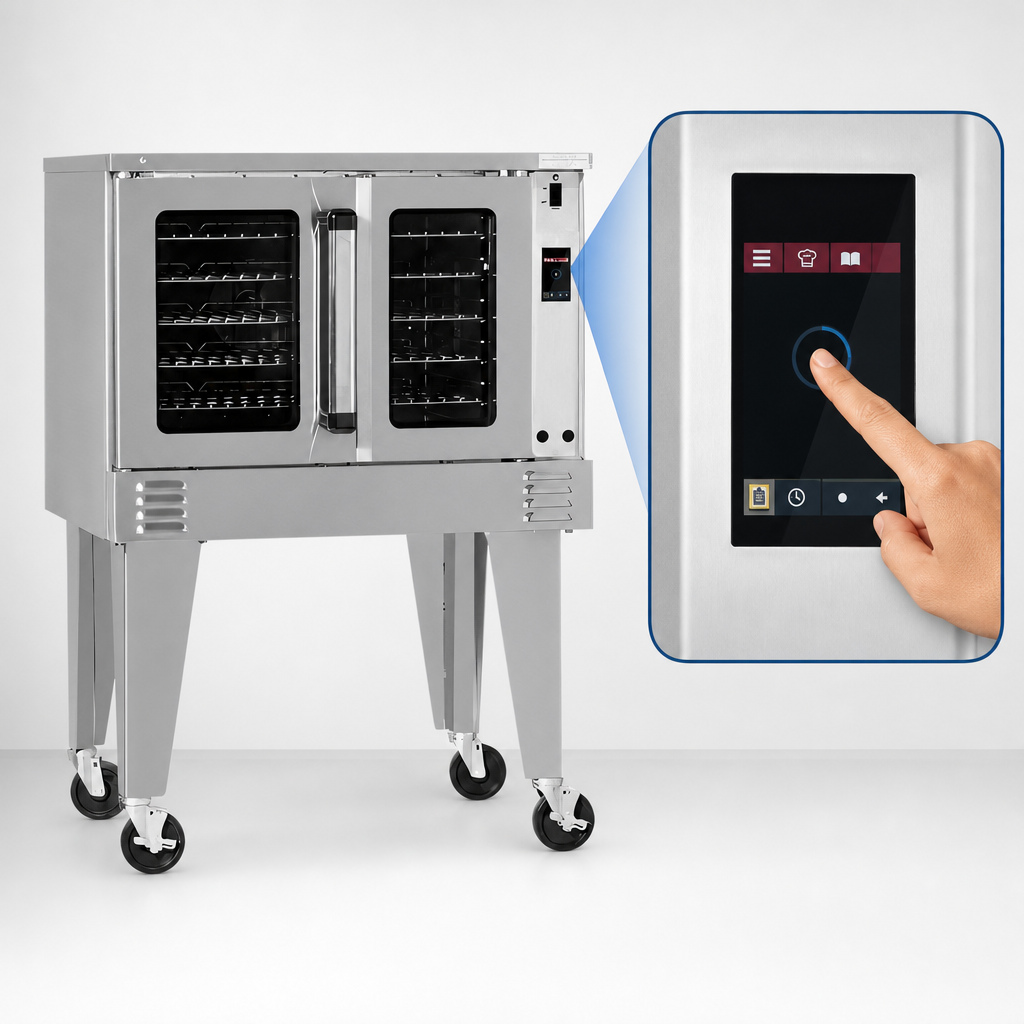

- TC Touchscreen: 150 – 550 °F cook + 140 – 200 °F hold, manual / recipe / rack modes, fan pulse & cool-down.
- Independent, 180° opening doors with dual heat-keeping seals and energy-saving glass windows.
- “Plug-in, plug-out” slide-out control panel for quick, front-of-unit service access.
- Soft-Air ½ hp fan motor (2-speed 1710/1120 RPM) ensures gentle, even airflow for delicate bakery items.
- Coved, fastener-free porcelain enamel interior—easy to wipe clean.
- 11-position rack guides with five heavy-duty plated racks included.
- Stainless steel front, sides, top & 26" triangular legs for unmatched durability.
- Electronic ignition with flame safety and forced cool-down fan mode.
- Dual 40 W interior lights and stay-cool door handles.
| Heat Source / Output | Natural or LP Gas, 50,000 BTU/hr |
|---|---|
| Temperature Range | 150 – 550 °F cooking | 140 – 200 °F hold (TC) |
| Interior Capacity | 29"W × 29"D × 20"H (11 cu ft) • 11 rack positions • 5 racks included |
| Overall Dimensions* | 43.5"W × 36.5"D × 57.5"H (with standard 26" legs) |
| Shipping Weight | Approx. 680 lb / 308 kg |
| Gas Connection | 3/4" NPT male • 7" W.C. (Natural) / 11" W.C. (LP) |
| Electrical Connection | 120 V / 60 Hz / 1 ph, 7.9 A, 6′ cord & NEMA 5-15P plug |
| Fan Motor | ½ hp, two-speed (Soft-Air) |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
*Add 1.5" rear clearance for gas/electrical connections.
Popular Factory Options & Accessories- 4" or 6" locking casters
- Stainless steel oven interior
- Marine-edge top
- 3/4" gas quick-disconnect with flexible hose (3′, 4′, or 5′ lengths)
- Stainless steel dirt tray or rear jacket
Southbend is a Middleby Company • Manufactured in Fuquay-Varina, NC • For full documentation, service, and parts visit southbendnc.com.
