Southbend (Middleby) PCG50B/TD Platinum Convection Ovens
Description

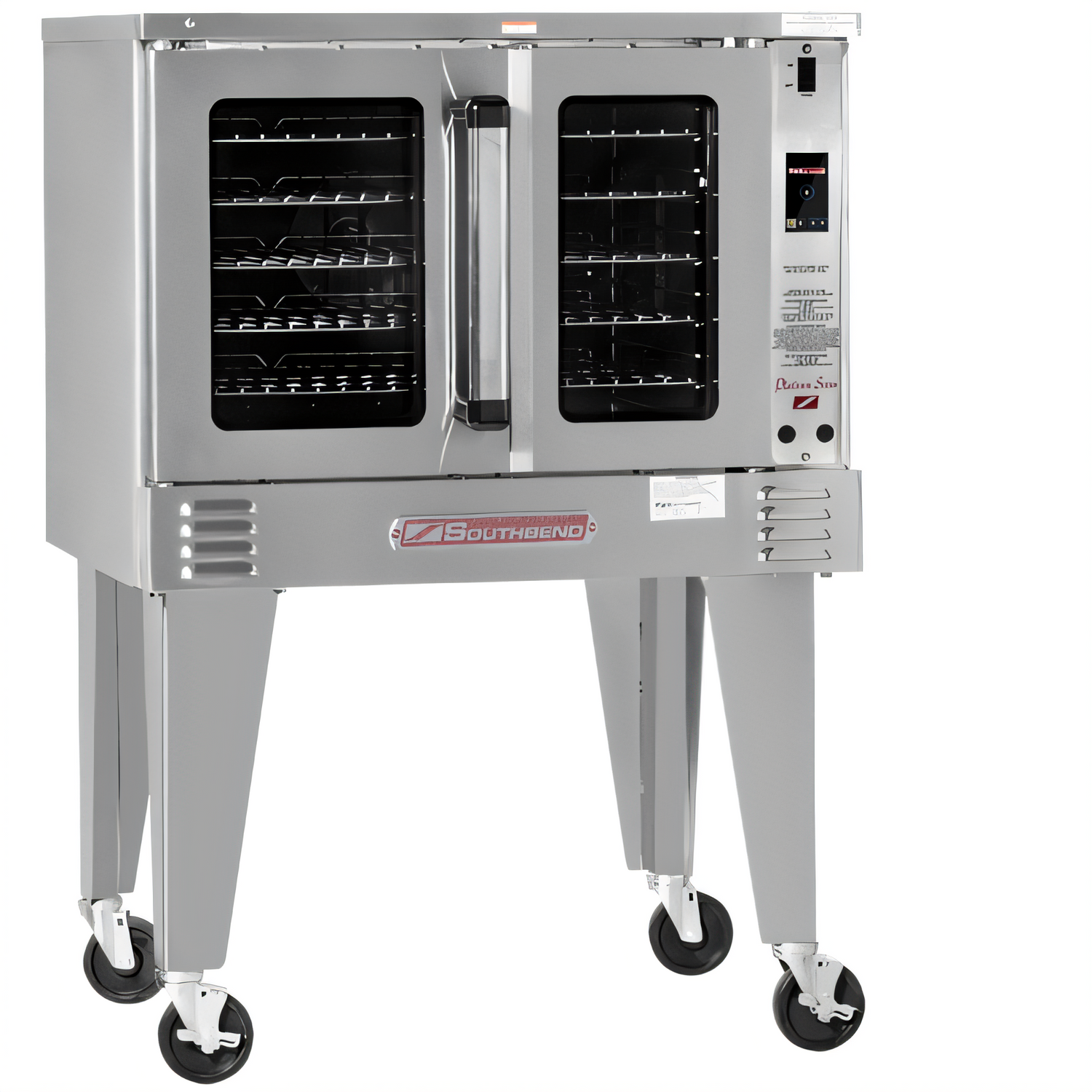

Southbend Platinum PCG50B/T Single-Deck Gas Convection Oven
50,000 BTU • Bakery Depth • Touchscreen Controls • Dependent DoorsBuilt for busy bakeries, restaurants, and commissaries that refuse to compromise on speed, consistency, or durability, the Southbend Platinum PCG50B/T delivers 50,000 BTU of even, high-efficiency heat in a space-saving single-deck footprint. Intuitive touchscreen controls, a porcelain-enamel interior, and Southbend’s patented “plug-in, plug-out” service deck make this oven a reliable workhorse that keeps you cooking—not waiting on repairs.
Why You’ll Love It

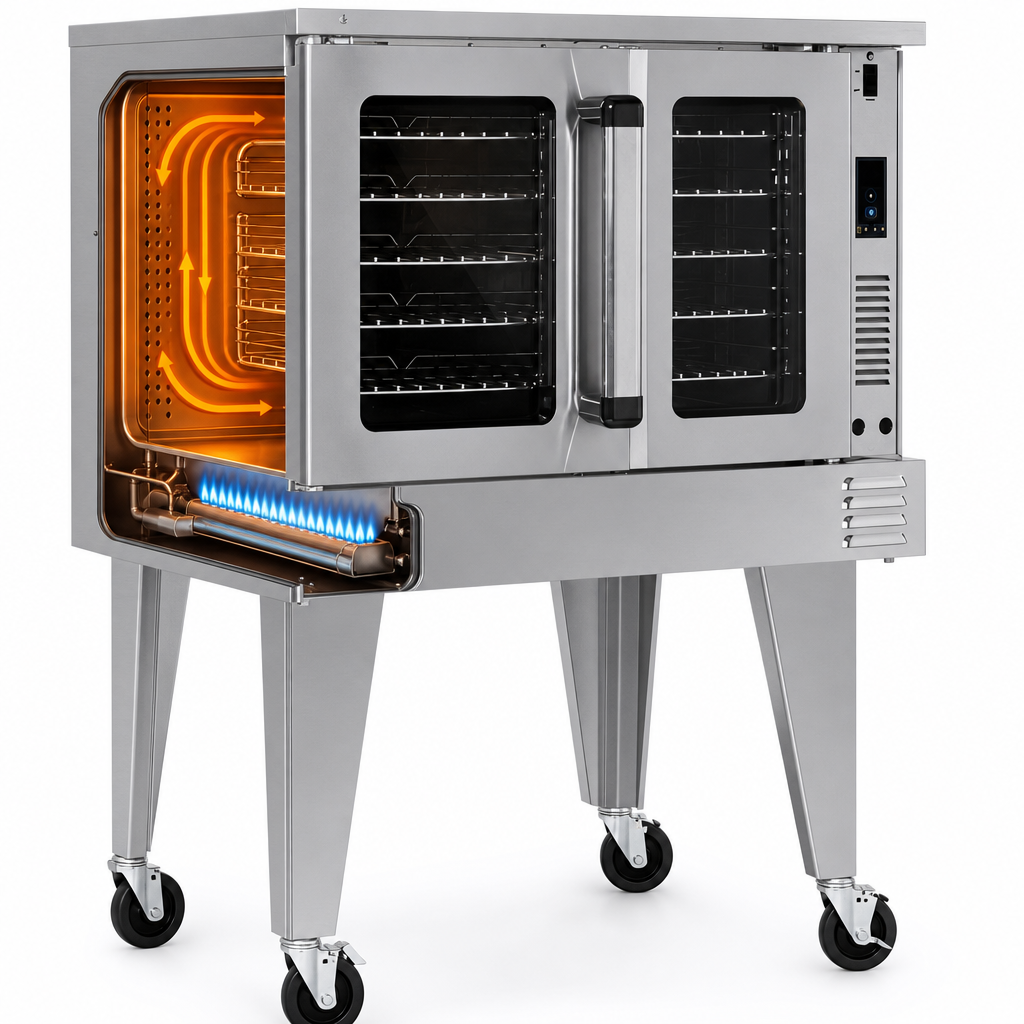

- Powerful 50,000 BTU patented in-shot burners for rapid preheat and recovery.

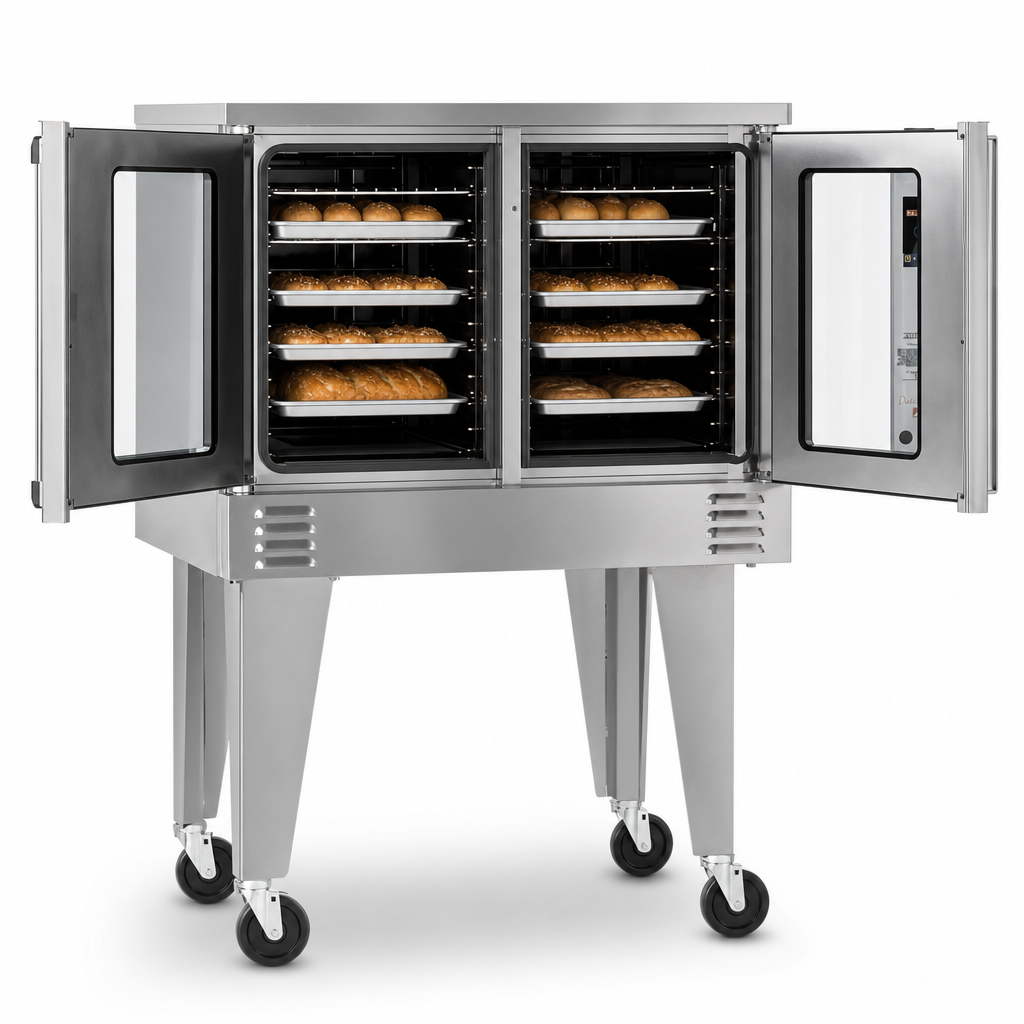

- Bakery-depth (29 in.) cavity fits full-size sheet pans either way on 11 rack positions.
- 7" full-color touchscreen offers manual, recipe, and rack-timing modes plus Hold (140-200 °F).
- Dependent, windowed doors swing a full 180° and feature a dual-seal system to lock in heat.
- 1/2 HP two-speed Soft-Air fan circulates air gently for perfectly even bakes.
- “Plug-in, plug-out” slide-out control panel keeps critical components away from heat and simplifies service.
- Stainless-steel front, sides, and top stand up to daily commercial abuse.
- Forced cool-down mode and stay-cool door handle improve operator safety.
- Five chrome-plated racks, porcelain-enamel coved interior, and recessed lights for easy loading and cleaning.
- Ships on 26 in. stainless legs; optional 4 in. or 6 in. casters available.
Technical Specifications
| Manufacturer / Model | Southbend PCG50B/T (Platinum Series) |
|---|---|
| Heat Source | Natural or LP Gas, 50,000 BTU/hr |
| Controls | Color touchscreen, 150-550 °F bake, 140-200 °F hold, programmable recipes & rack timing |
| Interior (W × D × H) | 29 in. × 29 in. × 20 in. (737 × 737 × 508 mm) |
| Rack Capacity | 11 positions, 5 chrome racks included |
| Fan Motor | 1/2 HP, two-speed (1,710 / 1,120 RPM) |
| Doors | Dependent, double-pane windows, 180° swing |
| Overall Dimensions | 43.5 W × 36.5 D × 45.75 H in. on legs (1,105 × 927 × 1,162 mm) |
| Gas Connection | 3/4 in. NPT; 7" W.C. (Nat) / 11" W.C. (LP) minimum inlet pressure |
| Electrical | 120 V, 60 Hz, 1-phase, 7.9 A, NEMA 5-15P cord (per deck) |
| Shipping Weight | Approx. 680 lb (313 kg) |
| Warranty | 1-year limited parts & labor (see details) |
Popular Options (Sold Separately)
- 4 in. or 6 in. heavy-duty casters
- Stainless-steel oven interior
- Independent (split) doors
- 3/4 in. quick-disconnect gas hose (3 ft, 4 ft, or 5 ft)
- 208 V or 240 V electrical configuration
- Marine edge top, down-draft diverter, export crating & more
Clearances: 0″ top, bottom & right; 2″ left. Install under a vented hood and connect with a 3/4″ gas line. Oven will not operate without the fan engaged.
