Southbend (Middleby) PCG50B/SI Platinum Convection Ovens
Description

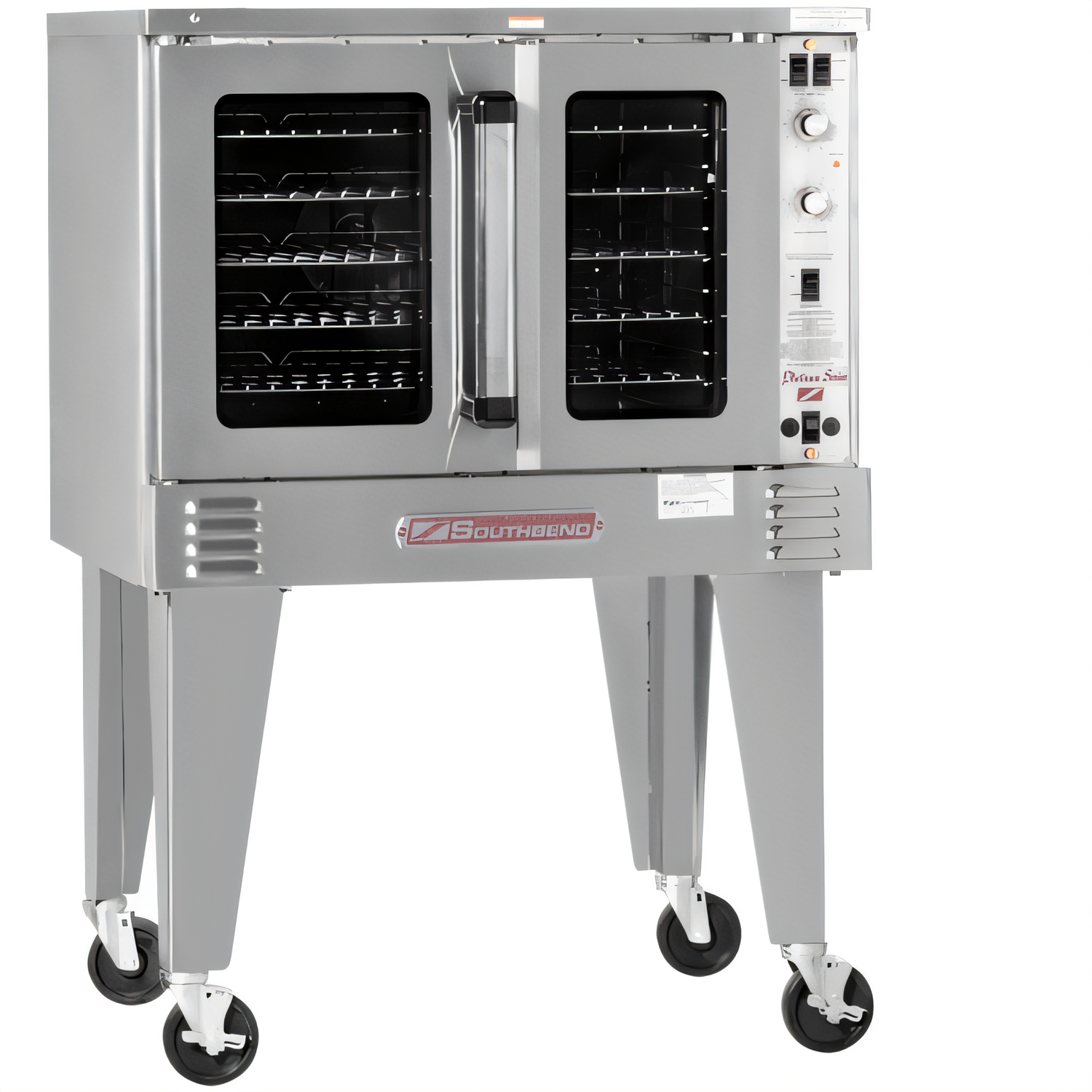

Platinum Series 50,000 BTU Bakery-Depth Convection Oven
Model PCG50B/S | Gas | Standard Controls | Independent DoorsBuilt for high-volume bakeshops, restaurants and commissaries, the Southbend Platinum Series single-deck oven delivers consistent, even results while keeping service and maintenance remarkably simple. Its bakery-depth cavity, rugged stainless construction and patented slide-out control panel make it a workhorse your crew can count on every shift.
Top Reasons to Choose This Oven

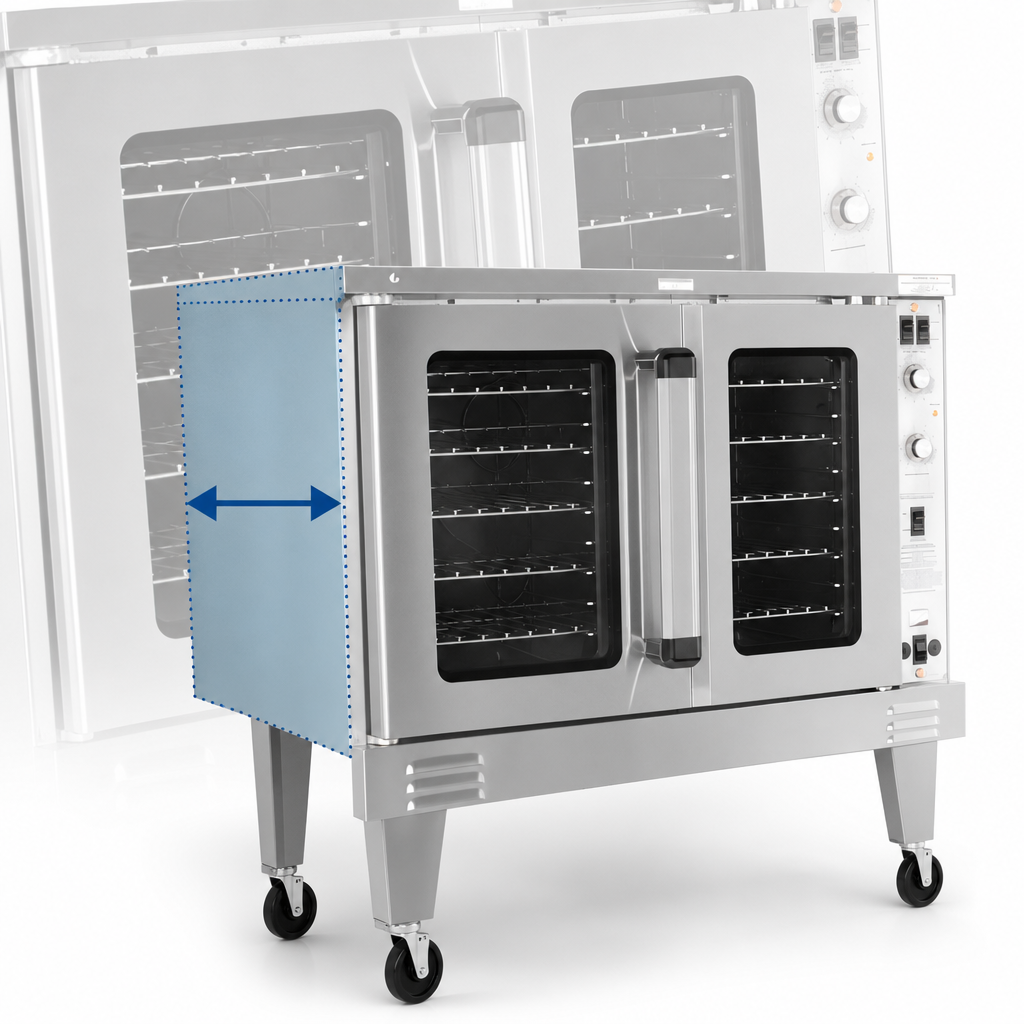

- Bakery-depth interior (29 in deep) fits full-size 18" × 26" sheet pans front-to-back.

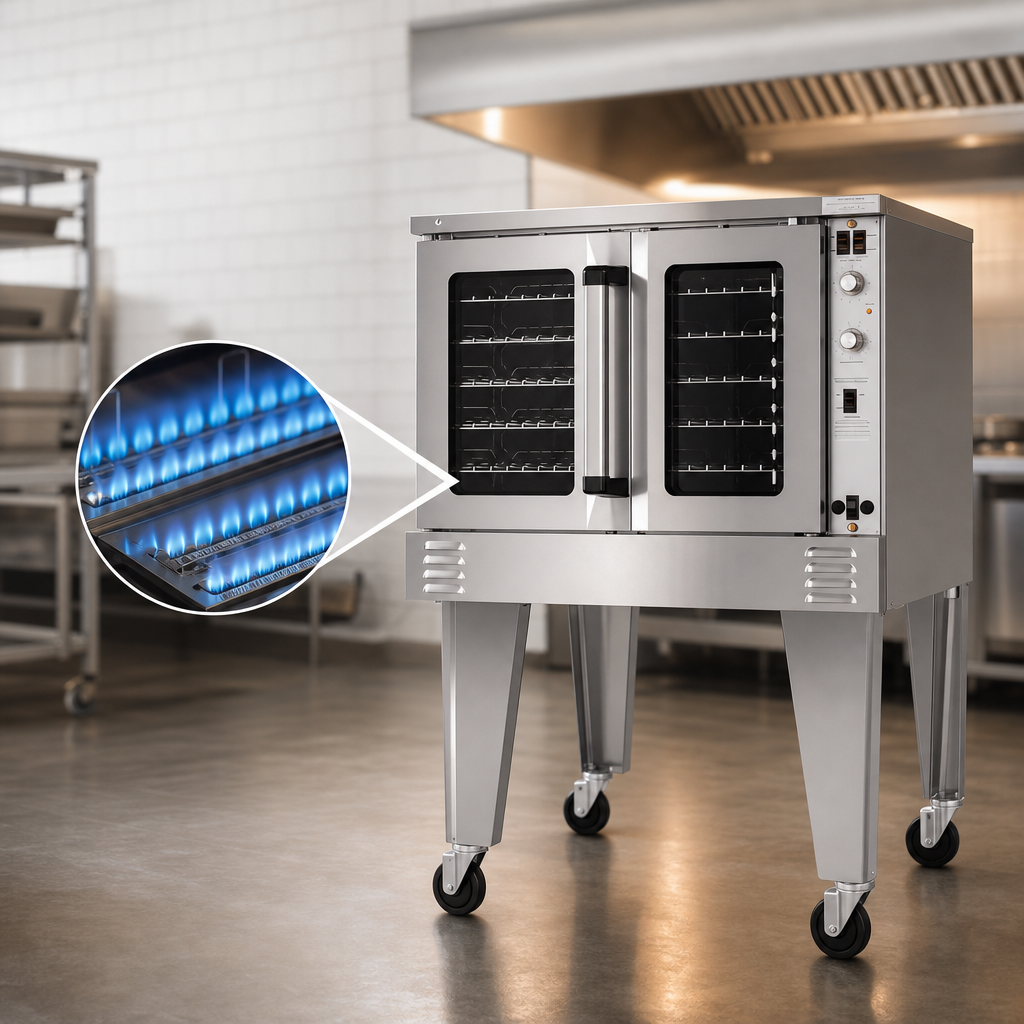

- High-efficiency in-shot burner system supplies 50,000 BTU/hr (NAT or LP) with fast electronic ignition.
- Independent, dual-pane glass doors open 180° for unobstructed loading while trapping heat inside.
- Simple solid-state controls deliver a 140 °F – 500 °F thermostat and 60-minute timer—no complicated menus.
- Soft Air two-speed ½ hp fan gently circulates air for uniform color and rise.
- Five heavy-duty racks on 11 positions handle mixed loads with ease.
- Seamless, porcelain-enameled interior wipes clean in seconds.
- Patented “plug-in/plug-out” slide-out control panel speeds service and reduces downtime.
- Full stainless front, sides & top plus 26" triangular legs (casters optional) stand up to daily abuse.
- Forced cool-down mode protects components and lets you turn the cavity quickly.
At-a-Glance Specs
| Fuel / Output | Natural or Propane · 50,000 BTU/hr |
|---|---|
| Temperature Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Controls | Solid-state thermostat & 60-min mechanical timer |
| Interior (W×D×H) | 29 × 29 × 20 in (737 × 737 × 508 mm) |
| Rack Capacity | 11 positions | 5 racks included |
| Fan Motor | ½ hp · 2-speed · 1 710 / 1 120 rpm |
| Exterior (W×D×H) | 43.5 × 36.5 × 57.5 in (1 105 × 927 × 1 461 mm) on legs |
| Shipping Weight | ≈ 680 lb (309 kg) |
| Electrical | 120 V / 60 Hz / 1-ph · 7.9 A · NEMA 5-15P cord & plug |
| Gas Connection | ¾" NPT male (rear) |
| Combustible Clearances | Top 0" · Bottom 0" · Right 0" · Left 2" |
Installation & Utility Notes
- Install under a vented hood; verify local code compliance.
- Minimum inlet pressure: 7" W.C. (Natural) | 11" W.C. (LP).
- If using casters with a flex-hose, a restraint device is required.
- Oven must not be operated without the fan running.
Warranty
Covered by Southbend’s 1-year limited parts & labor warranty. Full details available at southbendnc.com.
