Southbend (Middleby) PCG50B/SD Platinum Convection Ovens
Description

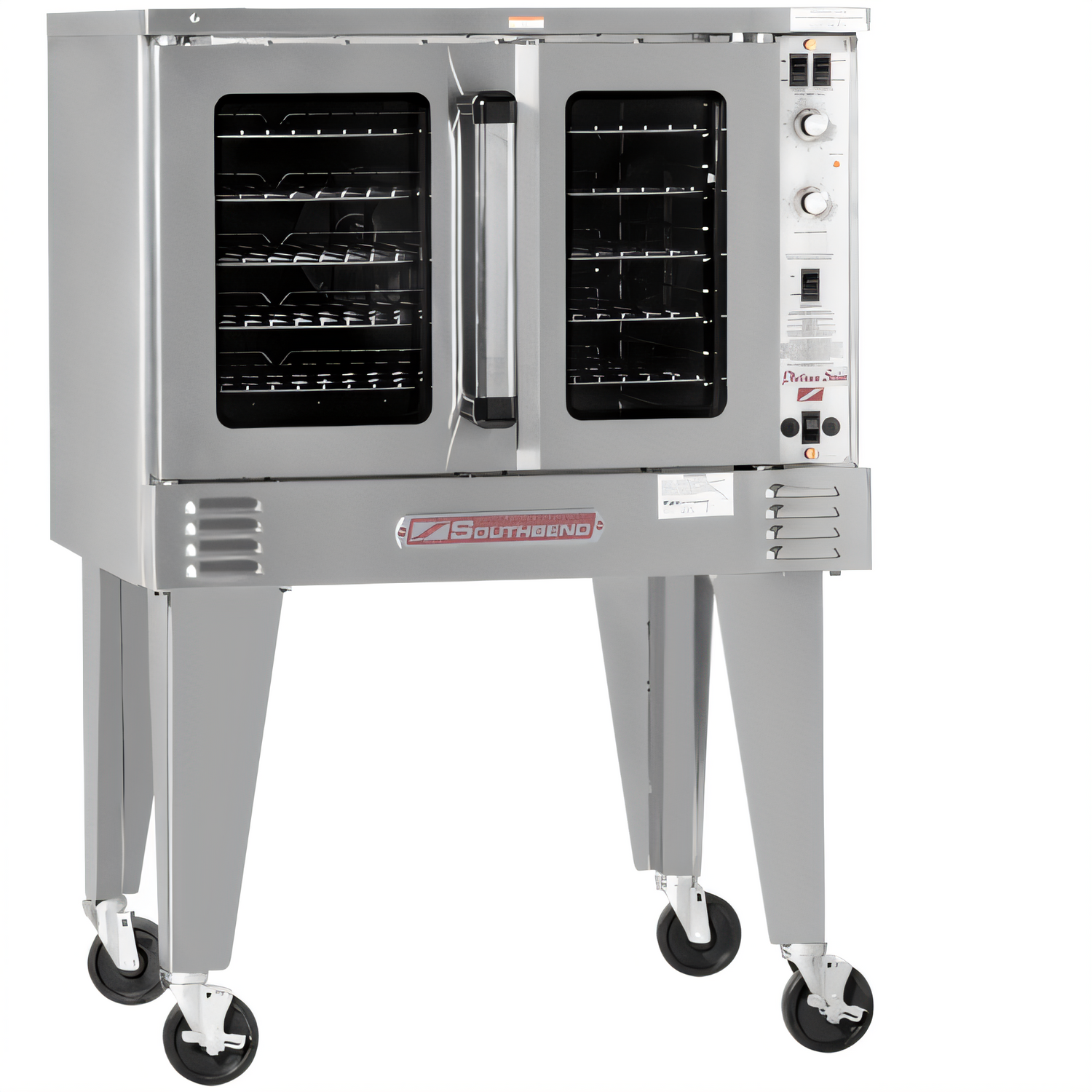

Southbend Platinum Series Single Convection Oven – 50,000 BTU
Model PCG50B/S • Bakery-Depth • Standard Controls • GasEngineered for busy commercial bakeries, restaurants, and institutions, the Southbend Platinum PCG50B/S delivers powerful, even baking performance in a compact single-deck footprint. Its bakery-depth cavity handles full-size sheet pans front-to-back, while a 50,000 BTU inshot burner system and two-speed fan circulate “Soft-Air” heat for perfectly browned, consistent results every time.
Why You’ll Love It

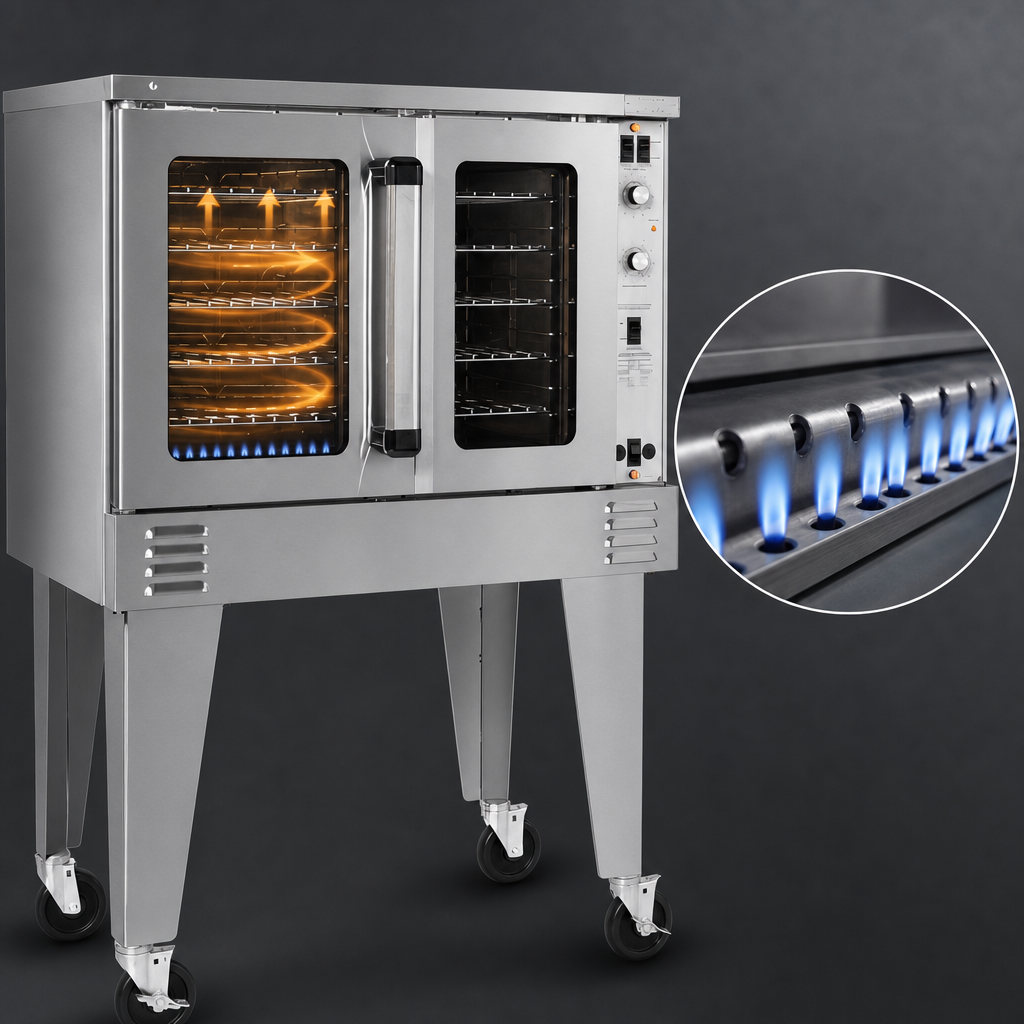

- 50,000 BTU patented high-efficiency inshot burner (Natural or LP)

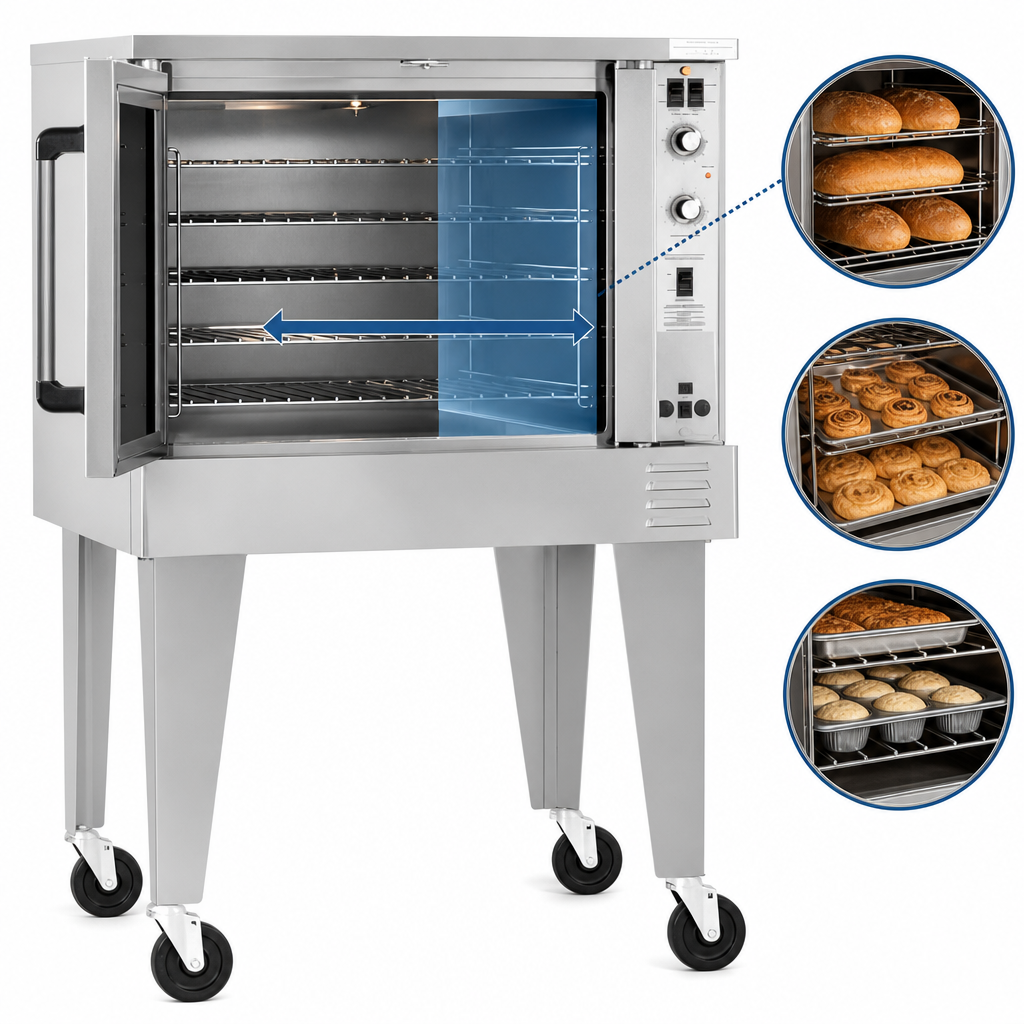

- Bakery-depth (29 in) cavity fits full-size pans front-to-back
- Standard solid-state controls: 140 °F – 500 °F thermostat & 60-minute timer
- Dependent, 180° opening doors with dual pane glass for heat retention
- “Plug-in/plug-out” slide-out control panel for fast, front-access service
- Coved, fastener-free porcelain interior for wipe-clean sanitation
- 11-position rack guides & 5 plated wire racks included
- Two-speed, ½ HP fan with forced cool-down mode
- Stainless steel front, sides & top with stay-cool door handle
- Electronic hot-surface ignition and interior halogen lighting
Quick-View Specs
| Model | PCG50B/S (Single deck, bakery depth) |
|---|---|
| Fuel / Input | Natural or LP Gas • 50,000 BTU/hr • 3/4 in NPT male |
| Electrical | 120 V / 60 Hz / 1-ph • 7.9 A • 6 ft cord & NEMA 5-15P |
| Exterior (W × D × H) | 43.5 in × 36.5 in × 45.75 in (57.5 in H with optional 6 in casters) |
| Interior (W × D × H) | 29 in × 29 in × 20 in |
| Rack Positions / Racks | 11 positions • 5 racks included |
| Shipping Weight | ≈ 680 lb (crate volume 68 cu ft) |
| Controls | Solid-state thermostat, 60-min mechanical timer |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Optional Upgrades
- Touchscreen control package with programmable recipes & hold mode
- Stainless steel oven interior
- 4 in or 6 in locking casters
- Quick-disconnect gas hose (3 ft, 4 ft, or 5 ft)
- Independent (single-hand) doors, marine-edge top, export crating & more
Need a different BTU rating or control style? 70,000 BTU and 90,000 BTU models, as well as touchscreen controls, are available in the Platinum Series.
