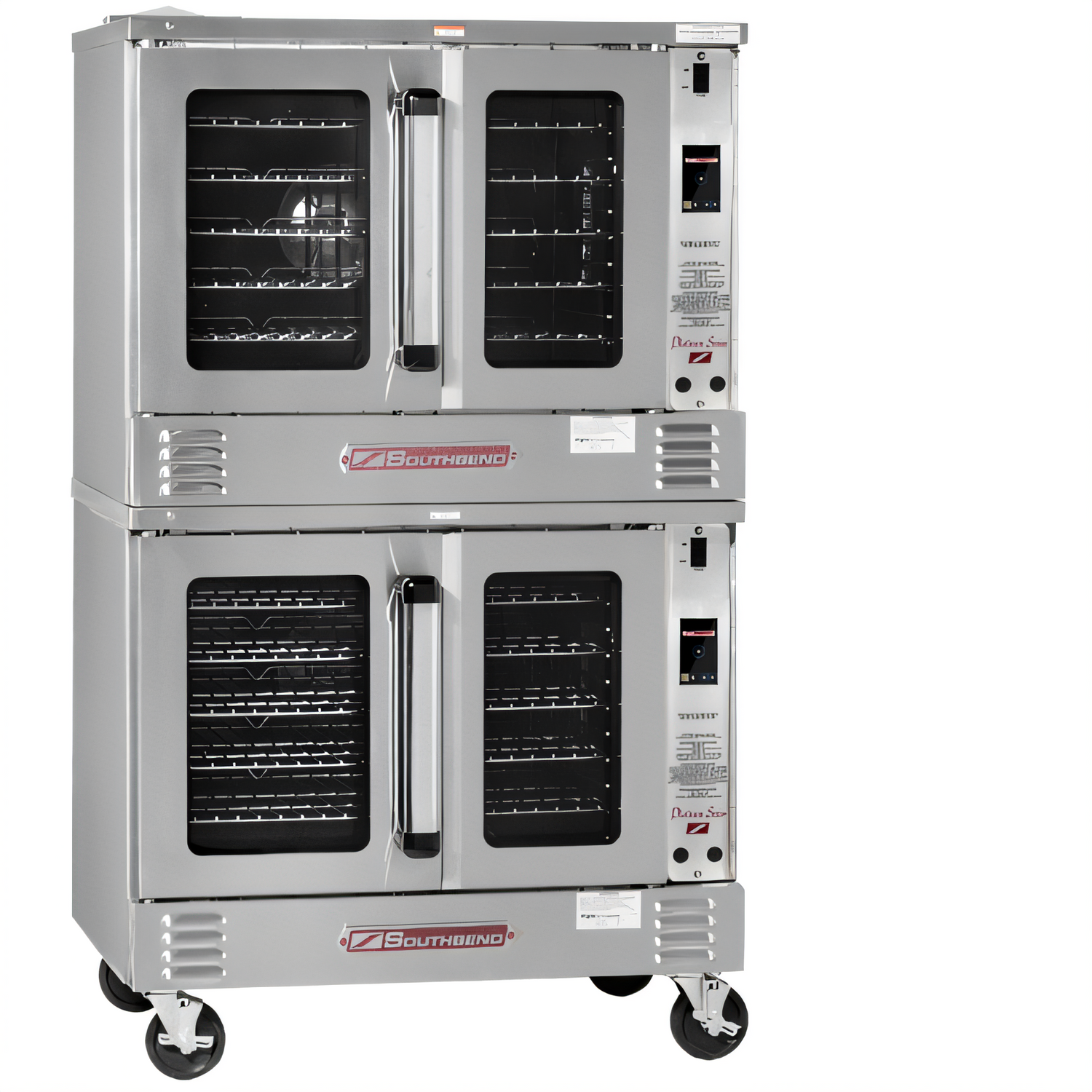

Southbend (Middleby) PCG180S/TI Platinum Convection Ovens

Southbend Platinum Series Double Gas Convection Oven

Engineered for high-volume kitchens that refuse to compromise on performance, the Southbend Platinum PCG180S/T packs two full-size convection cavities into a space-saving footprint. Each deck delivers a powerful 90,000 BTU punch, while the intuitive touchscreen lets you store recipes, stage rack-by-rack timers, and monitor temperatures at a glance. Independent, low-E glass doors help trap heat where it belongs—inside the oven—so you can bake, roast, and finish with superior consistency and energy savings.

Key Performance Features

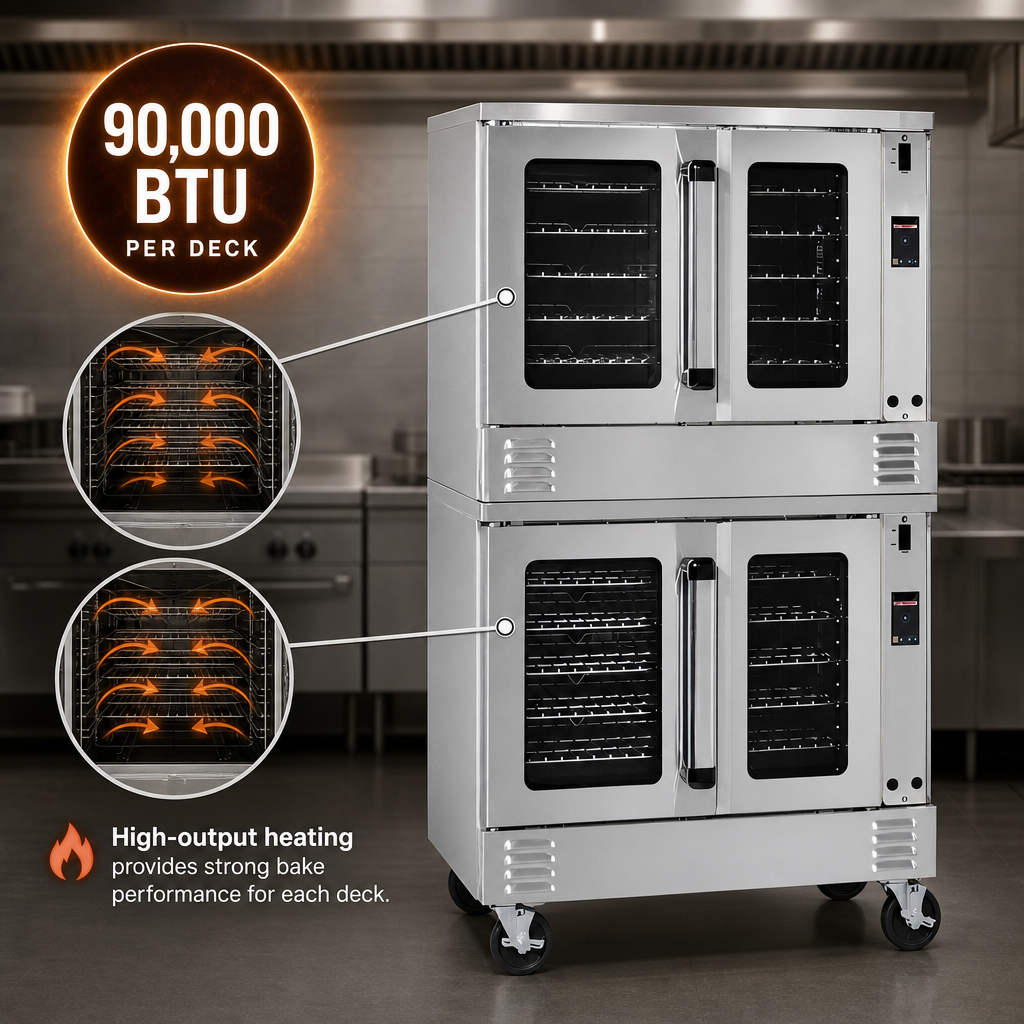

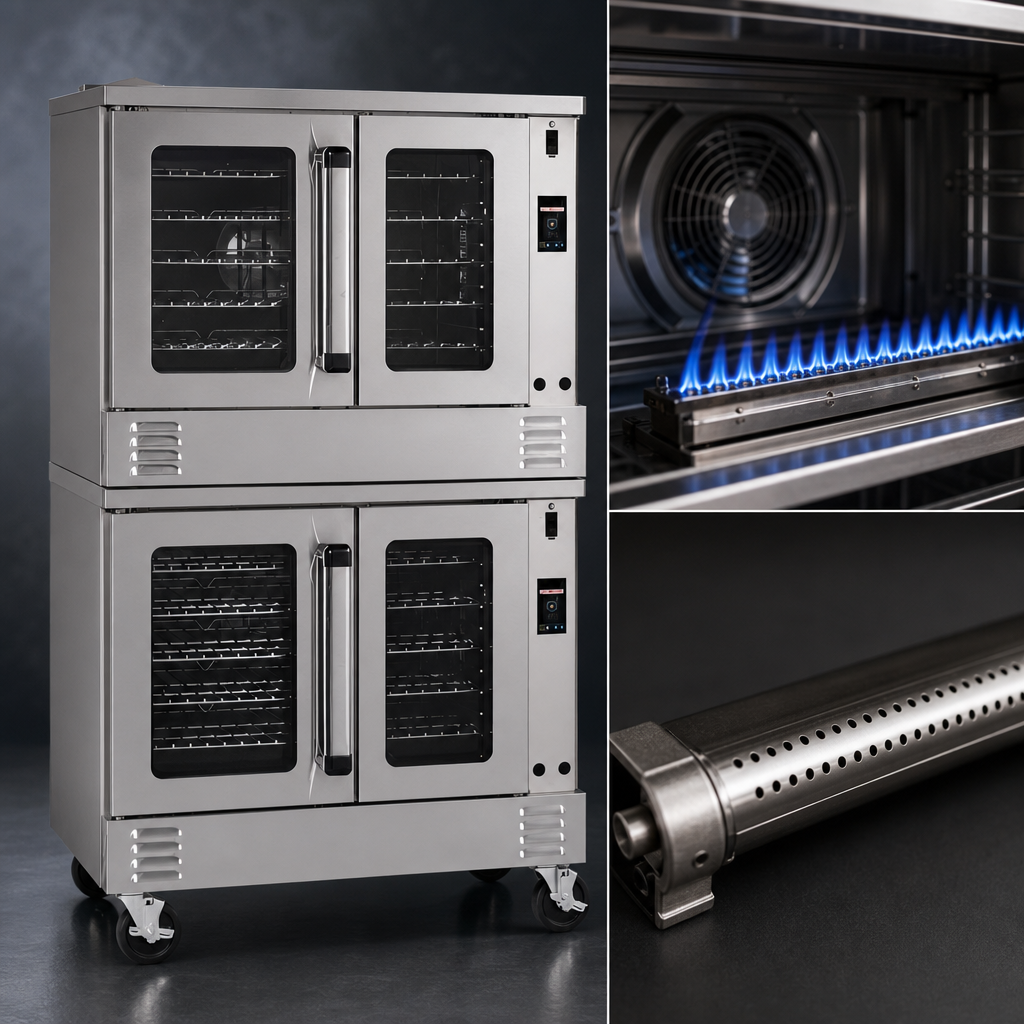

• 90,000 BTU patented non-clog Inshot burner in each deck (180,000 BTU total).
• Touchscreen controls with Manual, Recipe, and Group Rack modes for multi-timer cooking.
• Independent, 180° opening glass doors minimize heat loss and boost efficiency.
• “Soft-Air” two-speed ½ hp fan delivers even air circulation and gentle baking of delicate items.
• 11-position rack guides  •  5 plated heavy-duty racks included.
• Slide-out “plug-in, plug-out” control module for quick front-service access.
• Porcelain-enamel, coved interior—completely fastener-free for easy wipe-clean sanitation.
• Stainless-steel front, sides, top, and 6" legs built for the daily rigors of commercial kitchens.
• Electronic hot-surface ignition with flame safety and automatic forced cool-down mode.
• Twin 40 W interior lights per deck for hassle-free product checks.

Smart Touchscreen Control

• Temperature range: 150 °F – 550 °F plus 140 °F – 200 °F holding mode.
• Create, save, and edit recipes with up to 10 stages each.
• Rack mode lets you assign individual timers to every rack position—perfect for mixed loads.
• Pulsed fan cycle option protects delicate bakes and custards.
• Large, high-contrast display is glove-friendly and easy to read from across the kitchen.

Specifications

For optimal performance, install under a properly vented hood with minimum gas supply pressure of 7" W.C. (natural) or 11" W.C. (propane). This appliance is intended for commercial use only.
