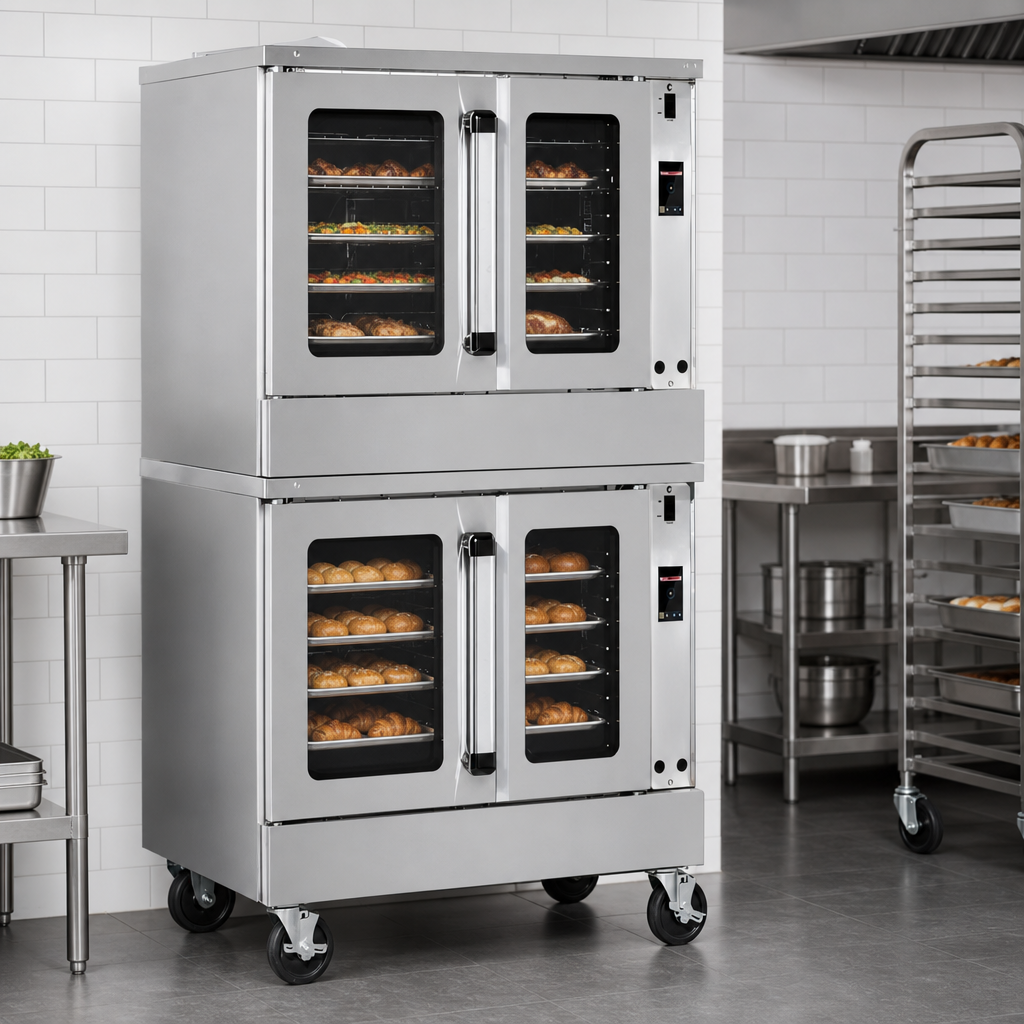

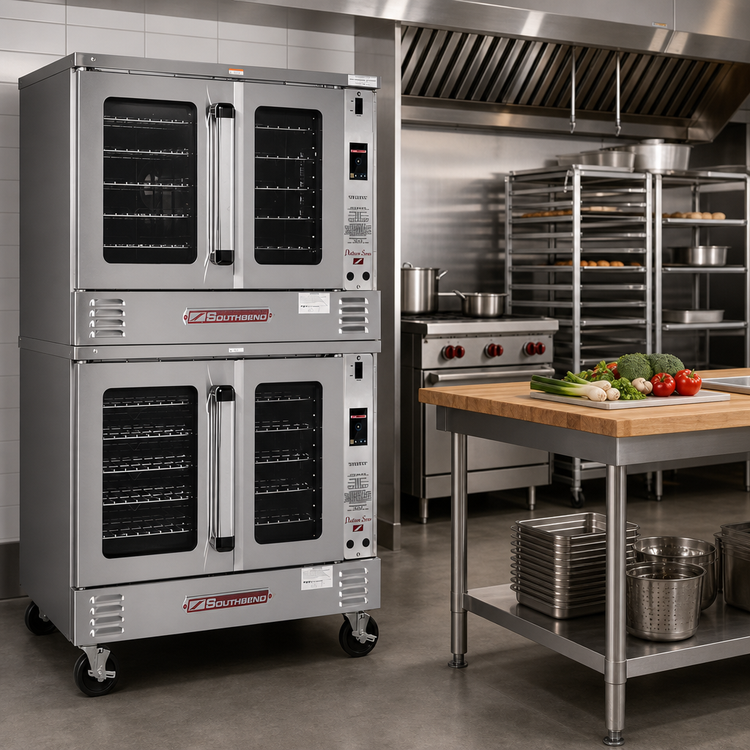

Platinum Series Double Convection Oven – Gas, 90 000 BTU/Deck
Model PCG180S/T • Standard-Depth • Touchscreen Controls • Dependent DoorsBuilt for the busiest commercial kitchens, the Southbend Platinum PCG180S/T delivers twin-deck baking power in less than 42 inches of floor space. Patented high-efficiency burners, intuitive touchscreen control, and a rugged all-stainless cabinet combine to give you consistent results, day-after-day, shift-after-shift.
Key Performance Features
- 90 000 BTU NAT/LP non-clog Inshot burners in each deck (180 000 BTU total).

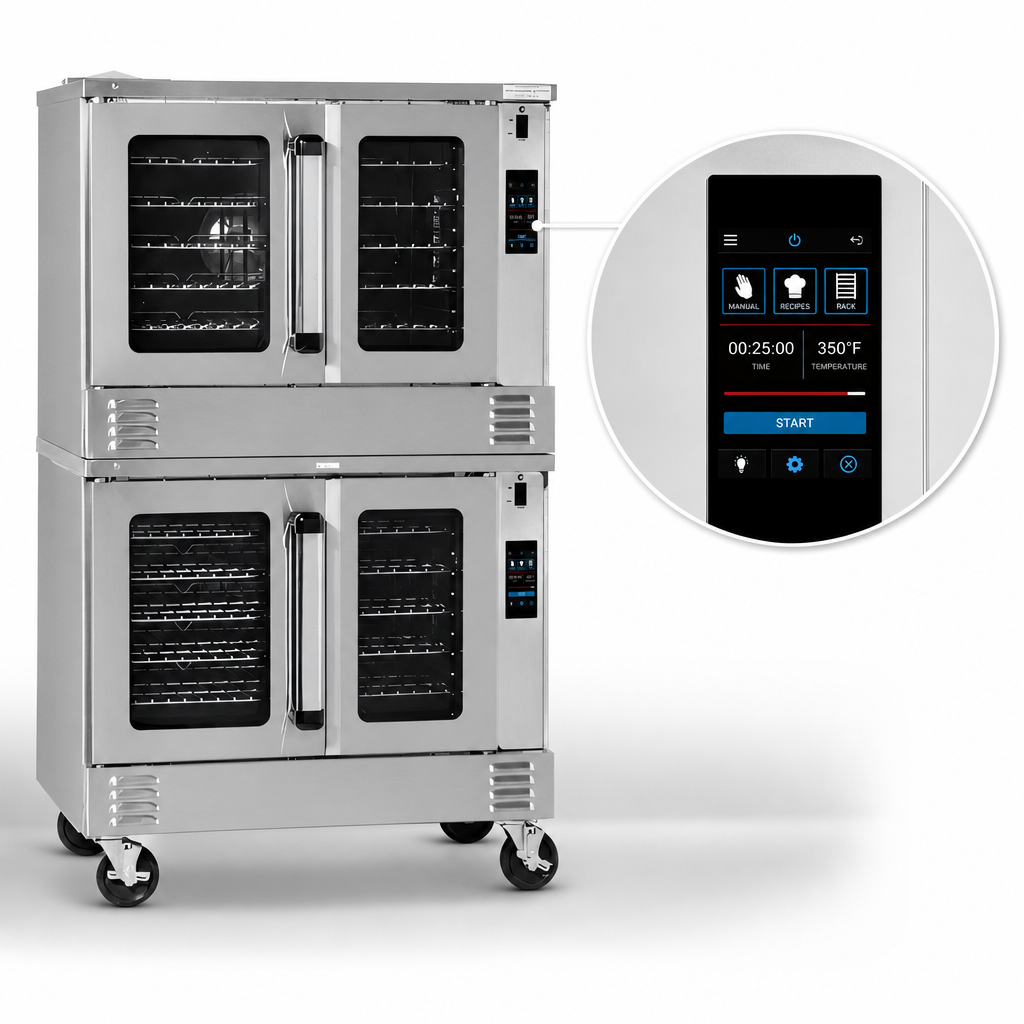

- Fast-response touchscreen with Manual, Recipe & Rack modes (150 °F – 550 °F cook + 140 –200 °F hold).
- Patented “plug-in / plug-out” slide-out control panel for service in seconds.
- Two-speed ½ hp Soft-Air blower keeps a gentle, even bake on every rack.
- 11-position guides & 5 heavy-duty racks per deck fit full-size (18 × 26 in) sheet pans.
- Dependent dual-pane glass doors swing a full 180°; stay-cool handles and dual seal retain heat & save energy.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Interior lights, electronic ignition, and forced cool-down fan standard.
- (4) or (6)-inch stainless legs included; optional casters, marine edge top, solid doors, and more available.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Decks / Capacity | 2 decks • 5 racks | 11 positions per deck (full-size sheet pans) |
|---|---|
| Heat Source | Natural or LP gas – 90 000 BTU/h per deck (non-clog Inshot burners) |
| Total Output | 180 000 BTU/h |
| Temperature Range | Cook 150 – 550 °F | Hold 140 – 200 °F |
| Controls | 7" touchscreen • Manual, timed Rack, & programmable Recipe modes • Fan pulse & cool-down |
| Interior (per deck) | 29" W × 21.5" D × 20" H (737 × 546 × 508 mm) |
| Exterior (overall) | ≈ 40.63" W × 37.25" D × 66.8" H (1032 × 946 × 1695 mm) |
| Blower Motor | ½ hp • 2-speed (1710 / 1120 RPM) |
| Gas Connection | ¾" NPT rear connection • Min. inlet 7" WC NAT / 11" WC LP |
| Electrical | 120 V / 60 Hz / 1-ph • 7.9 A per deck • 6′ cord & NEMA 5-15P (208 V / 240 V options available – field wired) |
| Shipping Weight | Approx. 1 040 lb (471.7 kg) |
