Southbend (Middleby) PCG180S/SI Platinum Convection Ovens
Description

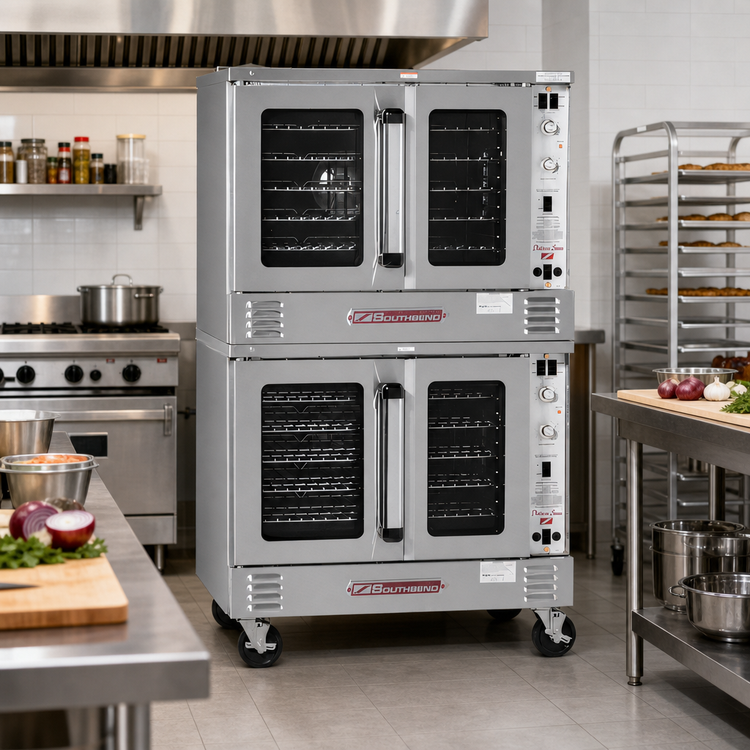

Southbend Platinum Series Double Convection Oven – Gas, 90 000 BTU/Deck
Model PCG180S/S • Standard Controls • Independent DoorsBuilt for high-volume kitchens that refuse to compromise on performance or serviceability, the Southbend Platinum PCG180S/S delivers a powerful 90 000 BTU of even, high-efficiency heat in each deck (180 000 BTU total). With upgraded independent doors, rock-solid stainless construction and Southbend’s patented “plug-in, plug-out” control panel, this double-stack oven keeps your line moving shift after shift.
Key Features

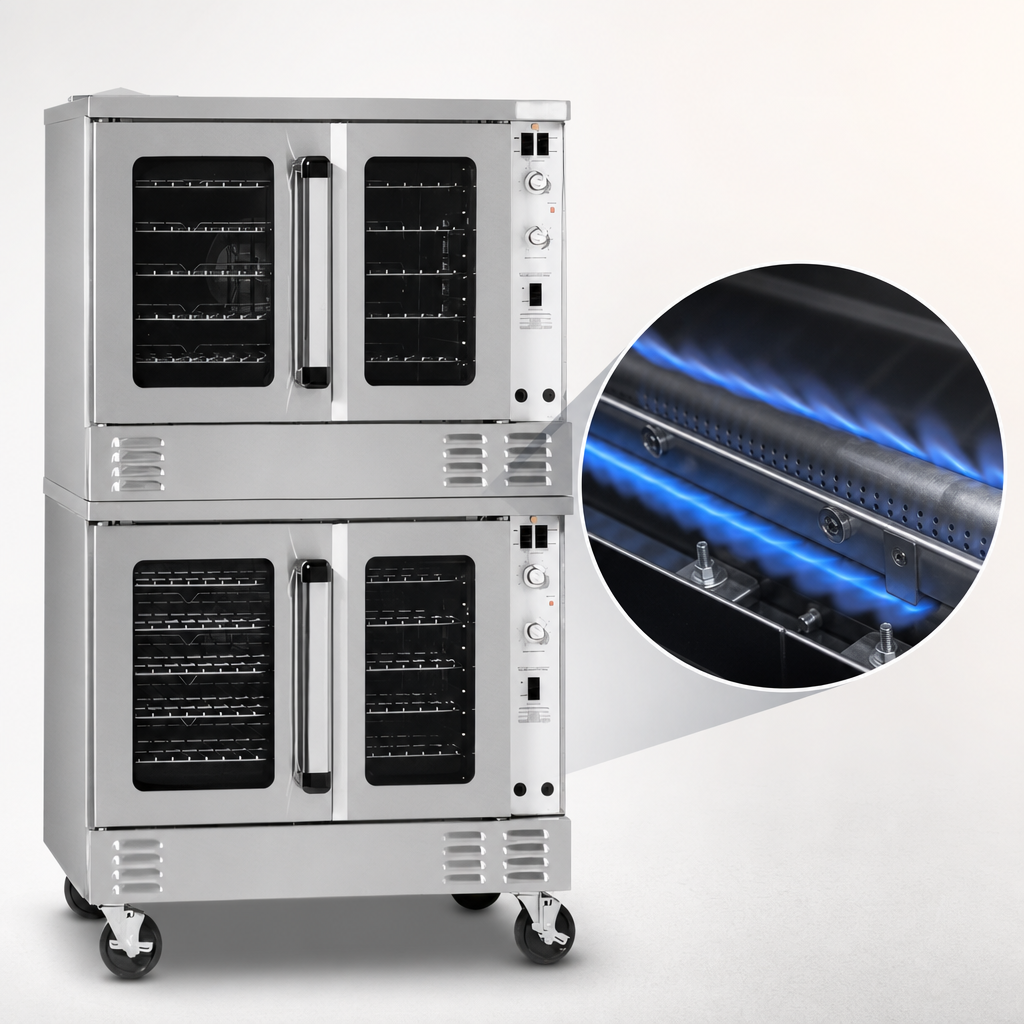

- High-efficiency, non-clog Inshot burners – 90 000 BTU per deck (NAT or LP)
- Solid-state thermostat, 140 °F – 500 °F, with 60-minute mechanical timer

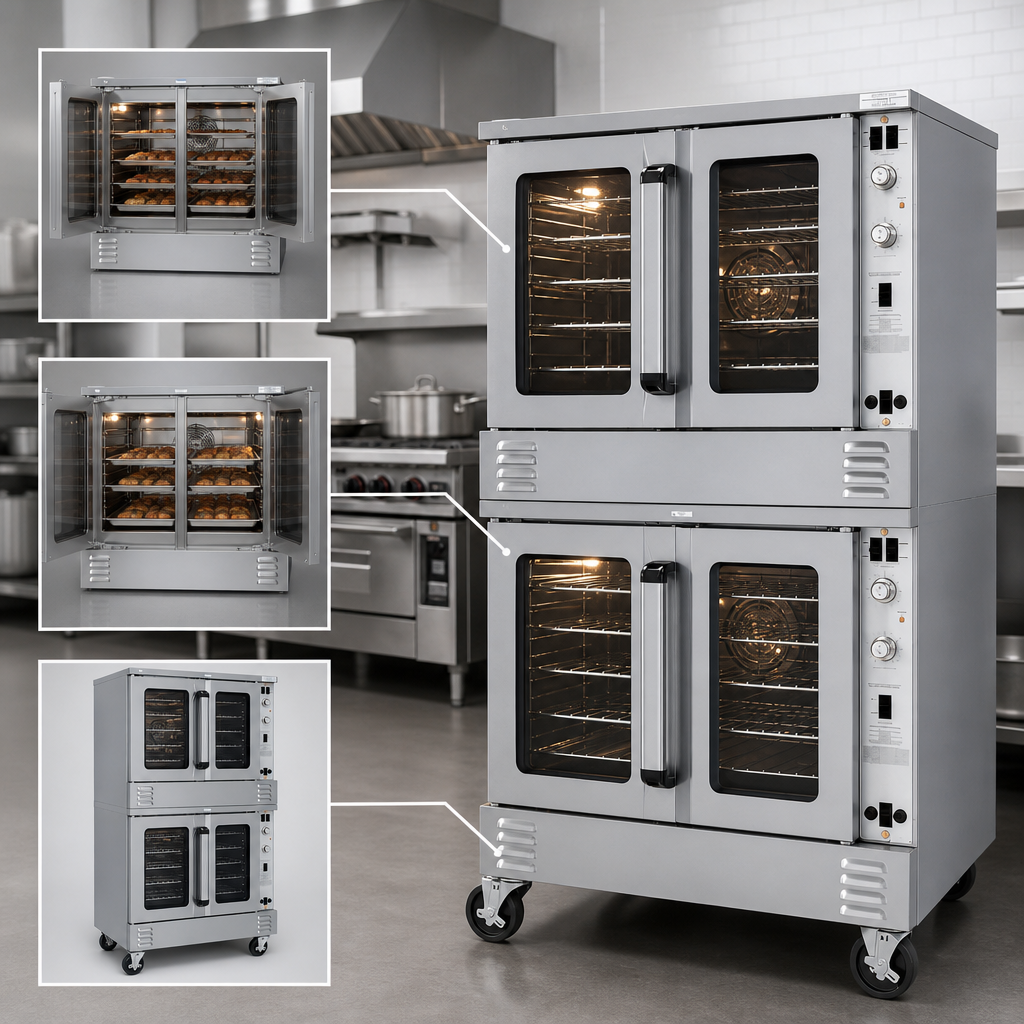

- Independent, full-view glass doors swing a full 180° for easy loading
- “Soft Air” two-speed ½ HP fan motor for superior bake uniformity
- Coved, fastener-free porcelain interior for quick wipe-downs
- 11-position rack guides & 5 heavy-duty plated racks included
- Slide-out, front-mounted control panel for full-view servicing
- Forced cool-down fan mode speeds turn-around between batches
- Stay-cool, heavy-duty door handles & dual door-seal system
- Stainless steel front, sides, top & 6" legs (casters optional)
- Electronic hot-surface ignition with flame-safety device
- Interior halogen lights keep product visible without opening doors
Specifications
| Model | PCG180S/S (Platinum Series, Double-Deck) |
|---|---|
| Total Heat Input | 180 000 BTU/h – 90 000 BTU per deck |
| Gas Type / Inlet Pressure | Natural 7" W.C. or Propane 11" W.C. (¾" female connection) |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A per deck • 6' cord with NEMA 5-15P (208 V & 240 V kits optional) |
| Controls | Solid-state thermostat 140-500 °F, 60-min timer, oven cool-down switch |
| Door Style | Independent, double-pane glass, 180° opening |
| Interior (W × D × H) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Rack Capacity | 5 racks supplied • 11 positions on 1⅝" centers |
| Overall Dimensions (W × D × H) | 37.25" × 39.25" × 66.8" (946 × 997 × 1695 mm) |
| Shipping Weight | Approx. 1 040 lb (472 kg) |
| Warranty | 1-year parts & labor (see Southbend warranty) |
Need additional options such as digital Touchscreen controls or casters? Chat with our food-service equipment specialists and we’ll configure a Platinum oven that fits your kitchen.
