Southbend (Middleby) PCG180S/SD Platinum Convection Ovens
Description

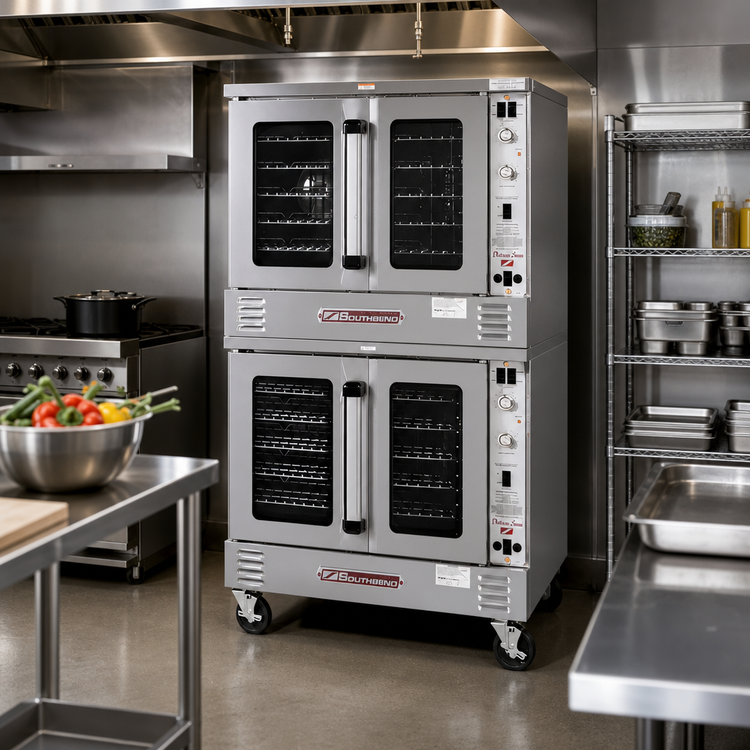

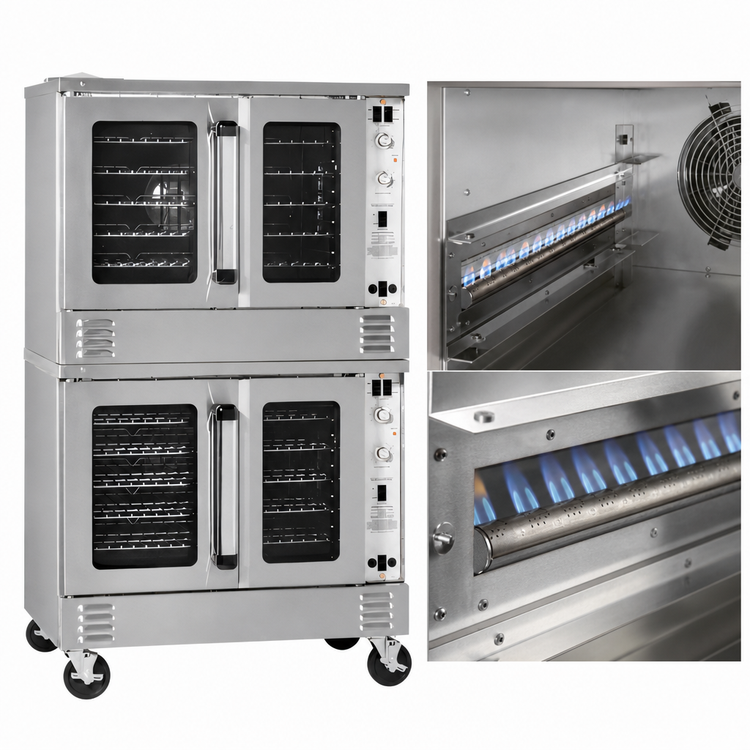

Platinum Series Double-Deck Gas Convection Oven
Southbend Model PCG180S/S – 90,000 BTU / deck (180,000 BTU total)Deliver high‐volume, perfectly even baking and roasting with Southbend’s flagship Platinum Series double convection oven. Engineered for the busiest commercial kitchens, the PCG180S/S combines heavy-duty construction, energy-saving performance and service-friendly design in one powerful 66.8-inch-tall footprint.
Why You’ll Love It

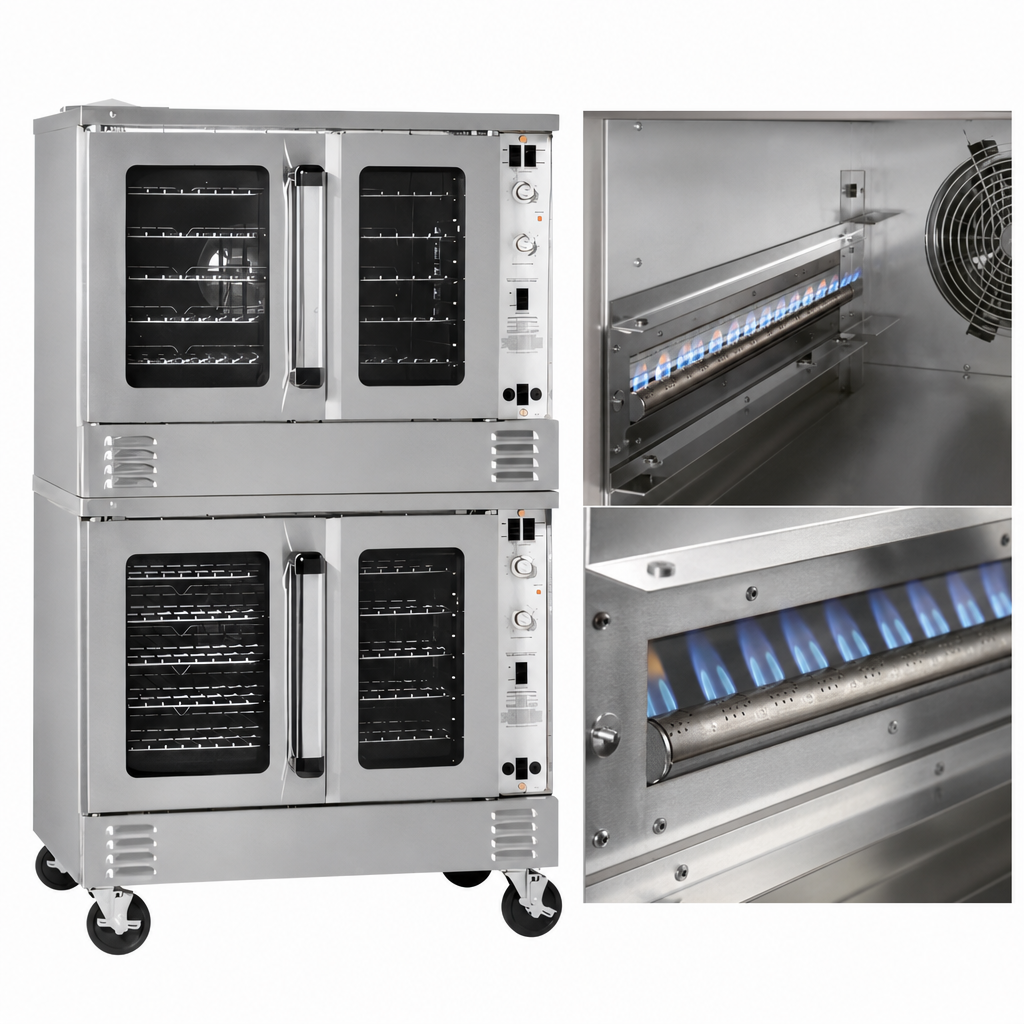

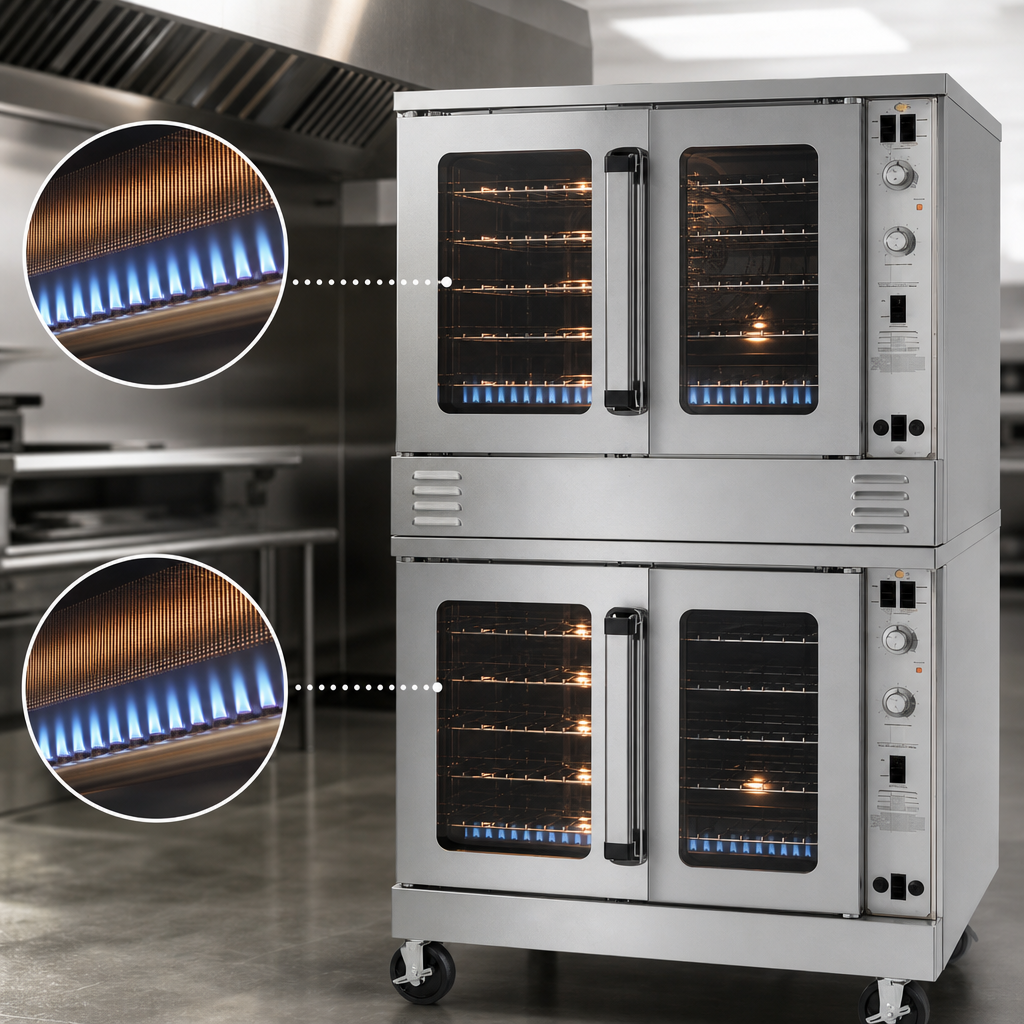

- 90,000 BTU Inshot burners (per deck) – patented, non-clog design delivers rapid heat recovery and consistent temperatures.
- Standard controls – 140 °F – 500 °F solid-state thermostat plus 60-minute mechanical timer keep operation simple and reliable.
- Soft-Air two-speed fan – ½ HP motor circulates air evenly for superior airflow on delicate pastries or full sheet pans of proteins.
- Service made easy – slide-out, “plug-in / plug-out” control panel allows full-view access in seconds.
- Full-view dependent glass doors – 180° opening with dual door-seal system holds heat while showcasing product.
- 11-position rack guides & 5 chrome racks – set-and-forget flexibility for any pan size.
- Durable inside & out – stainless-steel exterior plus coved, fastener-free porcelain interior for easy wipe-clean sanitation.
- Forced cool-down mode, interior lights and stay-cool door handles come standard.
Built for Demanding Kitchens
- Stainless front, sides, top and 6" adjustable legs withstand daily abuse.
- Electronic hot-surface ignition with flame safety reduces downtime and pilot gas use.
- Energy-saving low-emissivity glass windows retain heat and cut utility costs.
- Commercial-grade components backed by a 1-year parts & labor warranty.
Specifications
| Model | PCG180S/S (Standard controls, gas, double deck) |
|---|---|
| Total Input | 180,000 BTU/h (90,000 BTU each deck) |
| Oven Interior (per deck) | 29" W × 21.5" D × 20" H |
| Exterior Dimensions* | ≈ 40.6" W × 37.3" D × 66.8" H |
| Racks & Guides | 5 plated racks, 11 positions on 1-5/8" centers |
| Gas Connection | ¾" NPT; 7" W.C. Natural / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1 φ, 7.9 A per deck, cord & NEMA 5-15P plug (standard) |
| Fan Motor | ½ HP, two-speed (1,710 / 1,120 RPM) |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
*Dimensions provided for planning purposes. Refer to the current Southbend cut sheet for detailed clearance and installation data.
Popular Factory Options (extra cost)
- 4" or 6" casters
- Stainless steel oven interior
- Independent (split) doors
- Marine-edge top or stainless steel bottom skirt
- ¾" gas quick-disconnect hose & restraining kit
Warranty
One-year limited parts & labor warranty. See Southbend’s published warranty for full terms and exclusions.
