Southbend (Middleby)  |  Platinum  |  SKU: PCG180B/SD

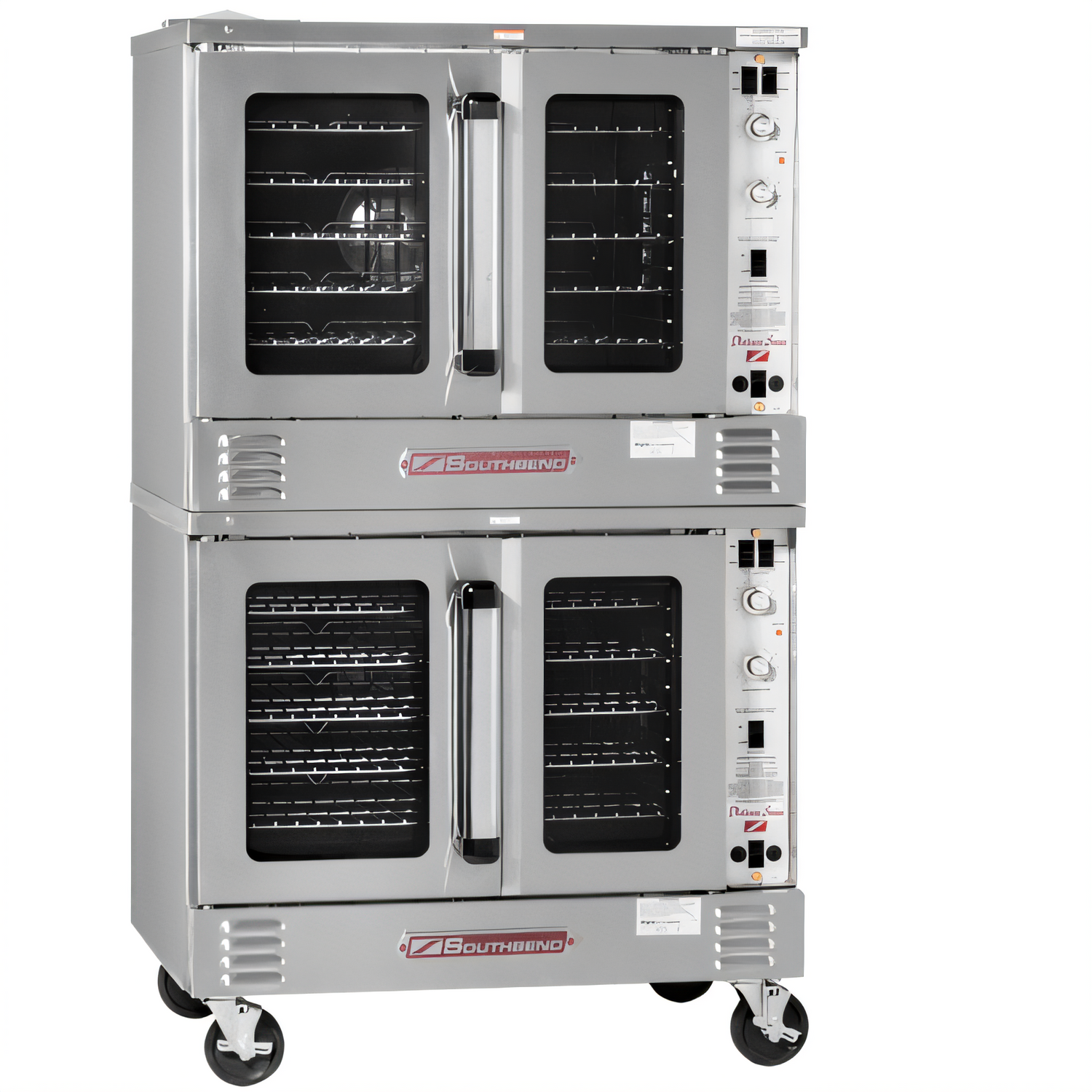

Southbend (Middleby) PCG180B/SD Platinum Convection Ovens

$14,765.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series Double Convection Oven – Gas, 90,000 BTU/Deck

Model PCG180S/S  •  Standard Controls  •  Dependent Glass Doors

Built for demanding, high-volume kitchens, the Southbend Platinum double-deck convection oven couples powerhouse 90,000 BTU burners with rock-solid construction and quick-service engineering. Whether you’re finishing pastries, roasting proteins or turning out sheet-pan meals, the PCG180S/S delivers the speed, consistency and capacity busy operations rely on day after day.

Key Performance Features

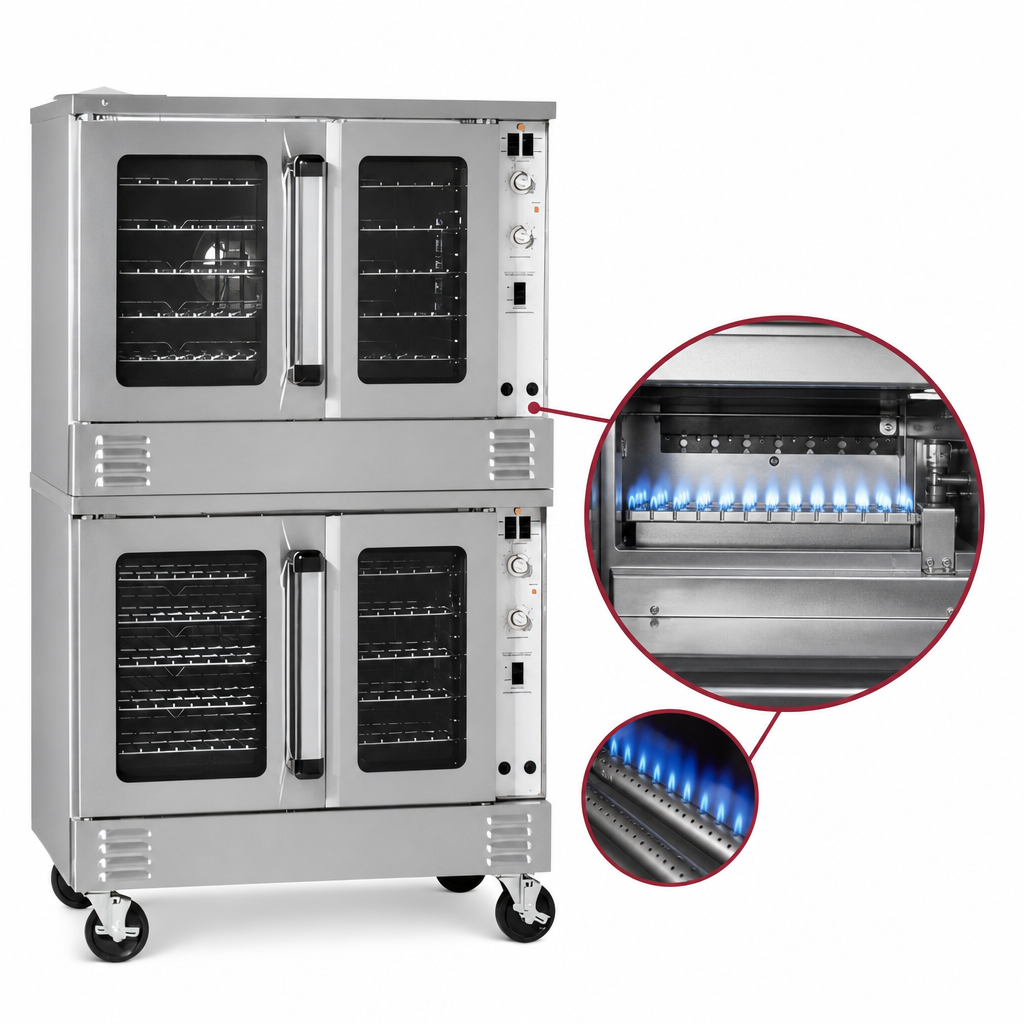

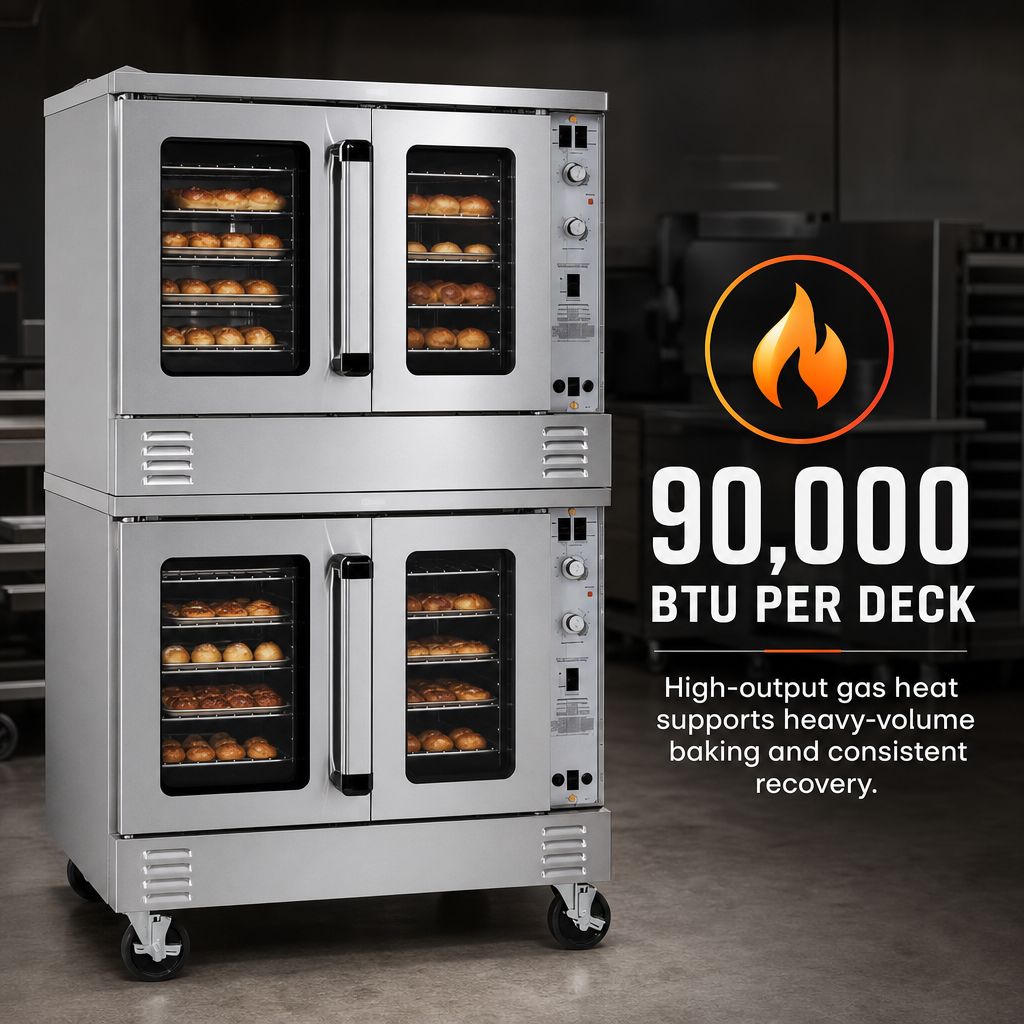

  • Patented non-clog Inshot burners – 90,000 BTU per deck for rapid pre-heat & quick recovery.
  • Simple, dependable standard controls: 140 °F–500 °F solid-state thermostat + 60-minute timer.
  • Soft Air ™ two-speed fan (½ HP, 1,710 / 1,120 RPM) blankets every rack with even heat.
  • Energy-saving dependent glass doors open a full 180° and use a dual-seal system to keep heat in.
  • Plug-in / slide-out control panel extends 17″ for effortless, full-view servicing.
  • Coved, fastener-free porcelain interior wipes clean in seconds.
  • 11-position guides & 5 plated racks per deck (10 total) for flexible pan loading.
  • Stay-cool heavy-duty door handles and stainless front stay safe to touch during peak production.
  • Electronic ignition, interior halogen lighting and forced cool-down fan mode standard.
Technical Specifications
Heat Source Natural or LP gas, 90,000 BTU per deck (180,000 BTU total)
Controls Solid-state thermostat 140 °F–500 °F & 60-min mechanical timer
Decks 2 (double stack)
Interior (per deck) 29″ W × 21.5″ D × 20″ H, porcelain enamel
Rack Capacity 11 guides / 5 racks per deck
Exterior Dimensions ≈ 40.6″ W × 37.3″ D × 66.8″ H (with 6″ legs)
Gas Connection ¾″ NPT female; min. inlet 7″ WC (NAT) / 11″ WC (LP)
Electrical (controls & fan) 120 V / 60 Hz / 1-ph, 7.9 A per deck (6′ cord, NEMA 5-15P)
Shipping Weight Approx. 1,040 lb (crated)
Warranty 1-year parts & labor (factory authorized service)

Options such as casters, stainless interior, independent doors and export voltages are available by special order—contact us for a customized quote.

Important: This appliance is intended for commercial use only and must be installed under a properly sized, code-compliant ventilation hood. Operation without the fan running is prohibited.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

66.75in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Gas 90,000 BTU's each, Bakery Depth, Standard Controls, Dependent Doors
