Southbend (Middleby) PCG140S/TI Platinum Convection Ovens
Description

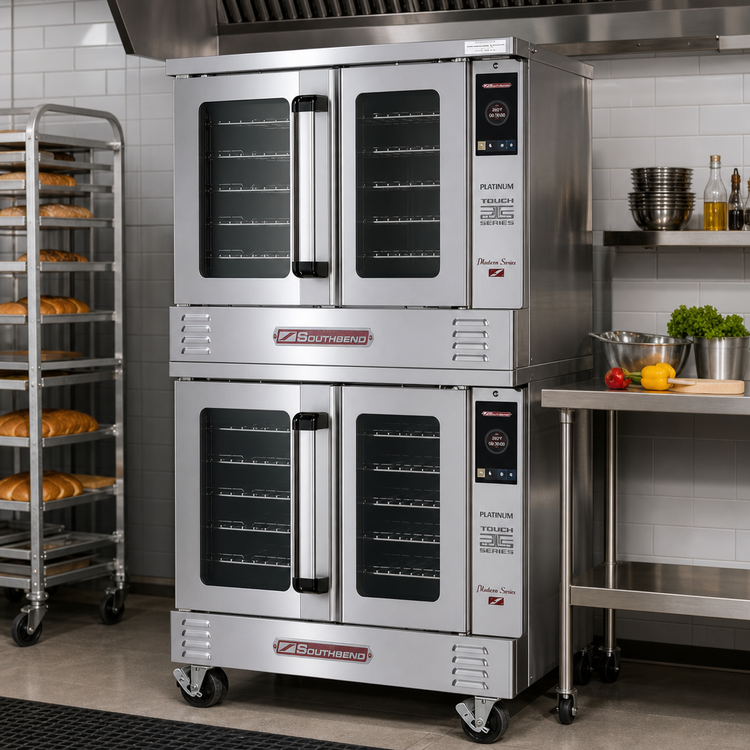

Southbend Platinum Series Double-Deck Gas Convection Oven – 70,000 BTU Each Deck
Model PCG140S/T · Standard Depth · Touchscreen Controls · Independent DoorsPower, precision and programmability collide in Southbend’s Platinum PCG140S/T. Delivering 140,000 BTU of even, efficient heat and an intuitive touchscreen that stores your signature recipes, this heavy-duty double convection oven is built to keep pace with the most demanding commercial kitchens.

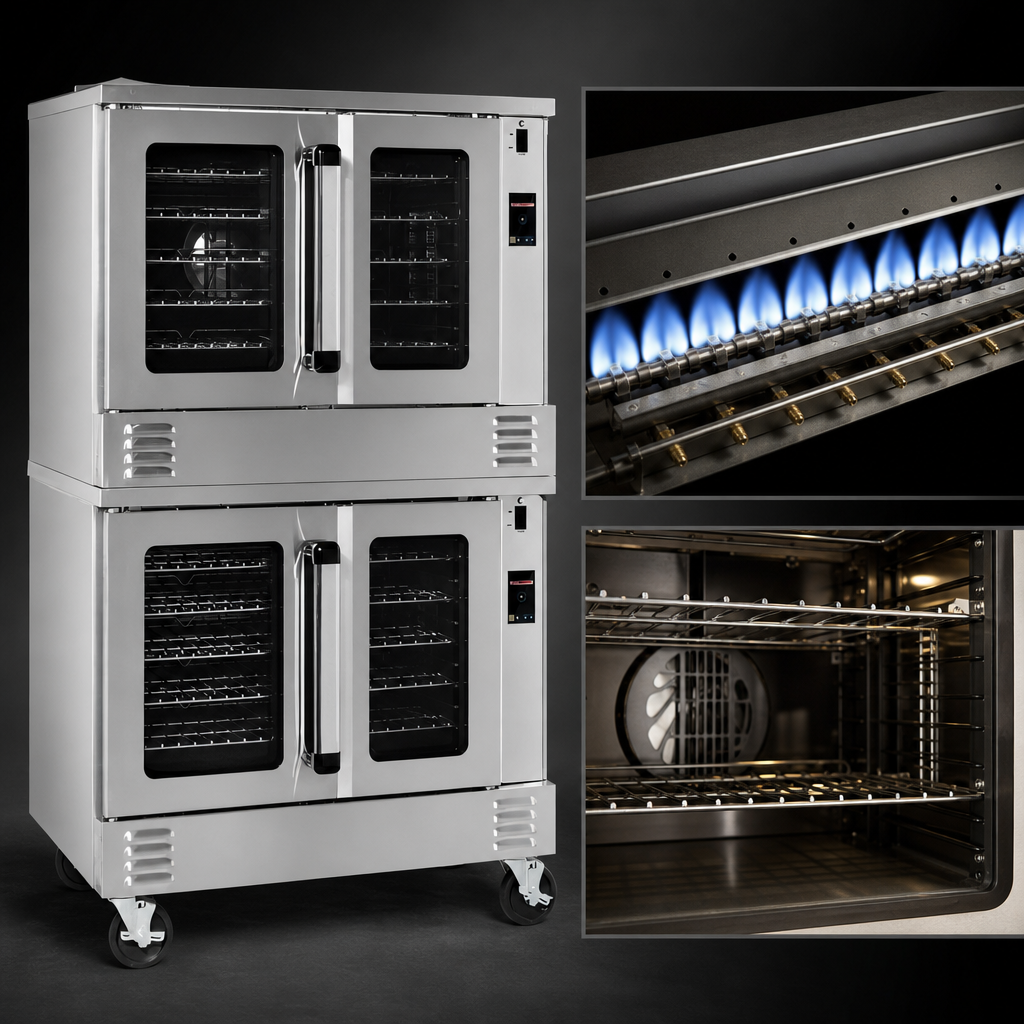

Performance highlights- Patented non-clog Inshot burners – 70,000 BTU per deck (140,000 BTU total)

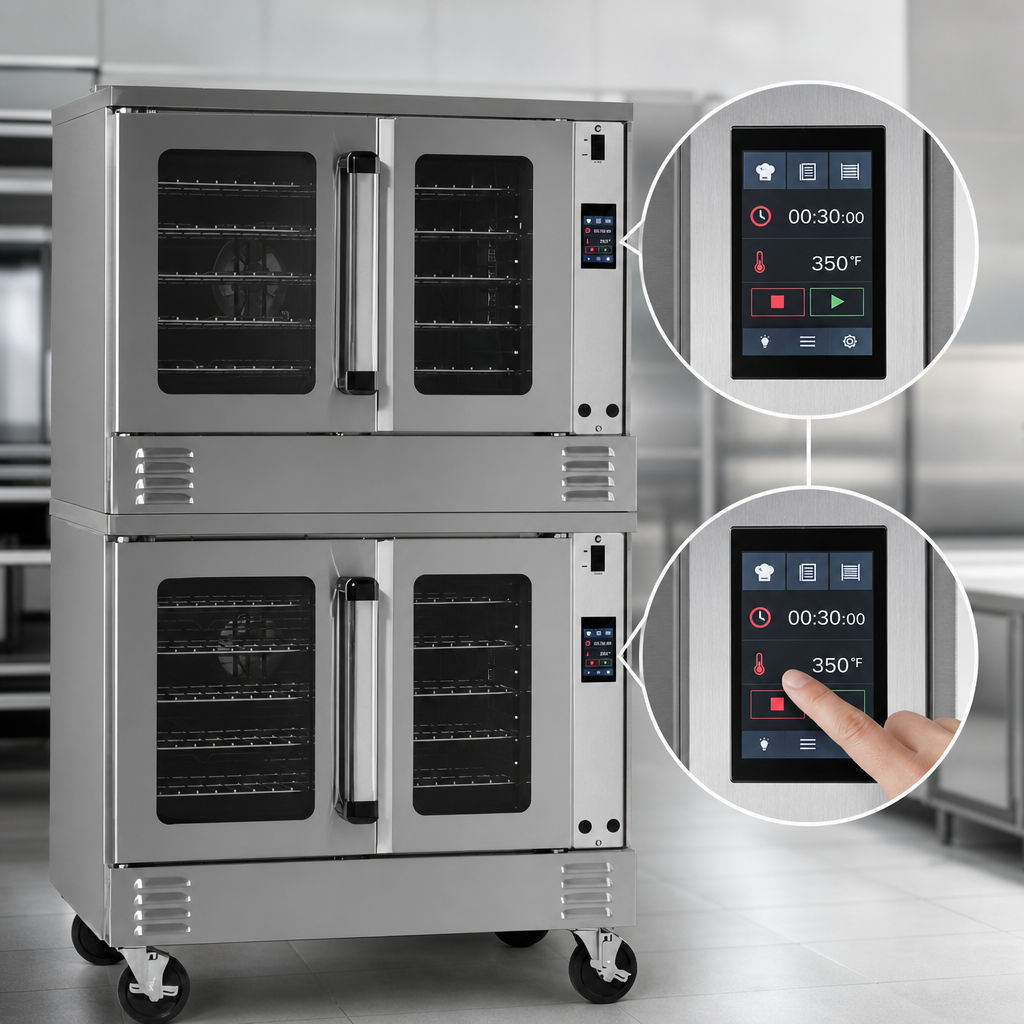

- Digital Touchscreen: 150 °F–550 °F bake + 140 °F–200 °F hold, manual/recipe/rack modes & fan-cycle timer
- Independent, low-E glass doors swing 180° for full-width access and superior heat retention
- Soft-Air two-speed ½ HP fan motor guarantees consistent results on every rack
- Coved, fastener-free porcelain interior cleans quickly and resists corrosion
- 11-position rack guides with 5 heavy-duty plated racks included
- Slide-out “plug-in / plug-out” control panel provides 17" of service access in seconds
- Forced cool-down mode speeds turnover between batches
- Durable stainless steel front, sides, top & 6" legs; stay-cool tubular door handles
- Electronic hot-surface ignition with flame-safety for worry-free starts
| Model | PCG140S/T (Standard depth, Touchscreen) |
|---|---|
| Fuel | Natural or LP gas · ¾" NPT connection |
| Input Rate | 140,000 BTU/hr (70,000 BTU per deck) |
| Operating Pressure | Natural 7" W.C. · Propane 11" W.C. |
| Temperature Range | 150 °F–550 °F bake · 140 °F–200 °F hold |
| Interior (each deck) | 29" W × 21.5" D × 20" H (737 × 546 × 508 mm) |
| Racks / Guides | 5 racks supplied · 11 positions on 1-5/8" spacing |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Exterior Dimensions* | ≈ 37.25" W × 40.63" D × 66.8" H (946 × 1032 × 1695 mm) |
| Electrical | 120 V / 60 Hz / 1-ph · 7.9 A per deck (NEMA 5-15P cord & plug) |
| Shipping Weight | Approx. 1040 lb (472 kg) |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
*Overall height includes 6" legs; depth includes door handles. Always consult the full specification sheet for clearance and installation details.
Perfect for- Bakeries, hotels, hospitals and high-volume restaurants
- Batch roasting, baking, reheating and holding
- Kitchens that demand programmable consistency across multiple dayparts
