Southbend (Middleby) PCG140S/TD Platinum Convection Ovens
Description
Platinum Series Double Convection Oven – Gas, 70,000 BTU/Deck, Touchscreen

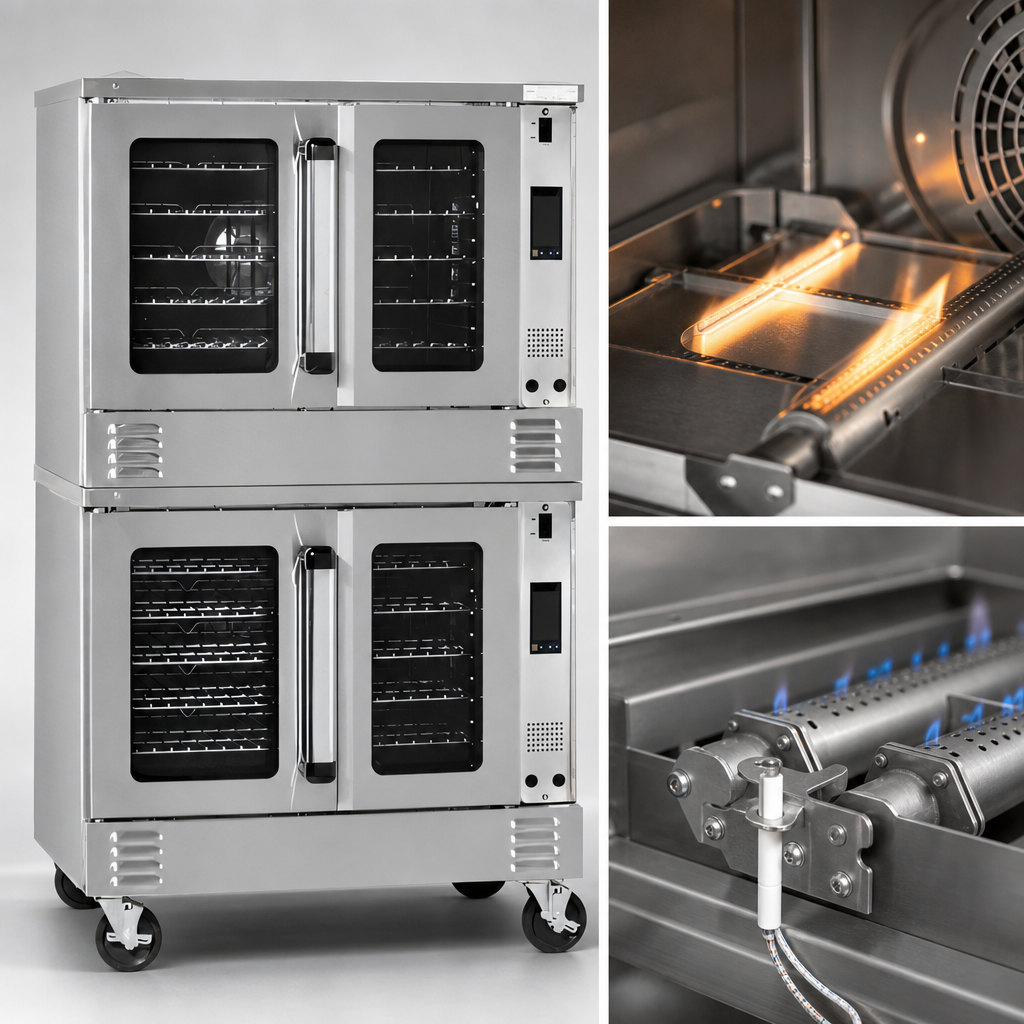

Southbend Model PCG140S/T | Standard Depth • Dependent Glass DoorsBuilt for the busiest commercial kitchens, Southbend’s Platinum Series delivers rock-solid durability, cutting-edge touchscreen control and the fire-power you need to turn out perfectly baked, roasted or finished product every time. The PCG140S/T stacks two full-size ovens in just 37 ¼" of width, each driven by a 70,000 BTU high-efficiency Inshot burner and a Soft-Air 2-speed fan for unbeatable heat recovery and even results from corner to corner.
Why you’ll love it
- 140,000 BTU total output (70,000 BTU per deck) – fast pre-heat & recovery.

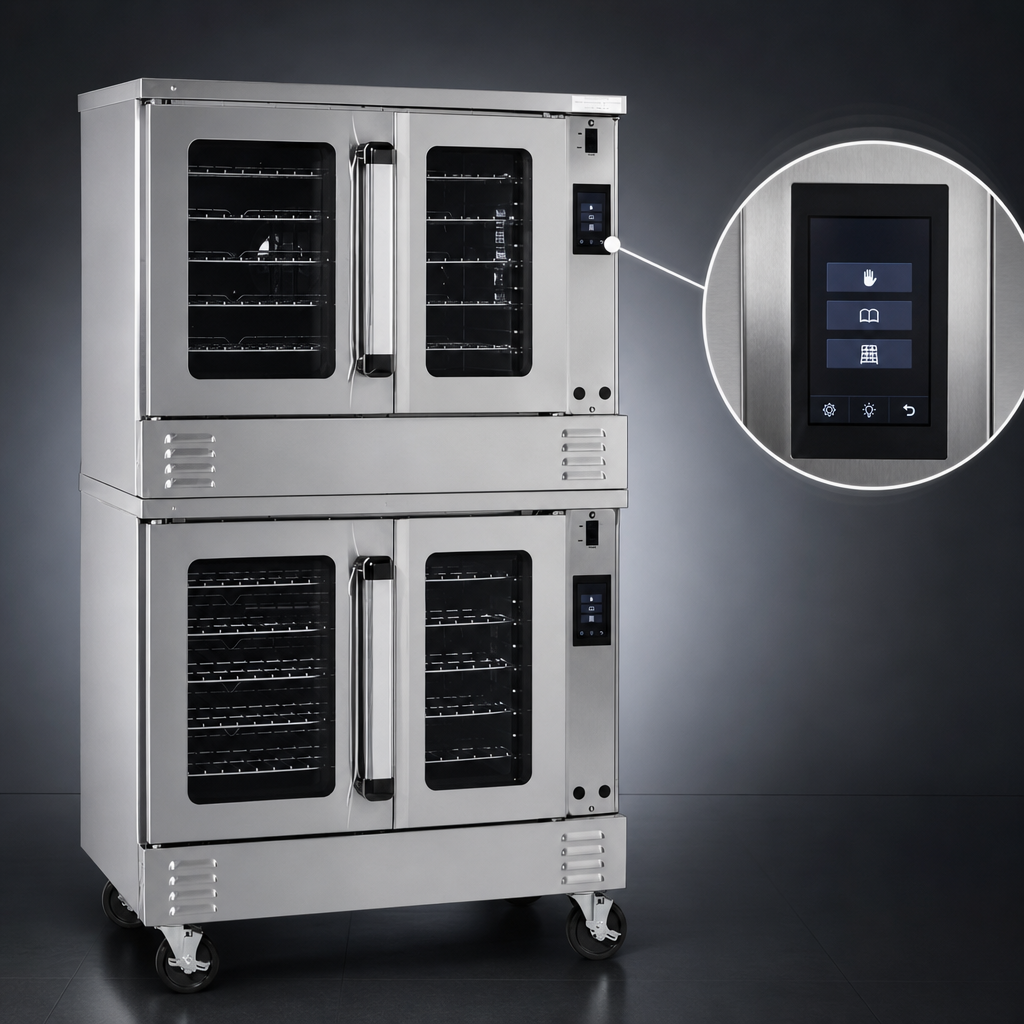

- 7" full-color touchscreen with Manual, Recipe & Rack modes plus 150 °F–550 °F cook and 140 °F–200 °F hold settings.
- Patented slide-out, plug-in control panel for quick front-service access.
- Dependent 180° opening glass doors with dual gasket system keep heat in and energy costs down.
- Coved, fastener-free porcelain interior cleans in seconds.
- Soft-Air ½ HP, 2-speed fan minimizes product shrinkage while maintaining crispness.
- Electronic ignition with hot-surface ignitor and flame-safety device.
- Forced cool-down mode protects components between rushes.
- Five nickel-plated racks per cavity on 11 positions (1 ⅝" centers).
- Interior halogen lights and stay-cool tubular door handles add operator comfort & visibility.
Performance & utility
| Configuration | Full-size double deck convection oven |
|---|---|
| Fuel | Natural or LP gas |
| Total Heat Input | 140,000 BTU/hr (70,000 BTU each deck) |
| Temperature Range | 150 °F–550 °F cook | 140 °F–200 °F hold |
| Interior (per deck) | 29" W × 21.5" D × 20" H (7 cm clearance between racks) |
| Overall Dimensions | 37.25" W × 39.25" D × 66.8" H |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A per deck (NEMA 5-15P cord & plug) |
| Gas Connection | ¾" NPT female, rear |
| Minimum Gas Pressure | Natural 7" W.C. | LP 11" W.C. |
| Ship Weight | Approx. 1,040 lb (471.7 kg) |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
What’s included
- (2) Oven cavities with porcelain interiors
- (10) Nickel-plated racks (5 per deck)
- (4) 6" stainless-steel legs
- Factory-installed touchscreen control system
- User & installation manuals
Popular factory options (add-ons)
- 4" or 6" heavy-duty caster set
- Independent or solid stainless doors
- Stainless-steel oven interior
- ¾" quick-disconnect gas hose & restraining kit
- Marine-edge top, dirt tray, export crating & more
Need financing? Ask us about flexible monthly payment plans through Middleby Equipment Financing and put your new Southbend oven to work right away.
