Southbend (Middleby) PCG140S/SI Platinum Convection Ovens
Description

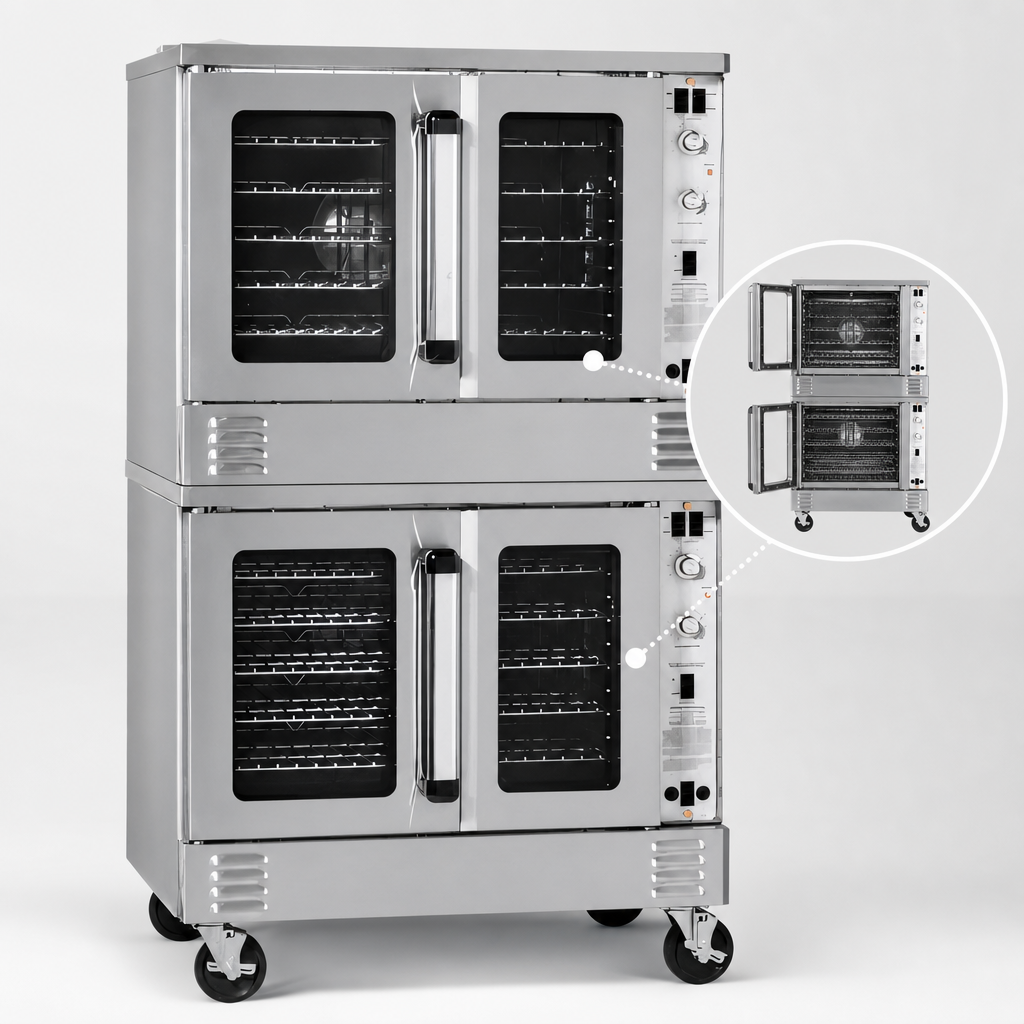

Southbend Platinum Series PCG140S/S Double Gas Convection Oven
70,000 BTU per deck • Standard Depth • Standard Controls • Independent Glass DoorsBuilt for high-volume kitchens that refuse to compromise on consistency, the Southbend Platinum PCG140S/S delivers 140,000 BTU of even, efficient heat across two full-size convection decks. From delicate pastries to roasted proteins, its powerful burners, two-speed fan and rock-solid construction keep every rack on time and on temp—shift after shift.
Why You’ll Love It

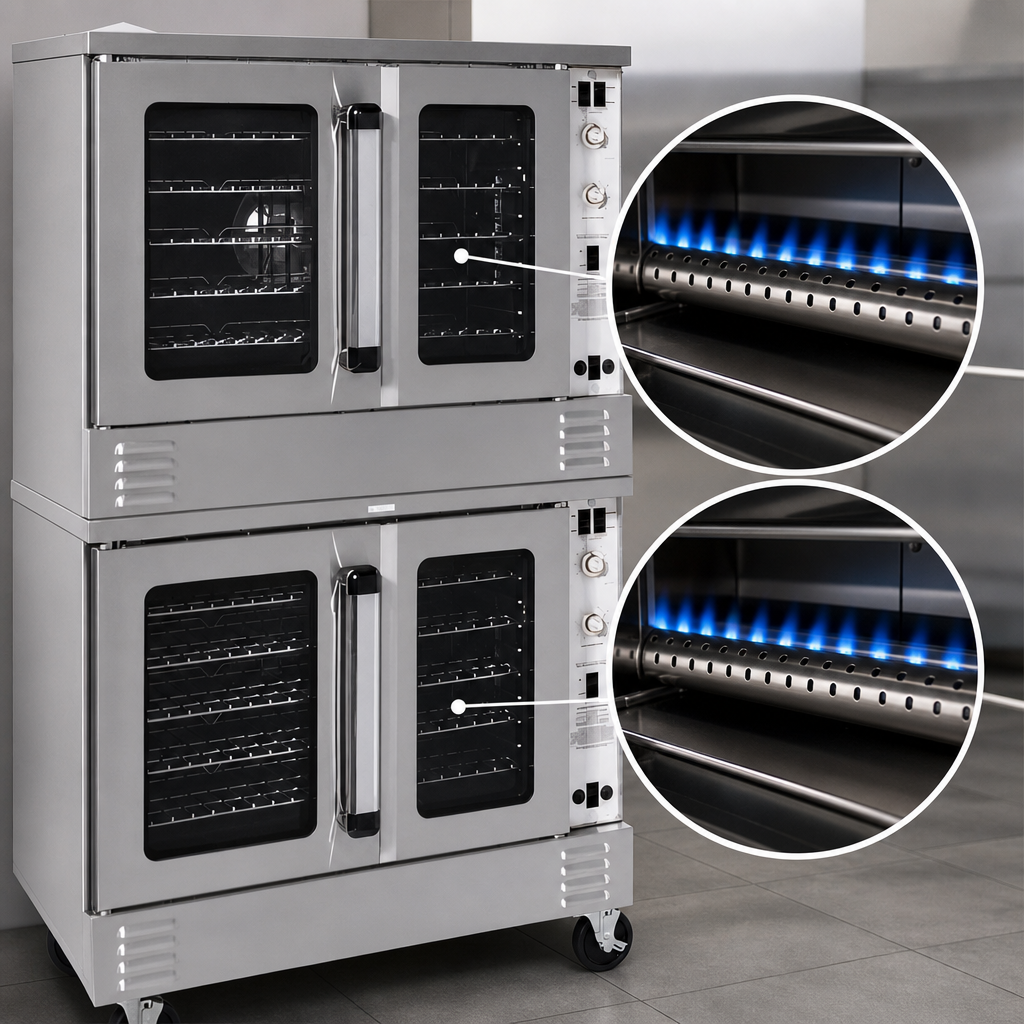

- High-output patented non-clog inshot burners (70,000 BTU each) for rapid recovery and uniform bakes.
- Independent, 180°-opening glass doors let you access each cavity without disrupting the other.
- Standard controls: 140 °F – 500 °F solid-state thermostat with 60-minute mechanical timer.
- 11-position rack guides & 5 heavy-duty chrome racks per deck—ideal for full-size sheet pans.
- Two-speed, ½ HP Soft-Air™ fan promotes gentle, even airflow for perfect browning.
- Slide-out, “plug-in/plug-out” control panel for front-service access in seconds.
- Coved, fastener-free porcelain interior wipes clean fast and resists corrosion.
- Stainless-steel front, sides, top & 6" legs withstand the toughest commercial environments.
- Forced cool-down mode protects components and keeps your kitchen cooler between runs.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Performance at a Glance
- Preheats to 350 °F in as little as 12 minutes (natural gas).
- Maintains ±5 °F set-point accuracy for consistent results across every rack.
- High-efficiency, low-emission glass windows cut energy loss and let you monitor the bake without opening the doors.
Specifications
| Model | PCG140S/S (Standard Controls) |
|---|---|
| Decks | 2 |
| Total Heat Input | 140,000 BTU/hr (70,000 BTU per deck) |
| Exterior Dimensions | 40.63" W × 37.25" D × 66.8" H |
| Oven Cavity (each) | 29" W × 21.5" D × 20" H |
| Rack Positions / Racks Supplied | 11 / 5 per deck |
| Fan Motor | ½ HP, two-speed (1710 / 1120 RPM) |
| Gas Connection | ¾" NPT female, rear |
| Inlet Pressure | Natural 7" W.C. | LP 11" W.C. |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A per deck (cord & NEMA 5-15P plug) |
| Shipping Weight | Approx. 1040 lb |
| Clearances (Combustible) | Top 0" • Bottom 0" • Right 0" • Left 2" |
Utility & Installation Requirements
- Supply gas line no smaller than ¾" I.D.; if a flex-hose is used, install an approved restraining device.
- Must be installed under a vented hood; check local codes for fire and sanitary regulations.
- Oven will not operate without the fan—verify electrical service prior to start-up.
- Single-phase wiring can be field-connected to 3-phase if desired.
Warranty
1-year limited parts & labor. 90-day coverage on glass, door seals, light bulbs & ignitors. Full details available at the Southbend Service Portal.
