Southbend (Middleby) PCG140S/SD Platinum Convection Ovens
Description

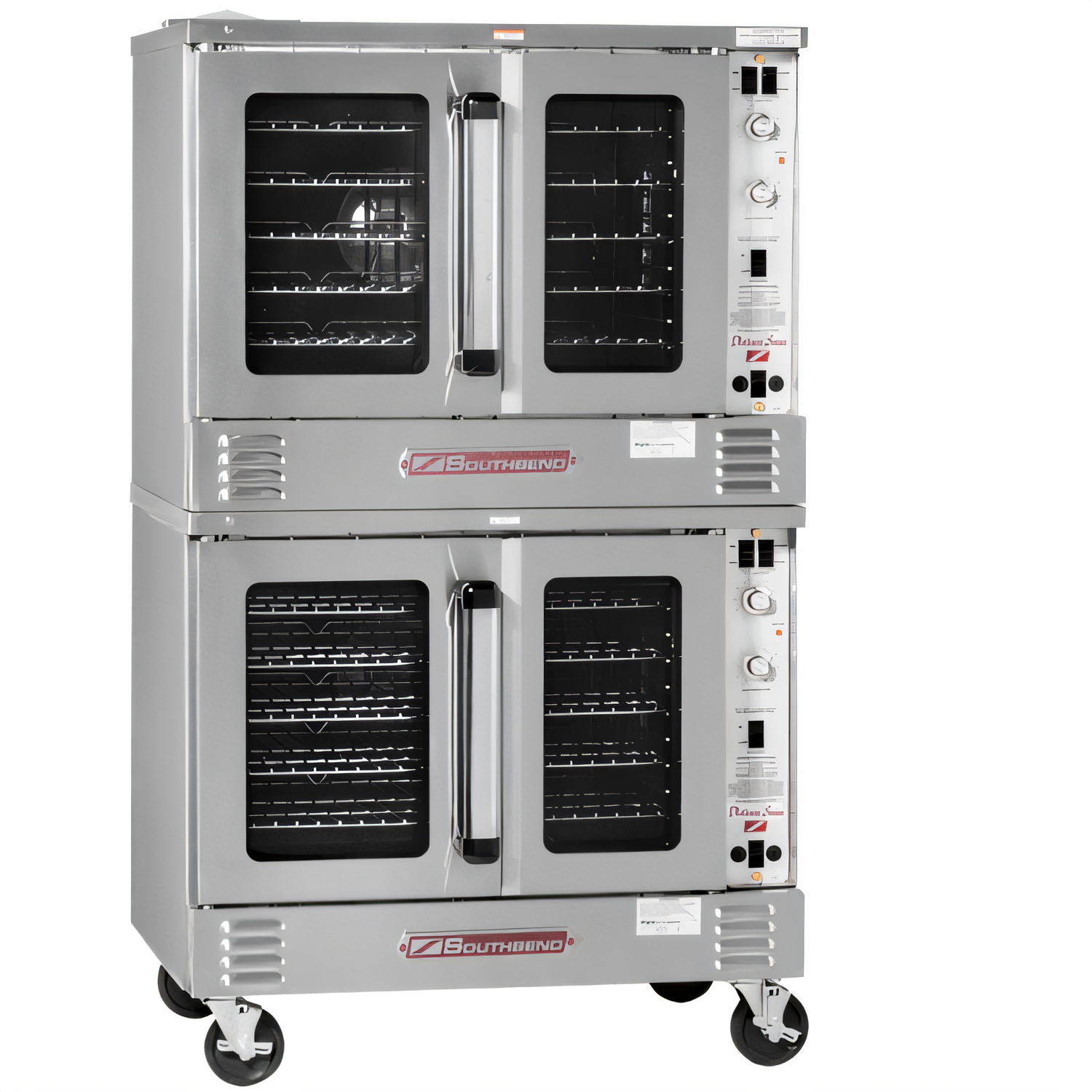

Southbend Platinum Series Double Gas Convection Oven – Quick-Ship Model PCG140S/S

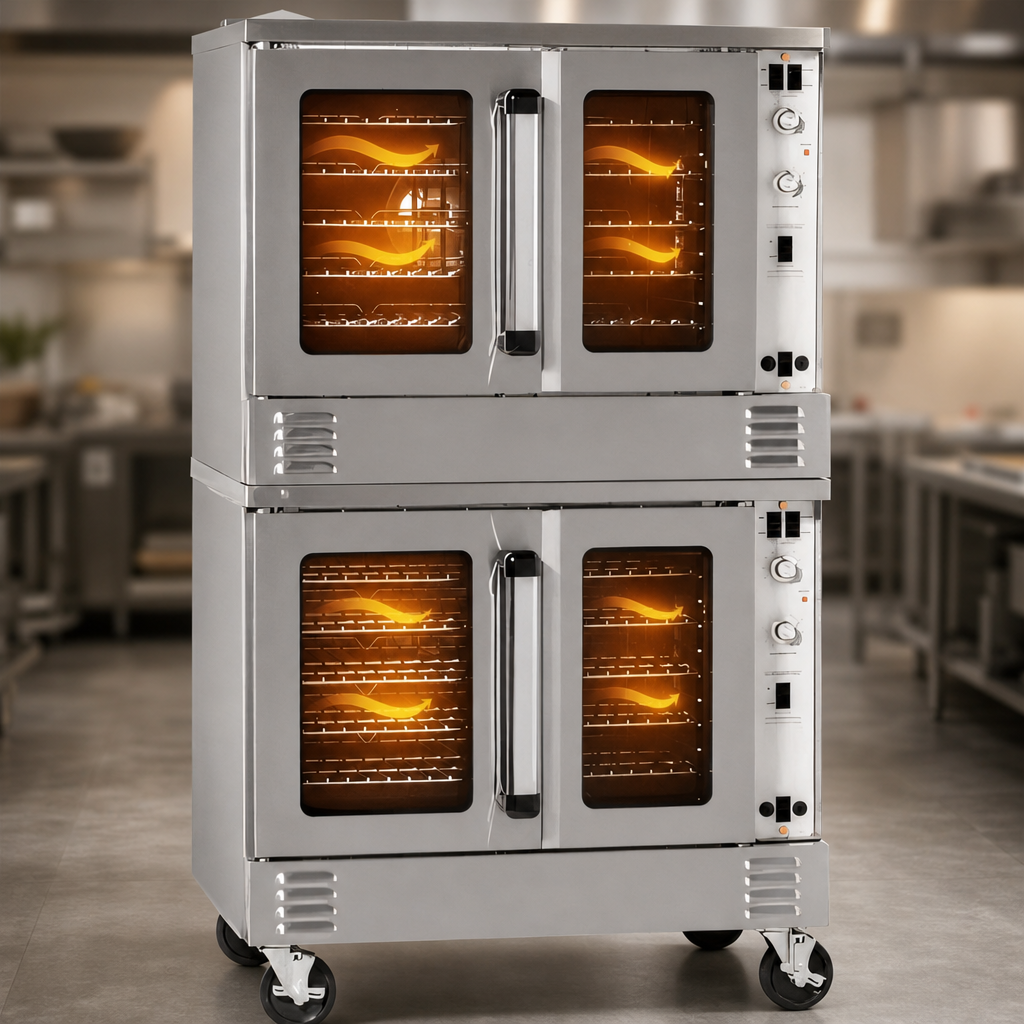

70,000 BTU per deck • Standard Depth • Standard Controls • Dependent DoorsGet powerhouse performance without the wait. The Platinum Series PCG140S/S delivers two full-size convection cavities, each fueled by 70,000 BTU of even, energy-smart heat—perfect for high-volume bakeries, restaurants, hotels and institutions that demand speed, precision and durability.
Why Kitchens Choose Platinum

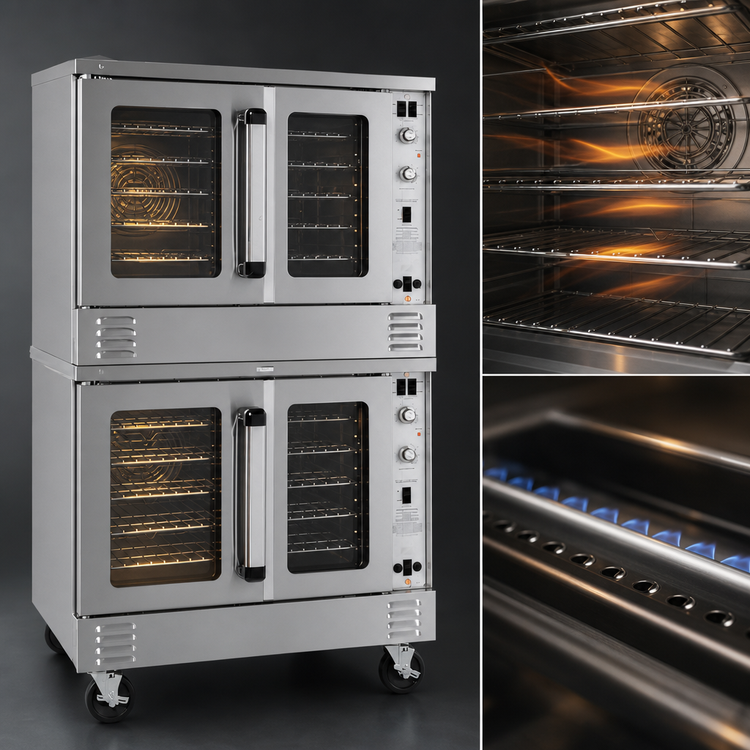

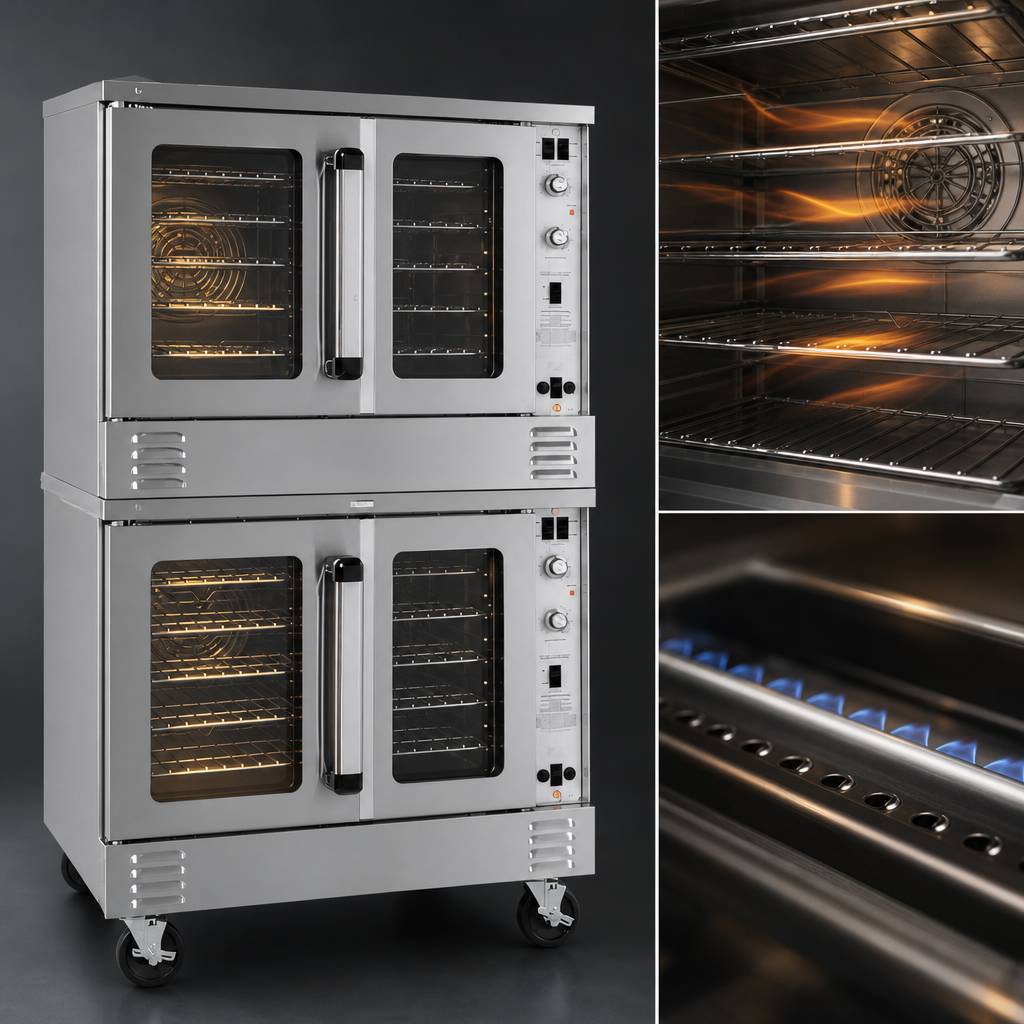

- Patented non-clog Inshot burners provide instant, consistent heat in every corner of the cavity.
- “Soft Air” two-speed ½ HP blower gently circulates air for uniform bakes and roasts on all racks.
- Solid-state thermostat (140 °F–500 °F) + 60-minute mechanical timer keep controls simple & reliable.
- Electronic hot-surface ignition eliminates standing pilots and saves fuel.
- Forced cool-down mode speeds up recipe change-overs during rush periods.
Built to Outlast the Rush
- All-stainless front, sides & top with 6″ stainless legs for rock-solid stability.
- Full 180° dependent glass doors with dual gasket system seal in heat and cut energy loss.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- 11-position guides | 5 chrome-plated racks included per deck.
- “Plug-in / plug-out” control panel slides out 17″ for no-hassle servicing.
- Bright interior lights for instant product checks without opening the doors.
At-a-Glance Specs
| Model | PCG140S/S (Quick-Ship) |
|---|---|
| Configuration | Double-deck, full-size convection oven |
| Heat Source | Natural or Propane Gas, 70,000 BTU per deck (140,000 BTU total) |
| Temperature Range | 140 °F – 500 °F |
| Interior (per deck) | 29″ W × 21.5″ D × 20″ H porcelain cavity |
| Exterior (W × D × H) | 40.63″ × 37.25″ × 66.8″ (with 6″ legs) |
| Racks / Positions | 5 racks • 11 positions on 1-5/8″ centers |
| Electrical | 120 V / 60 Hz / 1-Ph • 7.9 A per deck (NEMA 5-15P cord & plug) |
| Gas Inlet | ¾″ FNPT • 7″ W.C. Natural • 11″ W.C. LP |
| Blower Motor | ½ HP, two-speed (1,710 / 1,120 RPM) |
| Shipping Weight | Approx. 1,040 lb (471.7 kg) |
| Certifications | CSA • NSF • Commercial use only |
Popular Options & Accessories
- 4″ or 6″ locking casters
- Stainless steel oven interior or bottom tray
- Independent doors (instead of dependent)
- ¾″ quick-disconnect gas hose & restraining device
- Down-draft diverter for direct flue connection
Don’t see what you need? Ask our team about additional factory-installed options and upgrades.
Warranty & Service
Covered by Southbend’s 1-year limited parts & labor warranty and supported coast-to-coast by an authorized service network for total peace of mind.
