Southbend (Middleby)  |  Platinum  |  SKU: PCG140B/TI

Southbend (Middleby) PCG140B/TI Platinum Convection Ovens

$14,273.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

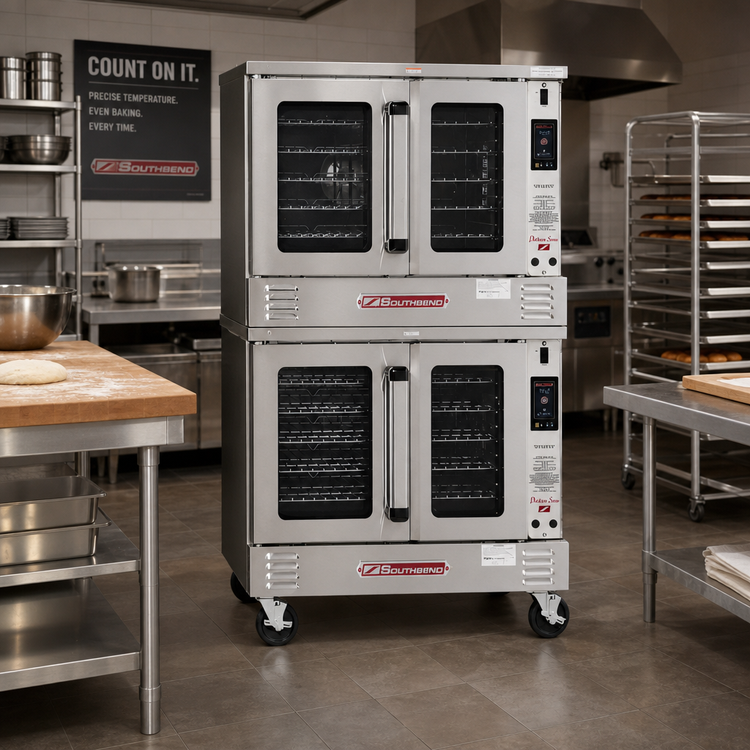

Southbend Platinum Series Double Convection Oven – Bakery Depth, Gas, Touchscreen

Model PCG140S/T • 70,000 BTU per deck • Independent glass doors

Engineered for high-volume bakeries and food-service kitchens, the Southbend Platinum PCG140S/T combines 140,000 BTU of baking power with smart touchscreen technology and a true bakery-depth cavity. Expect perfectly even results, simple programming, and legendary Southbend durability in one space-saving stack.

Why You’ll Love It
  • Bakery-depth interior fits full-size pans either direction for maximum capacity.

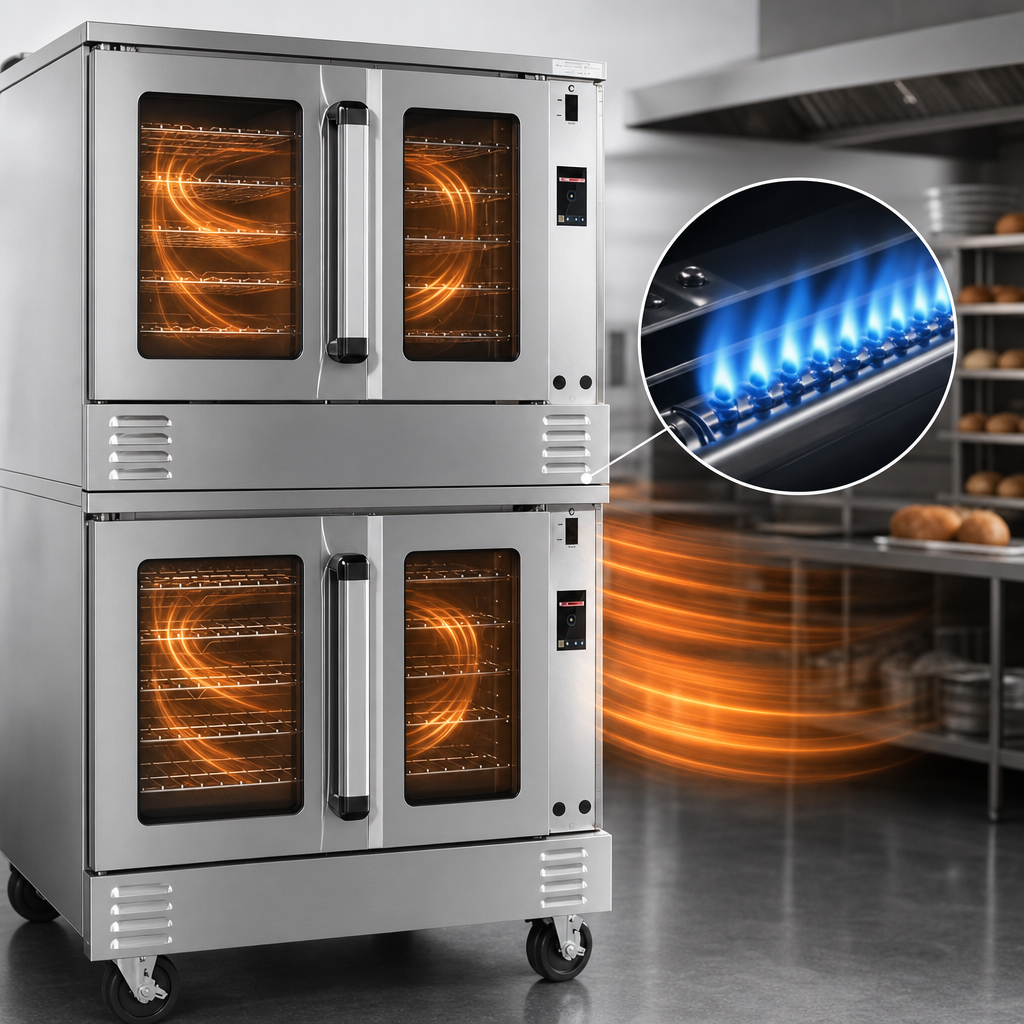

  • Two 70,000 BTU patented Inshot burners deliver fast recovery and uniform heat.
  • Independent 180° doors reduce heat loss—open one cavity without affecting the other.
  • Soft-Air 2-speed fan (½ HP) gently circulates heat for delicate pastries or hearty roasts.
  • Energy-saving dual-pane glass windows and stay-cool handles keep staff comfortable.
  • Stainless-steel exterior and coved, fastener-free porcelain interior speed up daily cleaning.
  • Slide-out, “plug-in/plug-out” control panel for 17" full-view service access.

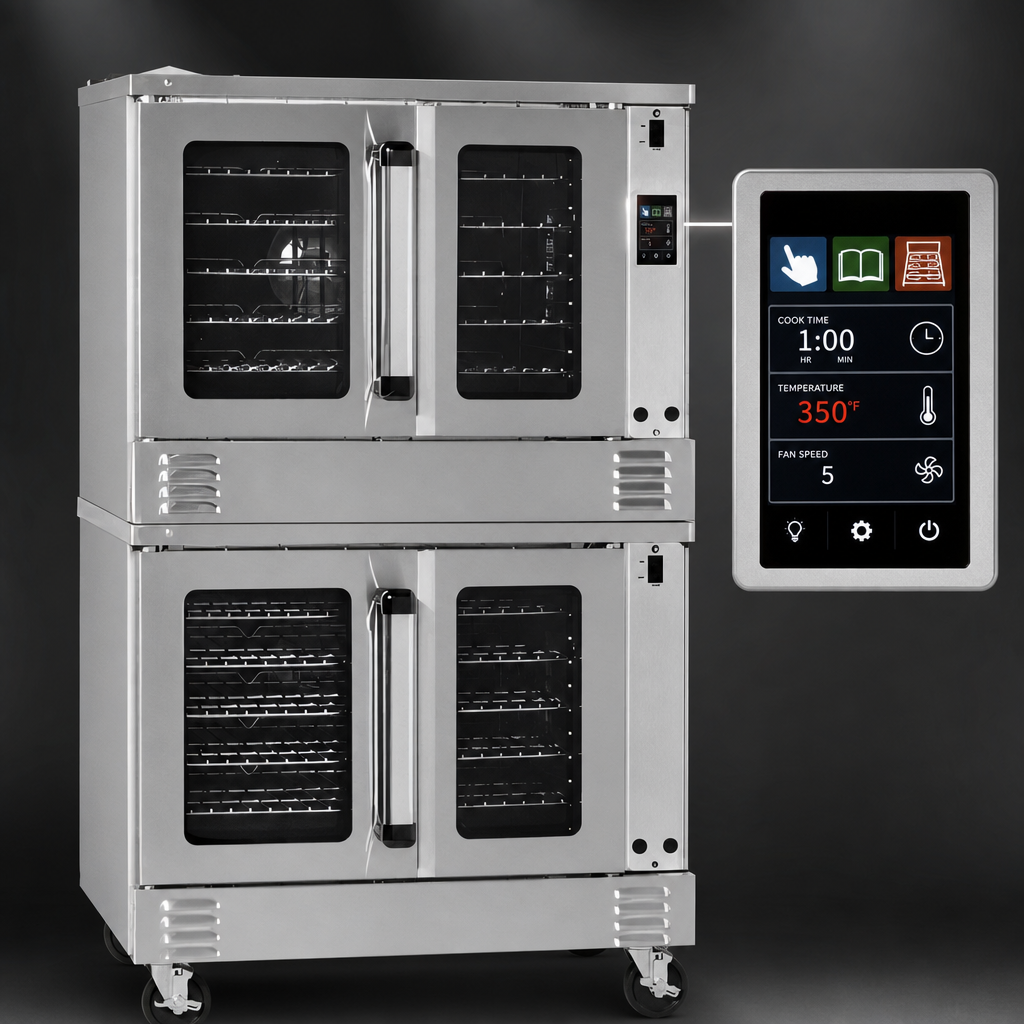

Touchscreen Intelligence
  • 150 °F – 550 °F cooking + 140 °F – 200 °F holding mode.
  • Manual, recipe, and rack-timer modes let you time each shelf individually.
  • Fan pulse timer prevents over-browning on delicate products.
  • On-screen diagnostics and electronic ignition minimize downtime.
Built for the Rush
  • Ships with five nickel-plated racks per cavity and 11-position rack guides.
  • 6" stainless legs standard; 4" or 6" locking casters available for easy mobility.
  • Forced cool-down fan mode speeds change-overs between batches.
  • 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Popular Accessories (sold separately)
  • Stainless oven interior & marine-edge top.
  • Stainless steel solid doors or dirt tray (3 ft, 4 ft, 5 ft).
  • ¾" quick-disconnect gas hose with restraining device.
  • Export crating & 2" air-insulation panel packages.
Technical Specifications
Model PCG140S/T – Platinum Series, Bakery Depth, Touch Controls
Capacity Double deck (2 cavities)
Heat Input 140,000 BTU/hr total  |  70,000 BTU each deck
Fuel / Connection Natural or LP gas  |  ¾" NPT, 7" W.C. NAT / 11" W.C. LP
Temperature Range 150 °F – 550 °F cook | 140 °F – 200 °F hold
Interior (WxDxH) 29" × 28.25" × 20" (736 × 718 × 508 mm)
Racks / Guides 5 racks per cavity | 11 positions on 1⅝" centers
Fan Motor ½ HP, 2-speed, 1710/1120 RPM
Electrical 120 V, 60 Hz, 1-Ph, 7.9 A per deck (6′ cord, NEMA 5-15P)
208 V & 240 V single-phase field-wired options
Overall Size (WxDxH) ≈ 43.6" × 40.6" × 66.8" (1107 × 1032 × 1695 mm)
Shipping Weight Approx. 1,040 lb (472 kg)
Warranty 1-year parts & labor – commercial use only

Installation under a vented hood is recommended. Clearances from combustibles: top 0", bottom 0", right 0", left 2".

Gas Safety: Oven will not operate without the fan running. When using a flexible connector, the inside diameter must be at least ¾″ and a restraining device must be installed.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

66.75in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Gas 70,000 BTU's each, Bakery Depth, Touch Controls, Independent Doors
