Southbend (Middleby)  |  Platinum  |  SKU: PCG140B/TD

Southbend (Middleby) PCG140B/TD Platinum Convection Ovens

$14,273.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Energy savings system flyer Co with nrg manual Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

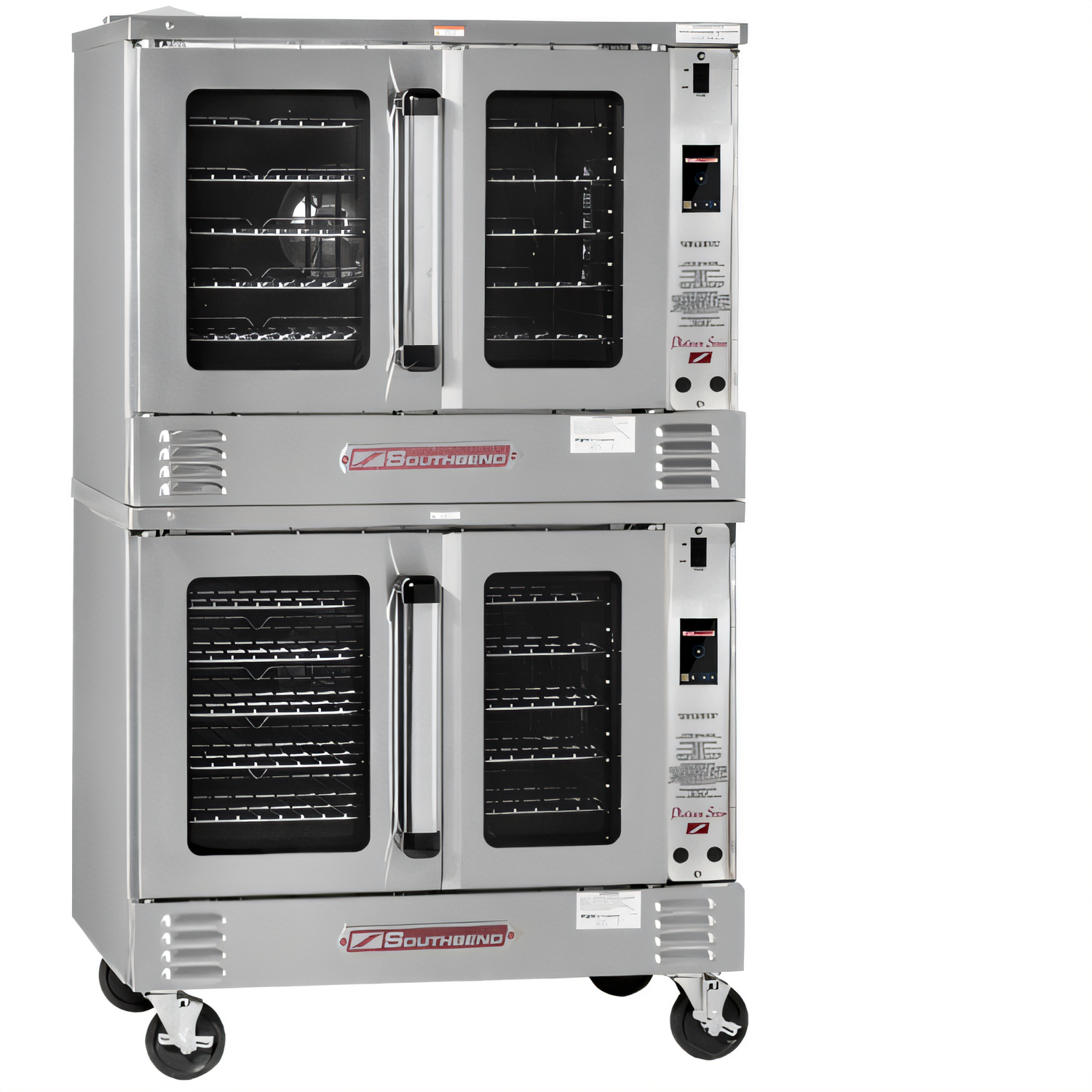

Platinum Series Double Gas Convection Oven – Bakery Depth

70,000 BTU per deck • Touchscreen controls • Dependent glass doors

Give your high-volume kitchen the consistency of a rack oven with the footprint of a counterline model. Southbend’s Platinum bakery-depth double stack delivers a roomy 29 in-deep cavity, intuitive touchscreen programming and 140,000 BTU of even, high-efficiency heat — all in a service-friendly design that keeps you cooking, not waiting on repairs.

Why you’ll love it

  • Bakery-depth interior holds full-size sheet pans front-to-back or side-to-side.

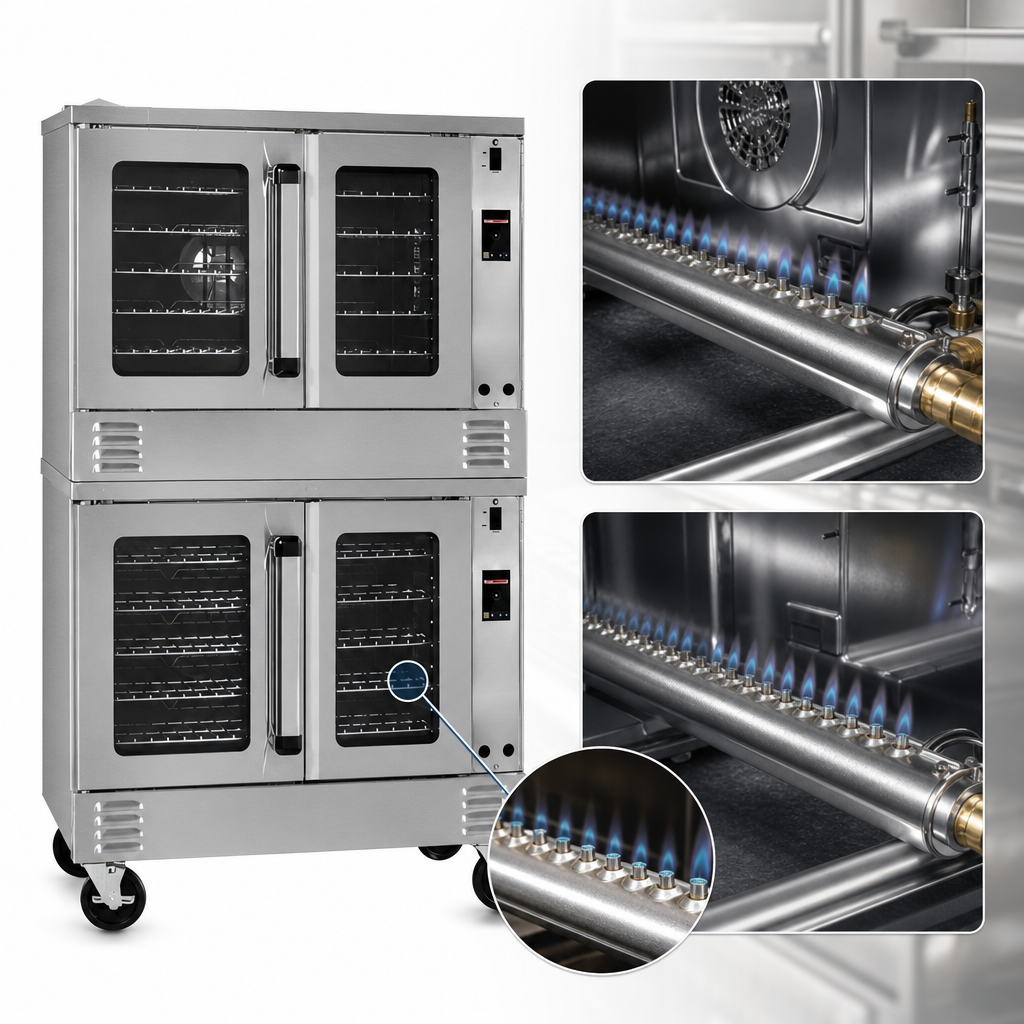

  • 70,000 BTU Jet-Stream™ inshot burners (per deck) reach set temp fast and recover instantly between loads.

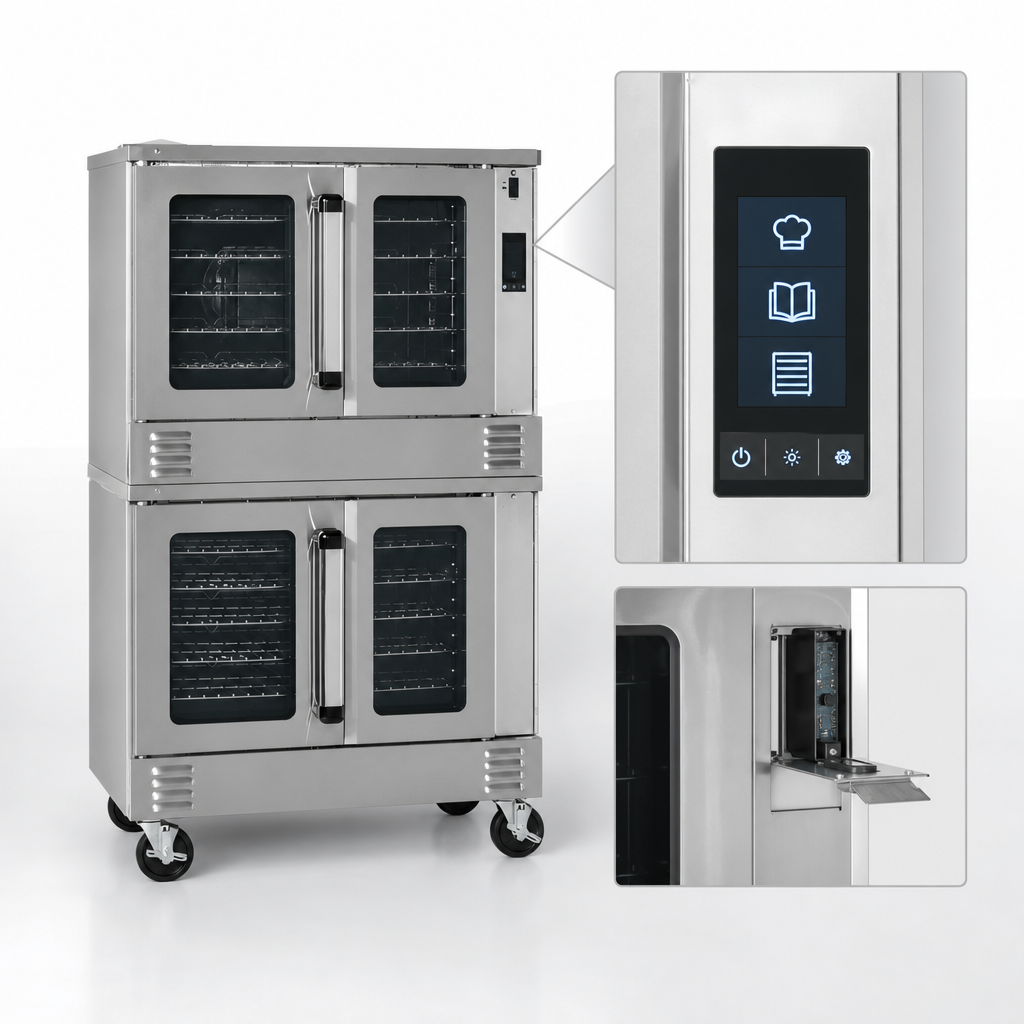

  • TC Touchscreen gives you manual, recipe or rack-timer modes, 150–550 °F cook range and 140–200 °F hold mode.
  • Patented plug-in/plug-out control panel slides out 17″ for full-view service access.
  • Soft-Air two-speed ½ hp fan blankets every rack in gentle, even heat.
  • Dependent, dual-pane glass doors swing a full 180 ° and seal tight to trap heat and cut energy use.
  • 11-position rack guides & 5 plated racks per cavity accommodate everything from pastries to roasts.
  • Coved, fastener-free porcelain enamel interior wipes clean in seconds.
  • Stainless steel front, sides, top and 6″ legs built to survive the busiest line.
  • Electronic ignition, forced cool-down mode and two interior lights per deck keep operation safe and simple.

Specifications

Fuel / Input Natural or LP gas, 70,000 BTU/hr per deck (140,000 BTU total)
Cooking controls TC Touchscreen: 150–550 °F cook, 140–200 °F hold; programmable recipes & rack timers
Interior cavity (each) 29″ W × 21.5″ D × 20″ H (736 × 546 × 508 mm) – bakery depth
Exterior dimensions 40.63″ W × 37.25″ D × 66.75″ H (1032 × 946 × 1695 mm)
Rack capacity 11 positions / 5 included racks per deck
Fan motor ½ hp, two-speed (1,710 / 1,120 RPM)
Gas connection ¾″ NPT, 7″ WC natural / 11″ WC LP minimum inlet pressure
Electric requirements 120 V, 60 Hz, 1-phase, 7.9 A per deck (NEMA 5-15P cord included)
Optional: 208 V / 240 V, 1-phase hard-wire
Net / ship weight Approx. 1,040 lb (472 kg) crated
Warranty 1-year parts & labor, backed by the nationwide Southbend service network

Popular factory options

  • 4″ or 6″ locking casters
  • Stainless steel oven interior
  • Independent doors (instead of dependent)
  • Stainless rear jacket or exterior bottom
  • ¾″ quick-disconnect gas hose & restraining device

Need it now? Get fast, affordable monthly payments through Middleby Equipment Financing. Apply in minutes and keep your credit lines free for other needs.

Commercial installation only. Install under a properly sized vent hood and follow all local codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

64.8in

Width

38.0in

Depth

45.0in

Shipping Weight

1189.0lbs

Base

legs

Type

standard

Interior Finish

porcelain interior

Deck Qty

2 decks

Exterior Finish

stainless steel front & sides

Control Type

solid state controls

Capacity per Compartment

5 pan capacity, per compartment

Size

deep/bakery size

Specifications

Platinum Double Convection Oven, Gas 70,000 BTU's each, Bakery Depth, Touch Controls, Dependent Doors
