Southbend (Middleby) PCG140B/SI Platinum Convection Ovens
Description

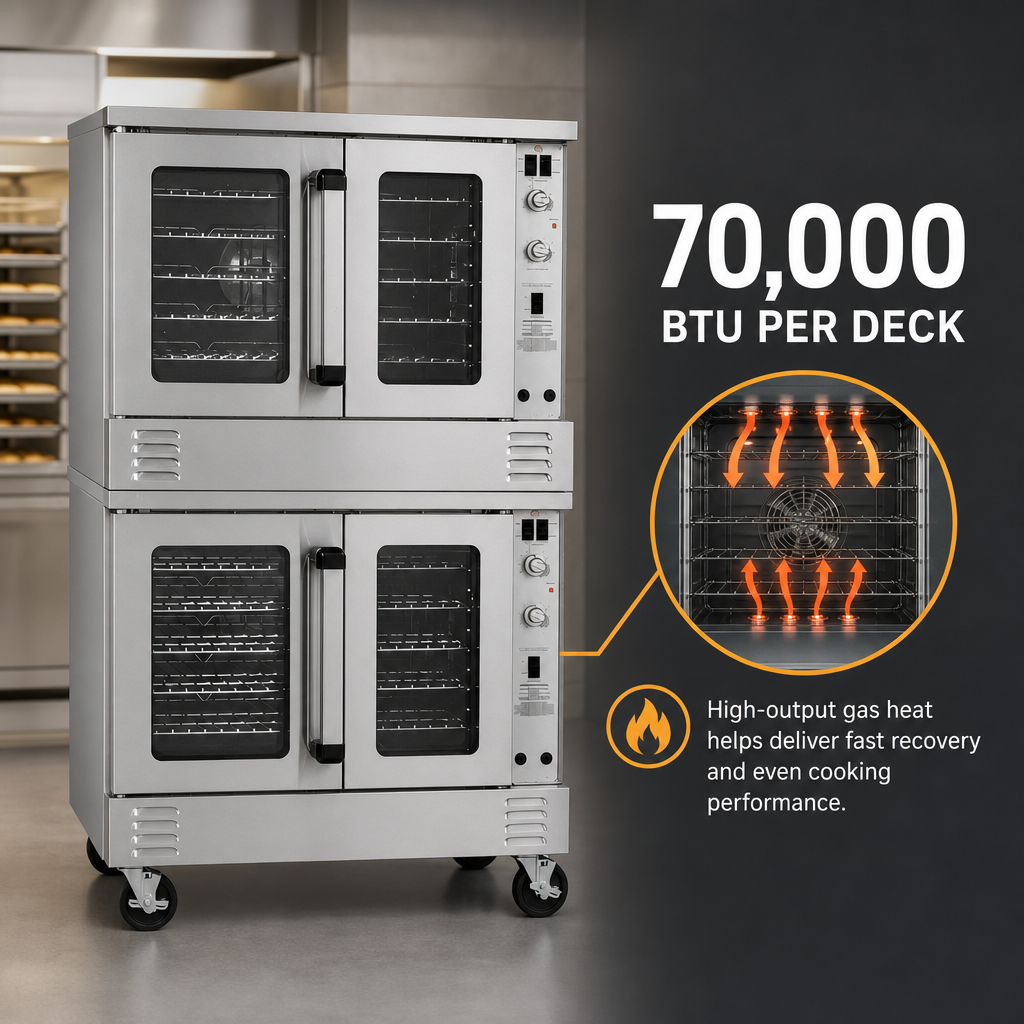

Platinum Series Double Convection Oven – Bakery Depth, 70,000 BTU/Deck

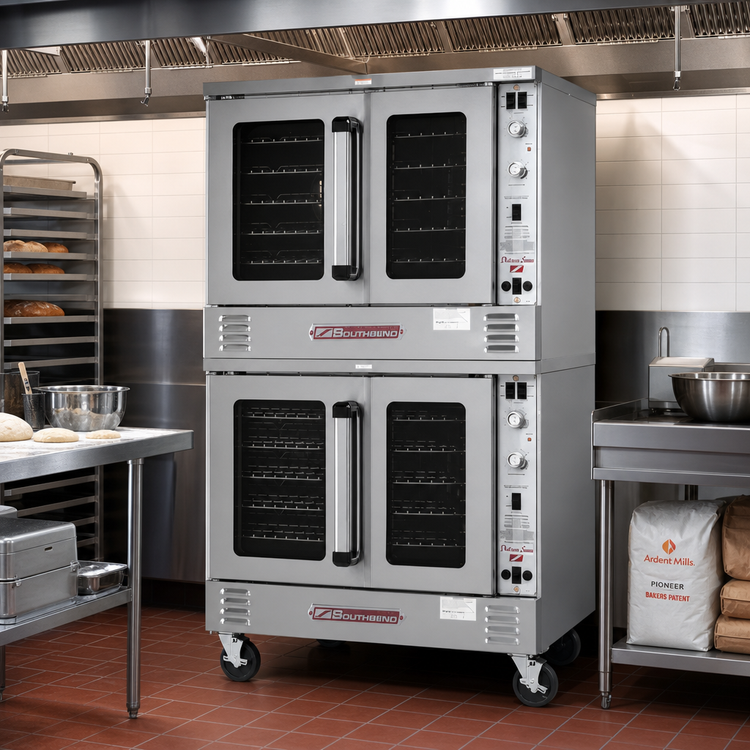

Southbend Model PCG140S/S • Standard Controls • Independent Glass DoorsEngineered for high-production bakeries, restaurants and institutions, the Southbend Platinum bakery-depth double convection oven combines powerful 70,000 BTU burners, gentle “Soft-Air” circulation, and service-friendly design in a rugged stainless-steel chassis. Load full-size sheet pans front-to-back, set the solid-state controls, and enjoy perfectly even results shift after shift.
Top Features

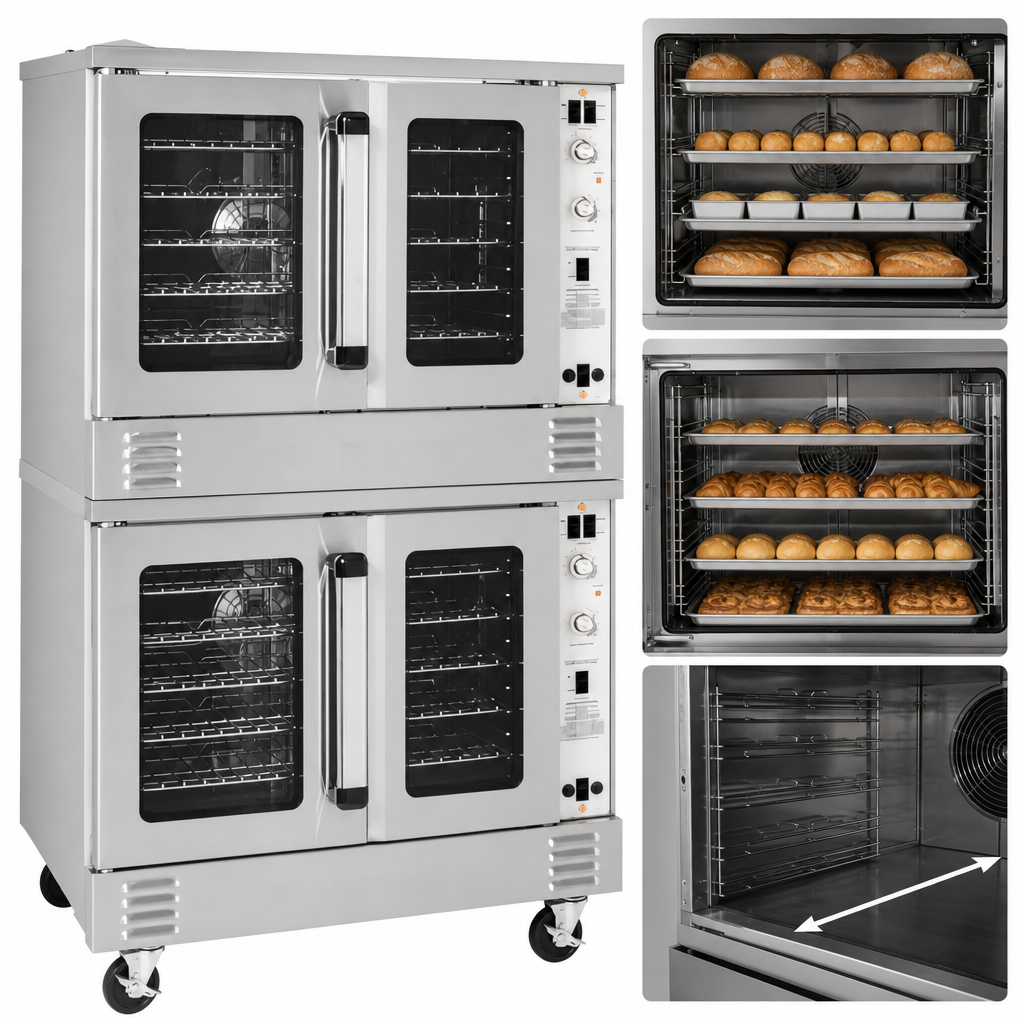

- Bakery-depth 29 in. interior fits 18 × 26 in. sheet pans front-to-back (5 pans per deck, 10 total).
- Patented, non-clog inshot burners – 70,000 BTU (20.5 kW) each deck for rapid recovery.
- Independent, energy-saving glass doors (180° opening) reduce heat loss – open only the door you need.
- Solid-state thermostat 140–500 °F with 60-minute mechanical timer (Standard Controls).
- “Soft-Air” two-speed ½ hp fan for delicate bakery items or high-speed roasting.
- 11-position rack guides & (5) nickel-plated racks per cavity.
- Porcelain-enameled, coved interior – fast, snag-free cleanup.
- Slide-out “plug-in/plug-out” control module & front-mounted service access.
- Electronic ignition with flame safety plus forced cool-down fan mode.
- Dual halogen lights in every chamber for clear product visibility.
- Durable stainless-steel front, sides, top & 6 in. adjustable legs (casters optional).
Specifications
| Heat Input | 70,000 BTU/hr per deck (140,000 BTU total) | Natural or LP gas |
|---|---|
| Interior (W × D × H) | 29 in. × 28.25 in. × 20 in. (bakery depth) |
| Pan Capacity | 5 full-size (18 × 26 in.) sheet pans per deck |
| Fan Motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Controls | Solid-state thermostat 140–500 °F & 60-min timer |
| Gas Connection | ¾ in. NPT female, rear – 7″ WC (NG) / 11″ WC (LP) min. inlet pressure |
| Electrical | 120 V, 60 Hz, 1-ph, 7.9 A per deck | 6 ft cord with NEMA 5-15P |
| Exterior (W × D × H) | 38 in. × 42 in. × 66.8 in. (including 6 in. legs) |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
Popular Factory Options
- 6 in. or 4 in. heavy-duty casters, front locking
- Stainless-steel oven interior
- Quick-disconnect gas hose kit (¾ in.)
- Marine-edge top or stainless bottom
- Down-draft diverter for direct flue connection
Commercial use only: Install under a vented hood and connect utilities per local code. Oven will not operate without the fan in service. For LP installation, field conversion is required.
Specifications are subject to change without notice. Please verify gas type and electrical requirements at checkout.
