Southbend (Middleby) PCG100S/TI Platinum Convection Ovens
Description

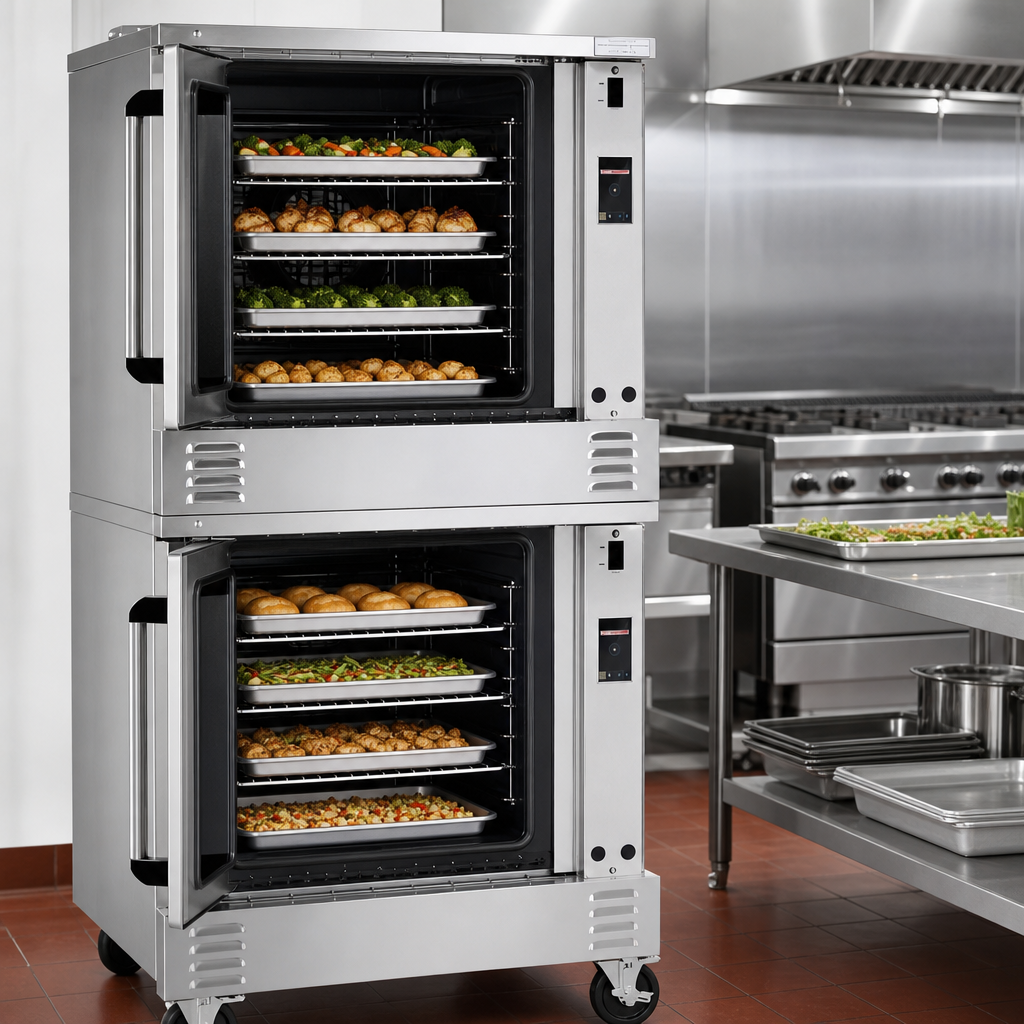

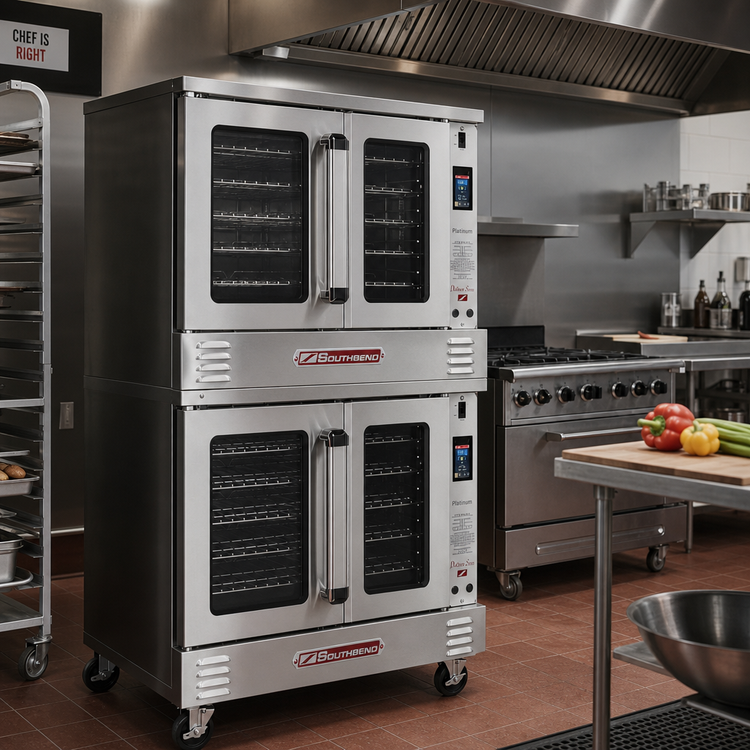

Southbend Platinum Series PCG100S/T Double-Deck Convection Oven
Gas • 50,000 BTU per deck • Touchscreen Controls • Independent Doors • ENERGY STAR®Built for high-volume, high-quality production, the Platinum PCG100S/T delivers consistent, even baking power in a space-saving double-deck footprint. Its patented 50,000 BTU Inshot burner in each cavity pairs with an intuitive touchscreen controller to give chefs total command—from one-touch recipes to gentle hold mode—while ENERGY STAR® efficiency keeps operating costs in check.
Key Features
- 50,000 BTU patented non-clog Inshot burner in each deck (100,000 BTU total).
- ENERGY STAR® qualified for reduced utility consumption.

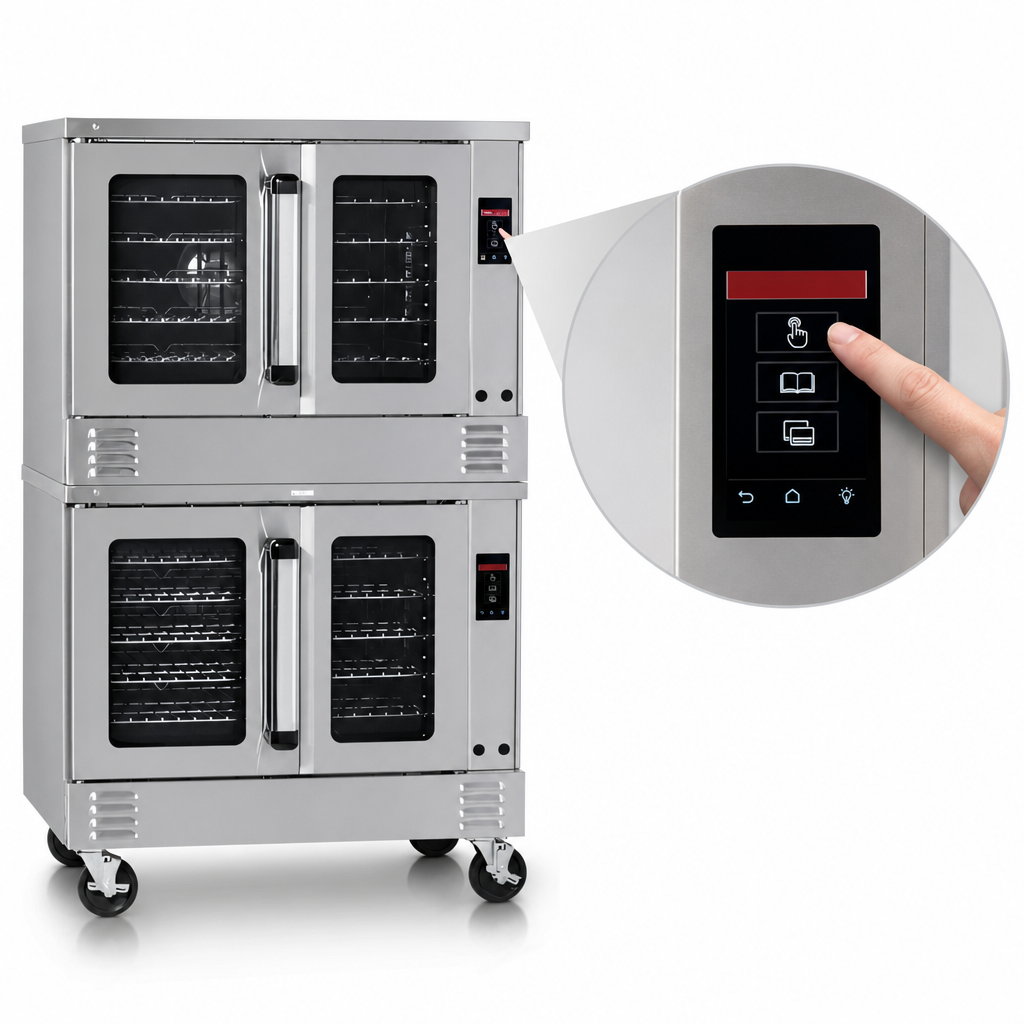

- Touchscreen controls with Manual, Recipe & Rack modes; stores multiple menus and runs individual pan timers simultaneously.
- Independent, low-emission glass doors open a full 180° for unobstructed loading.
- “Soft Air” ½ HP two-speed fan guarantees even heat distribution on every rack.
- 11-position rack guides with 5 heavy-duty wire racks included.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Slide-out, plug-in/plug-out control panel allows full-view, front-service access.
- Stainless-steel front, sides & top for maximum durability in demanding kitchens.
- Forced cool-down fan mode speeds between-batch turnaround.
- Electronic hot-surface ignition with flame safety, plus bright interior lighting.
At-a-Glance Specifications
| Manufacturer / Series | Southbend – Platinum |
|---|---|
| Model | PCG100S/T (Standard-Depth, Touchscreen) |
| Energy Source | Natural or LP Gas (field convertible) |
| BTU Input | 50,000 BTU per deck | 100,000 BTU total |
| Temperature Range | 150 °F – 550 °F cook | 140 °F – 200 °F hold |
| Oven Interior (W × D × H) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Racks / Guides | 5 racks included | 11 positions on 1 ⅝" centers |
| Exterior Dimensions (W × D × H) | 40.63" × 37.25" × 66.8" (1032 × 946 × 1695 mm) |
| Fan Motor | ½ HP, two-speed (1710 / 1120 RPM) |
| Electrical | 120 V / 60 Hz / 1-Ph, 7.9 A per deck (NEMA 5-15P cord & plug) |
| Gas Connection | ¾" NPT female; 7" W.C. (NG) or 11" W.C. (LP) minimum inlet |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
| Certifications | ENERGY STAR®, CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend Warranty for details) |
Need a custom configuration? Options such as stainless oven interior, caster base, marine-edge top, quick-disconnect hose and more are available—ask us for details.
