Southbend (Middleby) PCG100S/TD Platinum Convection Ovens
Description

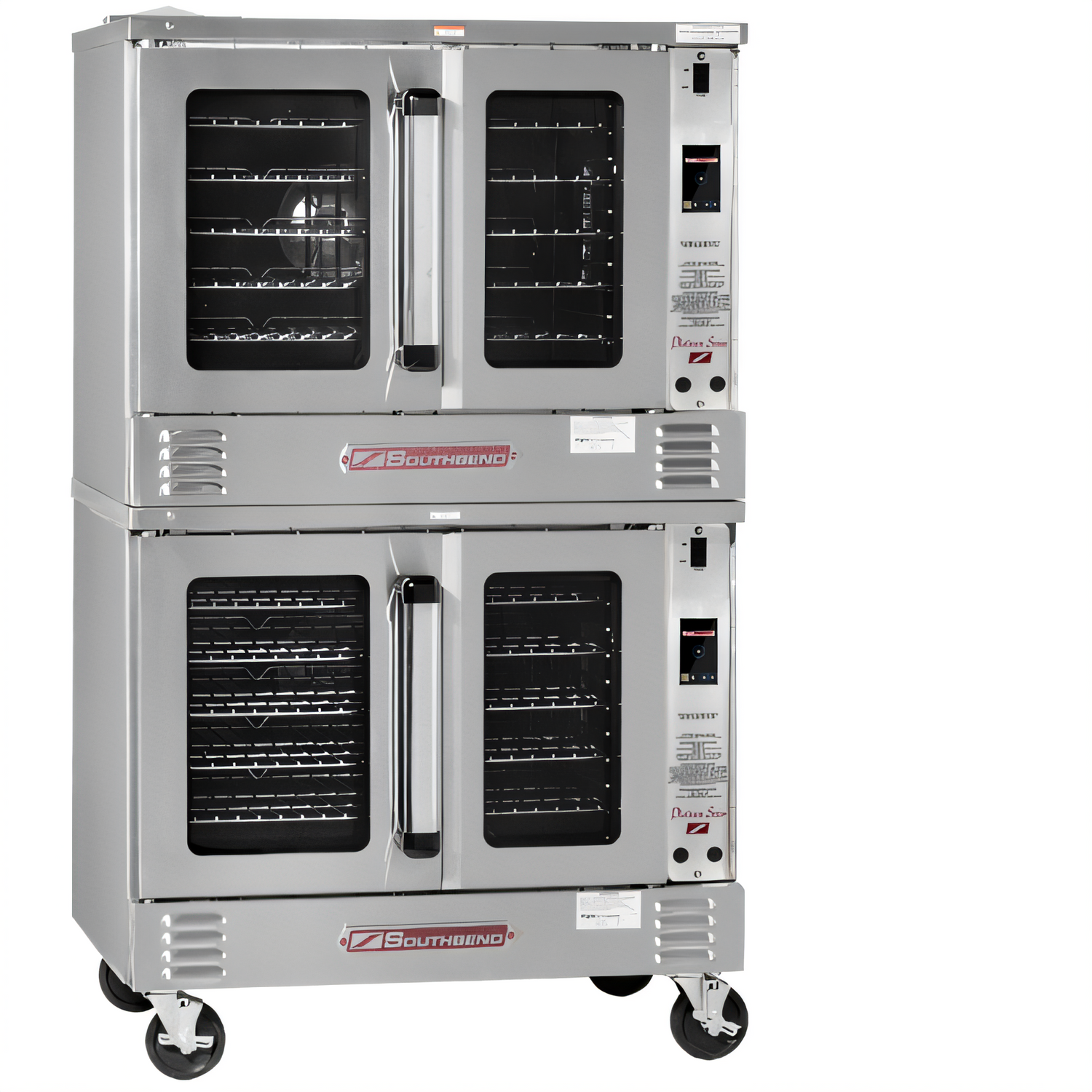

Platinum Series PCG100S/T Double Gas Convection Oven

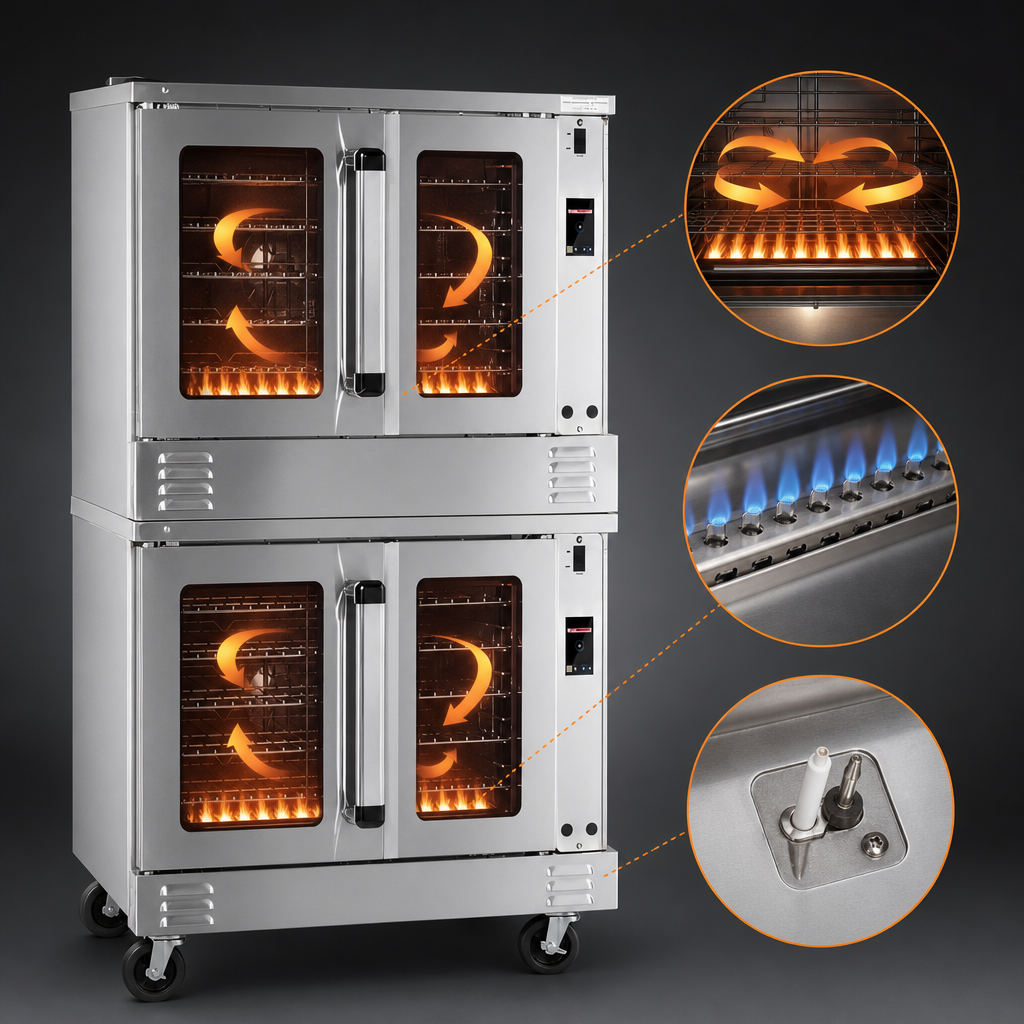

50,000 BTU per deck • Touchscreen Controls • Standard Depth • ENERGY STAR®Bring high-volume baking, roasting and finishing to the next level with Southbend’s Platinum PCG100S/T. Two full-size convection ovens stack in a single 66.8 in. footprint, delivering even, reliable heat from patented 50,000 BTU Inshot burners while a smart touchscreen puts total control at your fingertips—all in an ENERGY STAR® certified package that lowers operating costs shift after shift.
Key Performance Features

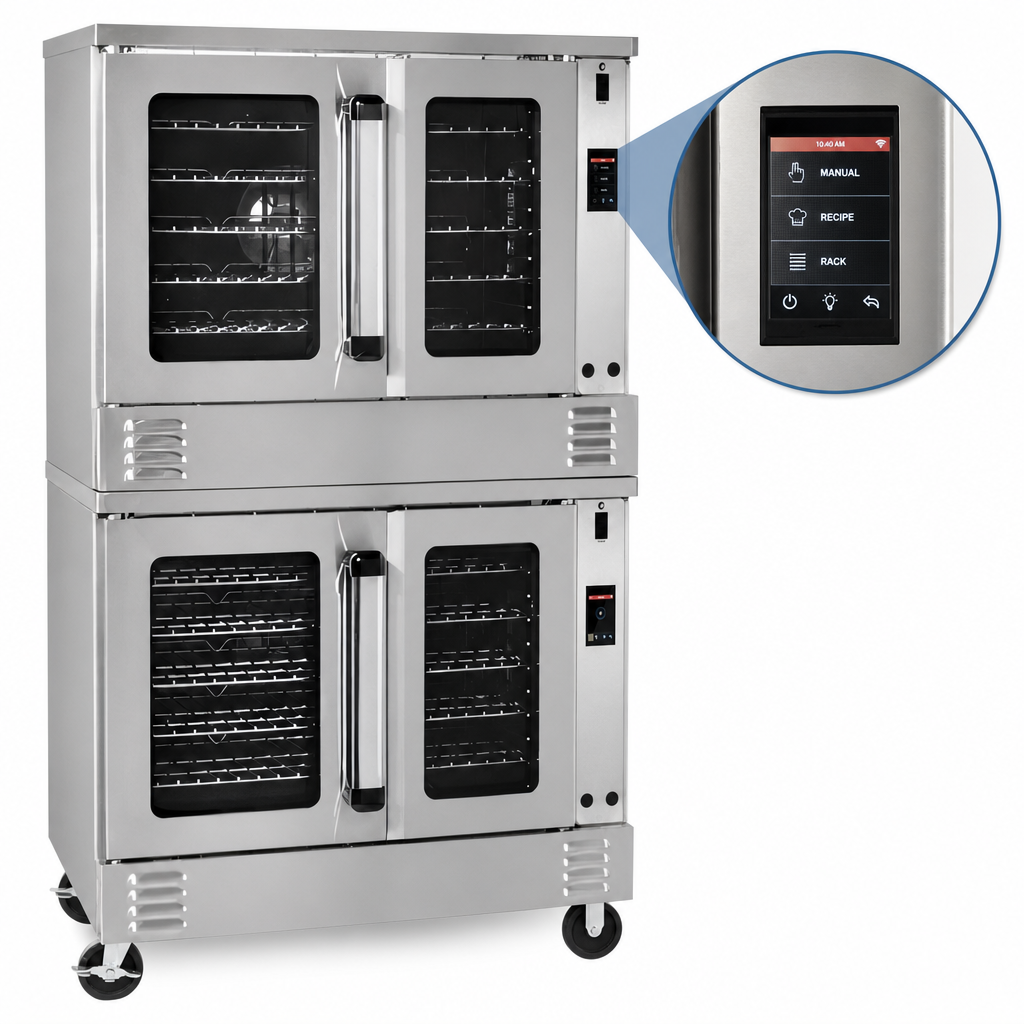

- Digital Touchscreen with manual, programmable recipe and rack-timing modes.
- Patented “plug-in, plug-out” control panel slides out 17 in. for tool-free service access.
- Soft-Air two-speed ½ HP fan for gentle or rapid air circulation as menu items require.
- Full 180° dependent glass doors with dual seals and stay-cool handles.
- Coved, fastener-free porcelain interior for quick wipe-down cleaning.
- Forced cool-down mode reduces turnaround time between bakes.
- Electronic ignition with flame safety device—no standing pilot to waste gas.
Specifications
| Model | PCG100S/T |
|---|---|
| Decks / Capacity | 2 decks – 5 racks supplied, 11 positions per deck |
| Heat Input | 50,000 BTU/hr per deck (100,000 BTU/hr total) |
| Temperature Range | 150 °F–550 °F bake + 140 °F–200 °F hold |
| Exterior (W × D × H) | 40.63" × 37.25" × 66.8" (1032 × 946 × 1695 mm*) |
| Interior (W × D × H) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Blower Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Gas Connection | ¾" NPT female; 7" W.C. Natural or 11" W.C. Propane |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A per deck (NEMA 5-15P cord) |
| Shipping Weight | ≈ 1,040 lb (472 kg) |
| Certifications | ENERGY STAR®, CSA, NSF |
| Warranty | 1-year limited parts & labor |
*Height shown with standard 6 in. stainless legs. Optional casters available.
What’s Included
- (5) plated wire racks
- (2) 40 W interior lights
- 6 in. adjustable stainless legs
- User & installation manual
Popular Factory Options
- 4 in. or 6 in. locking casters
- Stainless steel oven interior or solid doors
- ¾ in. quick-disconnect flexible gas hose kit
- Marine edge top or stainless rear jacket
- Export crating
Southbend continually improves products and reserves the right to change specifications without notice. ENERGY STAR® and the ENERGY STAR mark are registered U.S. marks.
