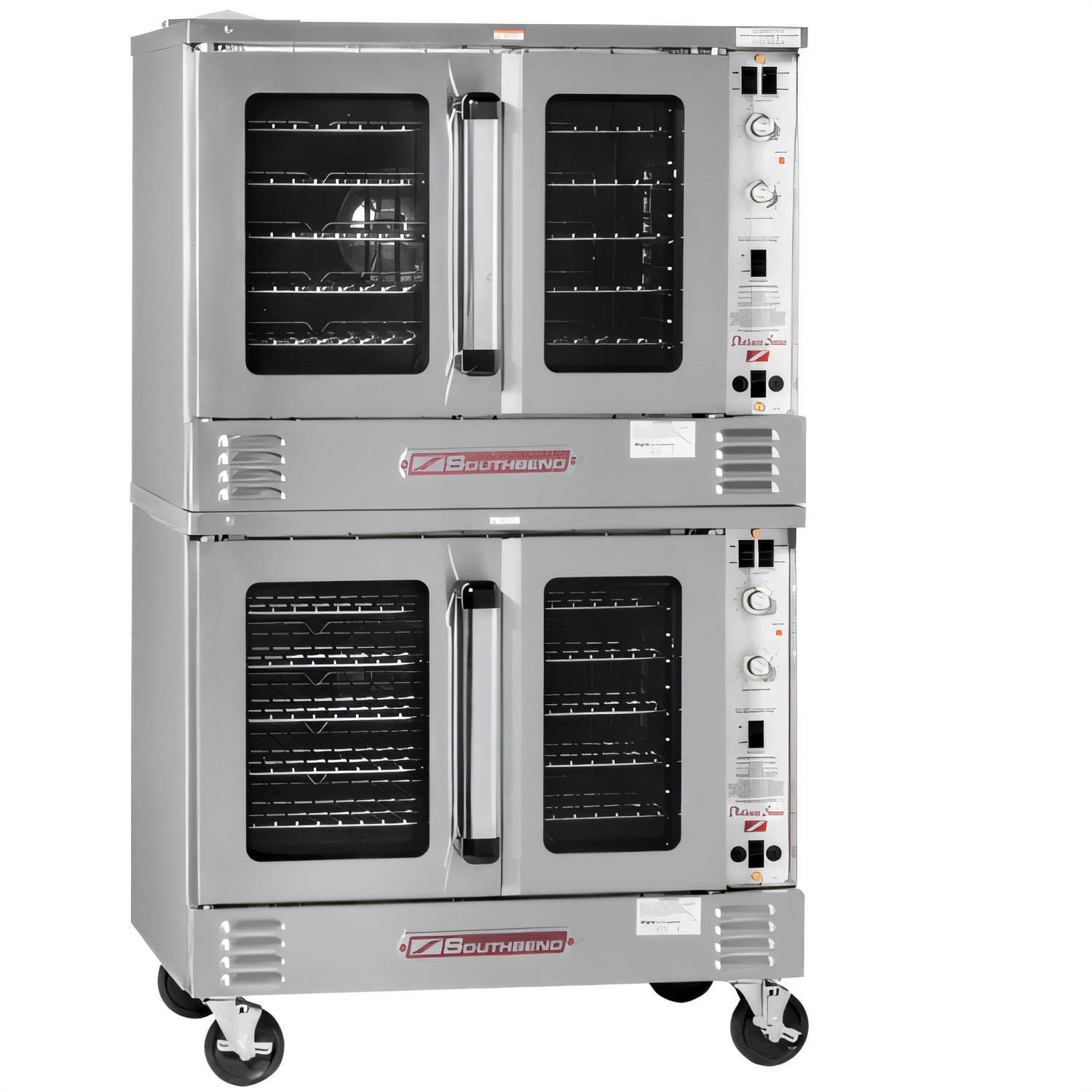

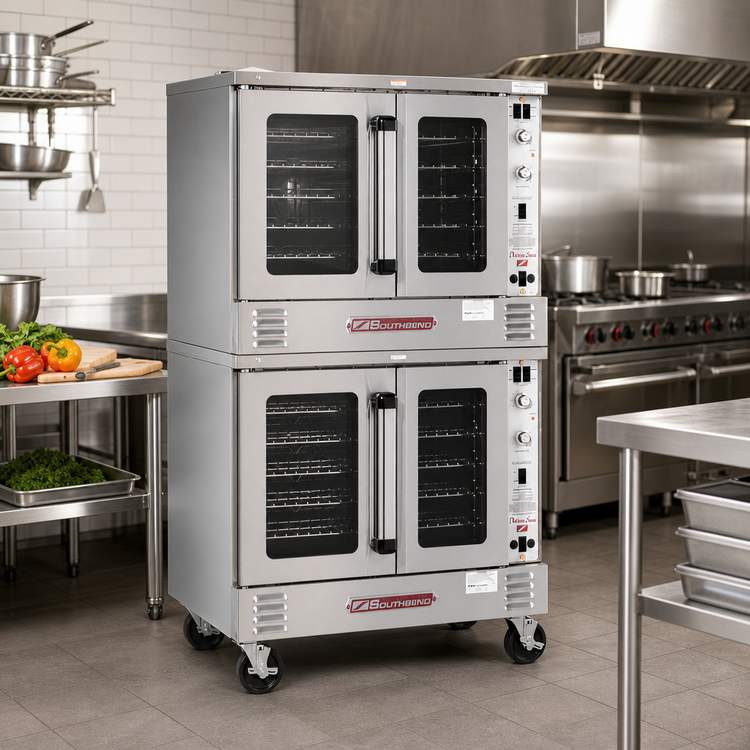

Southbend (Middleby) PCG100S/SI Platinum Convection Ovens
Southbend (Middleby) PCG100S/SI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCG100S/SI Platinum Convection Ovens
Description
Platinum Double-Deck Gas Convection Oven
50,000 BTU per deck • Standard Depth • Standard Controls • Independent Doors • ENERGY STAR®Engineered for high-volume kitchens that refuse to compromise on consistency, Southbend’s Platinum Series PCG100S/S brings heavy-duty construction, patented burner technology and ENERGY STAR® efficiency together in one powerhouse, double-deck package. From artisan bakeries to school cafeterias, this oven keeps production moving while keeping operating costs in check.
Why You’ll Love It
- Even, fast results – Patented high-efficiency non-clog Inshot burners and a two-speed ½ hp fan blanket every rack with consistent heat.

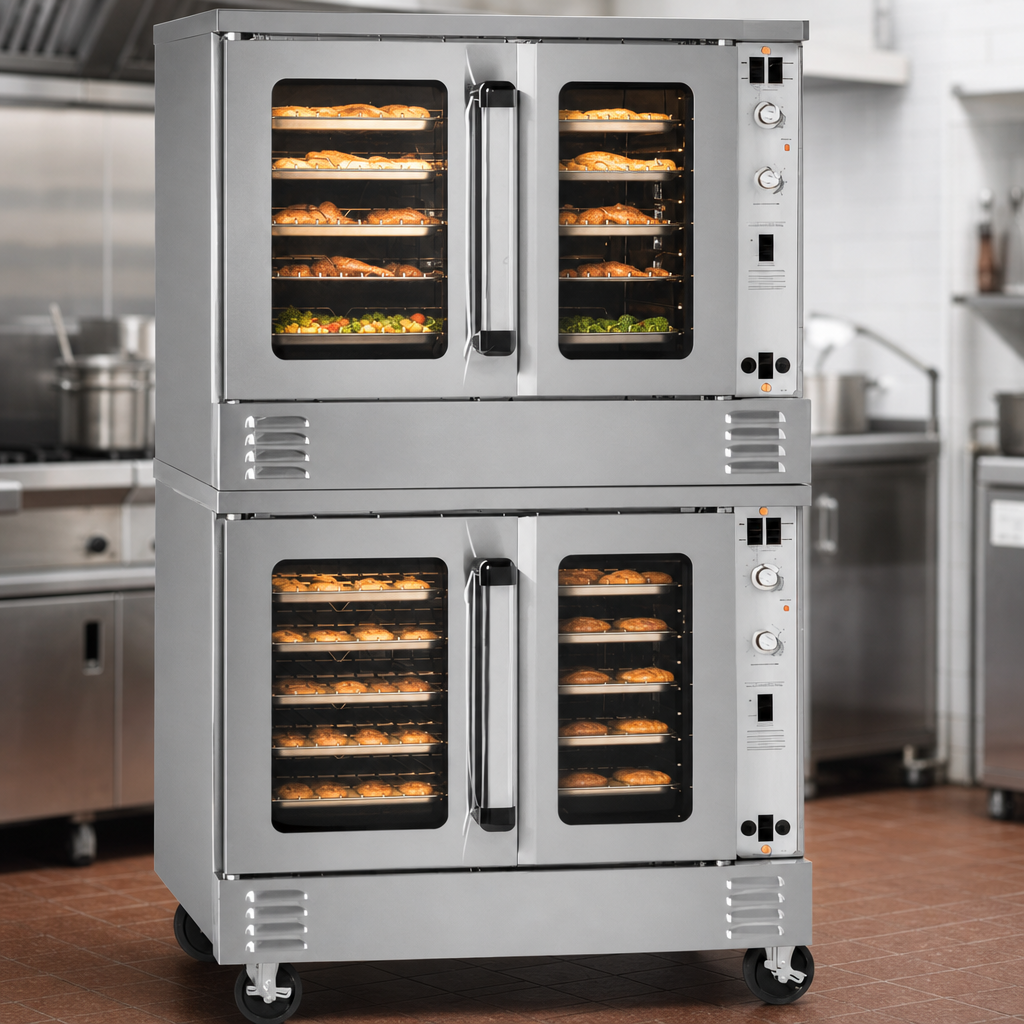

- True 50,000 BTU performance on each deck lets you tackle peak-hour demand without recovery delays.
- Independent, full-width doors open a full 180° for effortless loading, yet seal tight thanks to a dual-gasket system that locks heat inside.
- Standard solid-state controls (140 °F – 500 °F) with a 60-minute timer keep operation simple and staff-friendly.
- ENERGY STAR® qualified – Higher efficiency means lower utility bills and a cooler kitchen.
- Built to last – Stainless-steel front, sides and top, plus a smooth, coved porcelain interior that wipes clean fast.
- Service made simple – Slide-out “plug-in/plug-out” control panel puts every component within easy reach, minimizing downtime.
At-a-Glance Specs
| Model | PCG100S/S – Platinum Series (w/ Independent Door option) |
|---|---|
| Decks / Capacity | 2 decks, 11 rack positions & 5 plated racks per deck |
| Heat Source | Natural or LP gas, 50,000 BTU per deck (100,000 BTU total) |
| Oven Interior (W × D × H) | 29 in × 21.5 in × 20 in (737 × 546 × 508 mm) |
| Exterior Dimensions (W × D × H) | 38 in × 37.25 in × 66.8 in (approx.) |
| Controls | Solid-state thermostat, 60-min timer, electronic ignition, forced cool-down mode |
| Fan Motor | ½ hp, 2-speed (1710/1120 RPM) |
| Utility Connections | Gas: ¾-in female; Electric: 120 V/60 Hz/1 ph, 7.9 A per deck (6 ft cord, NEMA 5-15P) |
| Clearances | 0 in top, bottom & right; 2 in left (combustibles) |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
| Warranty | 1-year parts & labor (commercial use) |
Standard Equipment
- Energy-saving low-E glass windows
- Stay-cool heavy-duty door handles
- Interior halogen lights (2 per deck)
- Electronic hot-surface ignition with flame safety
- Forced cool-down fan cycle for quick turnarounds
- 6-in stainless-steel legs
Popular Factory Options
- Digital Touchscreen recipe controls
- Stainless-steel oven interior
- 4-in or 6-in casters (locking)
- Quick-disconnect gas hose w/ restraining device
- Marine-edge or insulated top panels
