Southbend (Middleby) PCG100S/SD Platinum Convection Ovens
Description

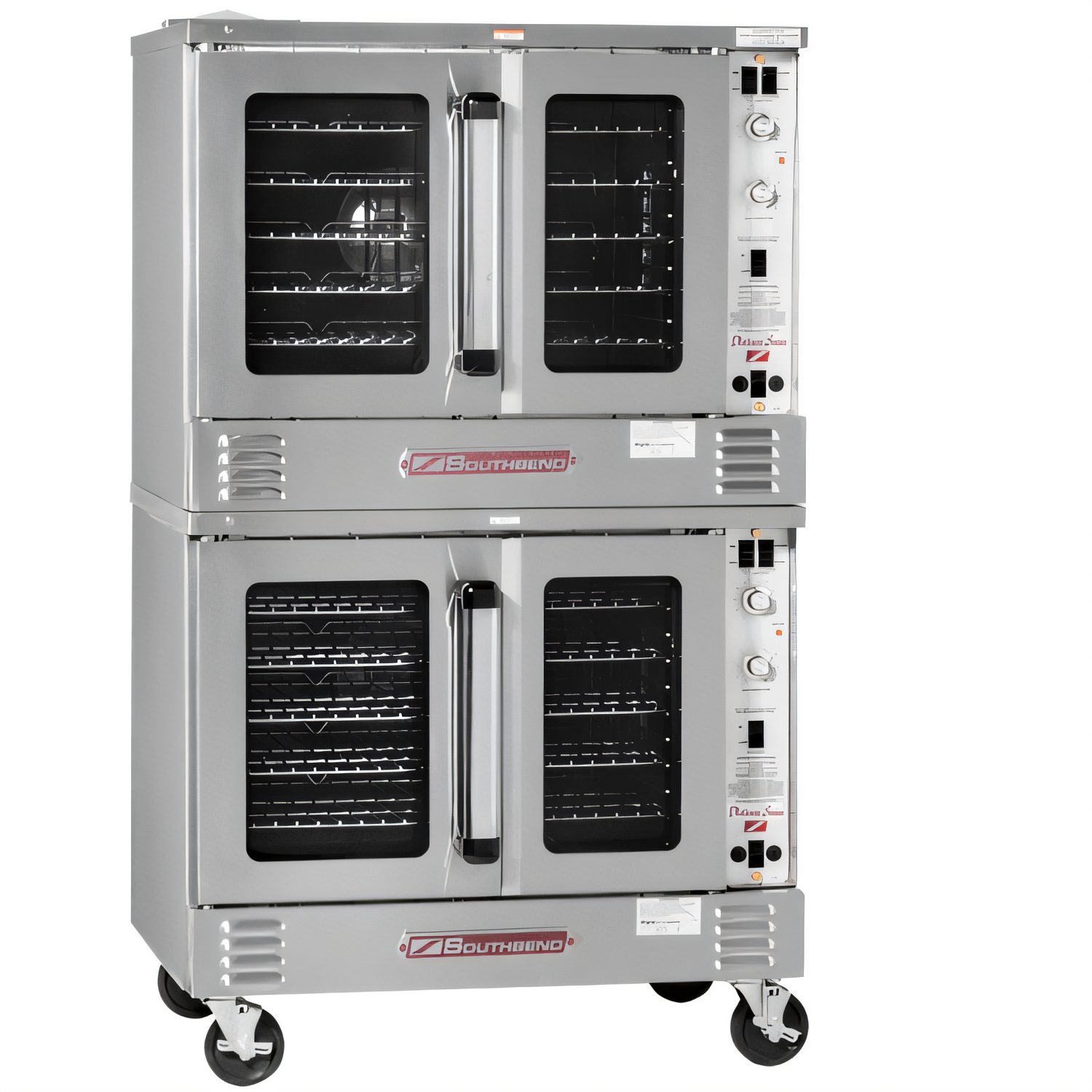

Southbend Platinum Series PCG100S/S Double Gas Convection Oven
Standard-Depth • 50,000 BTU/Deck • Standard Controls • ENERGY STAR® Certified • Quick ShipShip it fast and fire it up even faster. The Southbend Platinum Series PCG100S/S packs two full-size convection ovens into a single, ENERGY STAR® qualified footprint—perfect for operations that refuse to compromise on performance or efficiency.
Key performance & labor-saving features
- High-efficiency, non-clog Inshot burners deliver 50,000 BTU to each cavity while keeping utility costs low.

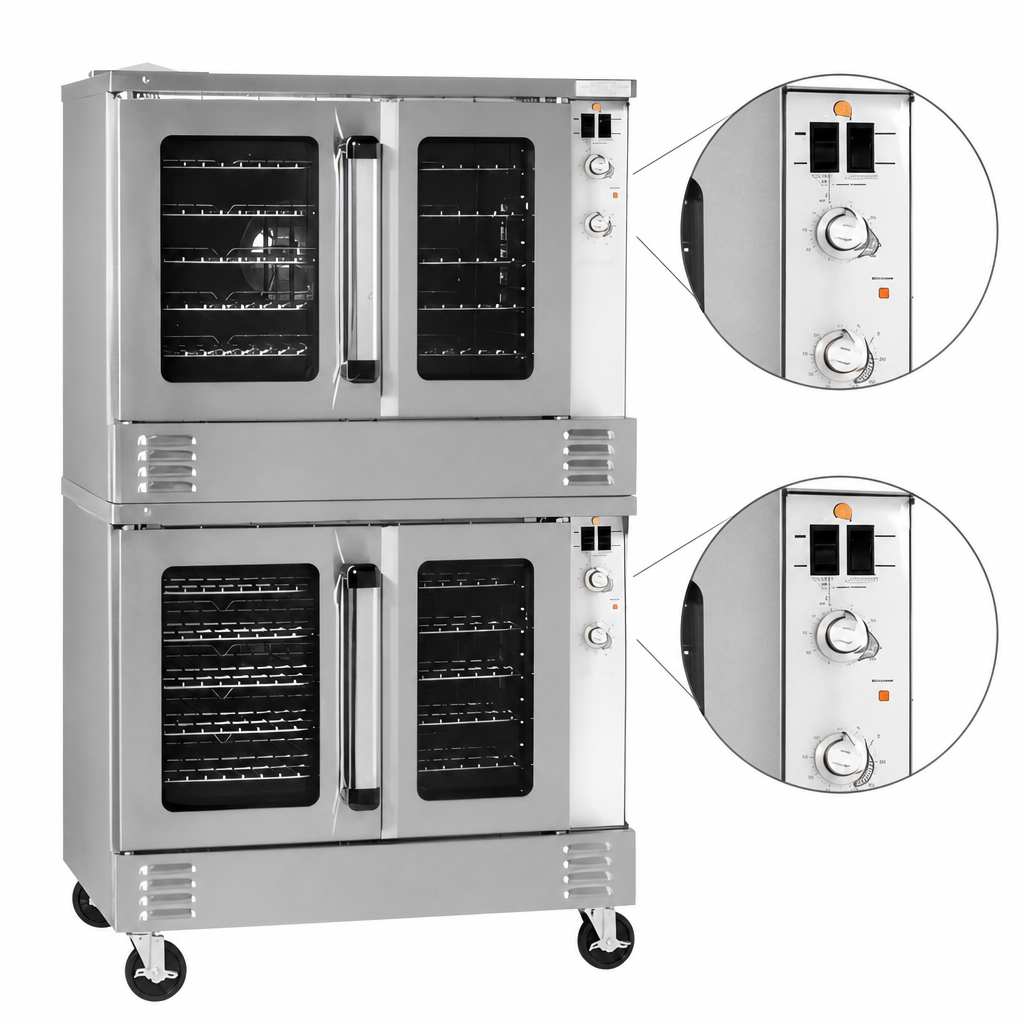

- Solid-state thermostat (140 °F – 500 °F) and 60-minute mechanical timer for simple, reliable control.
- Patented “plug-in, plug-out” slide-out control panel—service or swap in minutes, not hours.
- Soft-Air two-speed, ½ hp fan bathes every rack in even heat; switch to low speed for delicate bakes.
- Dependent glass doors swing a full 180° and feature dual heat-seal gaskets to lock in heat.
- Coved, fastener-free porcelain interior wipes clean quickly; five nickel-plated racks included.
- Forced cool-down mode accelerates between-batch recovery and end-of-day shutdown.
- Interior lighting and stay-cool door handles improve visibility and operator safety.
- Stainless steel front, sides, top and 6" legs built to survive the toughest commercial kitchens.
- ENERGY STAR® certification may qualify for local utility rebates (check your provider).
Technical specifications
| Model | PCG100S/S (double deck) |
|---|---|
| Total heat input | 100,000 BTU/h (50,000 BTU per cavity) |
| Gas connection | ¾" NPT; 7" W.C. Natural / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1-phase, 7.9 A per deck (NEMA 5-15P cord & plug) |
| Oven interior (W × D × H) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Exterior dimensions (W × D × H) | 40.6" × 43.6" × 66.8" (1032 × 1108 × 1697 mm) with 6" legs |
| Rack positions / racks supplied | 11 / 5 |
| Fan motor | ½ hp, two-speed (1,710 / 1,120 RPM) |
| Shipping weight | Approx. 1,040 lb (472 kg) |
| Warranty | 1-year limited parts & labor |
Built for
- Full-service and chain restaurants
- Bakeries & cafés needing consistent results batch after batch
- School, hospital & institutional kitchens with all-day production
- Convenience stores expanding hot-food programs
Looking to spread out the investment? Ask about Middleby Equipment Financing for quick credit decisions and low fixed monthly payments.
