Southbend (Middleby) PCG100B/TI Platinum Convection Ovens
Southbend (Middleby) PCG100B/TI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCG100B/TI Platinum Convection Ovens
Description
Southbend Platinum Series PCG100B/T

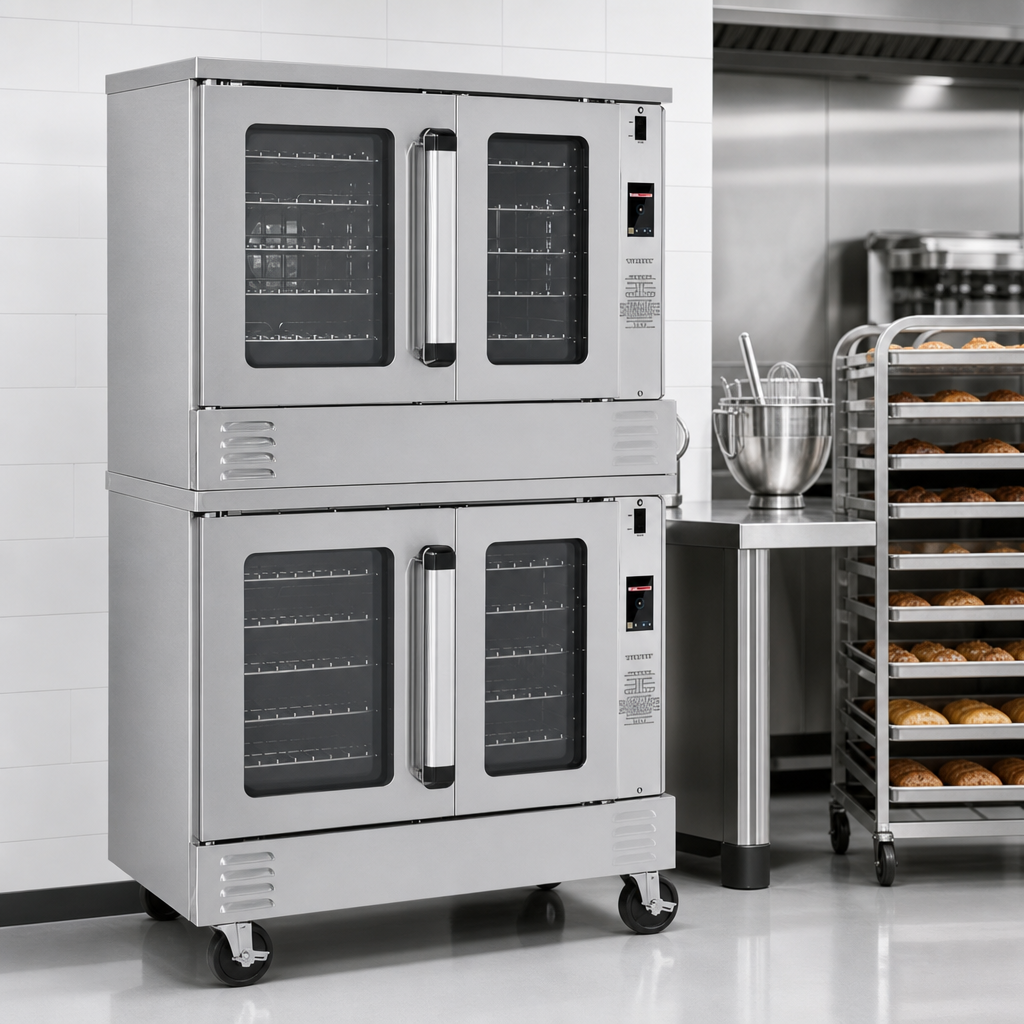

Double-Deck Bakery Convection Oven – Gas, 50 000 BTU/Deck, Touch Controls, Independent Doors
Built for high-volume bakeries, restaurants and commissaries, the Platinum Series PCG100B/T combines Southbend’s legendary reliability with a full-featured touchscreen and bakery-depth cavities that fit full-size sheet pans front-to-back or side-to-side. Each deck delivers 50,000 BTU of even, efficient heat while independent doors and two-speed “Soft Air” convection give you the precision your signature bakes deserve.
Why You’ll Love It

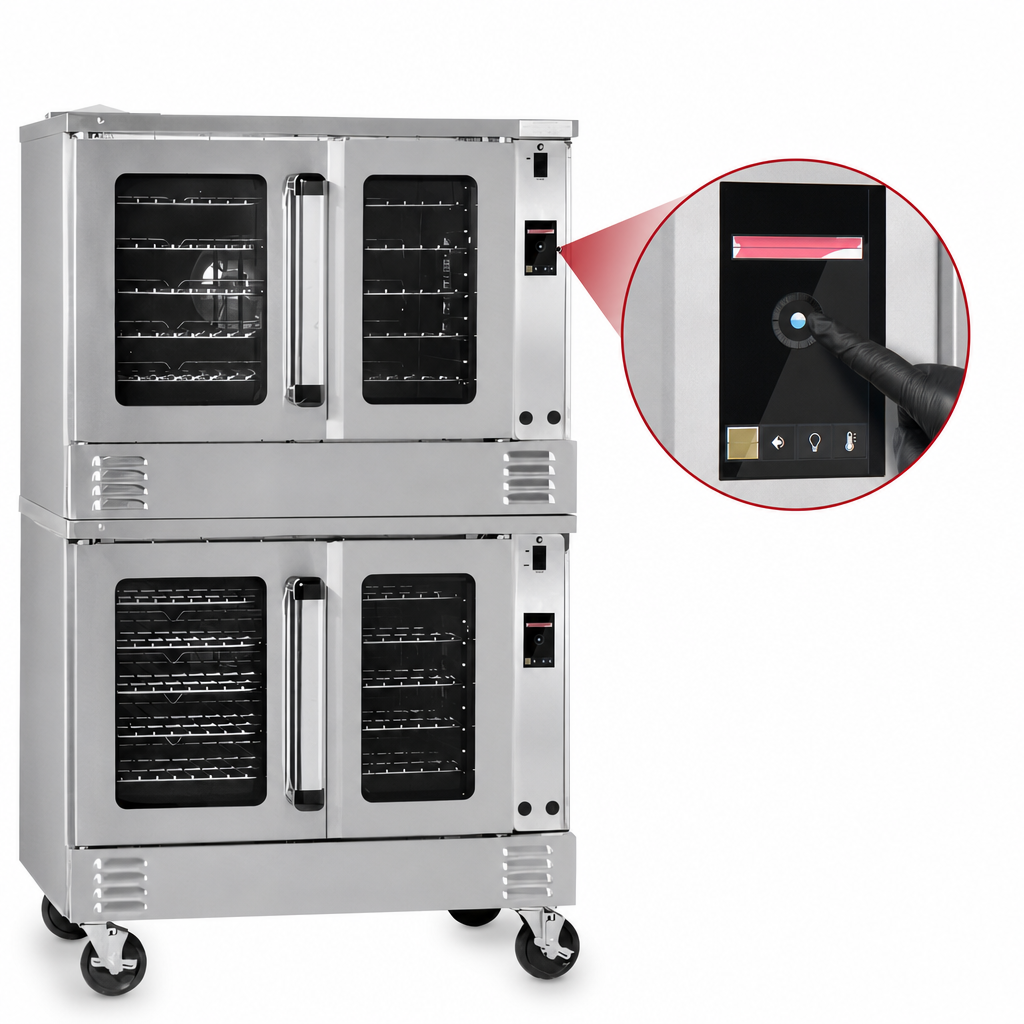

- Touchscreen controller with manual, recipe & rack modes plus 150 °F – 550 °F bake and 140 °F – 200 °F hold settings.
- Bakery-depth (29 in.) porcelain interior fits full-size sheet pans in either direction.
- High-efficiency, non-clog Inshot burners – 50 000 BTU each deck (natural or LP).
- Independent, low-E glass doors open a full 180° for unobstructed loading/unloading.
- 11-position rack guides & 5 heavy-duty racks included per cavity.
- Slide-out, “plug-in/plug-out” control panel for quick, front-service access.
- 2-speed ½ hp fan with optional pulse cycles for delicate items.
- Stay-cool handles, dual door seals and forced cool-down mode for safer operation.
- Stainless steel front, sides & top; coved, fastener-free porcelain interior for effortless cleanup.
Technical Specs
| Model | PCG100B/T (Platinum Series, Bakery Depth, Touch Controls) |
|---|---|
| Capacity | Full-size (18 × 26 in.) pans – 5 included / 11 positions per deck |
| Heat Source | Gas, 50 000 BTU per deck (100 000 BTU total) • Natural 7" WC or LP 11" WC • ¾" NPT connection |
| Temperature Range | Bake 150 °F – 550 °F • Hold 140 °F – 200 °F |
| Controls | 7" touchscreen, programmable recipes & multi-rack timers, fan pulse, electronic ignition |
| Interior (per deck) | 29" W × 29" D × 20" H • Porcelain-enameled, coved corners |
| Overall Dimensions | 43.5" W × 36.5" D × 66.8" H (1 106 mm × 927 mm × 1 695 mm) |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A per deck, 6 ft cord & NEMA 5-15P supplied • 208 V or 240 V hard-wire optional |
| Fan Motor | ½ hp, 2-speed (1 710 / 1 120 RPM) |
| Shipping Weight | Approx. 1 180 lb (535 kg) |
| Warranty | 1-year parts & labor (see details) |
Popular Factory Options (extra cost)
- 6" or 4" locking casters
- Stainless steel oven interior
- Stainless steel rear jacket or exterior bottom
- ¾" quick-disconnect gas hose & restraining device
- 2" air-insulation panel for curb-mount installations
Southbend continually improves products; specifications are subject to change without notice.
