Southbend (Middleby)  |  Platinum  |  SKU: PCG100B/TD

Southbend (Middleby) PCG100B/TD Platinum Convection Ovens

$11,813.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

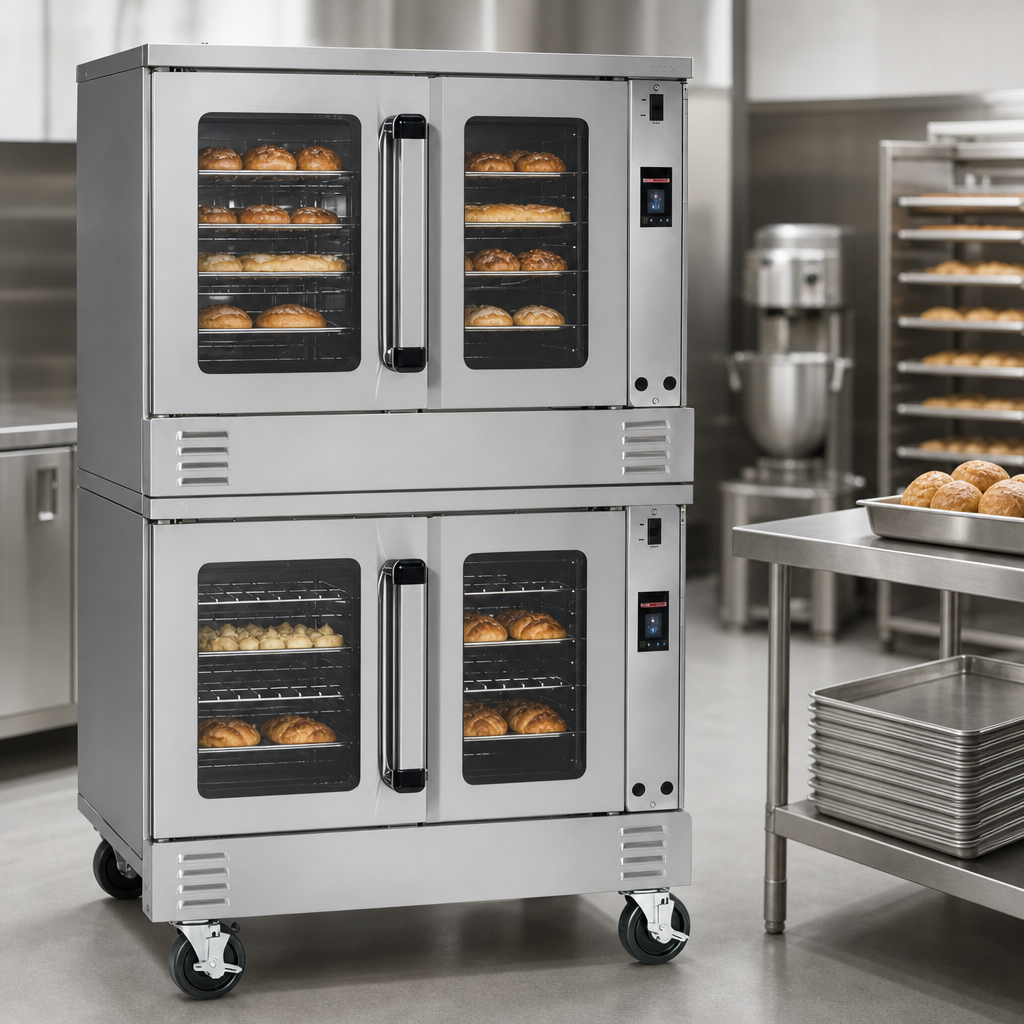

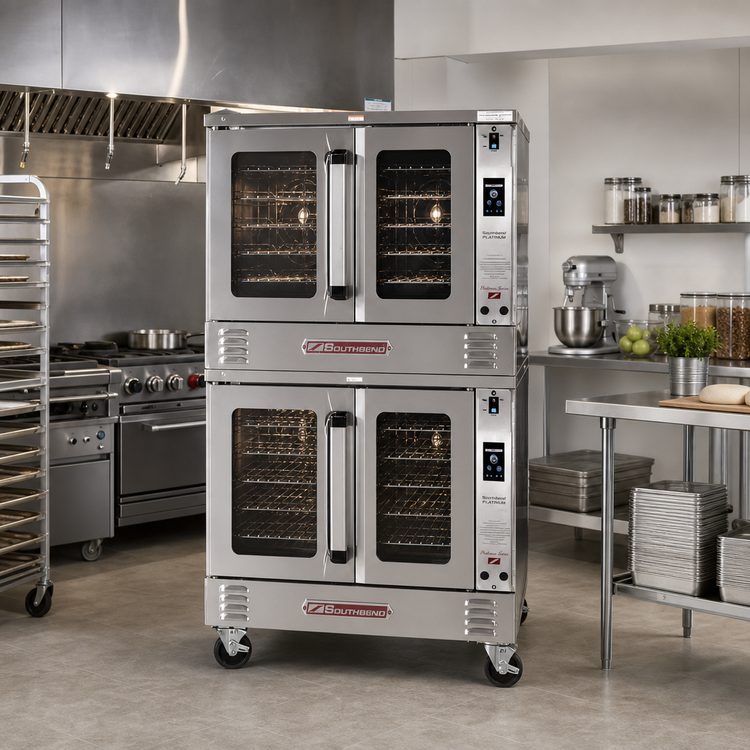

Southbend “Platinum” Double Convection Oven – Model PCG100B/T

Bakery-Depth • Gas • Touchscreen Controls • 50,000 BTU per deck

Engineered for serious production, the Platinum Series PCG100B/T delivers the volume of two full-size bakery-depth ovens plus the precision of a built-in touchscreen controller. From delicate pâtisserie to high-yield roasts, every feature is optimized for speed, consistency and kitchen-wide efficiency.

Key Features

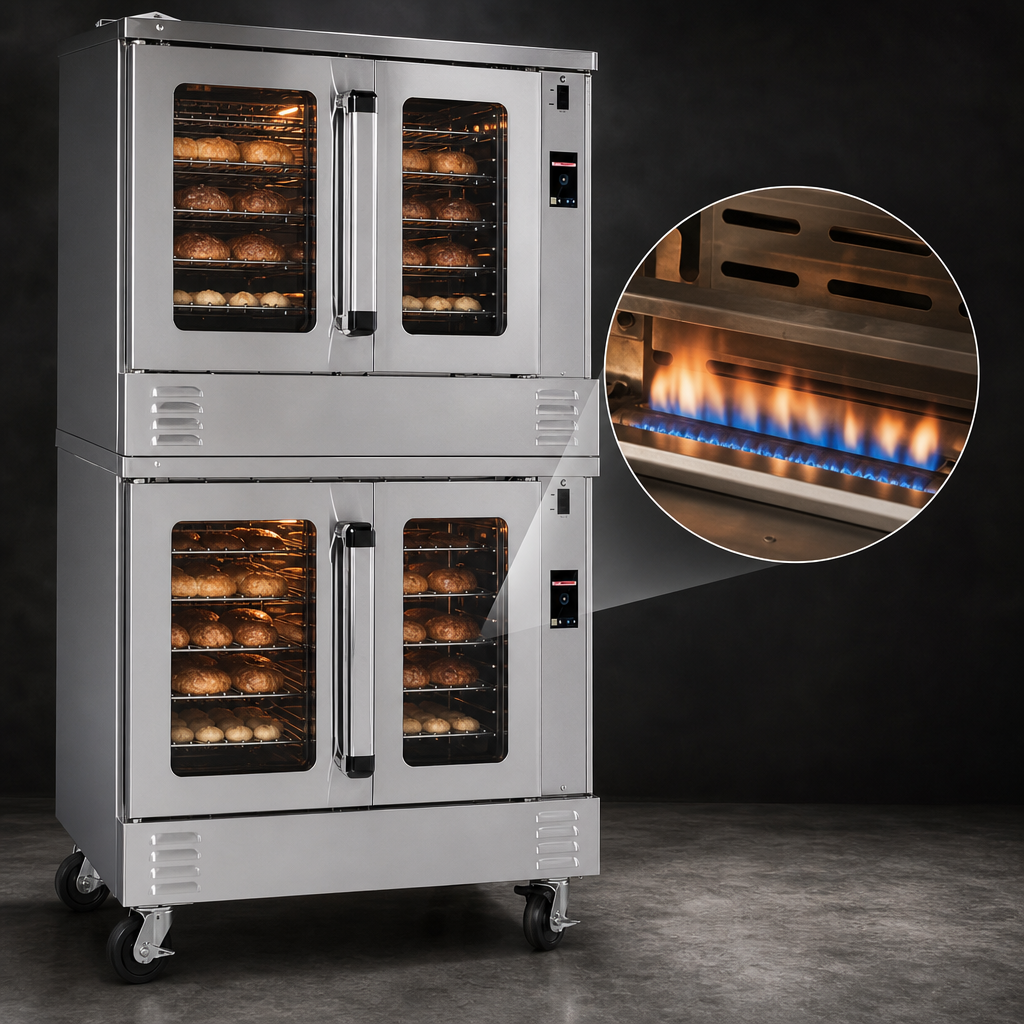

  • Two patented, non-clog in-shot burners (50,000 BTU each) for fast, even heat.
  • Touchscreen control (150 °F–550 °F) with Hold mode (140 °F–200 °F), recipe storage, rack-by-rack timers and fan pulse.
  • Soft-Air ½ HP two-speed fan keeps pastries flat or proteins perfectly browned.
  • Dependent 180° swing glass doors with dual seals and stay-cool handles.
  • 11 rack positions & 5 plated racks per deck handle full-size sheet pans front-to-back.
  • Plug-in / plug-out slide-out control panel for effortless front-service access.
  • Coved, fastener-free porcelain interior cleans in seconds; stainless front, sides & top stand up to daily abuse.
  • Electronic ignition, forced cool-down mode and twin halogen cavity lights standard.

Specifications

Model PCG100B/T (Double-Deck, Bakery-Depth)
Total Heat Input 100,000 BTU/hr  •  50,000 BTU per deck
Exterior Dimensions (W × D × H) 40.63″ × 43.63″ × 66.75″ (1,032 × 1,108 × 1,695 mm)
Oven Interior (W × D × H) 29″ × 29″ × 20″ (737 × 737 × 508 mm)
Rack Positions / Supplied Racks 11 / 5 per deck
Fan Motor ½ HP, two-speed (1,710 / 1,120 RPM)
Gas Connection ¾″ NPT female, rear
Inlet Pressure Natural 7″ WC  |  LP 11″ WC
Electrical 120 V, 60 Hz, 1 Ø, 7.9 A per deck (6′ cord, NEMA 5-15P)
Legs / Mobility 6″ stainless legs standard  •  optional 4″ or 6″ casters
Shipping Weight ≈ 1,180 lb (535 kg)
Warranty 1-year limited parts & labor

Perfect For

  • Scratch and wholesale bakeries
  • Hotel, resort & casino pastry programs
  • Catering commissaries & banquet kitchens
  • High-volume restaurants & corporate cafeterias
Important: This appliance is designed for commercial kitchens and must be installed under a properly sized vent hood. Use a ¾″ gas line (minimum I.D.) and keep the convection fan running whenever the burners are on. Operating outside these guidelines may damage the oven and void the warranty.

Need stainless interiors, marine-edge top or a quick-disconnect gas hose?  Contact us for factory-approved options and accessories.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

66.75in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Gas 50,000 BTU's each, Bakery Depth, Touch Controls, Dependent Doors
