Southbend (Middleby) PCG100B/SI Platinum Convection Ovens
Southbend (Middleby) PCG100B/SI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCG100B/SI Platinum Convection Ovens
Description

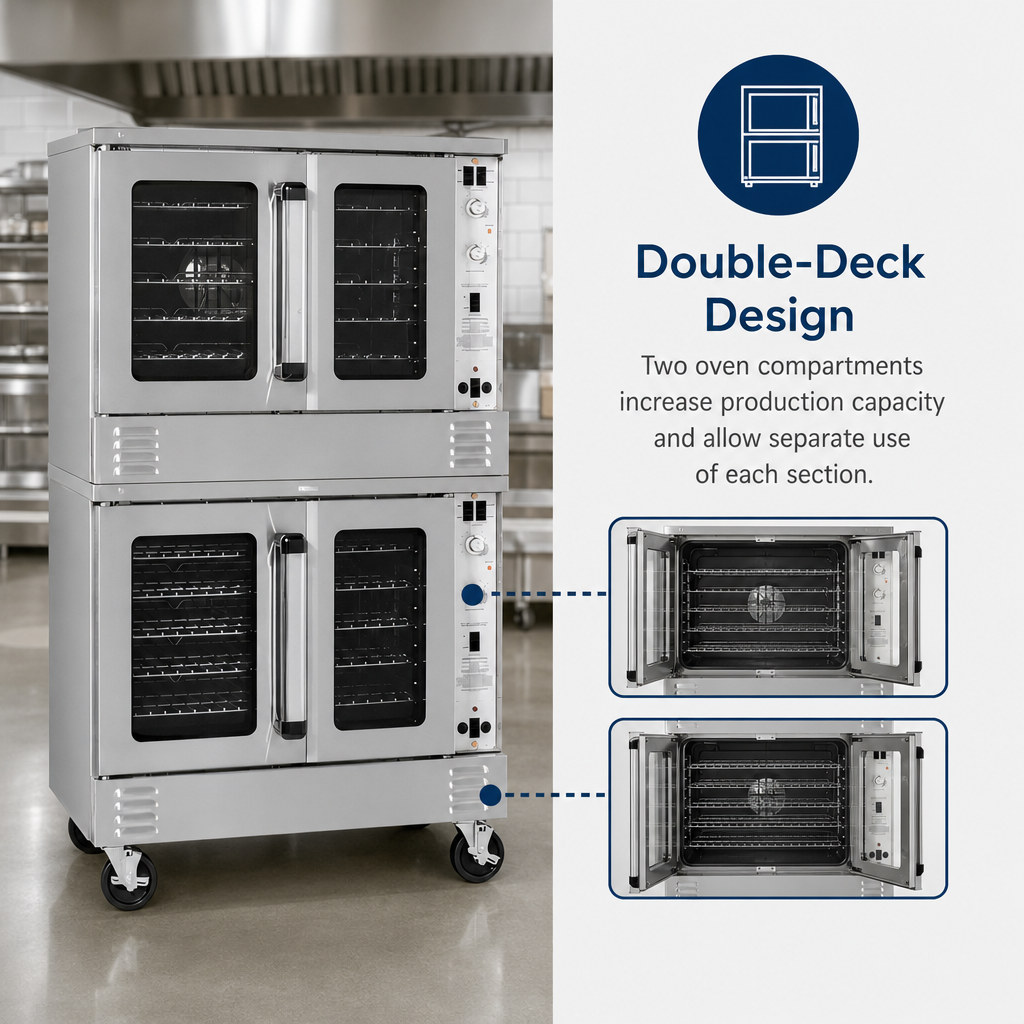

Southbend Platinum Series PCG100B/S Double-Deck Gas Convection Oven
Bakery Depth • 50,000 BTU per deck • Standard Controls • Independent DoorsBuilt for high-volume bakeries, restaurants and institutions, the Southbend Platinum Series PCG100B/S delivers powerful, even heat in a space-saving double-deck footprint. Each 29″-deep bakery cavity is driven by a patented 50,000 BTU in-shot burner and a two-speed Soft-Air fan that blankets every rack with uniform convection for perfectly browned breads, pastries, roasts and more—batch after batch.
Why You’ll Love It
- 100,000 BTU total output from patented, non-clog in-shot burners.

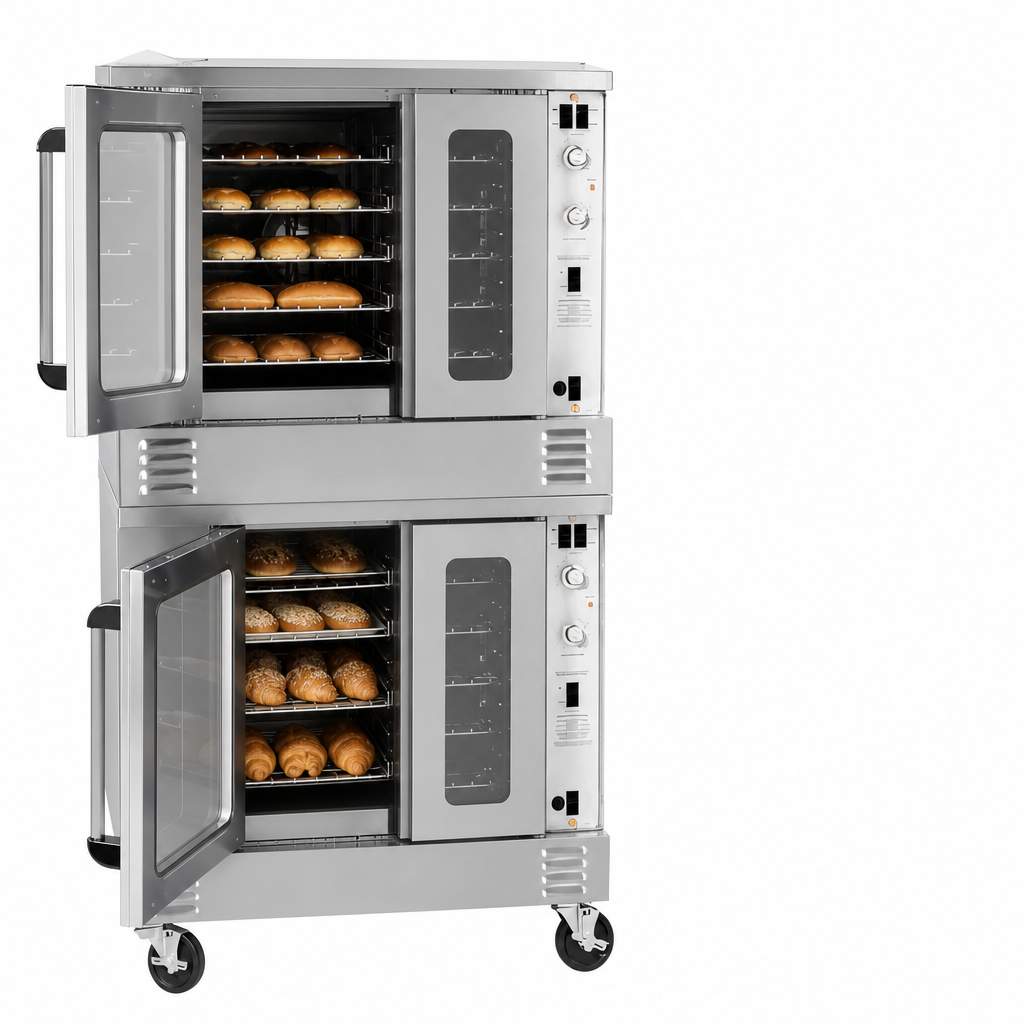

- Independent, full-view doors swing a full 180° for safe loading and unloading.
- Standard solid-state controls: 140 °F–500 °F thermostat plus 60-minute mechanical timer.
- Plug-in/slide-out control panel simplifies service and minimizes downtime.
- 11-position rack guides with 5 heavy-duty racks included per oven.
- Stay-cool stainless door handles & dual door seal system lock in heat while saving energy.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Forced cool-down mode speeds turnover between bakes.
- Bright recessed halogen lights keep product visible without opening the doors.
Built for the Rush
- 1/2 HP, two-speed fan motor (1710/1120 RPM) eliminates hot spots.
- Electronic ignition with flame-safety device for reliable, instant starts.
- Stainless steel front, sides and top stand up to daily commercial abuse.
- 6″ stainless legs standard; optional 4″ or 6″ locking casters available.
At-a-Glance Specs
| Model | PCG100B/S (Independent Doors) |
|---|---|
| Decks / Depth | 2 decks • 29″ bakery depth |
| Heat Source | Natural or LP gas – 50,000 BTU per deck (100,000 BTU total) |
| Temperature Range | 140 °F – 500 °F |
| Controls | Solid-state thermostat & 60-min. timer |
| Interior Dimensions (W × D × H) | 29″ × 29″ × 20″ per deck |
| Overall Dimensions (W × D × H) | 43.5″ × 36.5″ × 66.8″ |
| Rack Positions / Racks Supplied | 11 per deck • 5 racks included |
| Fan Motor | 1/2 HP, two-speed |
| Gas Connection | 3/4″ NPT female, 7″ W.C NAT / 11″ W.C LP |
| Electrical | 120 V, 60 Hz, 1-phase, 7.9 A per deck (NEMA 5-15P cord & plug) |
| Shipping Weight | Approx. 1,180 lb |
| Warranty | 1-year parts & labor |
Included with Your Oven
- (10) Nickel-plated wire racks (5 per cavity)
- (2) 6″ stainless steel leg assemblies
- User & installation manual
- Factory one-year limited warranty
Popular Factory Options (Sold Separately)
- 4″ or 6″ locking caster kits
- Stainless steel interior liner
- Stainless solid doors
- Marine-edge top, down-draft diverter or rear jacket
- Quick-disconnect gas hose with restraining device
Warranty & Service
Southbend backs every Platinum Series oven with a 1-year limited parts and labor warranty and a nationwide network of authorized service agencies. Extended coverage is available—ask your rep for details.
Need help configuring utility connections, options or accessories? Chat with our equipment specialists or click “Ask a Question” above—we’re here to help.
