Southbend (Middleby) PCG100B/SD Platinum Convection Ovens
Description

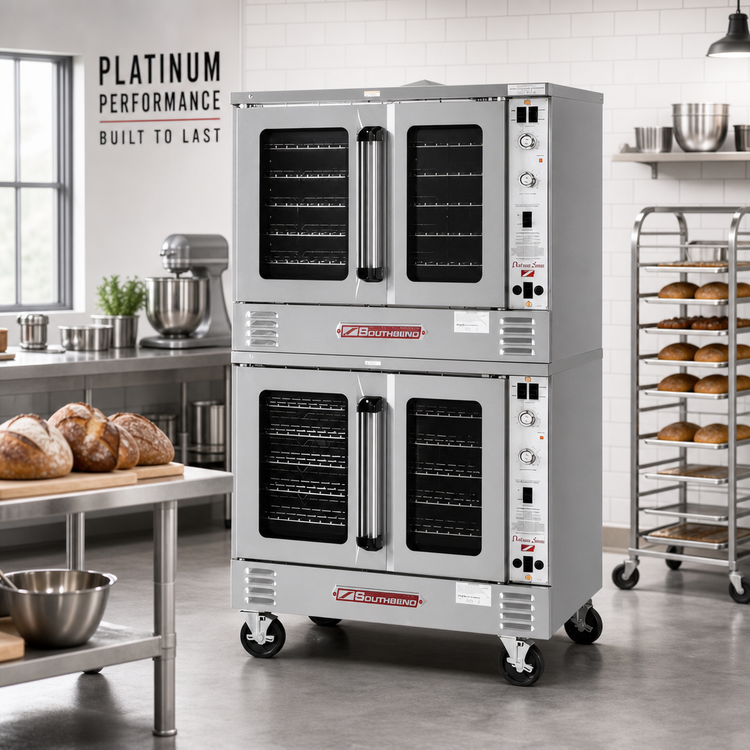

Southbend Platinum Series Double-Deck Convection Oven – Bakery Depth
Model PCG100B/S • Gas • 50,000 BTU per deck • Standard Controls • Dependent Glass DoorsEngineered for high-volume bakeries, restaurants, and institutional kitchens, the Southbend Platinum PCG100B/S delivers powerful, even heat in a service-friendly, energy-efficient package. Two 50,000 BTU Jet-Stream burners, a dual-speed “Soft Air” fan, and a spacious bakery-depth cavity ensure beautifully consistent results, batch after batch.
Performance & Construction Highlights
- Patented non-clog Inshot burners – 50,000 BTU each (100,000 BTU total).

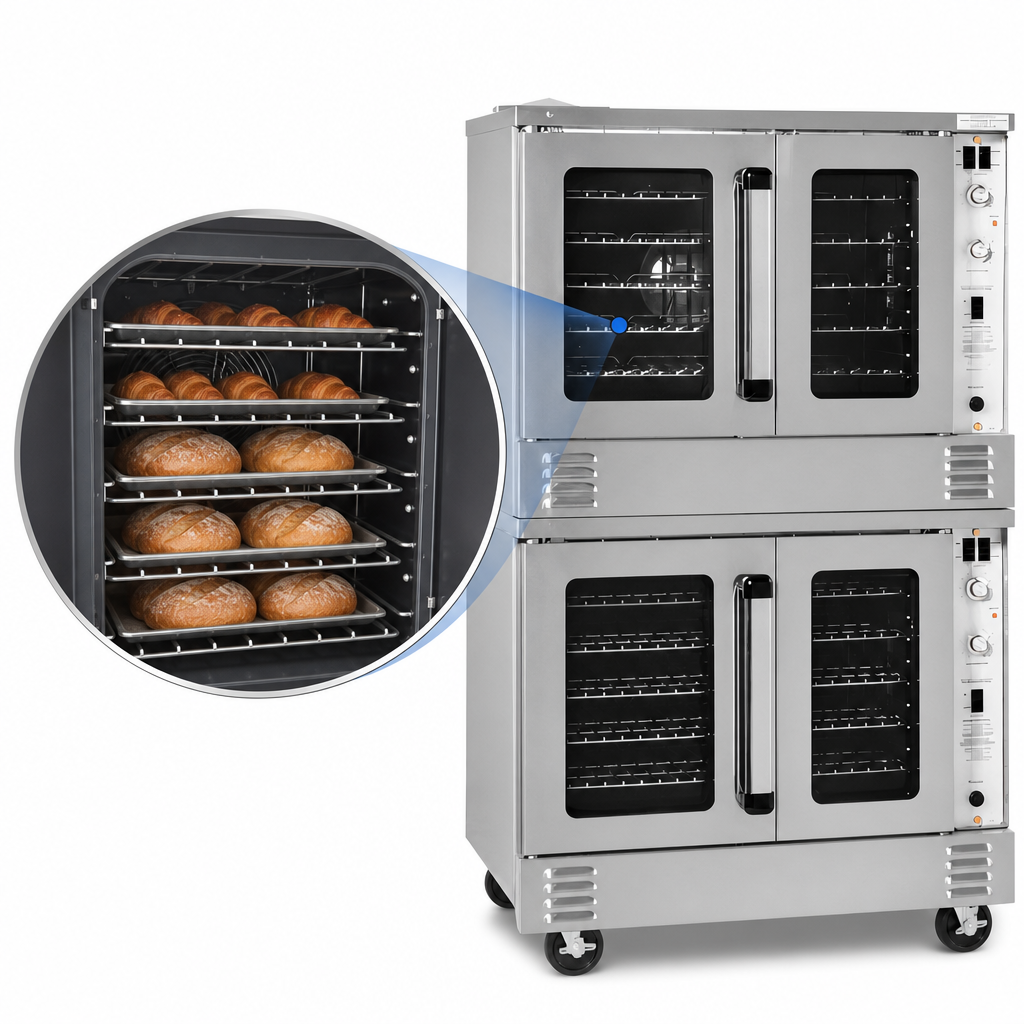

- Full 29″ bakery-depth cavity fits standard sheet pans front-to-back.
- Solid-state thermostat (140 – 500 °F) with 60-minute mechanical timer.
- ½ hp two-speed “Soft Air” fan motor for gentle or rapid convection.
- Dependent, low-emissivity glass doors open a full 180°; stay-cool handles.
- “Plug-in, plug-out” slide-out control panel for fast, front-access service.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- 11 rack positions • 5 plated racks supplied per deck.
- Electronic hot-surface ignition with flame-failure safety device.
- Forced cool-down fan mode protects components between bakes.
- Bright, recessed interior lights enhance visibility without opening doors.
- Durable stainless-steel front, sides, top, and 6″ adjustable legs.
Specifications
| Series / Model | Platinum PCG100B/S |
|---|---|

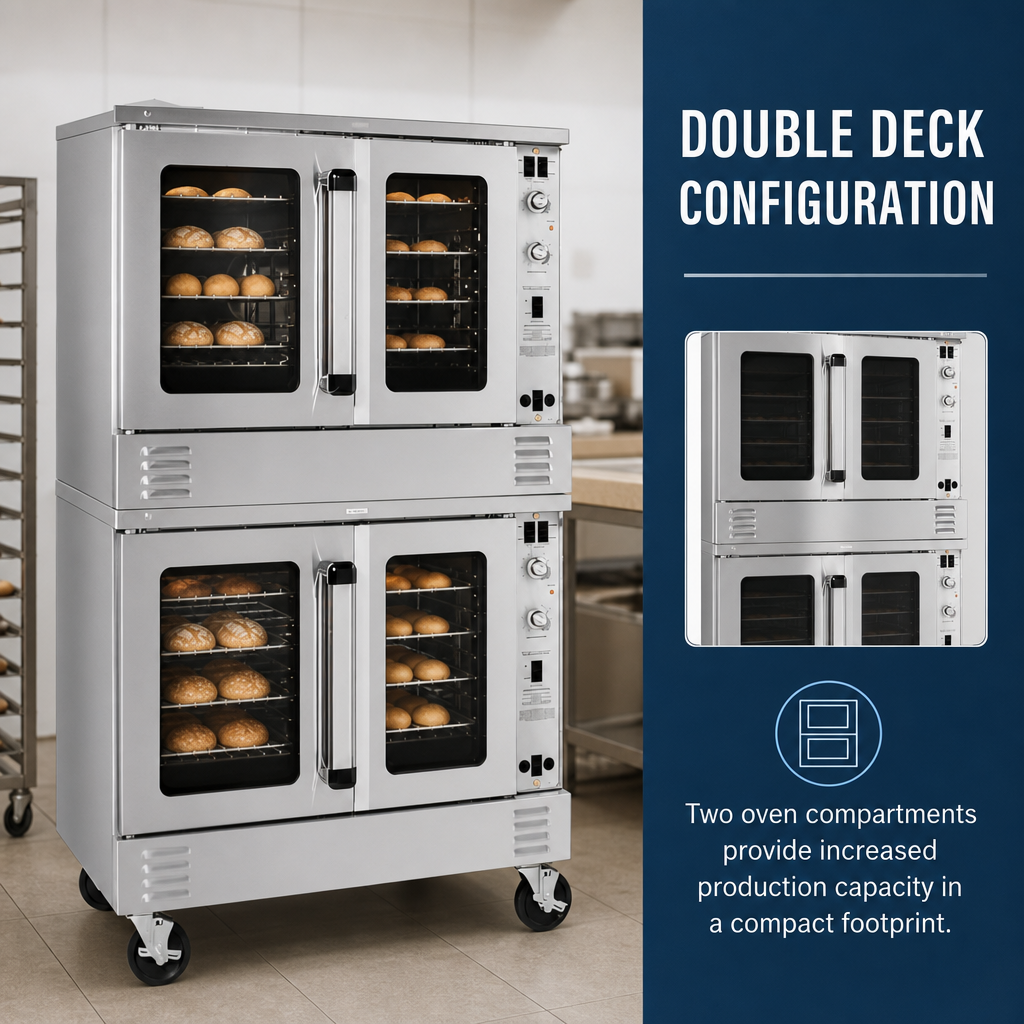

| Configuration | Double deck, bakery depth |
| Fuel | Natural or LP gas – 50,000 BTU/hr per deck |
| Controls | Standard solid-state thermostat & 60-min timer |
| Interior (per deck) | 29″ W × 29″ D × 20″ H porcelain cavity |
| Racks Supplied | 5 racks, 11 positions |
| Fan Motor | ½ hp, two-speed (1,710 / 1,120 RPM) |
| Gas Connection | ¾″ NPT female • 7″ W.C. Natural • 11″ W.C. LP |
| Electrical | 120 V / 60 Hz / 1-Ph, 7.9 A per deck, NEMA 5-15P cord |
| Overall Dimensions | ≈ 43.5″ W × 36.5″ D × 66.8″ H |
| Shipping Weight | 1,180 lb (535 kg) |
| Warranty | 1-year parts & labor (see details) |
Built-In Advantages
- Industry-leading efficiency reduces gas consumption and utility costs.
- Heavy-gauge stainless construction and full-length door hinges extend service life.
- Serviceability first – front-mounted components minimize downtime.
- NSF & CSA certified for dependable performance in any commercial kitchen.
Looking for touchscreen controls, independent doors, casters, or marine edge tops? Reach out to our team for custom configurations and factory-approved accessories.
