Southbend (Middleby)  |  Platinum  |  SKU: PCE75S/TI-V

Southbend (Middleby) PCE75S/TI-V Platinum Convection Ovens

$8,367.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Platinum Series Ventless Single Convection Oven – 7.5 kW, Touchscreen, Independent Doors

Southbend (Model PCE75B/T-ID) • CSA • NSF • ENERGY STAR®

Take your bake anywhere! Southbend’s Platinum Series 7.5 kW electric convection oven pairs hood-free operation with smart touchscreen controls and rugged stainless-steel construction, giving restaurants, bakeries and mobile kitchens the freedom to bake, roast and re-therm in virtually any location.

Built-in Advantages

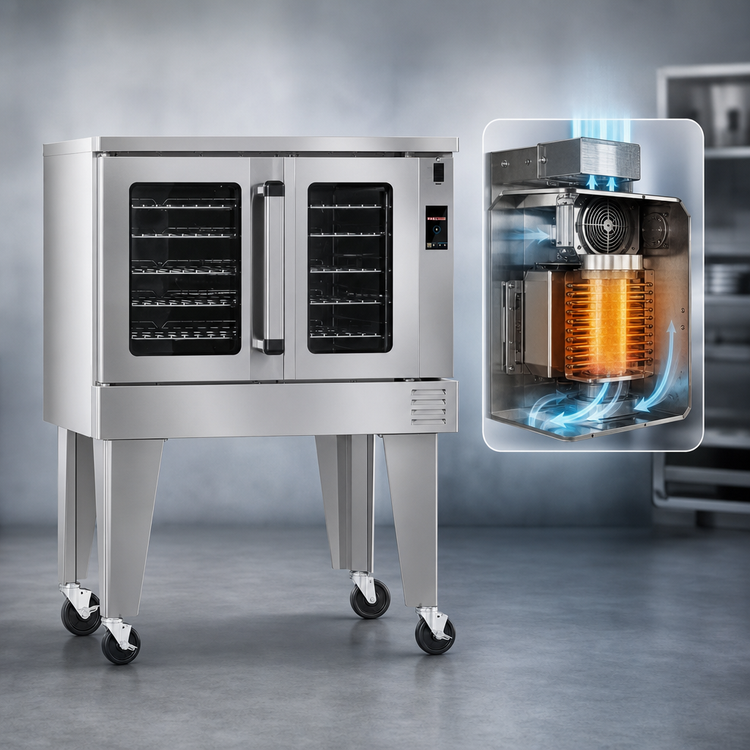

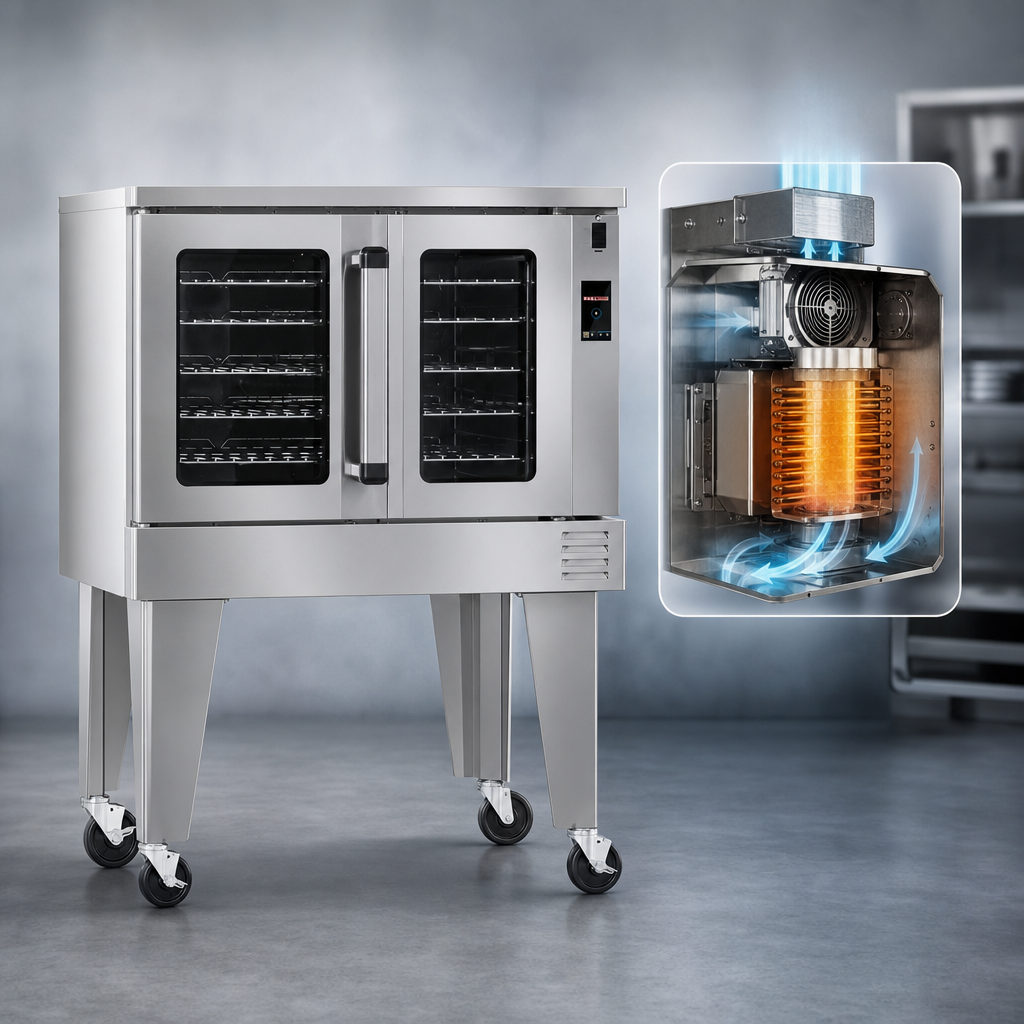

  • Ventless internal catalyst (UL-certified) — eliminates the need for a Type 1 hood*
  • ENERGY STAR® qualified 7.5 kW heating elements for lower utility costs
  • Independent, split glass doors with full 180° swing reduce heat loss & save aisle space
  • 11-position rack system with 5 nickel-plated racks included
  • Two-speed ½ hp fan (1710/1120 RPM) delivers rapid, even airflow
  • “Plug-in, plug-out” slide-out control panel simplifies service and upgrades
  • Stay-cool tubular door handles & dual door seals for operator comfort
  • Coved, fastener-free porcelain interior wipes clean in seconds
  • Forced cool-down mode accelerates turnaround between batches

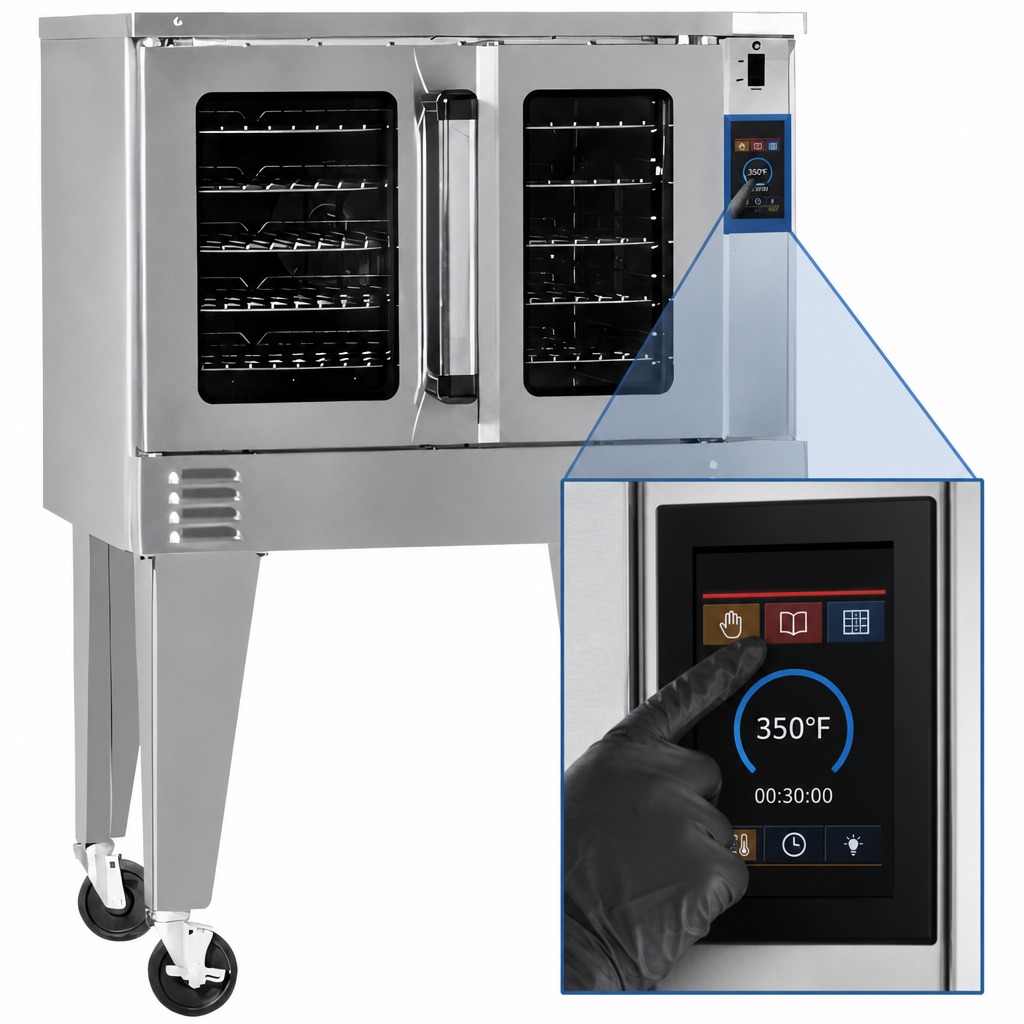

Smart Touch Controls

  • Temperature range 150 °F – 550 °F + 140 °F – 200 °F “Hold” mode
  • Manual, recipe or rack modes — cook multiple items on different timers simultaneously
  • Fan pulse timer for delicate bakes
  • Bright digital display shows remaining time & cavity temperature at a glance

Specifications

Power Electric, 7.5 kW heating elements
Voltage / Phase 208, 240, 380, 415 or 480 V; single or 3-phase (specify)
Amps @ 240 V 1-ph 31.3 A (controls add ≤ 4.3 A)
Exterior (W × D × H) 43.5″ × 36.5″ × 55″ (on 26″ legs; casters optional)
Oven Interior 29″ W × 29″ D × 20″ H • Standard-depth
Rack Capacity 11 positions / 5 included racks
Fan Motor ½ hp, 2-speed
Door Type Independent double-pane low-E glass, 180° opening
Construction Stainless steel front, sides & top; porcelain enamel cavity
Certifications CSA, NSF, ENERGY STAR®
Warranty 1-year parts & labor (commercial use)

What’s Included

  • Five oven racks & 11 removable rack guides
  • Stainless steel triangular 26″ legs
  • User & installation manual

Popular Factory Options

  • 4″ or 6″ locking casters
  • Marine-edge top
  • Stainless solid doors or rear jacket
  • Export crating
Important: Ventless operation is UL-certified, but always verify local codes before installation. This appliance is intended for commercial use only.

*Independently tested ventless catalyst removes grease & particulate to meet emissions standards; a dedicated hood may still be required for other equipment in the cook line.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, ENERGY STAR

Height

55.0in

Width

38.0in

Depth

37.25in

Shipping Weight

620.0lbs

Type

standard

Deck Qty

1 deck

Size

full/standard size

Specifications

Platinum Single Convection Oven, Electric 7.5kW, Standard Depth, Touch Controls, Independent Doors, Ventless, CSA, NSF, ENERGY STAR®
